Images from RETAIL item, box contents may vary.

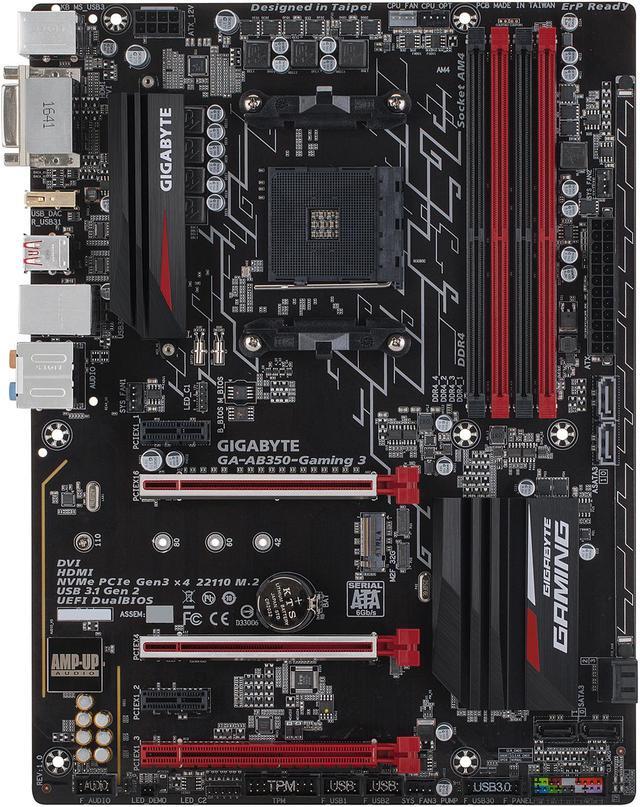

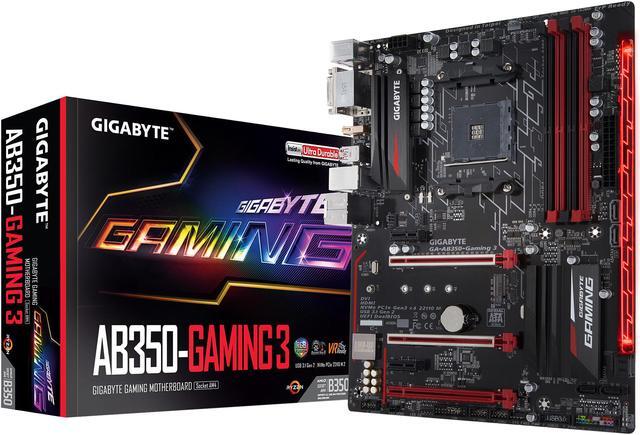

GIGABYTE GA-AB350-GAMING 3 (rev. 1.0) AM4 AMD B350 USB 3.1 HDMI ATX AMD Motherboard
OPEN BOX Product Type
- AMD B350
- Support for AMD Ryzen 2nd Generation / Ryzen with Radeon Vega Graphics / Athlon with Radeon Vega Graphics / Ryzen 1st Generation / 7th Generation A-series/Athlon X4 Processors
- DDR4 3200(O.C.)/ 2933(O.C.)/ 2667/ 2400/ 2133
Specs
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the GIGABYTE GA-AB350-GAMING 3 (rev. 1.0)
| Brand | GIGABYTE |
|---|---|
| Model | GA-AB350-GAMING 3 (rev. 1.0) |
| CPU Socket Type | AM4 |
|---|---|
| CPU Type | AM4 Socket: Support for AMD Ryzen 2nd Generation / Ryzen with Radeon Vega Graphics / Athlon with Radeon Vega Graphics / Ryzen 1st Generation / 7th Generation A-series/Athlon X4 Processors |
| Chipset | AMD B350 |
|---|
| Number of Memory Slots | 4x288pin (DDR4) |
|---|---|
| Memory Standard | DDR4 3200(O.C.)/ 2933(O.C.)/ 2667*/ 2400/ 2133 * Support for higher than DDR4 2667 MHz may vary by CPU. |
| Maximum Memory Supported | 64GB * Due to a Windows 32-bit operating system limitation, when more than 4GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed. |
| Channel Supported | Dual Channel |
| PCI Express 3.0 x16 | 1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. * Actual support may vary by CPU. (The PCIEX16 slot conforms to PCI Express 3.0 standard.) |
|---|---|
| PCI Express 2.0 x16 | 1 x PCI Express x16 slot, running at x4 (PCIEX4) * The PCIEX4 slot shares bandwidth with the PCIEX1_2 and PCIEX1_3 slots. The PCIEX4 slot operates at up to x2 mode when the PCIEX1_2/PCIEX1_3 slot is populated. The PCIEX4 slot operates at up to x4 mode when both of the PCIEX1_2 and PCIEX1_3 slots are empty. * Actual support may vary by CPU. 1 x PCI Express x16 slot, running at x1 (PCIEX1_3) |
| PCI Express x1 | 2 x PCI Express x1 slots (The PCIEX4 and PCI Express x1 slots conform to PCI Express 2.0 standard.) |
| Serial ATA (SATA) | 6 x SATA 6Gb/s |
|---|---|
| M.2 | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4*/x2 SSD support) * Actual support may vary by CPU. |
| SATA RAID | 0/1/10 |
| Onboard Video Chipset | Supported only by CPU with integrated graphic: 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x2160@24Hz * Support for HDMI 1.4 version. Maximum shared memory of 2GB * Actual support may vary by CPU. |
|---|
| Audio Chipset | Realtek ALC1220 |
|---|---|
| Audio Channels | 2/4/5.1/7.1-channel Support for S/PDIF Out |
| LAN Chipset | Realtek GbE LAN chip |
|---|---|
| Max LAN Speed | 1Gbps |

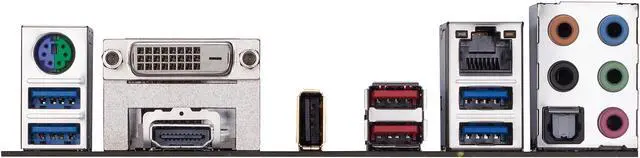

| PS/2 | 1 x PS/2 keyboard/mouse port |
|---|---|
| Video Ports | 1 x DVI-D port |
| HDMI | 1 x HDMI |
| RJ45 | 1 x RJ45 |
| USB 3.1 | 4 x USB 3.1 Gen 1 ports 2 x USB 3.1 Gen 2 Type-A ports (red) |
| USB 1.1/2.0 | 1 x USB 2.0 |
| S/PDIF Out | 1 x Optical |
| Audio Ports | 5 x audio jacks (Center / Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In) |
| Onboard USB | 1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers |
|---|---|
| Other Connectors | 1 x CPU fan header 1 x water cooling CPU fan header 2 x system fan headers 1 x system fan/water cooling pump header 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x Trusted Platform Module (TPM) header 1 x CPU cooler LED strip/RGB LED strip extension cable header 1 x RGB (RGBW) LED strip extension cable header 1 x Clear CMOS jumper |
| Form Factor | ATX |
|---|---|
| LED Lighting | RGB |
| Dimensions (W x L) | 12.0" x 9.1" |
| Power Pin | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector |
| Features | Multi-Graphics Technology: Support for 2-Way AMD CrossFire Technology * Actual support may vary by CPU. I/O Controller: iTE I/O Controller Chip H/W Monitoring: Voltage detection Temperature detection Fan speed detection Overheating warning Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. BIOS: 2 x 128 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features: Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS 3D OSD AutoGreen BIOS Setup Cloud Station Color Temperature EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup Smart Keyboard Smart TimeLock System Information Viewer USB Blocker USB DAC UP 2 V-Tuner Support for Q-Flash Support for Xpress Install Bundled Software: Norton Internet Security (OEM version) cFosSpeed Operating System: Support for Windows 10 64-bit Support for Windows 7 64-bit * To support Windows 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU. * Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7. |
|---|
| Date First Available | August 09, 2017 |
|---|
