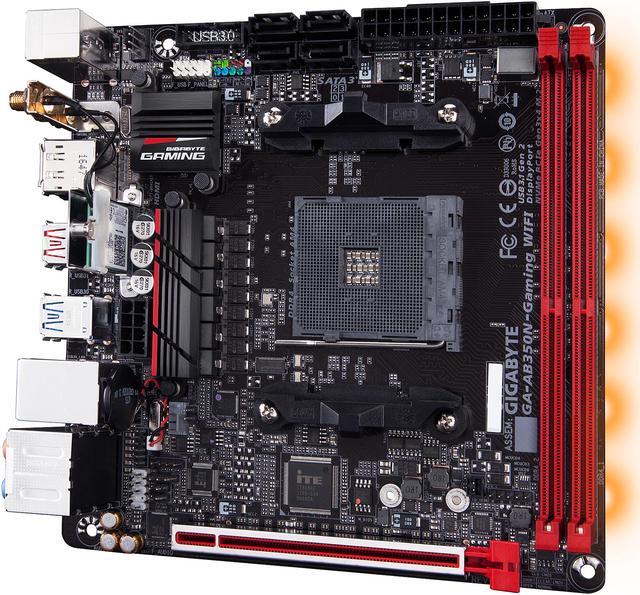

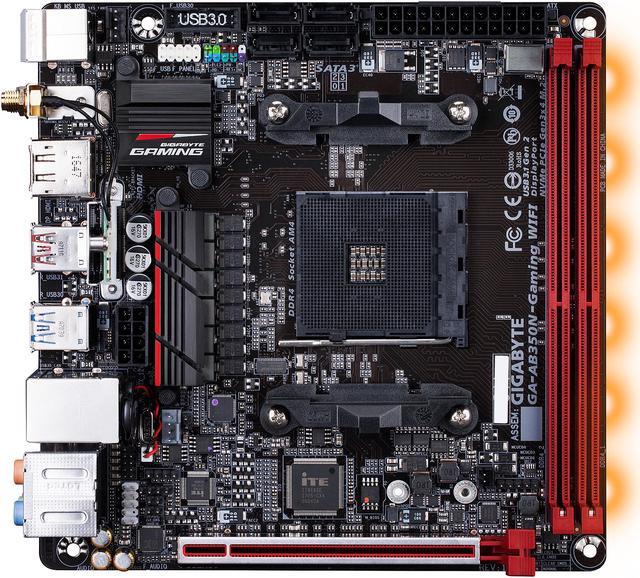

Gigabyte GA-AB350N-Gaming WIFI (rev. 1.0) mini ITX motherboard
A solid cornerstone for your little powerhouse based on AMD AM4 processor
Based on AMD B350 chipset, the GIGABYTE GA-AB350N-Gaming WIFI motherboard works flawlessly with the ground-breaking AMD Ryzen processor. In addition to a PCIe x16 slot and two DDR4 slots, it fits an M.2 connector (PCIe Gen3 x4 & SATA), two USB 3.1 Gen2 ports (10Gbps), as well as Wi-Fi & Bluetooth module into its compact footprint. Studio-quality sound is made possible, thanks to ALC 1220 HD Audio Codec and premium audio capacitors. It also supports RGBW LED strips and an RGB Fusion app allows you to customize the rig to make it uniquely yours.
Optimal Support for AMD Wraith Max CPU Cooler and DRAM Modules
To ensure the best performance and compatibility, GIGABYTE has allotted additional spacing between the CPU Socket and the DIMM Slots. This gives ample room for airflow while preventing any bending, as well as making room for larger heatsinks on DRAM Modules when paired with large air coolers.
Set the Color that Matches Your Style
GIGABYTE's motherboards boast the most advanced LED system in the market today. With more customizability than ever and a convenient and intuitive UI thanks to the RGB Fusion App, you’ll have a blast making your GIGABYTE your own. LED enthusiasts now have even more options with the ability to customize multiple zones independently. For a more functional use, the bright and vibrant LEDs can be configured to display the PC’s temperature or load. For even more LED goodness RGBW strips are now supported for more true and vibrant whites.
Multi-Zone Light Show Design
* Lighting zone, programmable sections, wave mode may vary by model.
GIGABYTE RGB Fusion APP
Don't just make your PC shine, make it a work of art that friends will envy. With the GIGABYTE RGB Fusion mobile app users can watch as they control the lighting within their gaming PC. This gives users ease of access as they try and adjust colors and speeds for different modes, all this can be done away from the keyboard and monitor of their PC.
Now offering more LED customizations than ever, users can truly adapt their PC to represent their lifestyle. With full RGB support and a redesigned RGB Fusion application, the user has complete control over the LEDs which surround the motherboard.
Supports RGBW & -UV Light Strips
Two Onboard Pin Headers for LED Strips
GIGABYTE Motherboards support external RGB, RGBW or RGB/UV light strips on the RGBW pin header and control its color from the RGB Fusion software. By implementing RGBW or RGB/UV LED strips users can have brighter whites and vibrant colors or generate a fluorescent glow, respectively.
No need to worry when choosing light strips as GIGABYTE motherboards support a wide variety of RGBW/-UV light strips on the market thanks to the RGB Fusion software that allows users to redefine the pin location for the R/G/B Signal.
RGB Fusion (Advanced mode)
With the all new RGB Fusion software, users have access to different preset LED lighting configurations with choice of colors. You can even set the LEDs to synchronize with your favorite music or have them change colors to indicate the CPU temperature. For true lighting experts there is an Advanced Mode, which can be fully customized by individual area with its own effects and color transitions, along with specific duration and transition times. Once done, it’s simple to save and share your lighting profile with others.
Smart Fan 5
With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.
All Hybrid Fan Pin Headers
New Smart Fan 5 Software
Choose from different modes, Quiet to Full Speed, to match your system usage scenario. For each fan or pump, you can use the intuitive fan curve to define trigger thresholds and corresponding fan speeds.
Interoperable Sensors and Fans
Each fan can be customized to operate at different speeds according to any defined temperature source input (except the CPU fan).
Customize fan curves based on specific temperatures with the intuitive graphical UI.
Enhanced BIOS Interface
The enhanced BIOS interface also has the advanced features seen in the Smart Fan 5 UI, such as: the ability to set triggers based on different temperature sensors on the board, fan curve definition and the temperature interval setting, which can prevent fan rotation noise caused by sudden temperature change—all without having to load Windows.
Server-Class Digital Power Design
GIGABYTE motherboards use an all digital CPU power design from International Rectifier which includes both 4th Generation digital PWM Controllers and industry-leading 3rd Generation PowIRstage controllers. These 100% digital controllers offer incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components, allowing enthusiasts to get the absolute maximum performance from their new AMD Ryzen CPU.
IR Digital PWM & IR PowIRstage ICs
This new generation of IR digital power controllers and PowIRstage ICs feature Isense technology, which provide more precise current sensing accuracy. This helps evenly distribute the thermal loading between the PowIRstage ICs, preventing the overheating of each individual PowIRstage, resulting in longer lifespan and better reliability.
Server Level Chokes
GIGABYTE motherboards feature Server Level Chokes.
ALC 1220 120dB SNR HD Audio with Smart Headphone Amp
The ALC1220 is a high-performance multi-channel High Definition Audio Codec with up to 120dB SNR for crystal clear audio and features such as Smart Headphone Amp, 114dB SNR recording for precise voice chats and hardware decoding of DSD128, ensuring users get the best possible audio quality from their PC.
Smart Headphone Amp
Automatically detects impedance of your head-worn audio device, whether earbuds or high-end headphones to provide optimal audio dynamics—preventing issues such as low volume and distortion.
High-End Audio Capacitors
GIGABYTE Gaming motherboards use high-end Chemicon audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.
Realtek GbE LAN with cFosSpeed Internet Accelerator Networking
Realtek GbE LAN features cFosSpeed, a network traffic management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.
Fast Onboard Storage with NVMe PCIe Gen3 x4 2280 M.2 (Up to 32 Gb/s)
GIGABYTE’s M.2 solution offers considerably faster storage performance and support for both PCIe and SATA interfaces for M.2 SSD devices.
Faster and Better Coverage with Intel Dual Band 802.11ac WIFI+BT 4.2 Module
The onboard 802.11ac WIFI module from Intel supports up to 433 Mbps, 3x faster WIFI speed than 802.11n and also support BLUETOOTH 4.2.
Fast USB 3.1 Gen 2 Solution
The latest USB 3.1 Gen 2 offers staggering 10Gb/s transfer speeds. 2x faster than USB 3.1 Gen 1 along with backwards compatibility with existing USB devices.
Immersive VR Gaming Experience
> VR requires more performance than Full HD graphics for a steady 90FPS or greater.
> Only Gaming PCs can provide the best VR experience.
GIGABYTE Exclusive Double Locking Bracket
Anti-Sulfur Resistor Design
Sulfur compounds in the air can penetrate tiny onboard resistors creating chemical change and causing these resistors to open or short. If either of these occurs the motherboard will fail to function. By equipping resistors with an Anti-Sulfur Design GIGABYTE gives Ultra Durable Motherboards a whole new meaning.
Refreshed BIOS Easy, Smart, and Friendly
The BIOS is essential for users during initial setup to allow for the most optimal settings. With a new GUI and easier to use functionalities, GIGABYTE has been able to reinvent the BIOS to give users a better experience while setting up their new system.
GIGABYTE APP Center
The GIGABYTE APP Center gives you easy access to a wealth of GIGABYTE apps that help you get the most from your GIGABYTE motherboard. Using a simple, unified user interface, GIGABYTE APP Center allows you to easily launch all GIGABYTE apps installed on your system, check related updates online, and download the latest apps, drivers, and BIOS.
GIGABYTE's EasyTune is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment. With Smart Quick Boost, one click is all it takes to automatically overclock your system, giving an added performance boost when you need it the most.
System Information Viewer
GIGABYTE System Information Viewer is a central location that gives you access to your current system status. Monitor components such as the clocks and processor, set your preferred fan speed profile, create alerts when temperatures get too high or record your system’s behavior; these are the possibilities of the System Information Viewer.
The GIGABYTE @BIOS app allows you to update your system’s BIOS from within Windows using a simple and slick graphical user interface. @BIOS can automatically download the latest version from the GIGABYTE servers or you can update your BIOS from a file on your computer. @BIOS also allows you to save your current BIOS to a file, recover your previous BIOS from an image and backup your BIOS to an image.
3D OSD automatically detects and displays your system information during games, allowing you to easily get a hold of your system information without switching between screens.
4K Ultra HD Support
4K resolution is the next technological milestone in high-definition content delivery, utilizing approximately 4,000 pixels on the horizontal axis, more than four times today's standard HD pixel density. GIGABYTE motherboards provide native 4K support with integrated AMD Radeon Graphics via HDMI.
HDMI - The Next Generation Multimedia Interface
HDMI is a High-Definition Multimedia Interface which provides up to 5Gb/s video transmitting bandwidth and 8-channel high quality audio all through a single cable. Able to transmit superior, uncompressed digital video and audio, HDMI ensures the crispest rendering of digital content up to 1080p without the quality losses associated with analog interfaces and their digital-to-analog conversion. In addition, HDMI is compatible with HDCP (High-bandwidth Digital Content Protection), allowing the playback of Blu-ray/HD DVD and other protected media content.
XSplit Gamecaster + Broadcaster: Cast Your Game Anytime, Anywhere
Now set up your stage and share the greatest gaming moments with XSplit Gamecaster + Broadcaster! Fully optimized social media integration is ready for real-time chats—keeping you notified yet focused in the game. It takes just one click to stream your gameplay to Twitch. Host your game like a pro!
* Free 14 days XSplit Gamecaster + Broadcaster Premium License.
TriDef SmartCam | Custom Stream Modding
To facilitate being the full streaming solution each GIGABYTE motherboard includes TriDef SmartCam software, you are now able to remove backgrounds without the hassle of using a green screen. Through the SmartCam application you can now apply live filters, and fully control your background, not only while streaming, but also through other video applications such as Skype.
* Free 1 month TriDef SmartCam License.
