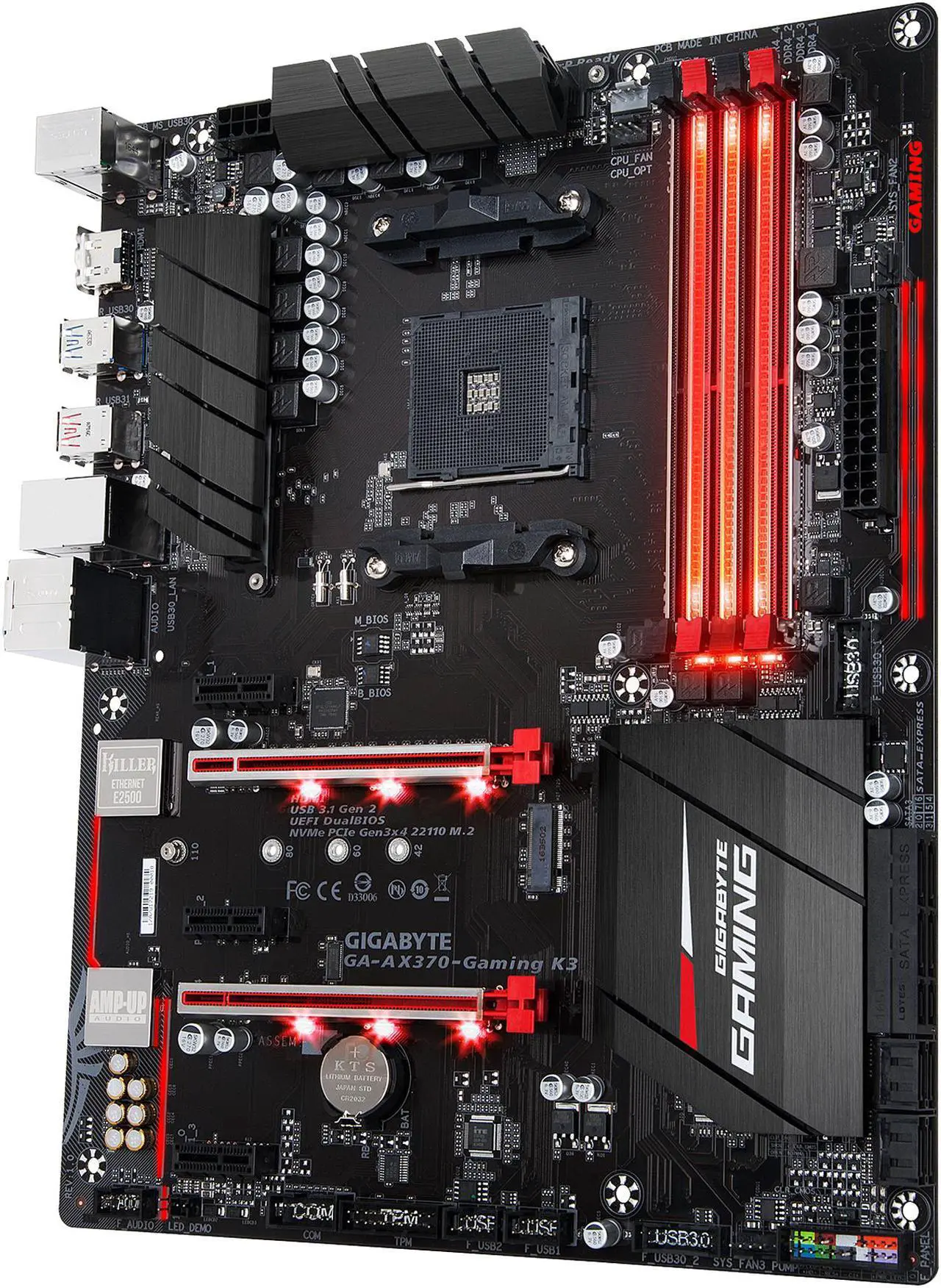

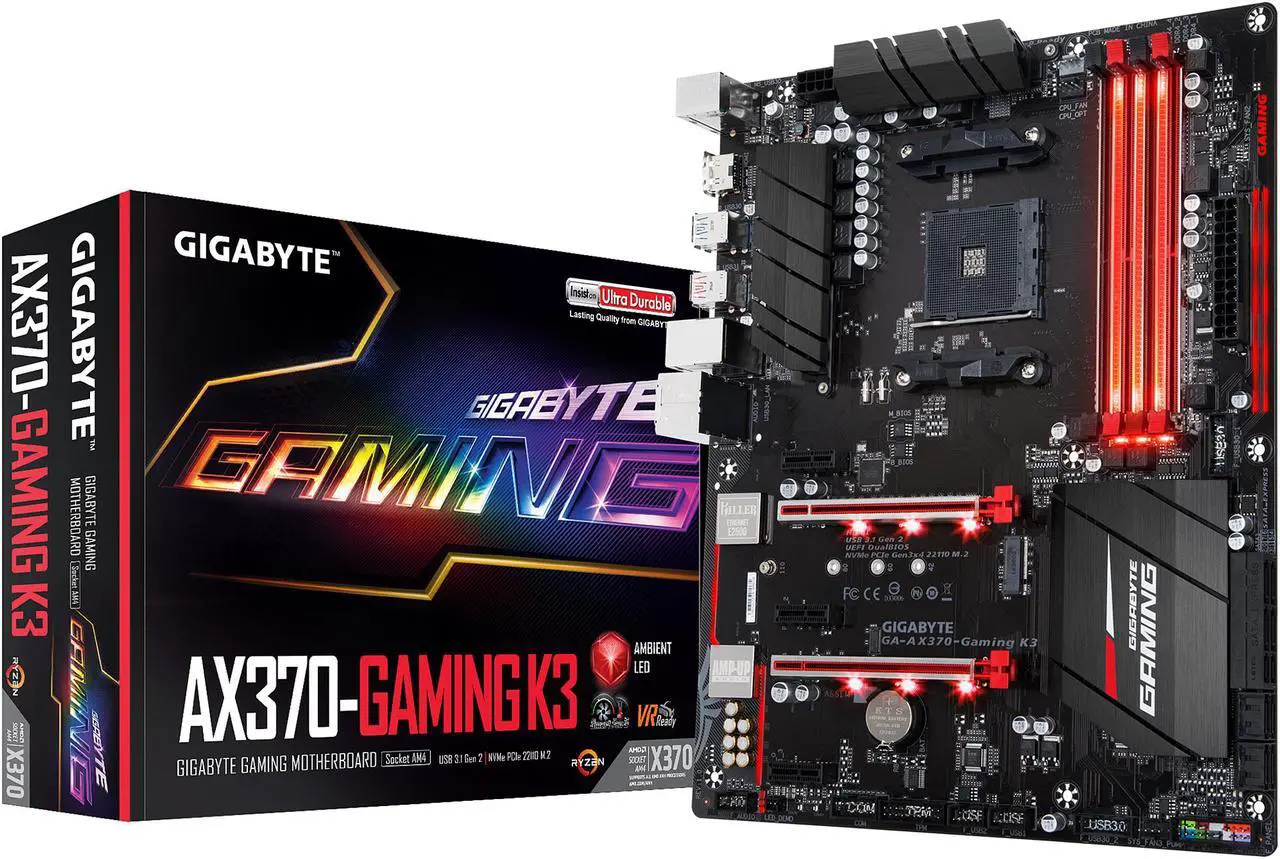

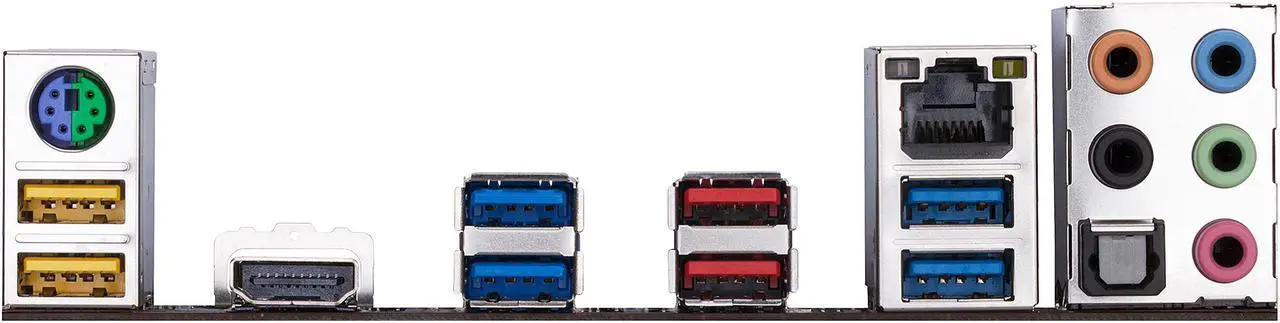

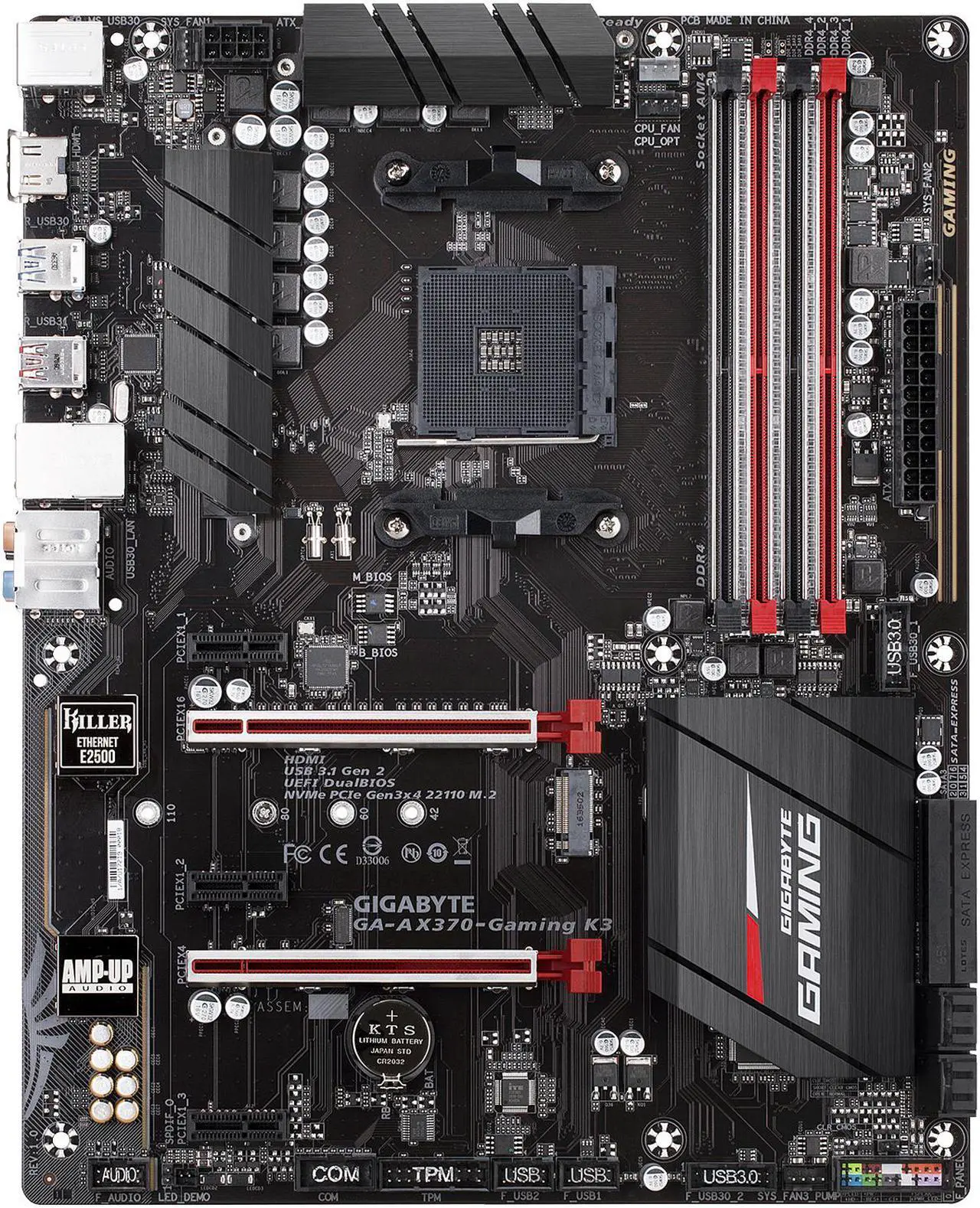

GIGABYTE GA-AX370-Gaming K3 (rev. 1.0) AM4 AMD X370 USB 3.1 HDMI ATX AMD Motherboard

Smart Fan 5

With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.

• Fan pin header
• Internal Temperature sensor
  Different models have different number of fan pin headers and temperature sensors Smart Fan 5 function may vary by model

• 5 Fan/Water Pump Connectors
• 6 Temperature Sensors
• All Fan Pin Headers Upgraded to Hybrid Fan Headers
• Supports High Current Fans up to 24W (2Ax12V) with Over-Current Protection
• Intuitive UI for Fan Control

All Hybrid Fan Pin Headers

• All Hybrid Fan Headers can automatically detect the type of cooling device whether it be fan or pump with different PWM or Voltage mode.
• Supports up to 2 amps with built-in overcurrent protection—a must for high-end high current fans.

New Smart Fan 5 Software

Choose from different modes, Quiet to Full Speed, to match your system usage scenario. For each fan or pump, you can use the intuitive fan curve to define trigger thresholds and corresponding fan speeds.

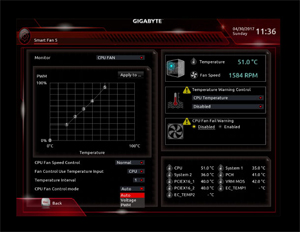

Enhanced BIOS Interface

The enhanced BIOS interface also has the advanced features seen in the Smart Fan 5 UI, such as: the ability to set triggers based on different temperature sensors on the board, fan curve definition and the temperature interval setting, which can prevent fan rotation noise caused by sudden temperature change—all without having to load Windows.

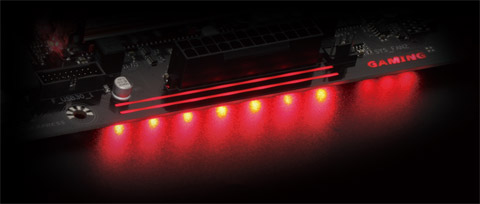

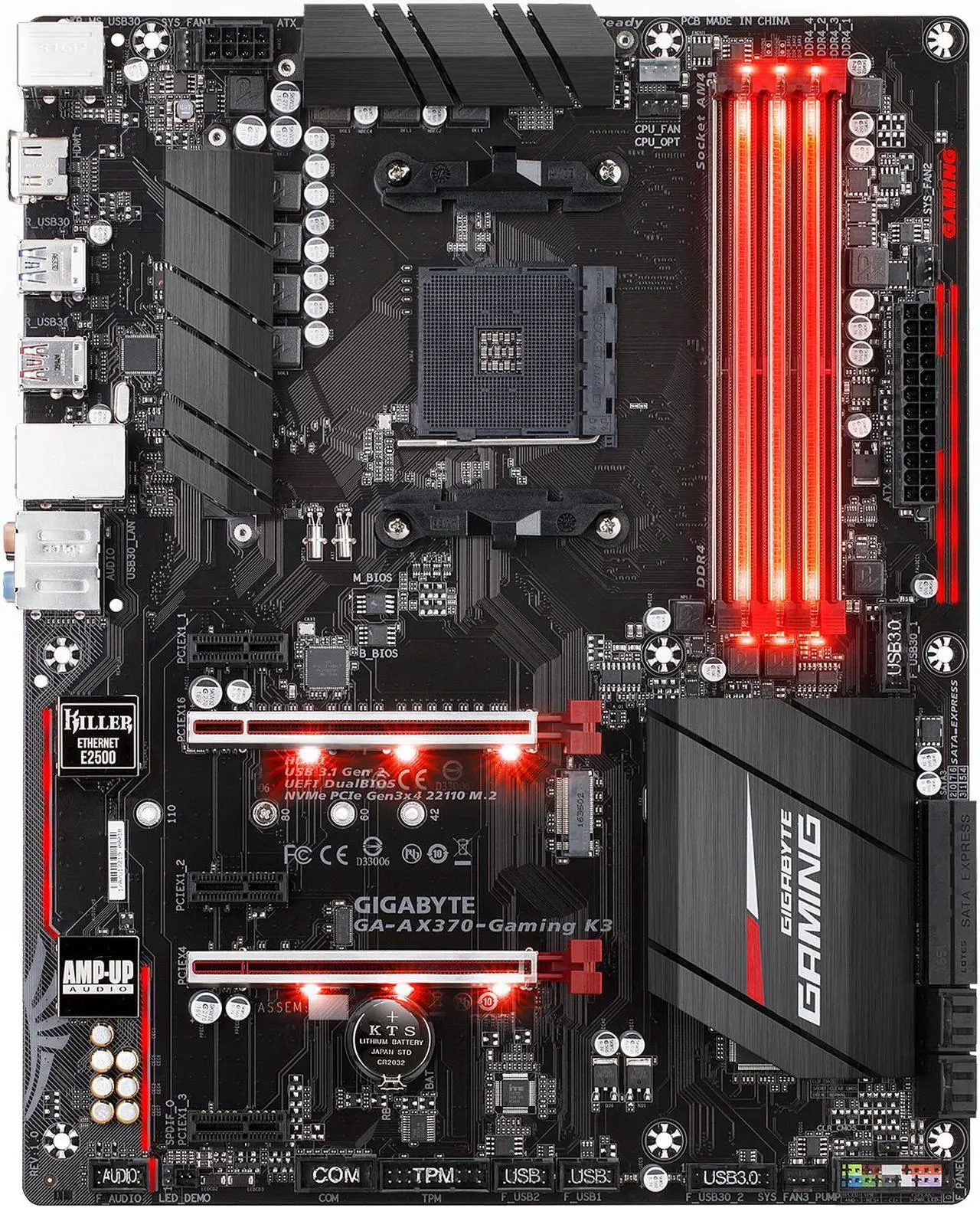

Ambient LED

Ambient lights are now programmable, You can have them beat to the rhythm of the music you are listening to, or pulse at a soothing pace to create an atmosphere that enhances the environment of your game, movie or music.

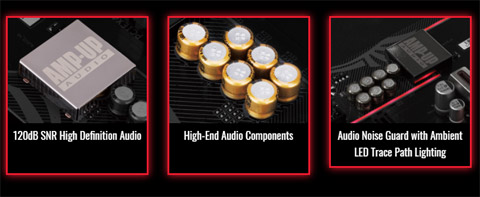

ALC 1220 120dB SNR HD Audio with Smart Headphone Amp

Exceptional audio listening experience with 120dB SNR and support for DSD128 hardware decode. Smart Headphone Amp automatically adjusts volumes based on detected headphone impedance.

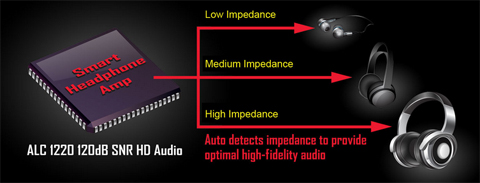

Smart Headphone Amp

Automatically detects impedance of your head-worn audio device, whether earbuds or high-end headphones to provide optimal audio dynamics—preventing issues such as low volume and distortion.

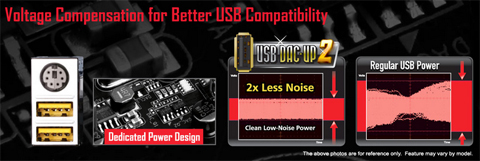

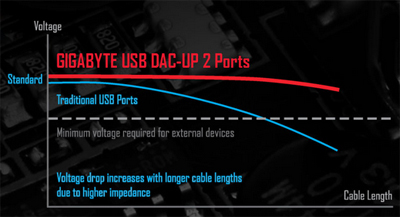

USB DAC-UP 2 Adjustable Voltage USB Port with Dedicated Power Design

GIGABYTE improves upon USB DAC-UP technologies with USB DAC-UP 2.
USB DAC-UP 2 continues to provide clean, isolated and low-noise power while adding the ability to compensate for voltage drop.

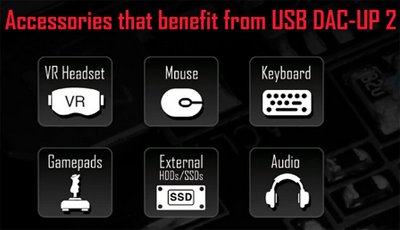

Virtual reality pioneers and gamers alike can rest assured that their expensive accessories and peripherals will not encounter connectivity or power deficiency issues with the GIGABYTE USB DAC-UP 2. With Gaming Gear drawing large amounts of power and having firm specification requirements USB DAC-UP 2 is up for the challenge.

Killer™ E2500 Gaming Network

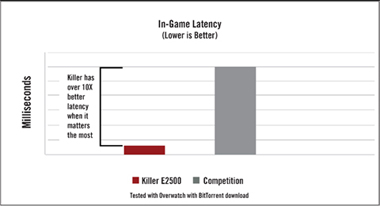

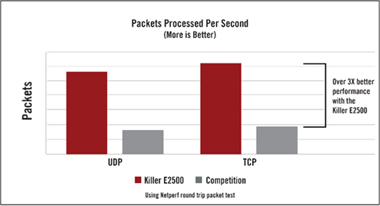

Killer™ E2500 is a high-performance, adaptive gigabit Ethernet controller that offers better online gaming and media performance compared to standard solutions.

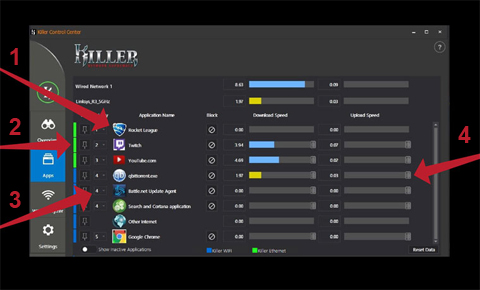

Give yourself the competitive edge: Optimize your network performance with the all-new killer Control Center

1. Automatically detects and prioritizes apps and popular websites
2. Show whick network interface your applications and websites are using
3. Use Killer's network priority levels or customize your own
4. Control bandwidth allocated to each application

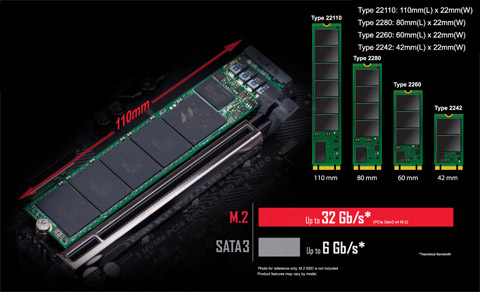

Fast Onboard Storage with NVMe PCIe Gen3 x4 110mm M.2 (Up to 32 Gb/s)

GIGABYTE's M.2 solution offers considerably faster storage performance and support for both PCIe and SATA interfaces for M.2 SSD devices.

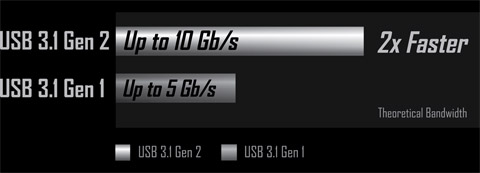

Fast USB 3.1 Gen 2 Solution

The latest USB 3.1 Gen 2 offers staggering 10Gb/s transfer speeds. 2x faster than USB 3.1 Gen 1 along with backwards compatibility with existing USB devices.

Turbo B-Clock

Built-in Advanced Performance Tuning IC
Turbo B-Clock Tuning IC in the X370 series motherboards enable overclockers to have the ability to change their BCLK frequency to a desired value of their choice. With the new linear range adjustment option of the Tuning IC, ranges from 100MHz to 300MHz are now possible.
* Turbo B-Clock overclocking range may vary according to CPU capabilities.

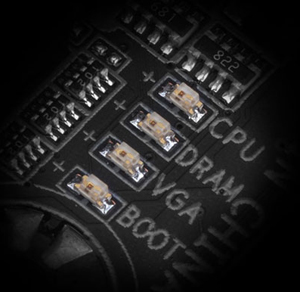

Diagnostic LEDs

Hardware Troubleshooting at a Glance
Onboard LEDs controlled by the system BIOS indicate if a malfunction is occurring, allowing users to quickly diagnose which major component (CPU/DDR/VGA/HDD) is malfunctioning so they may take action promptly.

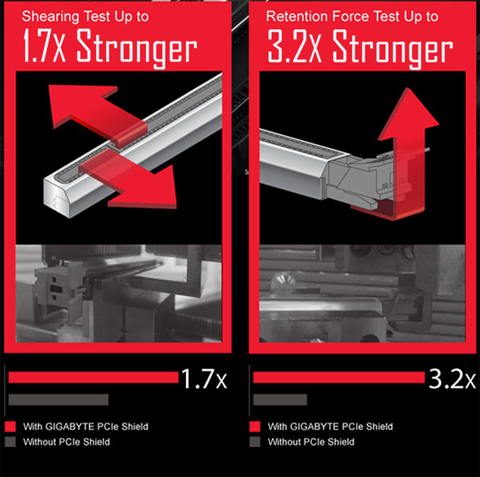

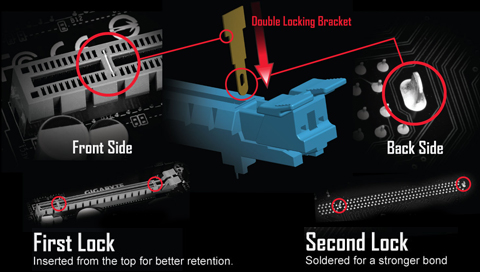

GIGABYTE Patented Double Locking Bracket

Dual Armor DIMM and PCIe Metal Shielding

Never worry about your heavy graphics card damaging your motherboard again. GIGABYTE's proprietary Ultra Durable PCIe Metal Shielding reinforces the PCIe connector to prevent slot damage due to heavy graphics card. The DIMM and PCIe metal shield also provides extra strength for when you forget to release the lock while replacing your component, adding a foolproof option which can save your PC's life.

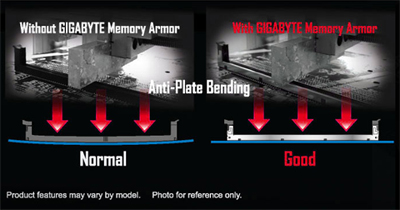

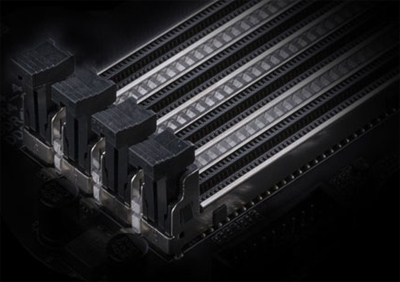

Ultra Durable™ Memory Armor

GIGABYTE's exclusive one piece stainless steel shielding design prevents against PCB distortion and twist, plate bending, in addition to preventing any possible ESD interference.

Ultra Durable™ Memory Armor

AORUS’ exclusive one piece stainless steel shielding design prevents against PCB distortion and twist, plate bending, in addition to preventing any possible ESD interference.

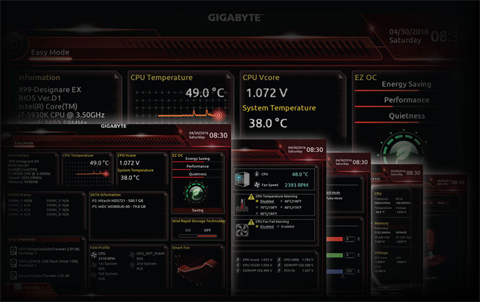

Refreshed BIOS Easy, Smart, and Friendly

The BIOS is essential for users during initial setup to allow for the most optimal settings. With a new GUI and easier to use functionalities, GIGABYTE has been able to reinvent the BIOS to give users a better experience while setting up their new system.
* Photos are for reference only. Product features may vary by model.

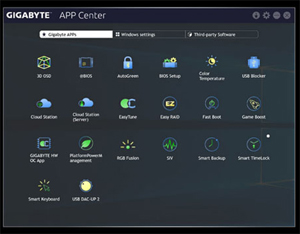

GIGABYTE APP Center

The GIGABYTE APP Center gives you easy access to a wealth of GIGABYTE apps that help you get the most from your GIGABYTE motherboard. Using a simple, unified user interface, GIGABYTE APP Center allows you to easily launch all GIGABYTE apps installed on your system, check related updates online, and download the latest apps, drivers, and BIOS.

EasyTune™

GIGABYTE's EasyTune™ is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment. With Smart Quick Boost, one click is all it takes to automatically overclock your system, giving an added performance boost when you need it the most.

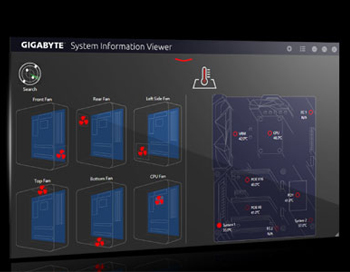

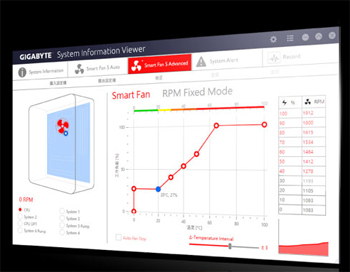

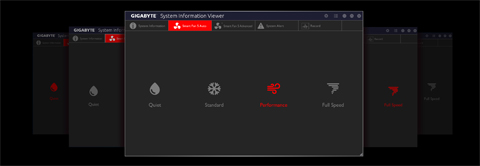

System Information Viewer

GIGABYTE System Information Viewer is a central location that gives you access to your current system status. Monitor components such as the clocks and processor, set your preferred fan speed profile, create alerts when temperatures get too high or record your system’s behavior; these are the possibilities of the System Information Viewer.

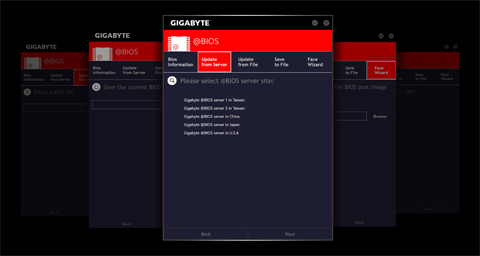

@BIOS

The GIGABYTE @BIOS app allows you to update your system’s BIOS from within Windows using a simple and slick graphical user interface. @BIOS can automatically download the latest version from the GIGABYTE servers or you can update your BIOS from a file on your computer. @BIOS also allows you to save your current BIOS to a file, recover your previous BIOS from an image and backup your BIOS to an image.

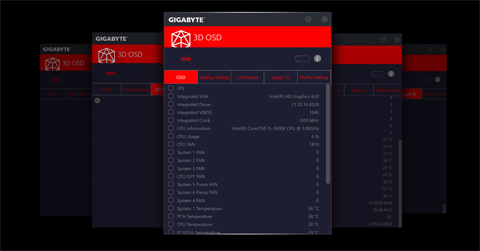

3D OSD

3D OSD automatically detects and displays your system information during games, allowing you to easily get a hold of your system information without switching between screens.

GIGABYTE Patented DualBIOS™ (UEFI) Design

GIGABYTE Ultra Durable™ motherboards feature GIGABYTE DualBIOS™, an exclusive technology from GIGABYTE that protects arguably one of your PC's most crucial components, the BIOS. GIGABYTE DualBIOS™ means that your motherboard has both a 'Main BIOS' and a 'Backup BIOS', protecting users from BIOS failure due to virus, hardware malfunction, improper OC settings or power failure during the update process.

4K Ultra HD Support

4K resolution is the next technological milestone in high-definition content delivery, utilizing approximately 4,000 pixels on the horizontal axis, more than four times today's standard HD pixel density. GIGABYTE motherboards provide native 4K support with integrated Intel® HD Graphics via HDMI.

HDMI™ - The Next Generation Multimedia Interface

HDMI™ is a High-Definition Multimedia Interface which provides up to 5Gb/s video transmitting bandwidth and 8-channel high quality audio all through a single cable. Able to transmit superior, uncompressed digital video and audio, HDMI™ ensures the crispest rendering of digital content up to 1080p without the quality losses associated with analog interfaces and their digital-to-analog conversion. In addition, HDMI™ is compatible with HDCP (High-bandwidth Digital Content Protection), allowing the playback of Blu-ray/HD DVD and other protected media content.

XSplit Gamecaster + Broadcaster: Cast Your Game Anytime, Anywhere

Now set up your stage and share the greatest gaming moments with XSplit Gamecaster + Broadcaster! Fully optimized social media integration is ready for real-time chats—keeping you notified yet focused in the game. It takes just one click to stream your gameplay to Twitch. Host your game like a pro!
*Free 14 days XSplit Gamecaster + Broadcaster Premium License.
