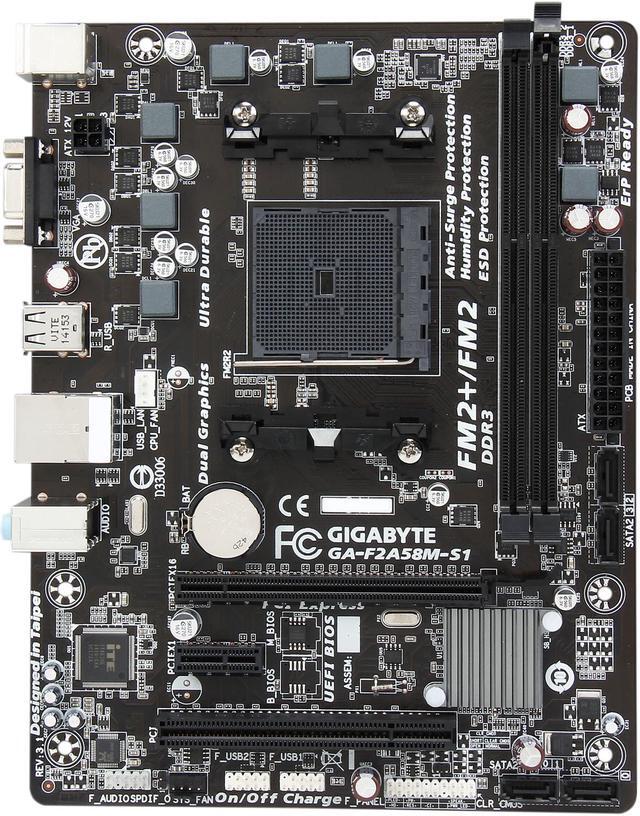

    GA-F2A58M-S1 FM2+ AMD A58 (Bolton D2) Micro ATX AMD Motherboard

    Used - Good Product Type
    • AMD A58 (Bolton D2)
    • A- Series (FM2+) / Athlon Series
    • DDR3 2400(OC)/2133/1866/1600/1333
    🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
    +
    +
    Specs
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now

    Learn more about the GIGABYTE GA-F2A58M-S1

    Model
    Model GA-F2A58M-S1
    Supported CPU
    CPU Socket Type FM2+
    CPU Type A- Series (FM2+) / Athlon Series
    Chipsets
    Chipset AMD A58 (Bolton D2)
    Memory
    Number of Memory Slots 2x240pin
    Memory Standard DDR3 2400(OC)/2133/1866/1600/1333
    Maximum Memory Supported 64GB
    Channel Supported Dual Channel
    Expansion Slots
    PCI Express 3.0 x16 1 x PCI Express 3.0 x16
    PCI Express x1 1 x PCI Express x1
    PCI Slots 1 x PCI Slot
    Storage Devices
    SATA RAID 0/1/10/JBOD
    Onboard Video
    Onboard Video Chipset Integrated Graphics
    Onboard Audio
    Audio Chipset Realtek ALC887
    Audio Channels 7.1 Channels
    Onboard LAN
    Max LAN Speed 1Gbps
    Rear Panel Ports

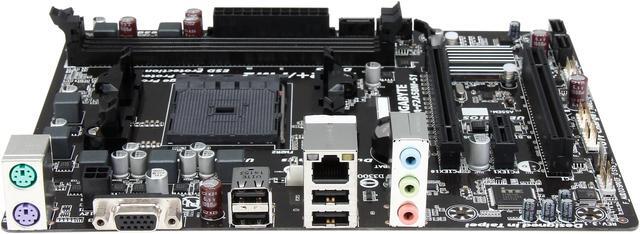

    Back I/O Ports 1 x D-Sub / 2 x PS/2 / 3 x Audio Jacks / 4 x USB 2.0/1.1
    PS/2 2
    Video Ports D-Sub
    USB 1.1/2.0 4 x USB 2.0
    Audio Ports 3 Ports
    Internal I/O Connectors
    Onboard USB 2 x USB 2.0/1.1 headers
    Other Connectors 1 x 24-pin ATX main power connector
    1 x 4-pin ATX 12V power connector
    1 x APU fan header
    1 x system fan header
    1 x front panel header
    1 x front panel audio header
    1 x S/PDIF Out header
    1 x Clear CMOS jumper
    Physical Spec
    Form Factor Micro ATX
    Dimensions (W x L) 8.9" x 6.85"
    Power Pin 24 Pin
    Additional Information
    Date First Available May 13, 2025
