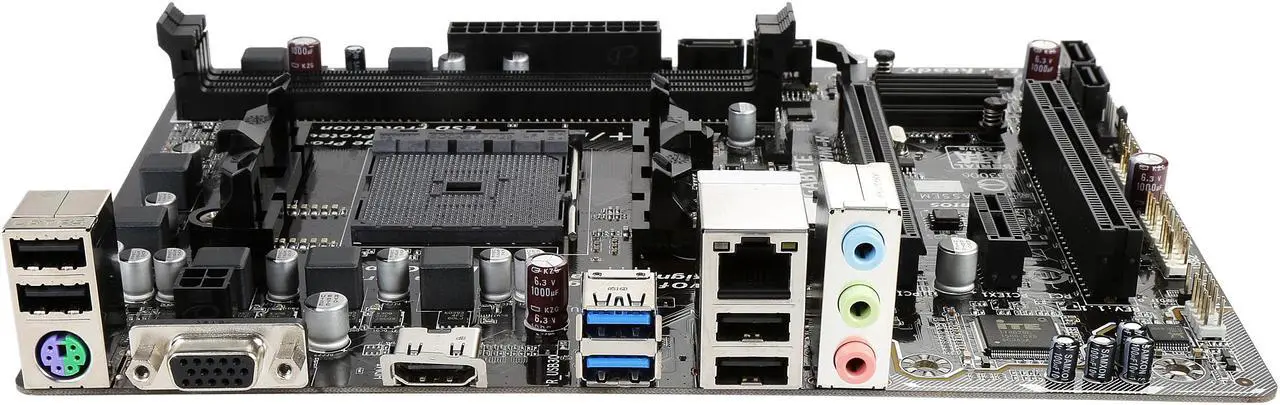

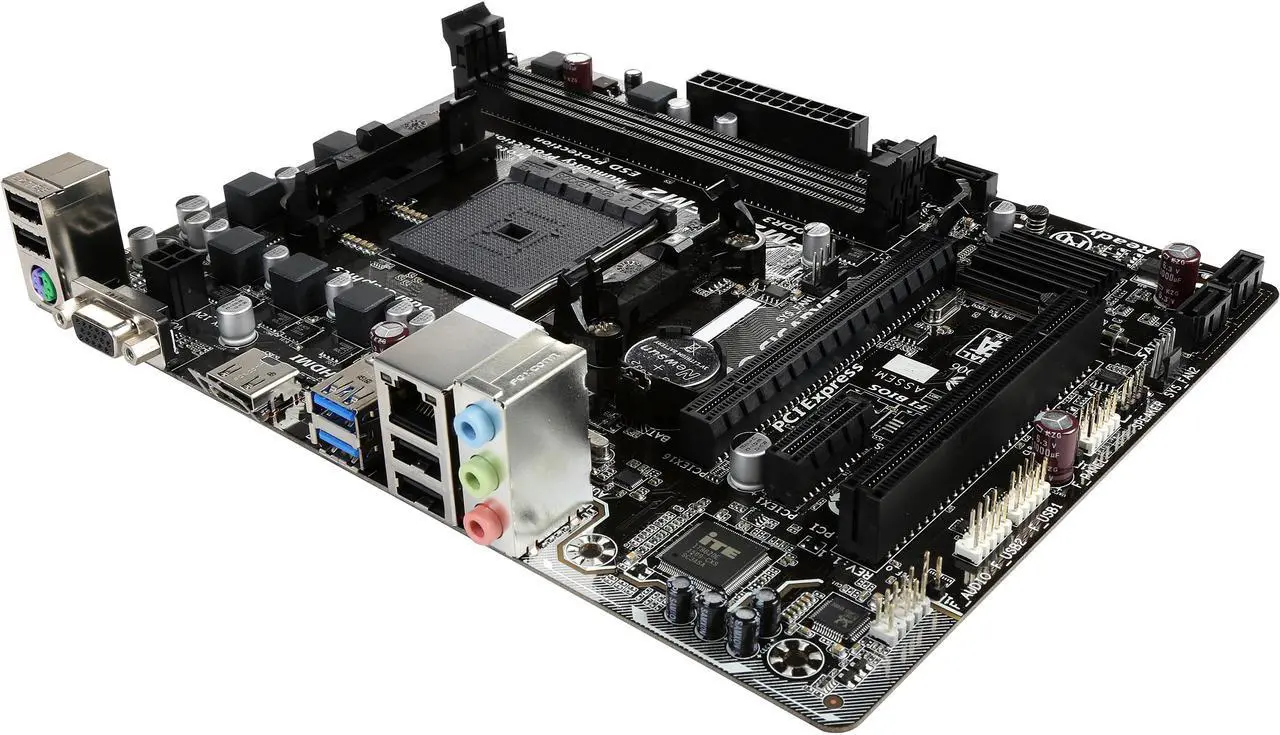

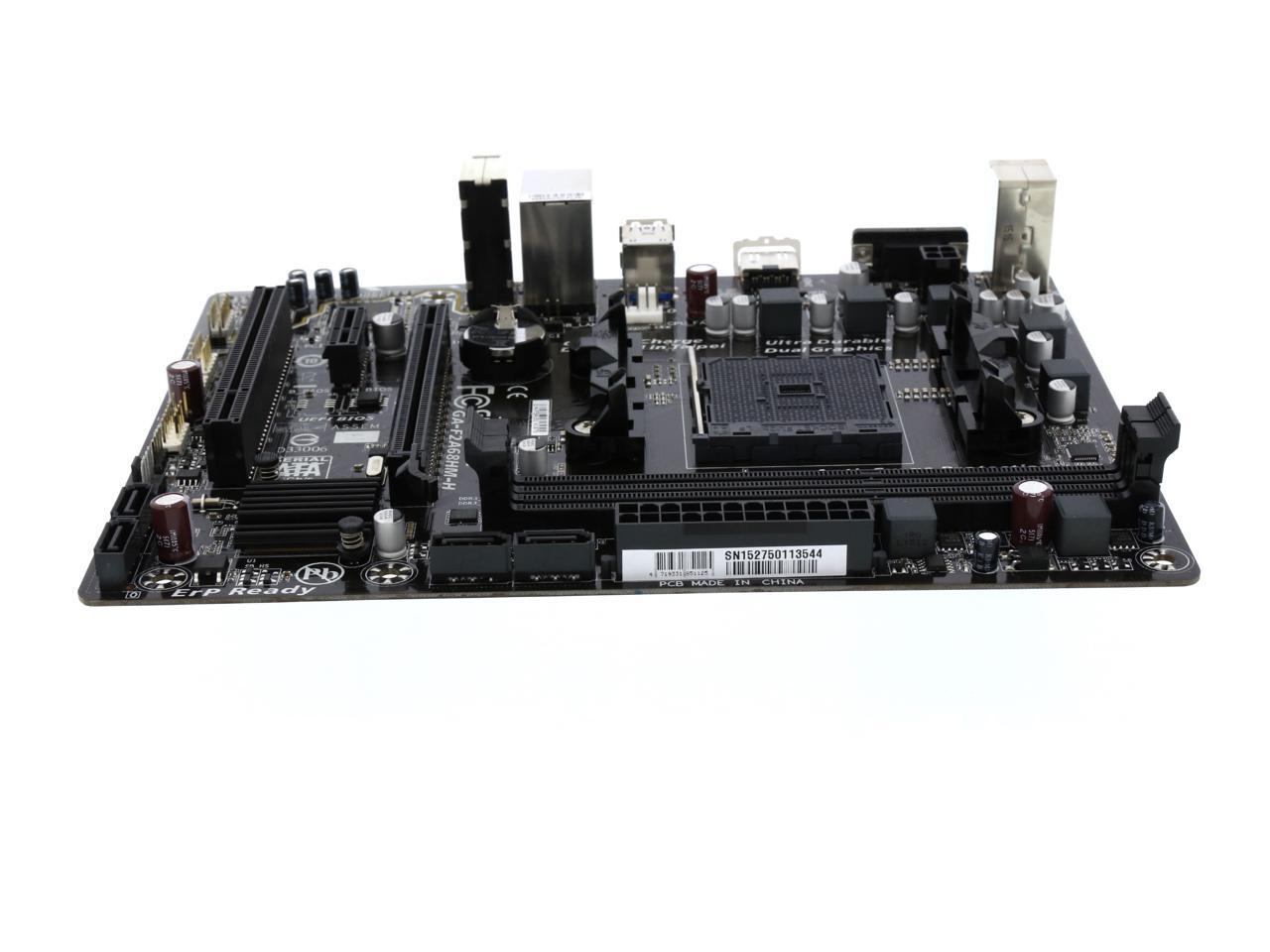

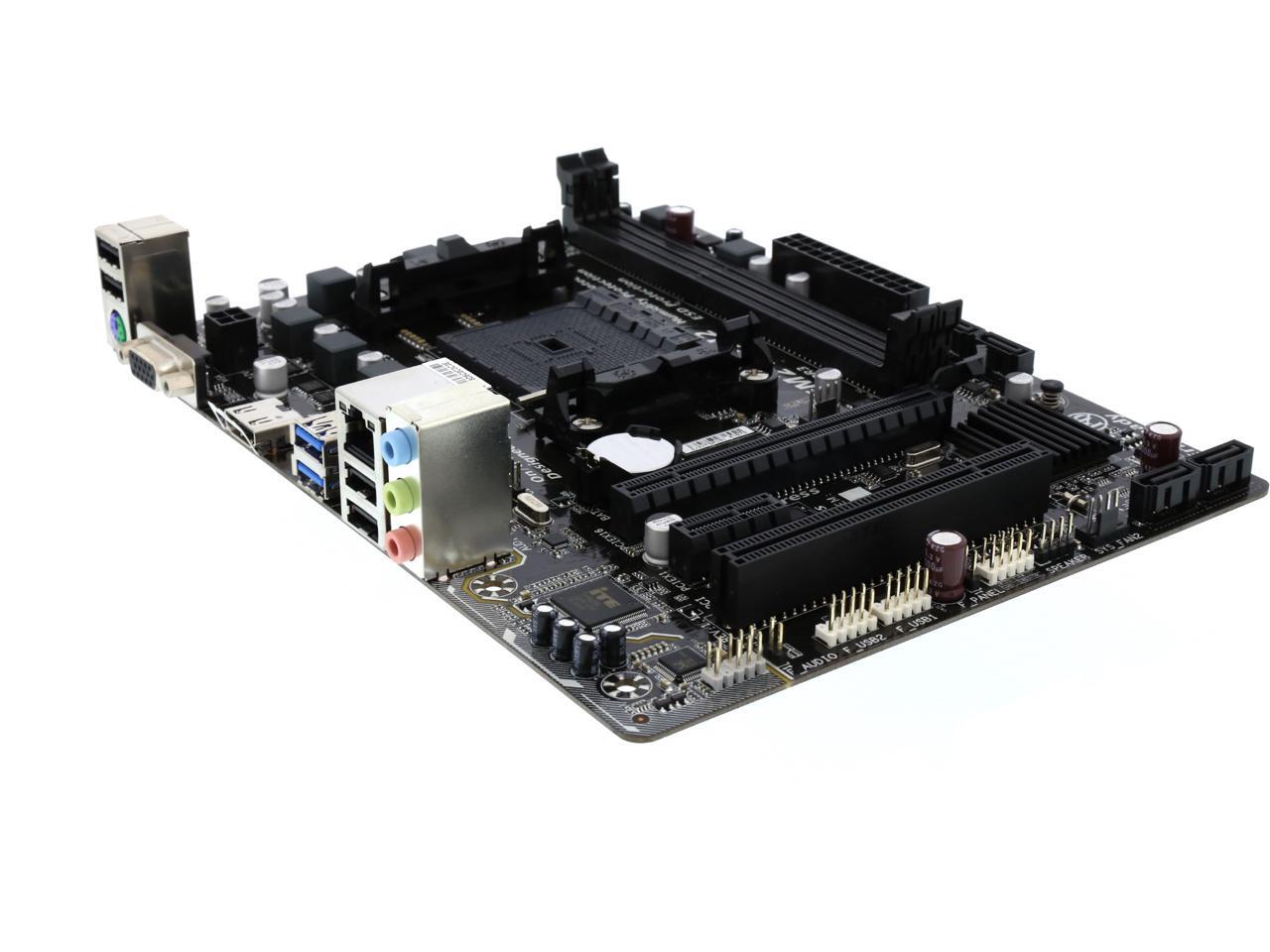

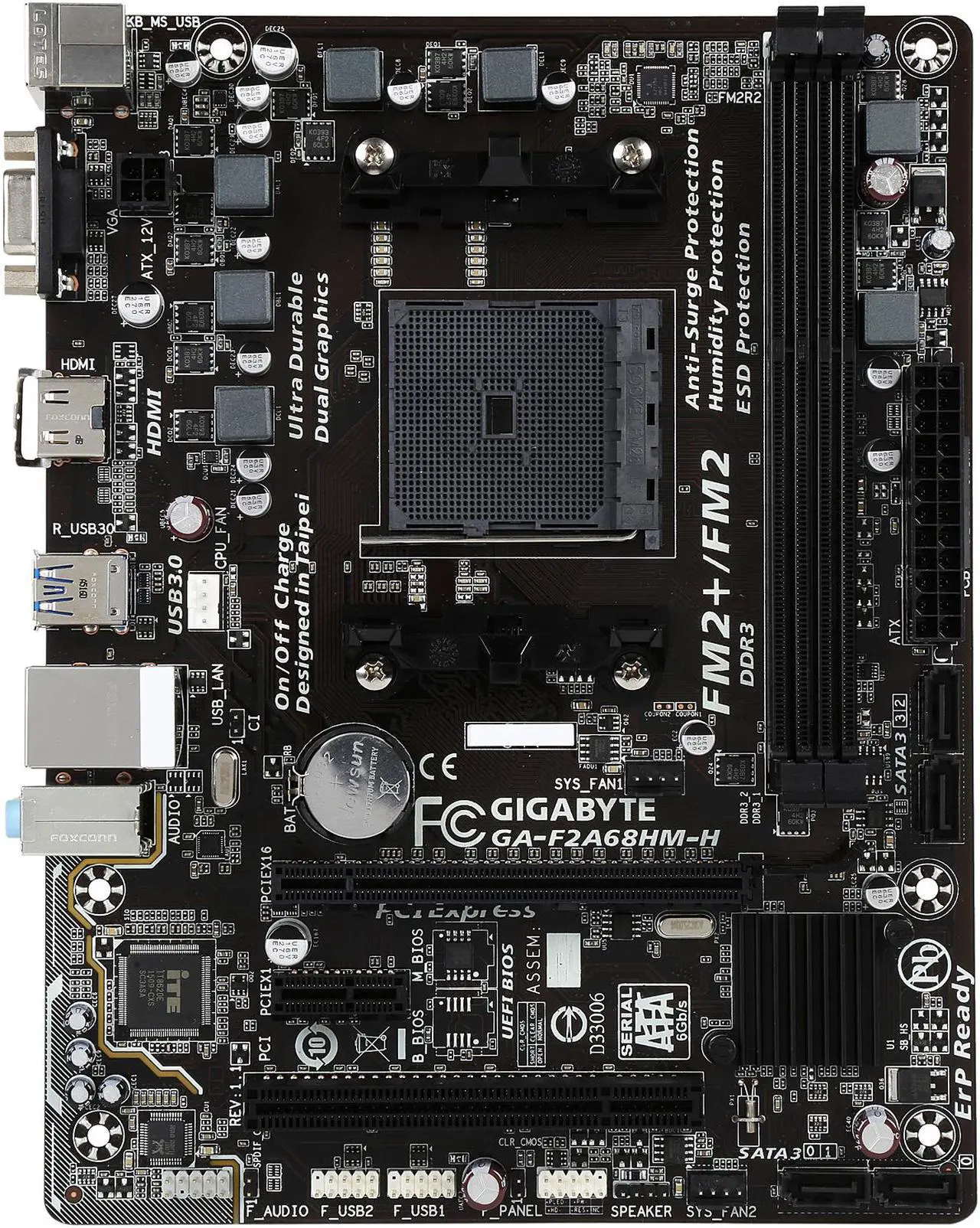

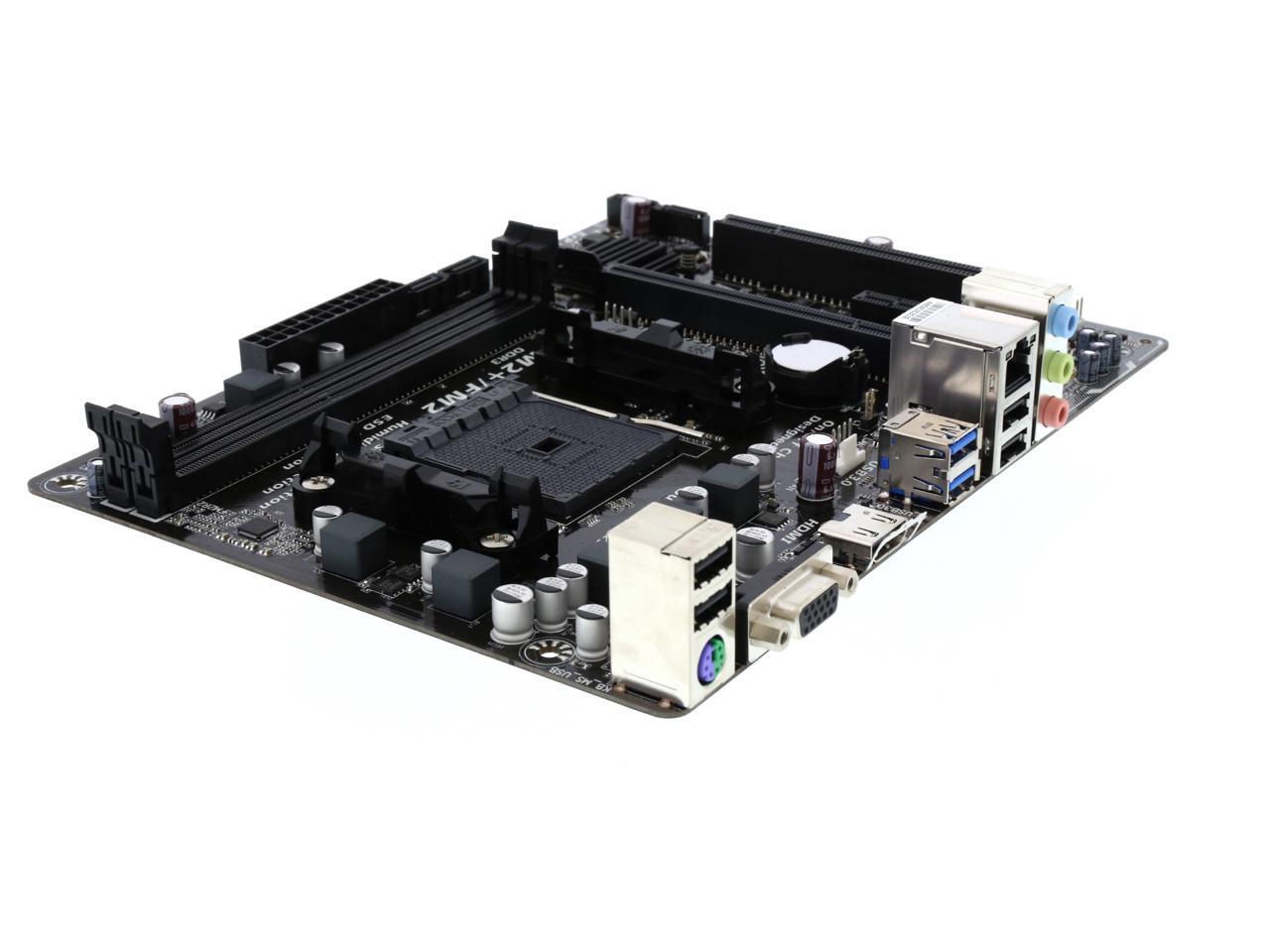

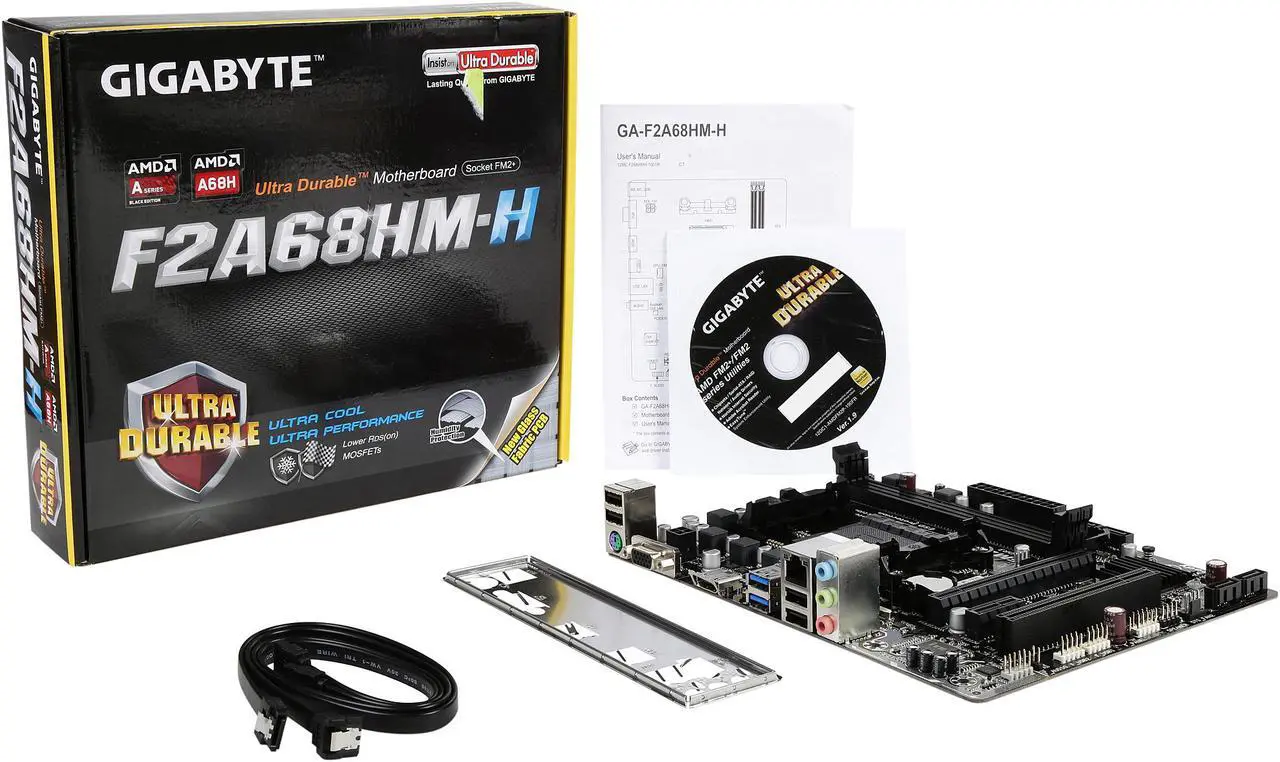

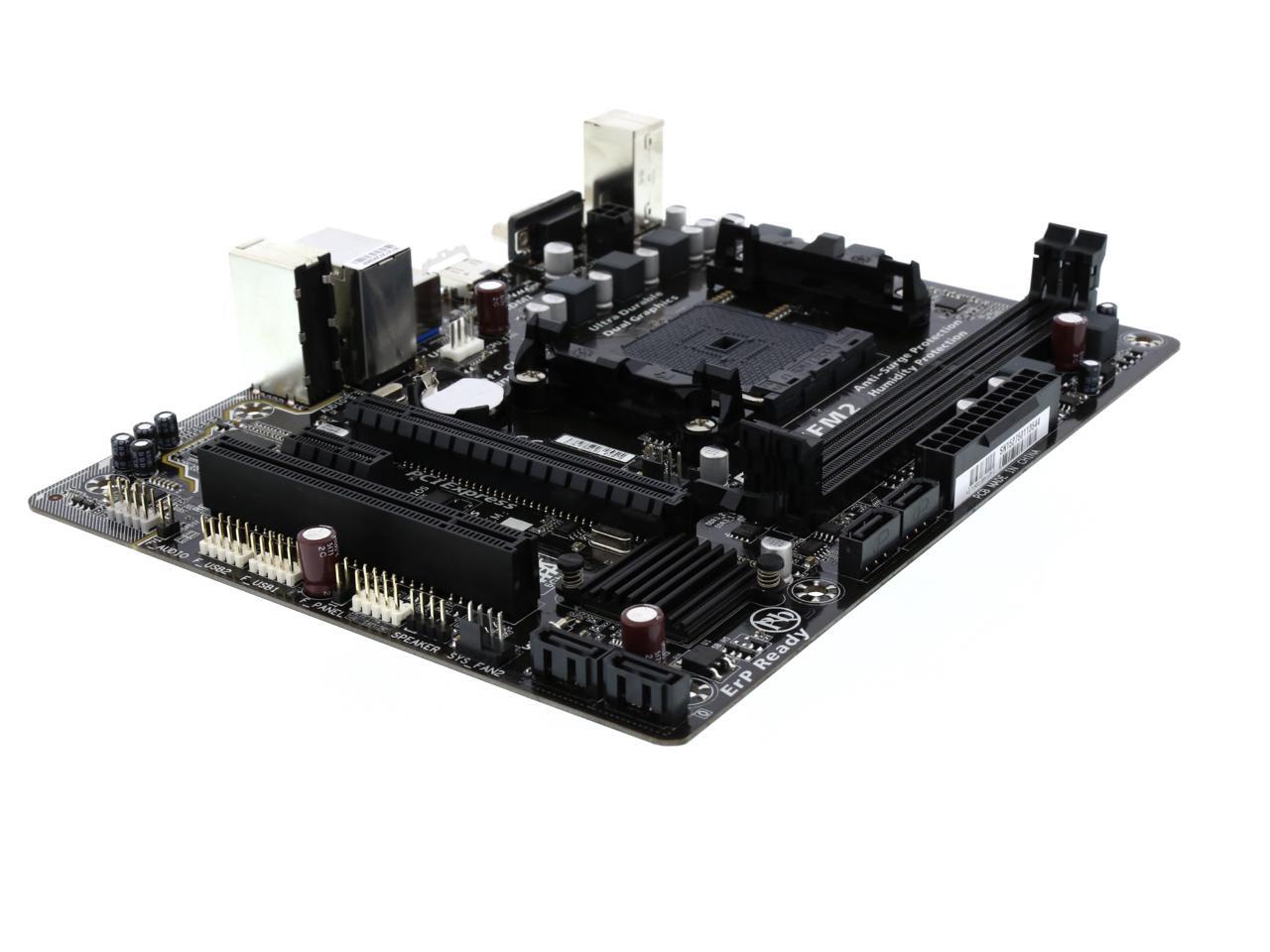

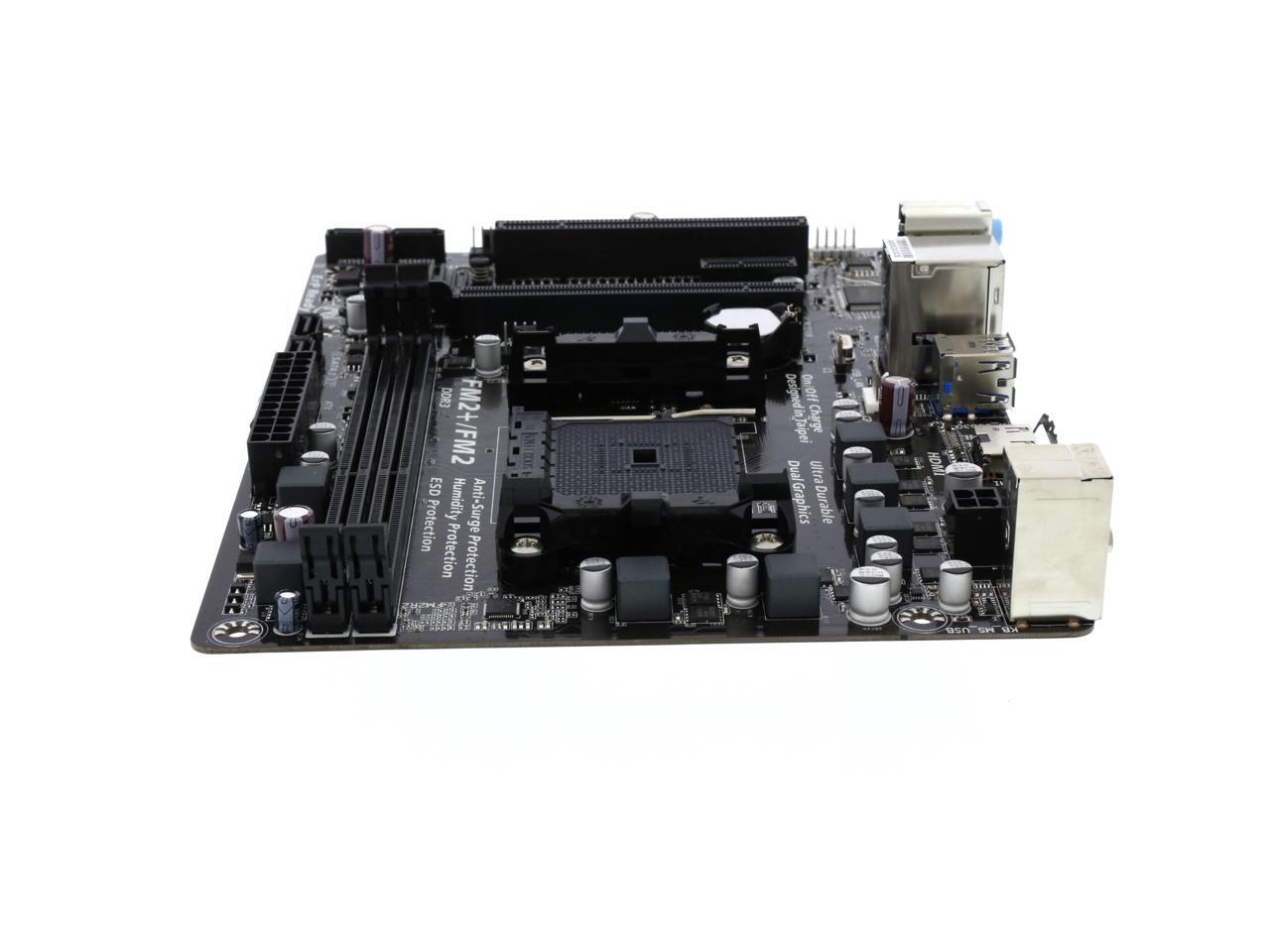

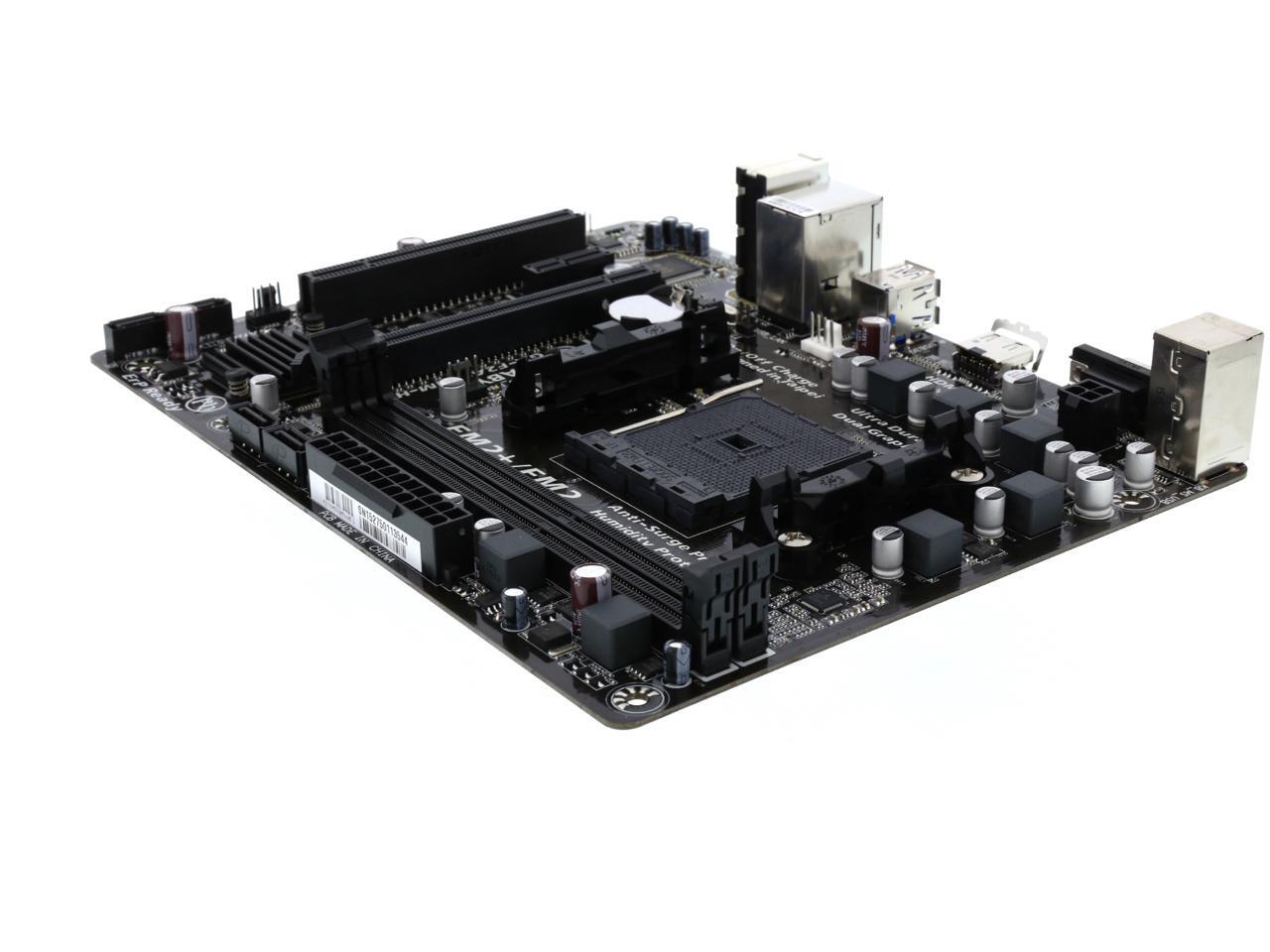

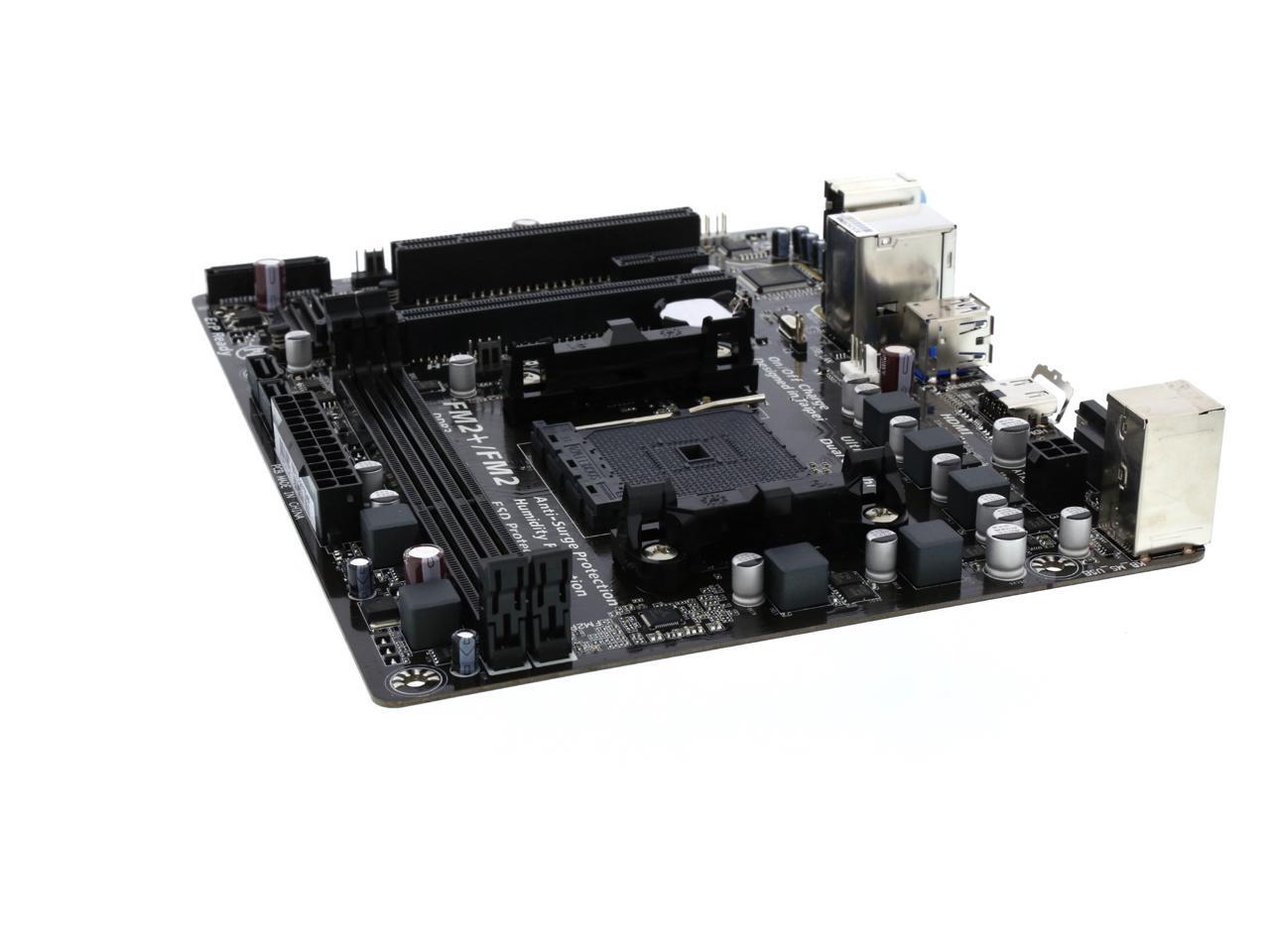

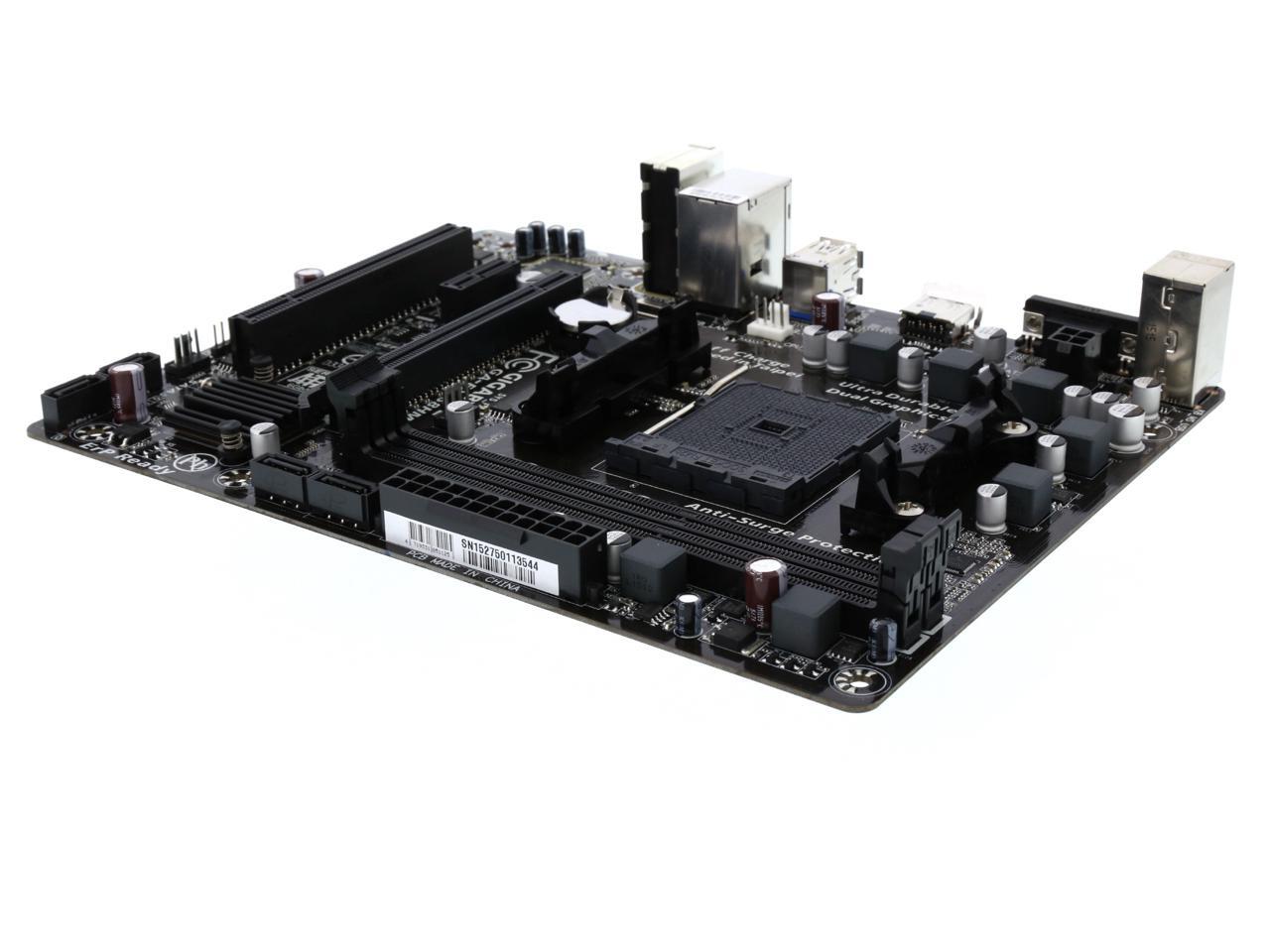

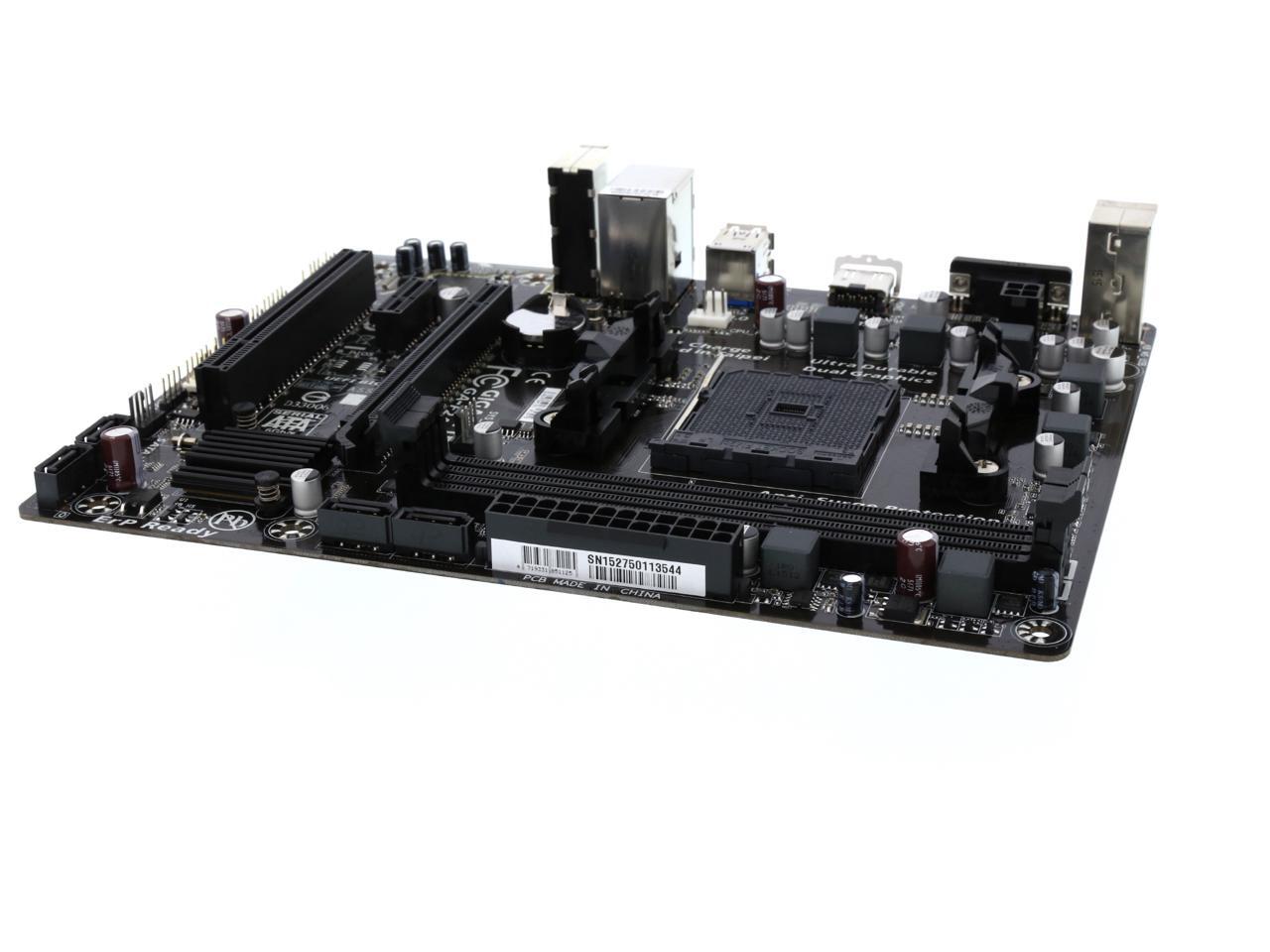

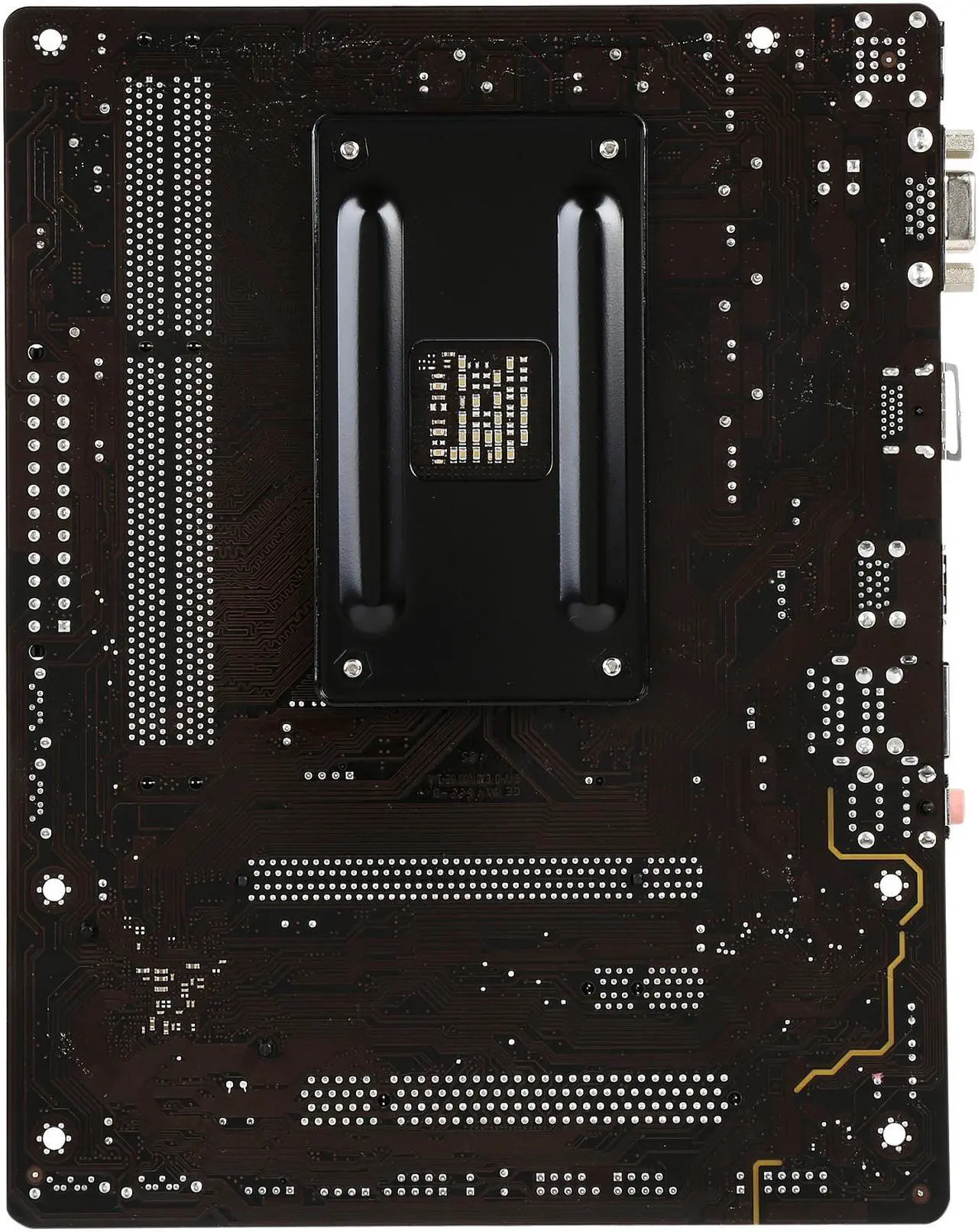

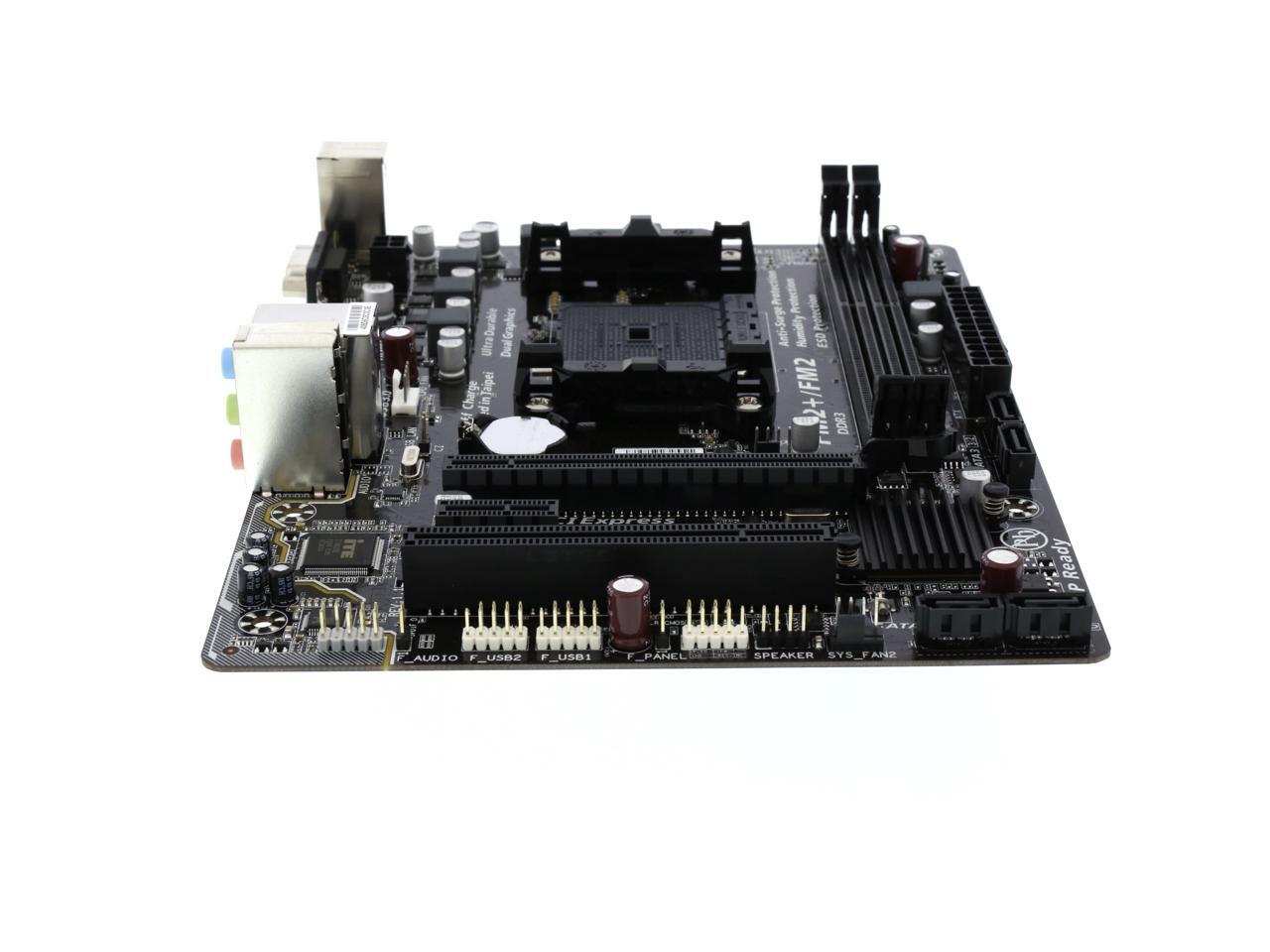

GIGABYTE GA-F2A68HM-H FM2+ AMD A68H USB 3.0 HDMI Micro ATX Motherboards - AMD
REFURBISHED Product Type
- AMD A68H
- A- Series (FM2+) / Athlon Series
- DDR3 2400(OC) /2133 /1866 /1600 /1333
Specs
Reviews (1)
Learn more about the GIGABYTE GA-F2A68HM-H
| Brand | GIGABYTE |
|---|---|
| Model | GA-F2A68HM-H |
| CPU Socket Type | FM2+ |
|---|---|
| CPU Type | A- Series (FM2+) / Athlon Series |
| Chipset | AMD A68H |
|---|
| Number of Memory Slots | 2x240pin |
|---|---|
| Memory Standard | DDR3 2400(OC) /2133 /1866 /1600 /1333 |
| Maximum Memory Supported | 64GB |
| Channel Supported | Dual Channel |
| PCI Express 3.0 x16 | 1 x PCI Express x16 slot, running at x16 (The PCI Express x16 slot conforms to PCI Express 3.0 standard.) * To support PCI Express 3.0, you must install an FM2+ APU. |
|---|---|
| PCI Express x1 | 1 x PCI Express x1 slot (The PCI Express x1 slot conforms to PCI Express 2.0 standard.) |
| PCI Slots | 1 x PCI Slot |
| Serial ATA (SATA) | 4 x SATA 6Gb/s |
|---|---|
| SATA RAID | 0/1/10/JBOD |
| Onboard Video Chipset | Integrated Graphics Processor: - 1 x D-Sub port, supporting a maximum resolution of 1920x1200 - 1 x HDMI port, supporting a maximum resolution of 4096x2160 * The resolution of 4096x2160 can be supported when using an FM2+ APU; the maximum resolution supported is 1920x1200 when using an FM2 APU. * Support for HDMI 1.4a version. - Maximum shared memory of 2GB |
|---|
| Audio Chipset | Realtek ALC887 |
|---|---|
| Audio Channels | 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. |
| LAN Chipset | Realtek GbE LAN chip |
|---|---|
| Max LAN Speed | 1Gbps |

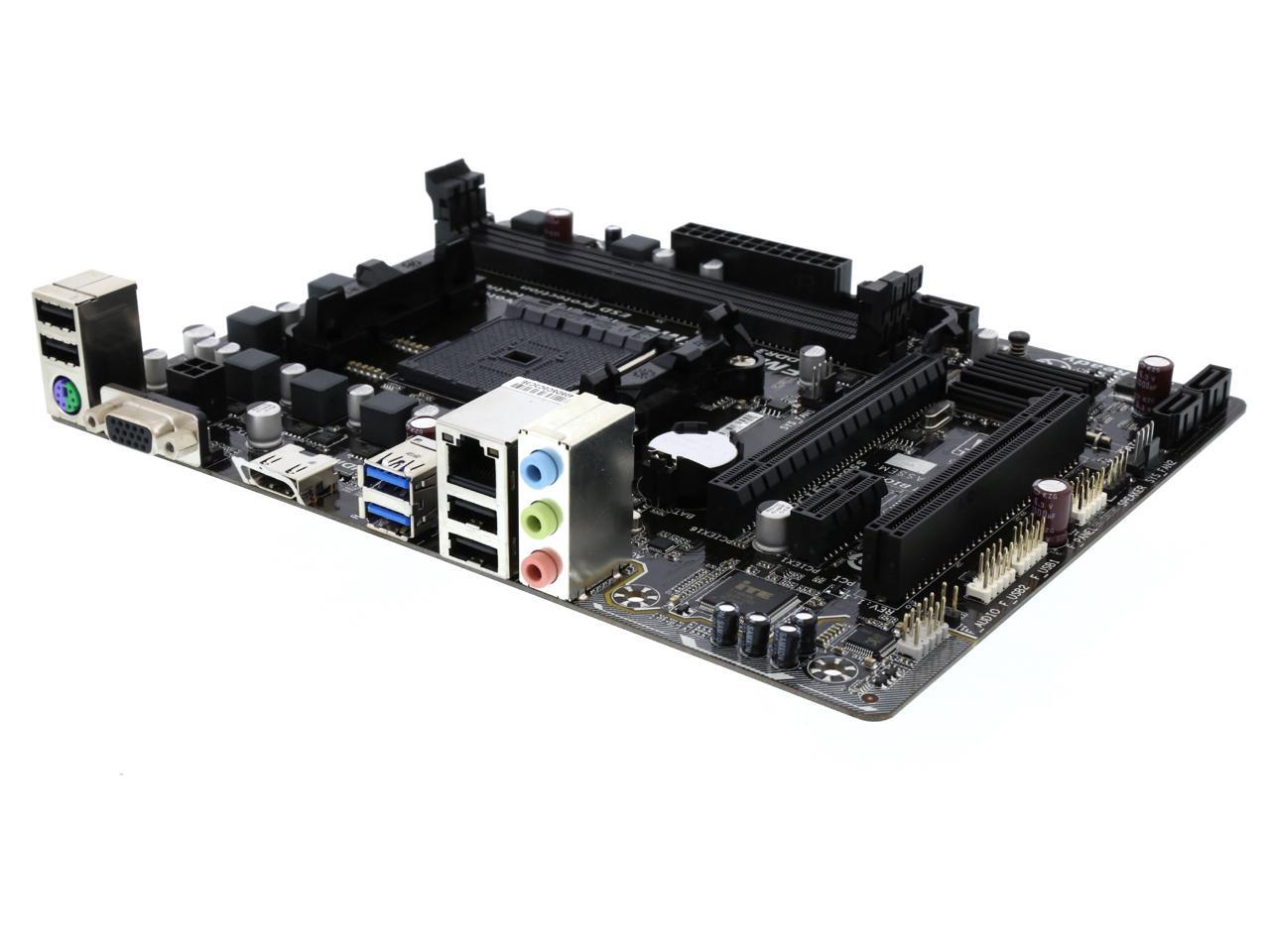

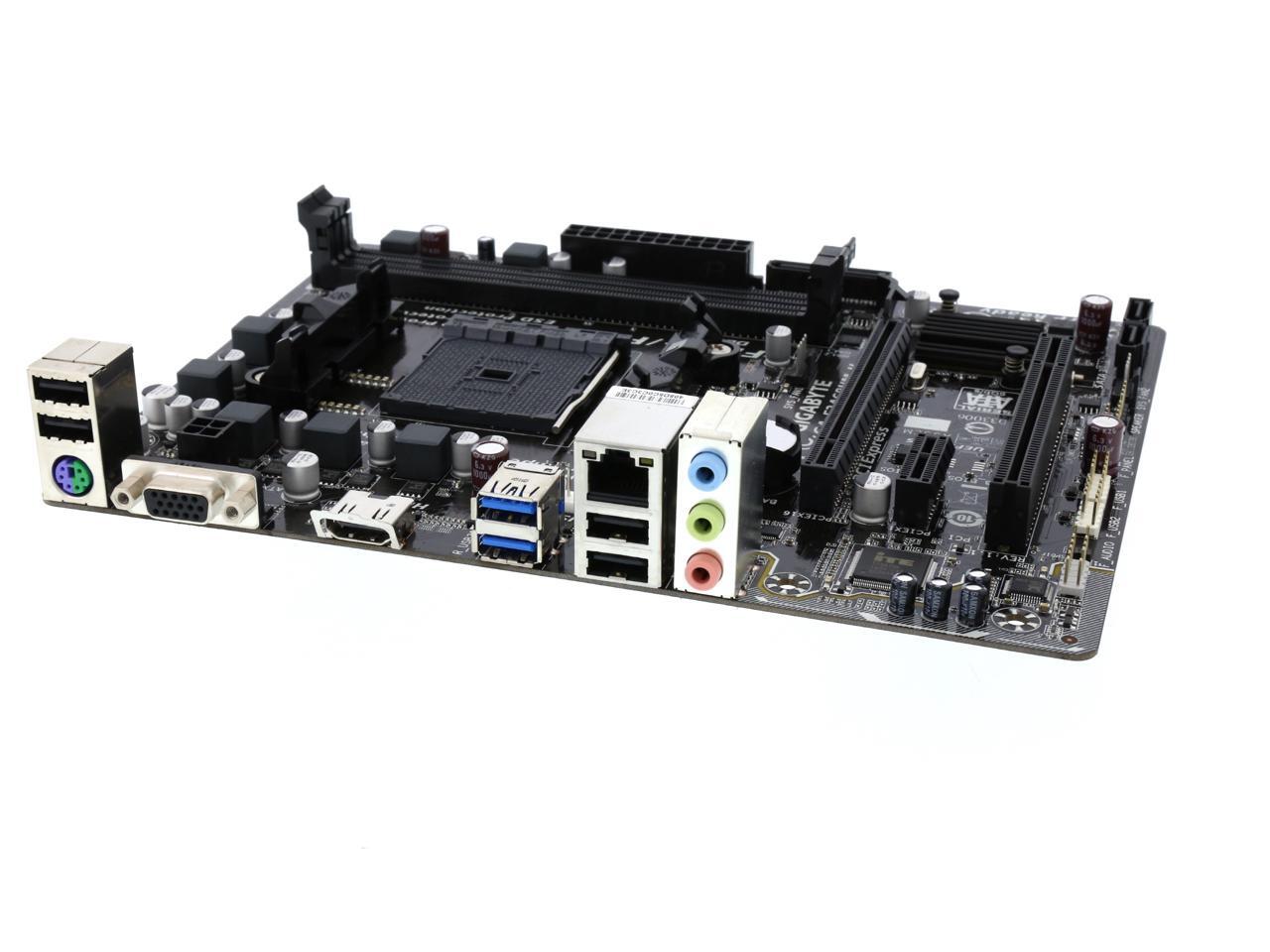

| Back I/O Ports | 1 x D-Sub / 1 x HDMI / 1 x LAN (RJ45) / 1 x PS/2 / 2 x USB 3.1 Gen 1 / 3 x Audio Jacks / 4 x USB 2.0/1.1 |
|---|---|
| PS/2 | 1 x PS/2 keyboard/mouse port |
| Video Ports | 1 x D-Sub port |
| HDMI | 1 x HDMI |
| RJ45 | 1 x RJ45 |
| USB 3.0 | 2 x USB 3.0/2.0 ports |
| USB 1.1/2.0 | 4 x USB 2.0/1.1 ports |
| Audio Ports | 3 x audio jacks (Line In, Line Out, Mic In) |
| Onboard USB | 4 x USB 2.0 |
|---|---|
| Other Connectors | 1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 1 x APU fan header 2 x system fan headers 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x speaker header 1 x Clear CMOS jumper 1 x chassis intrusion header |
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 8.90" x 6.85" |
| Power Pin | 24 Pin |
| Features | Socket FM2+ supports AMD FM2+/FM2 A-series APU GIGABYTE Ultra Durable Technology Dedicated audio hardware zone with Audio Noise Guard design HDMI 1.4, D-sub ports for multi-display support Native USB 3.0 and SATA3 ports with RAID support GIGABYTE UEFI BIOS GIGABYTE On/Off Charge for USB devices Solid capacitors for APU VRM design |
|---|
| Date First Available | August 01, 2016 |
|---|
