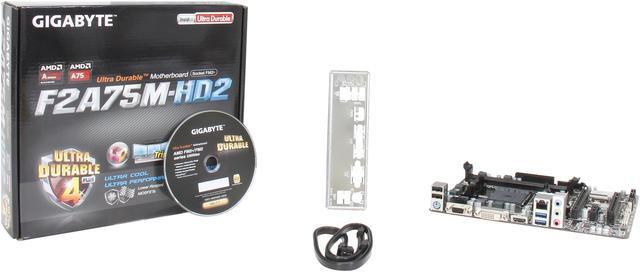

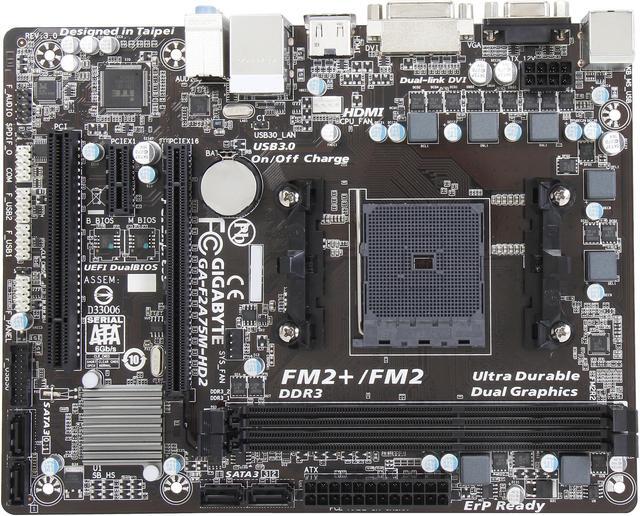

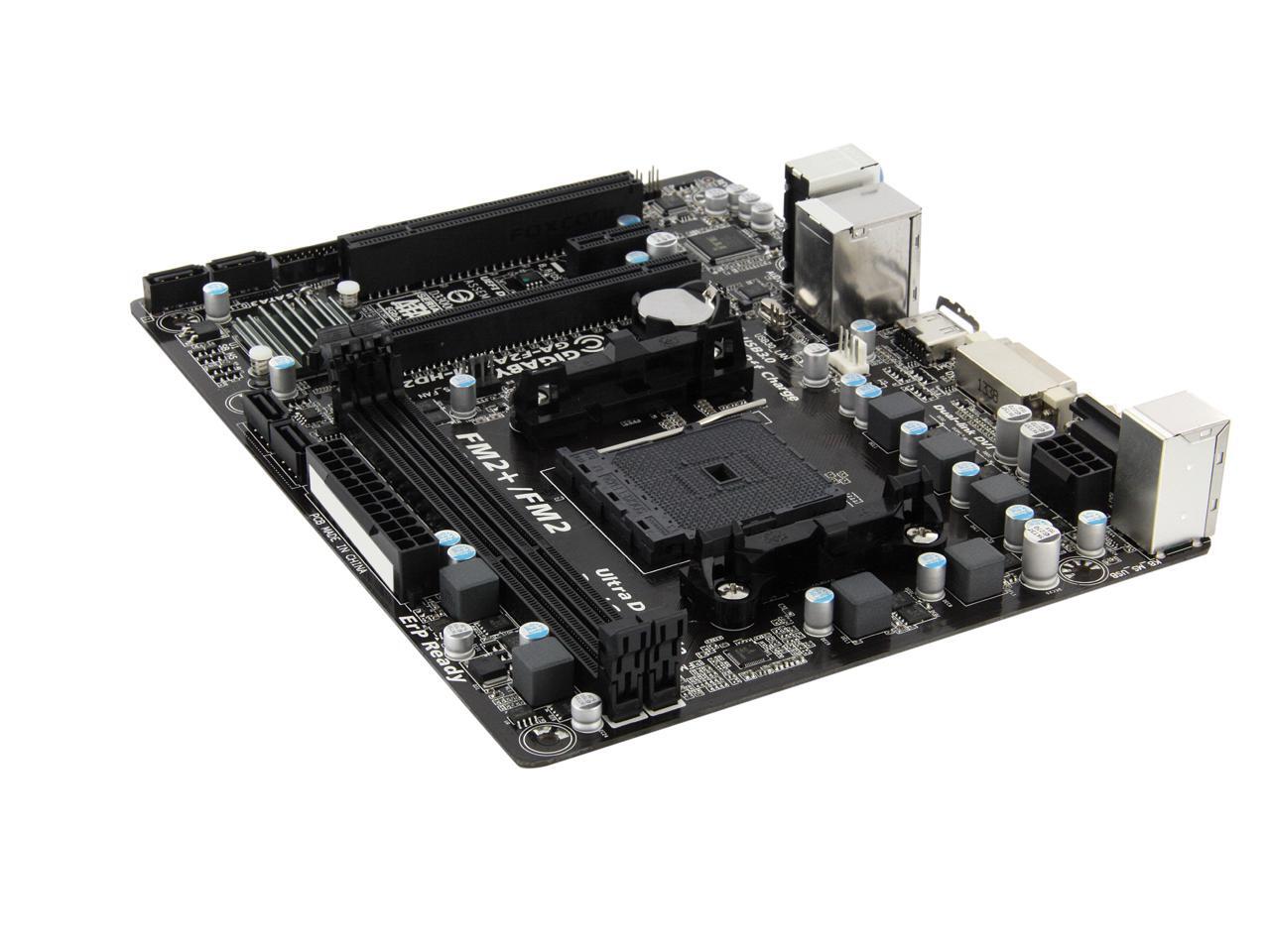

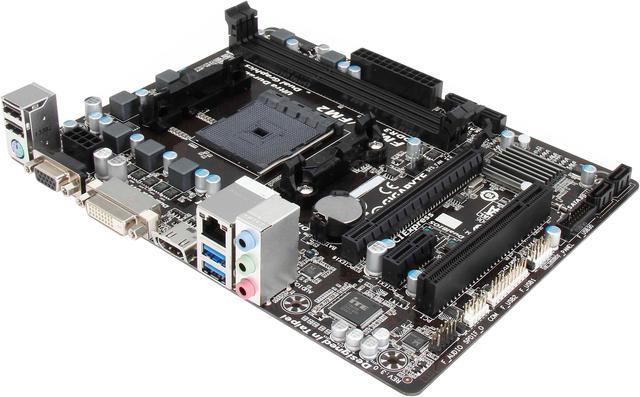

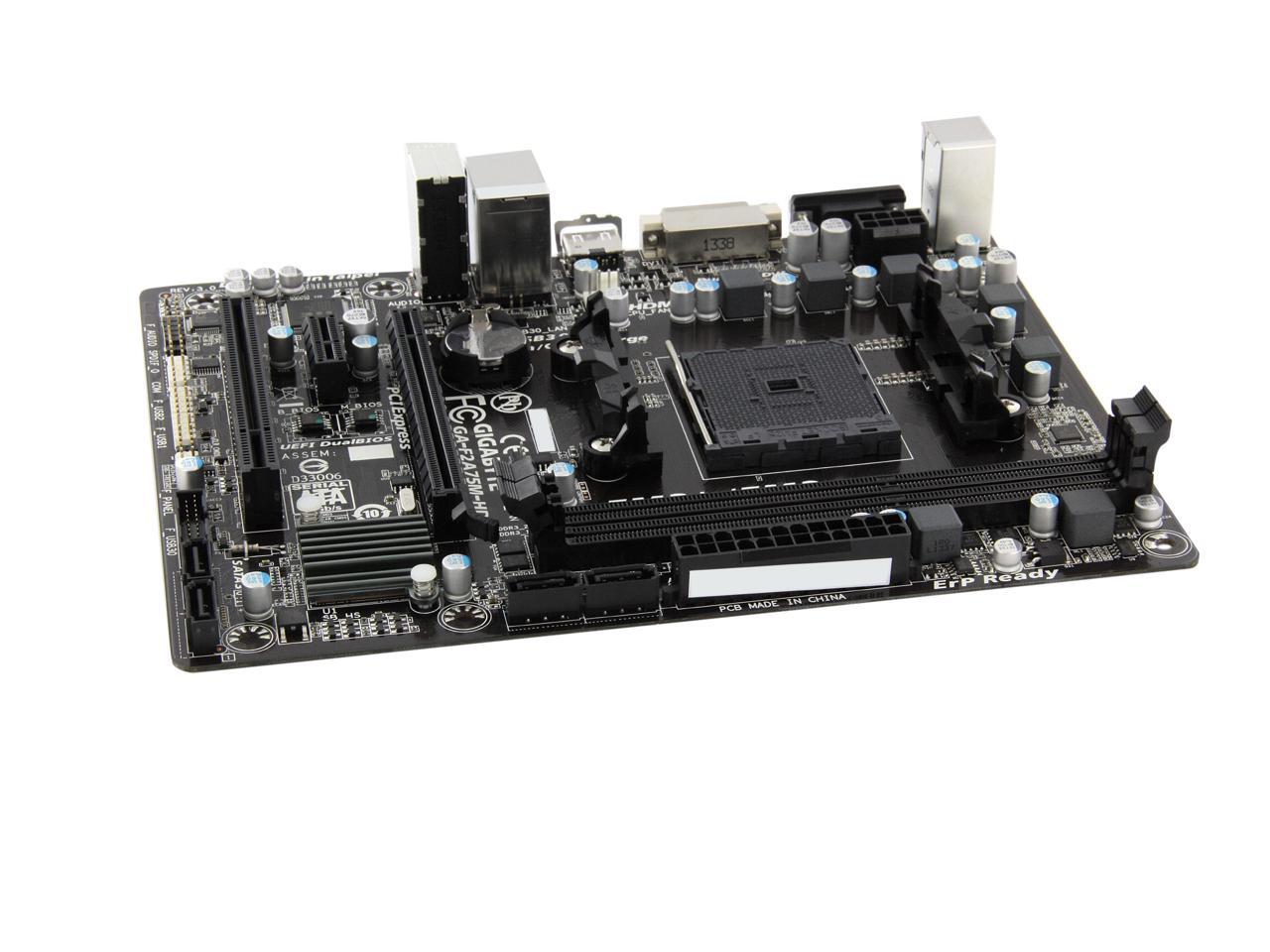

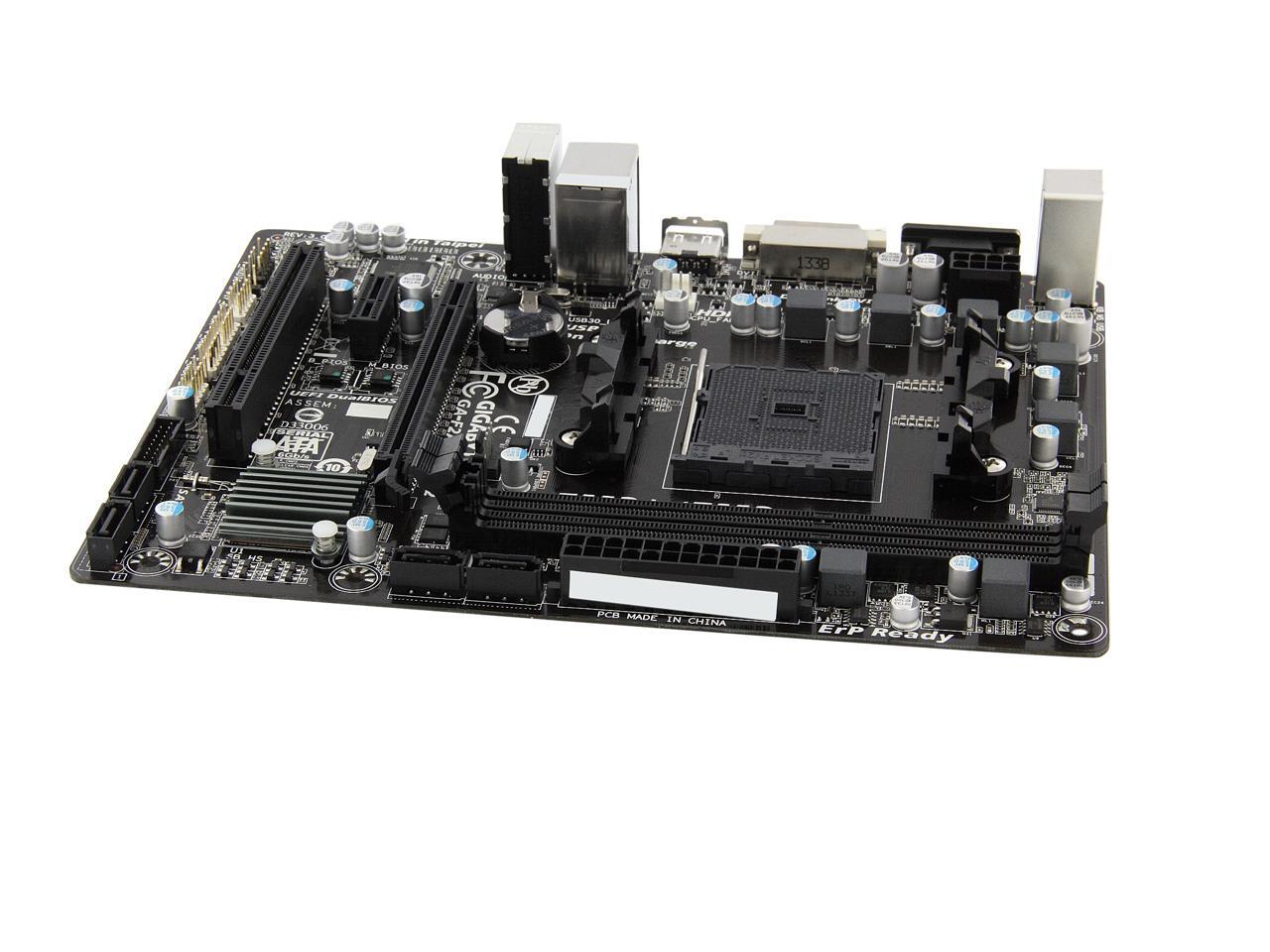

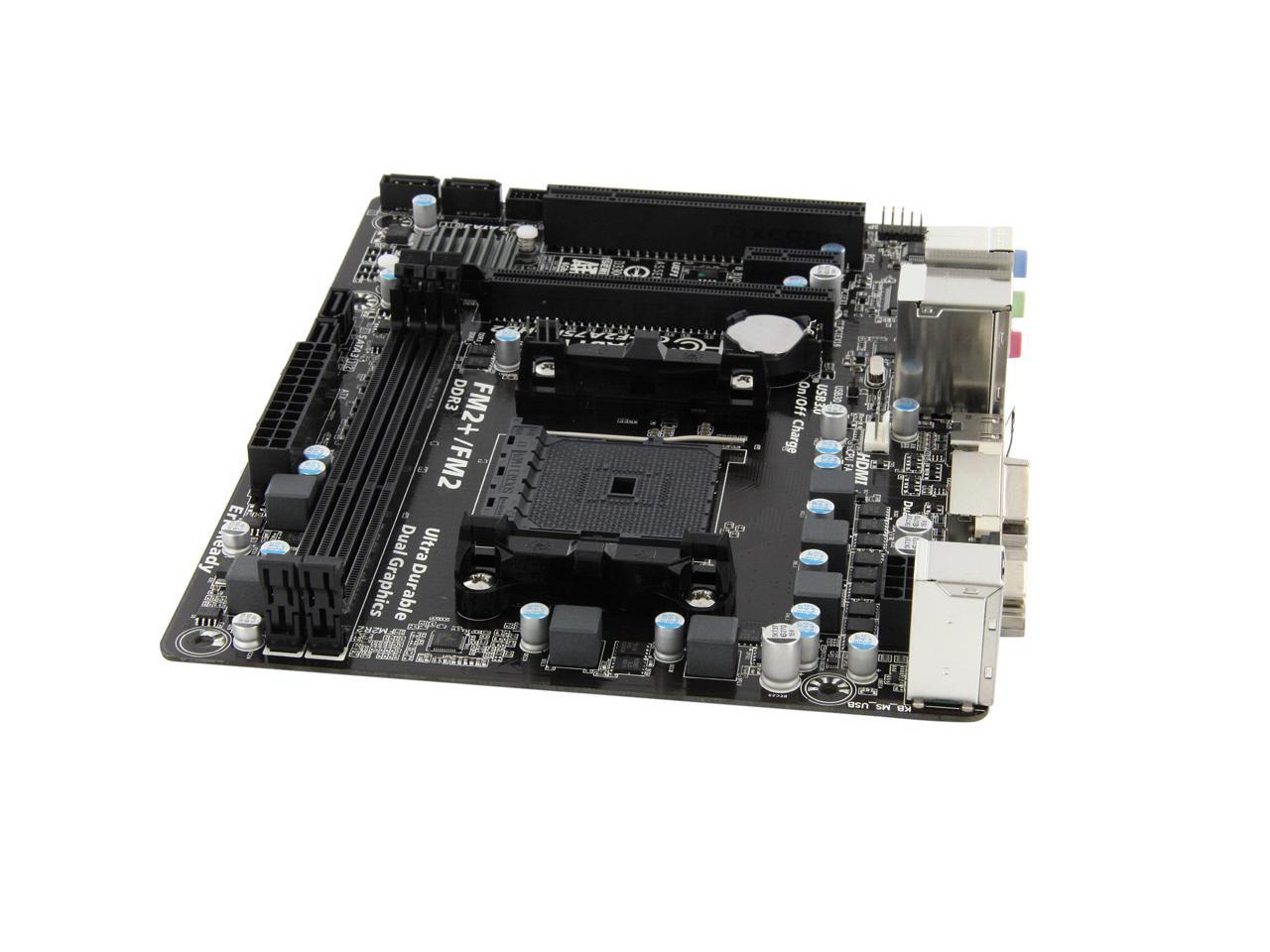

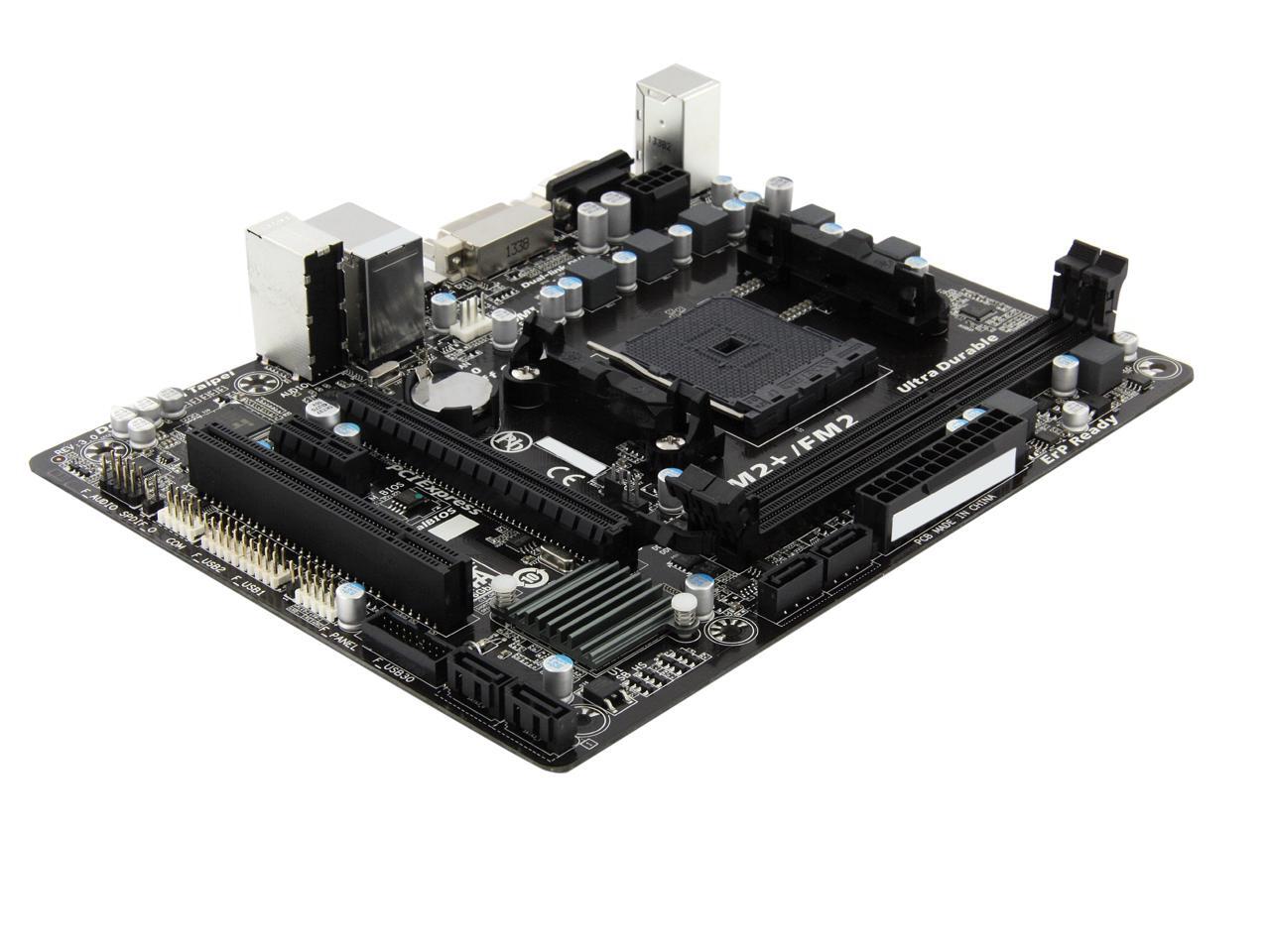

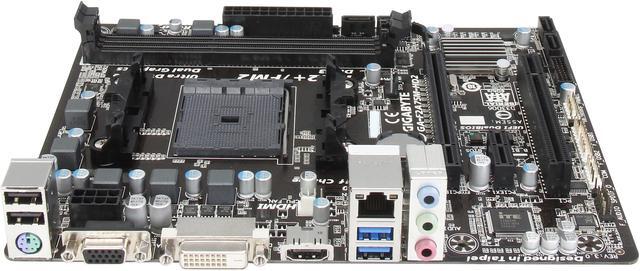

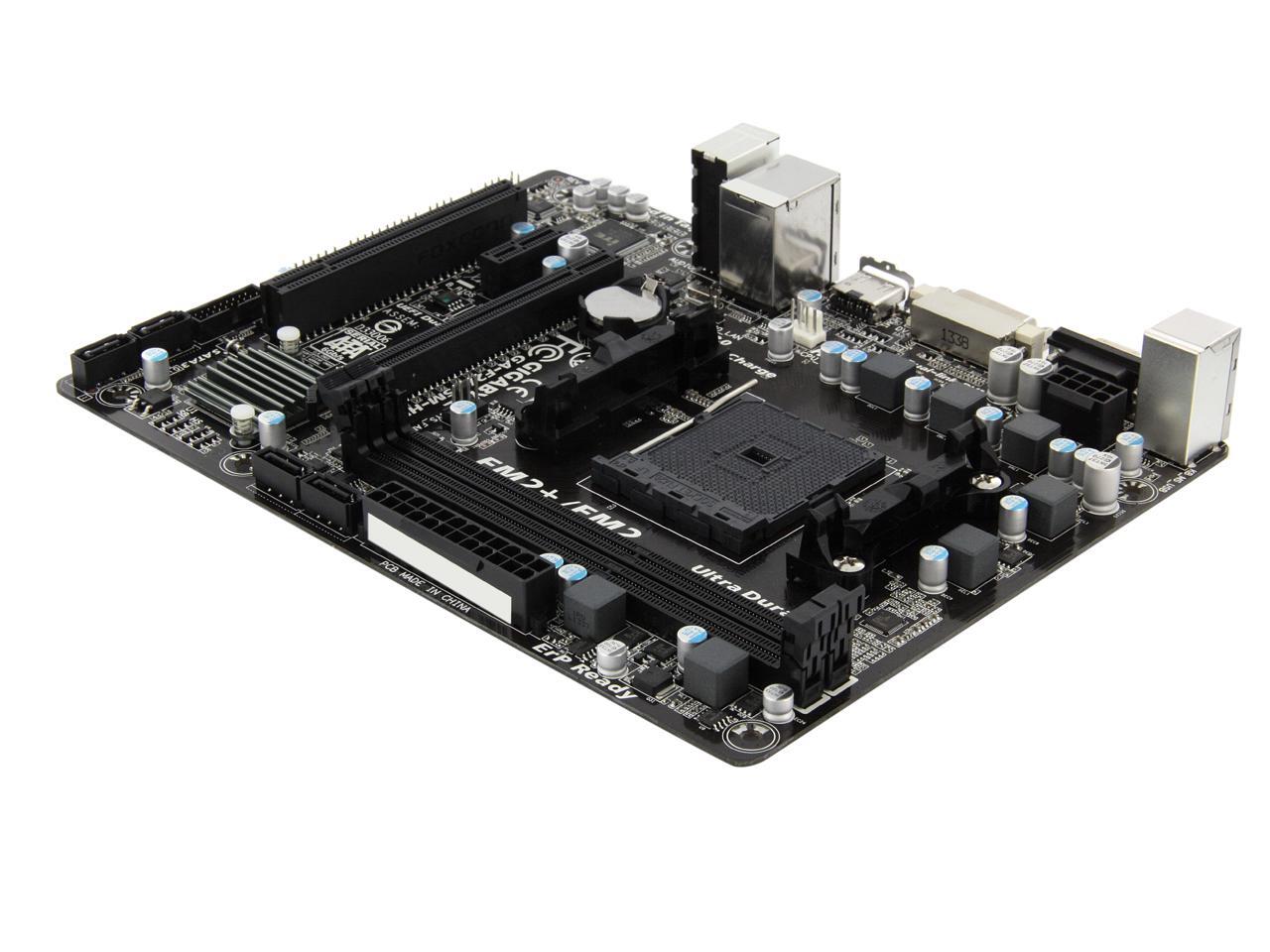

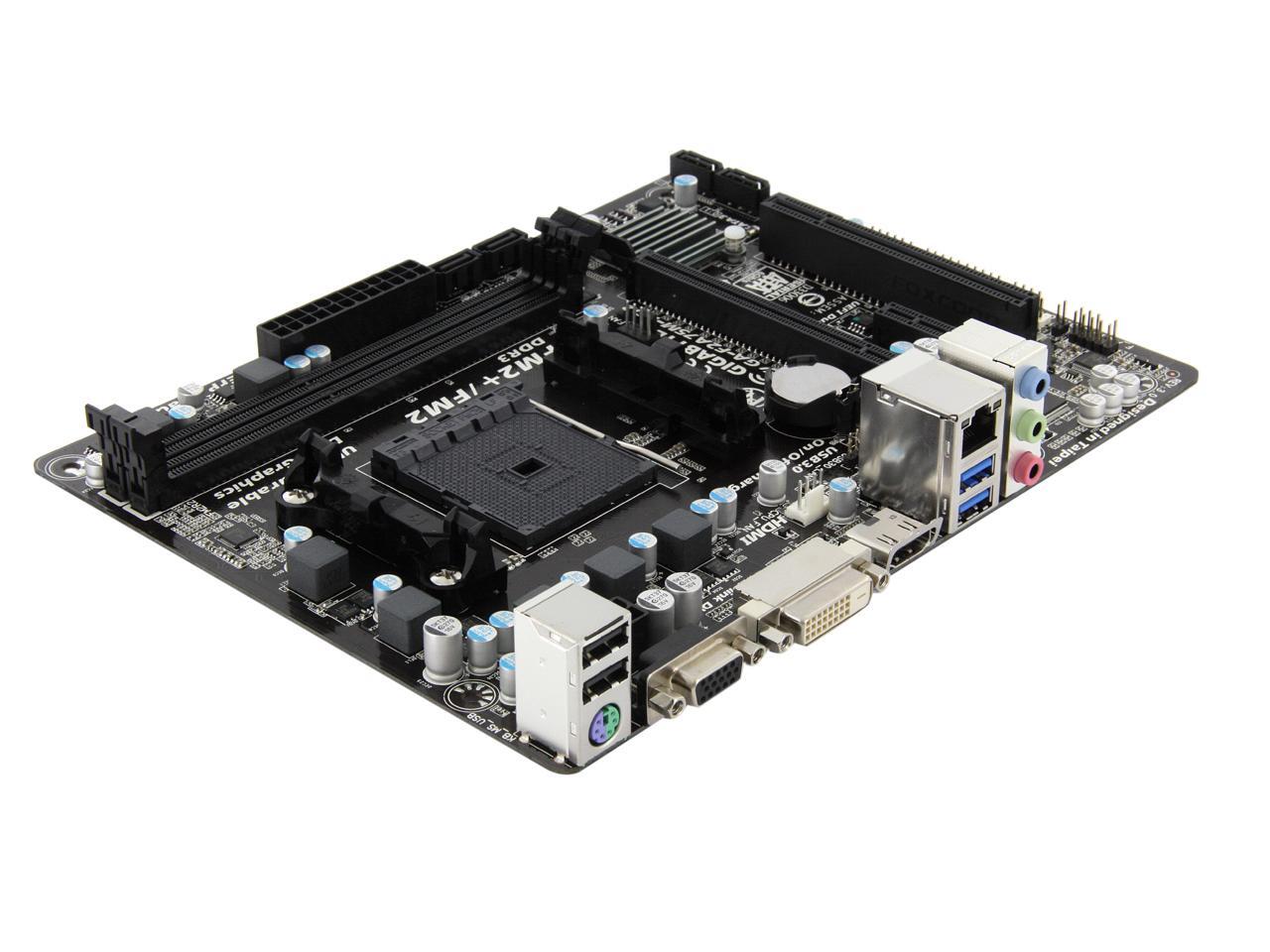

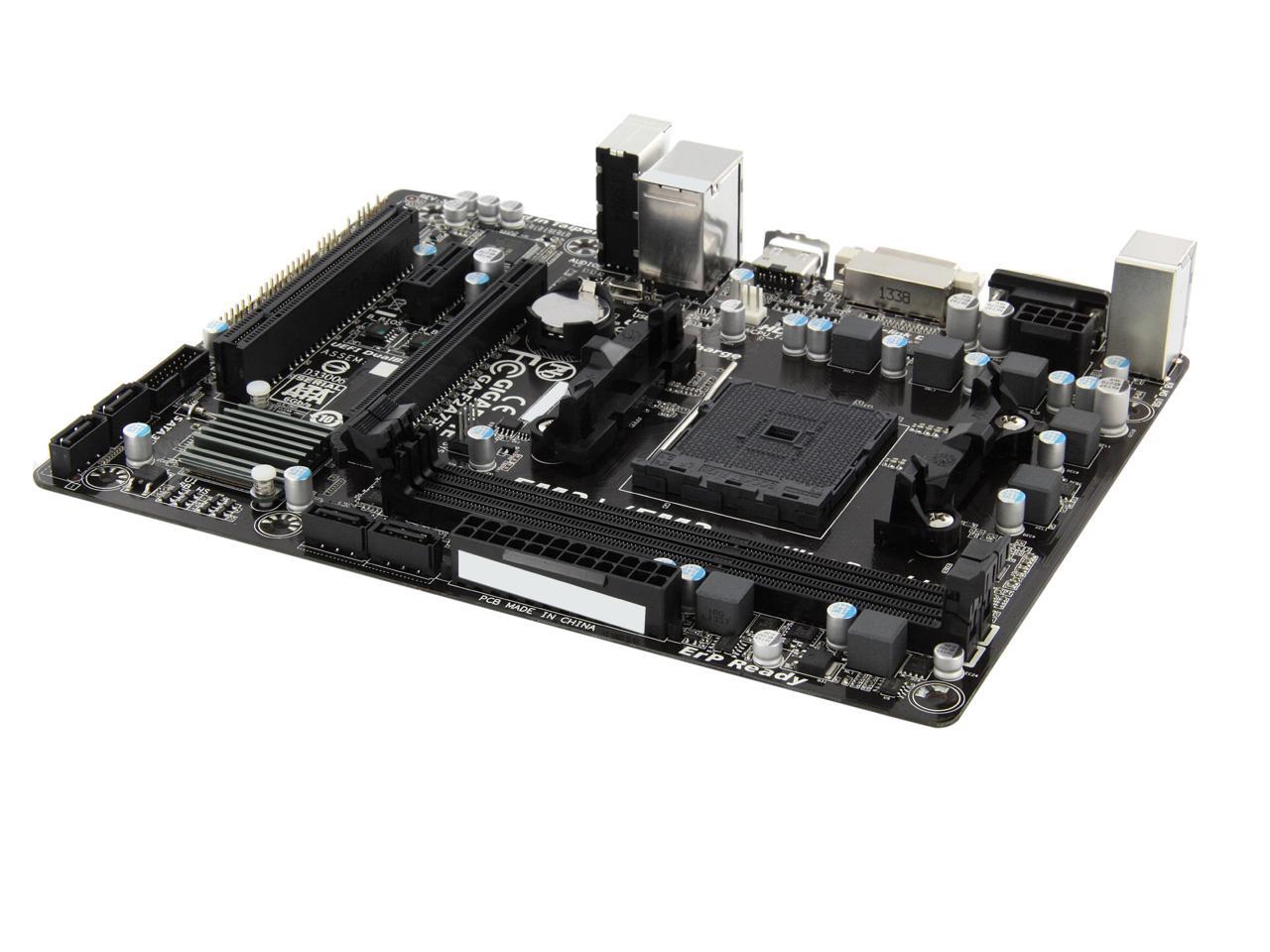

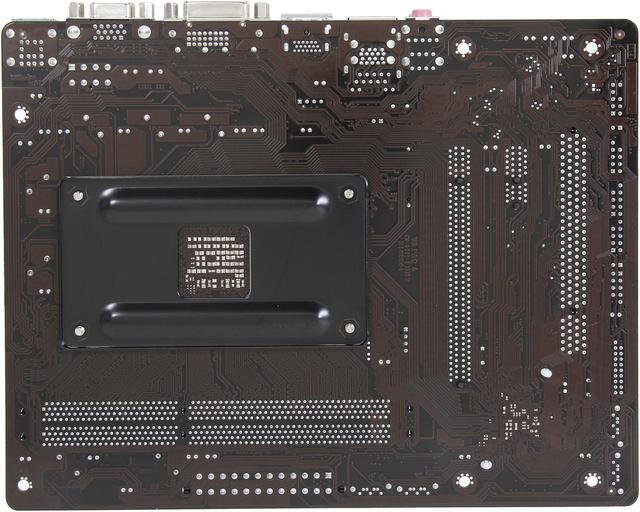

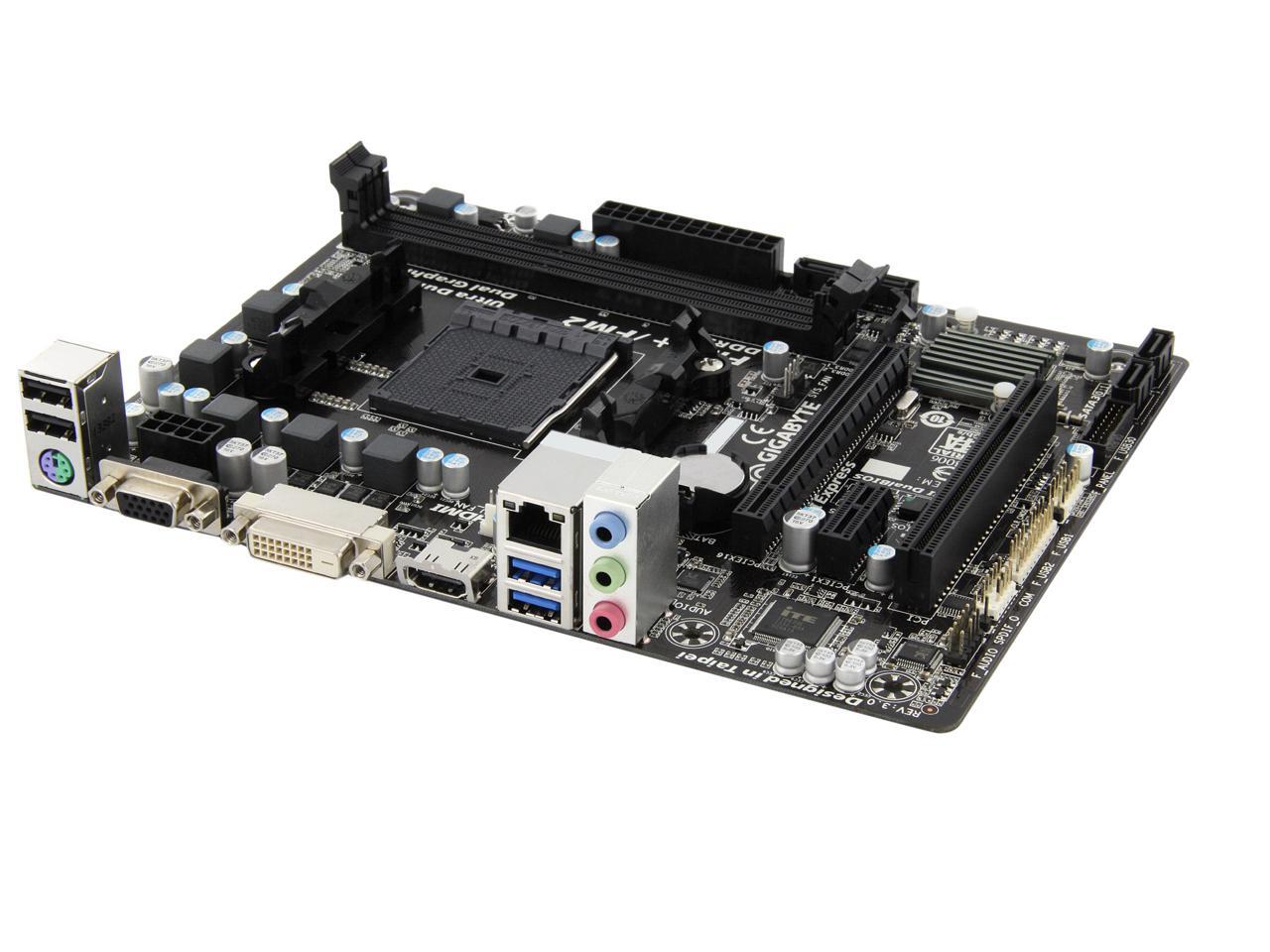

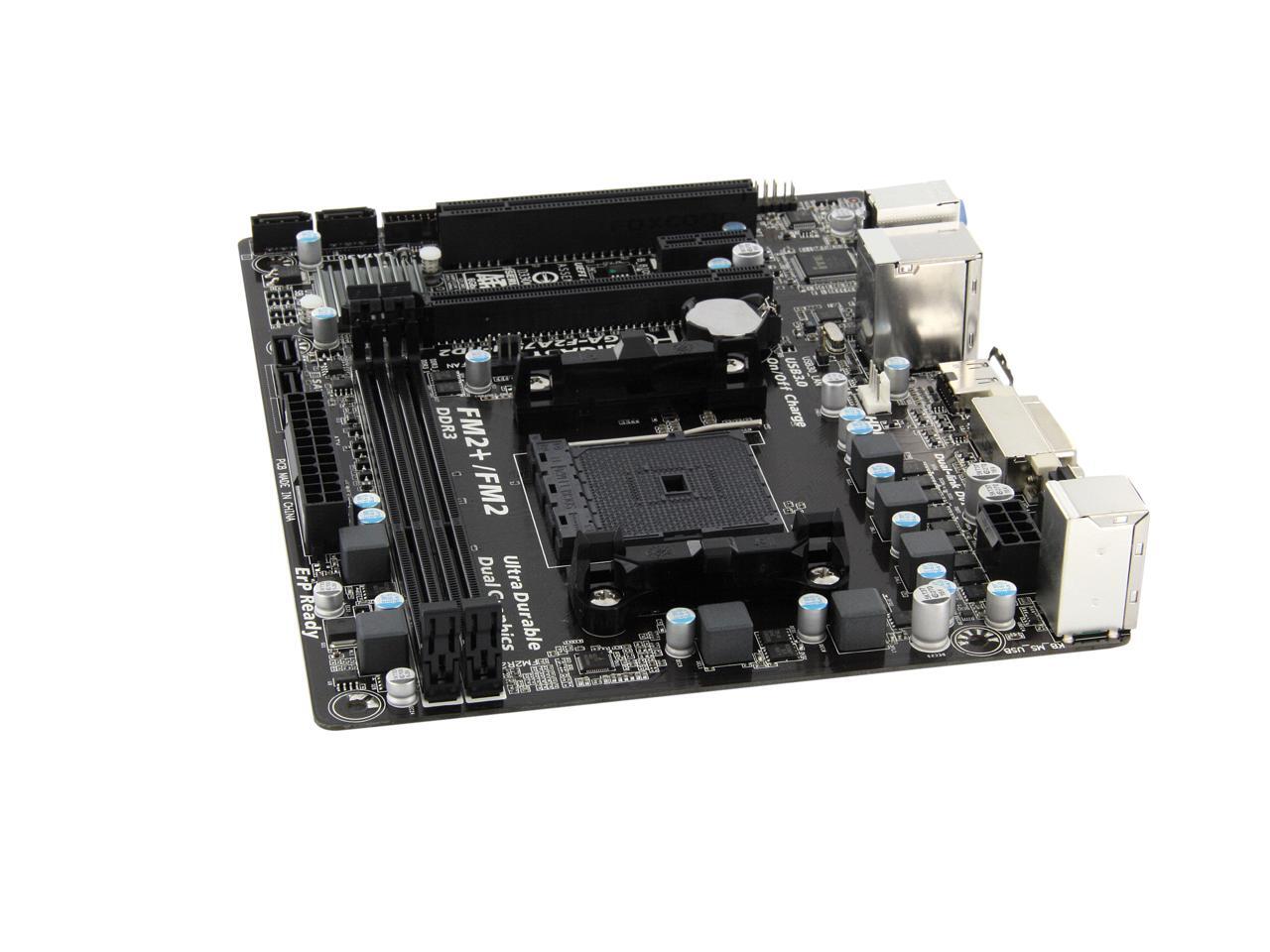

    GIGABYTE GA-F2A75M-HD2 (rev. 3.0) FM2+ AMD A75 (Hudson D3) USB 3.0 HDMI Micro ATX AMD Motherboard

    Used - Like New Product Type
    • AMD A75 (Hudson D3)
    • AMD A series/Athlon
    • DDR3 2400(OC)/1866
    🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
    +
    +
    Specs
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now

    Learn more about the GIGABYTE GA-F2A75M-HD2 (rev. 3.0)

    Model
    Brand GIGABYTE
    Model GA-F2A75M-HD2 (rev. 3.0)
    Supported CPU
    CPU Socket Type FM2+
    CPU Type A- Series (FM2+) / Athlon Series
    Chipsets
    Chipset AMD A75 (Hudson D3)
    Memory
    Number of Memory Slots 2x240pin
    Memory Standard DDR3 2400(OC)/1866/1600/1333/1066
    Maximum Memory Supported 64GB
    Channel Supported Dual Channel
    Expansion Slots
    PCI Express 3.0 x16 1 ( To support PCI Express 3.0, you must install an FM2+ APU)
    PCI Express x1 1 x PCI Express x1
    PCI Slots 1 x PCI Slot
    Storage Devices
    Serial ATA (SATA) 4 x SATA 6Gb/s
    SATA RAID 0/1/10/JBOD
    Onboard Audio
    Audio Chipset Realtek ALC887
    Audio Channels 7.1 Channels
    Onboard LAN
    LAN Chipset Realtek
    Max LAN Speed 1Gbps
    Rear Panel Ports
    Back I/O Ports 1 x D-Sub / 1 x DVI-D / 1 x HDMI / 1 x PS/2 / 2 x USB 2.0/1.1 / 2 x USB 3.1 Gen 1 / 3 x Audio Jacks
    PS/2 1 x PS/2 keyboard/mouse port
    Video Ports 1 x D-Sub
    1 x DVI-D
    HDMI 1 x HDMI
    USB 3.0 2 x USB 3.0
    USB 1.1/2.0 2 x USB 2.0
    Audio Ports 3 Ports
    Internal I/O Connectors
    Onboard USB 2 x USB 3.0 + 4 x USB 2.0
    Other Connectors 1 x 24-pin ATX main power connector
    1 x 8-pin ATX 12V power connector
    1 x APU fan header
    1 x system fan header
    1 x front panel header
    1 x front panel audio header
    1 x S/PDIF Out header
    1 x serial port header
    1 x Clear CMOS jumper
    1 x chassis intrusion header
    Physical Spec
    Form Factor Micro ATX
    Dimensions (W x L) 8.86" x 6.85"
    Power Pin 24 Pin
    Features
    Features GIGABYTE Ultra Durable 4 Plus Technology

    GIGABYTE UEFI DualBIOS

    GIGABYTE On/Off Charge for USB devices

    4 USB 3.0 ports with GIGABYTE 3x USB power

    HDMI, Dual-link DVI, D-sub ports for Triple-Monitor support

    High ESD Protection on GbE LAN and USB ports

    All solid capacitors design

    Support for @BIOS

    Support for Q-Flash

    Support for Xpress Install

    Support for EasyTune

    * Available functions in EasyTune may differ by motherboard model.

    Support for Smart Recovery 2
    Additional Information
    Date First Available May 15, 2025
