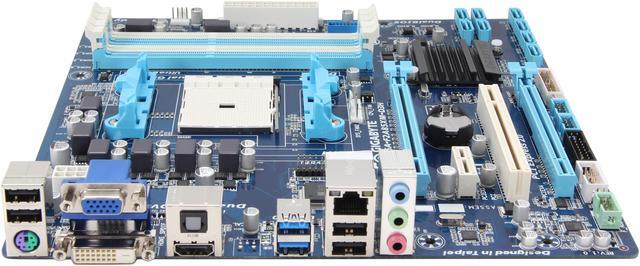

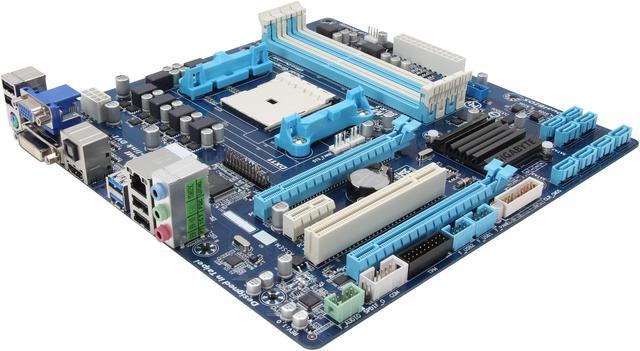

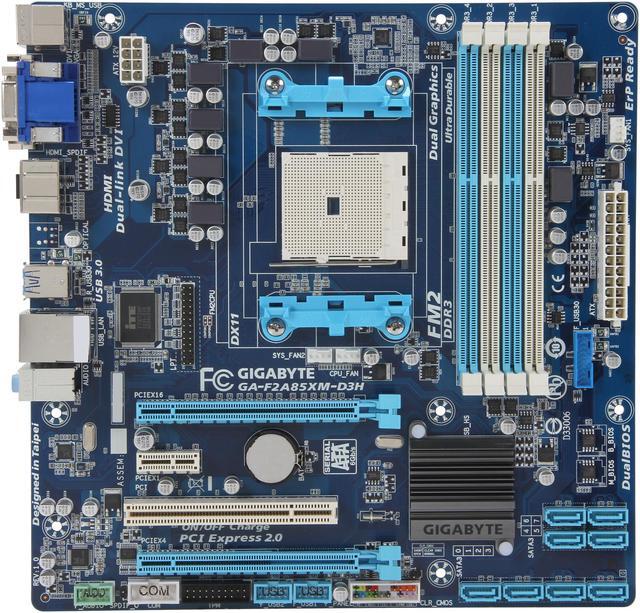

    GIGABYTE GA-F2A85XM-D3H FM2 AMD A85X (Hudson D4) USB 3.0 HDMI Micro ATX AMD Motherboard

    Used - Very Good Product Type
    • AMD A85X (Hudson D4)
    • APU (FM2 Socket)
    • DDR3 2400(OC)/1866
    🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
    +
    +
    Specs
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now

    Learn more about the GIGABYTE GA-F2A85XM-D3H

    Model
    Brand GIGABYTE
    Model GA-F2A85XM-D3H
    Supported CPU
    CPU Socket Type FM2
    CPU Type APU (FM2 Socket)
    Chipsets
    Chipset AMD A85X (Hudson D4)
    Memory
    Number of Memory Slots 4x240pin
    Memory Standard DDR3 2400(OC)/1866/1600/1333/1066
    Maximum Memory Supported 64GB
    Channel Supported Dual Channel
    Expansion Slots
    PCI Express 2.0 x16 2 (x16, x4)
    PCI Express x1 1 x PCI Express x1
    PCI Slots 1 x PCI Slot
    Storage Devices
    Serial ATA (SATA) 8 x SATA 6Gb/s
    SATA RAID 0/1/5/10/JBOD
    Onboard Video
    Onboard Video Chipset None
    Onboard Audio
    Audio Chipset Realtek ALC887
    Audio Channels 8 Channels
    Onboard LAN
    Max LAN Speed 1Gbps
    Rear Panel Ports
    Back I/O Ports 1 x D-Sub / 1 x DVI / 1 x HDMI / 1 x PS/2 / 2 x USB 3.1 Gen 1 / 3 x Audio Jacks / 4 x USB 2.0/1.1
    PS/2 1 x PS/2 keyboard/mouse port
    Video Ports D-Sub + DVI
    HDMI 1 x HDMI
    USB 3.0 2 x USB 3.0
    USB 1.1/2.0 4 x USB 2.0
    S/PDIF Out 1 x Optical
    Audio Ports 3 Ports
    Internal I/O Connectors
    Onboard USB 2 x USB 3.0 + 4 x USB 2.0
    Other Connectors 1 x 24-pin ATX main power connector
    1 x 8-pin ATX 12V power connector
    1 x APU fan header
    2 x system fan headers
    1 x front panel header
    1 x front panel audio header
    1 x S/PDIF Out header
    1 x serial port header
    1 x parallel port header
    1 x Clear CMOS jumper
    1 x Trusted Platform Module (TPM) header
    Physical Spec
    Form Factor Micro ATX
    Dimensions (W x L) 9.6" x 9.6"
    Power Pin 24 Pin
    Features
    Features GIGABYTE Ultra Durable 4 Classic

    GIGABYTE 3D BIOS

    GIGABYTE 333 Onboard Acceleration

    Dual-link DVI port

    Triple-Monitor support

    On/Off Charge Technology
    Additional Information
    Date First Available May 19, 2025
