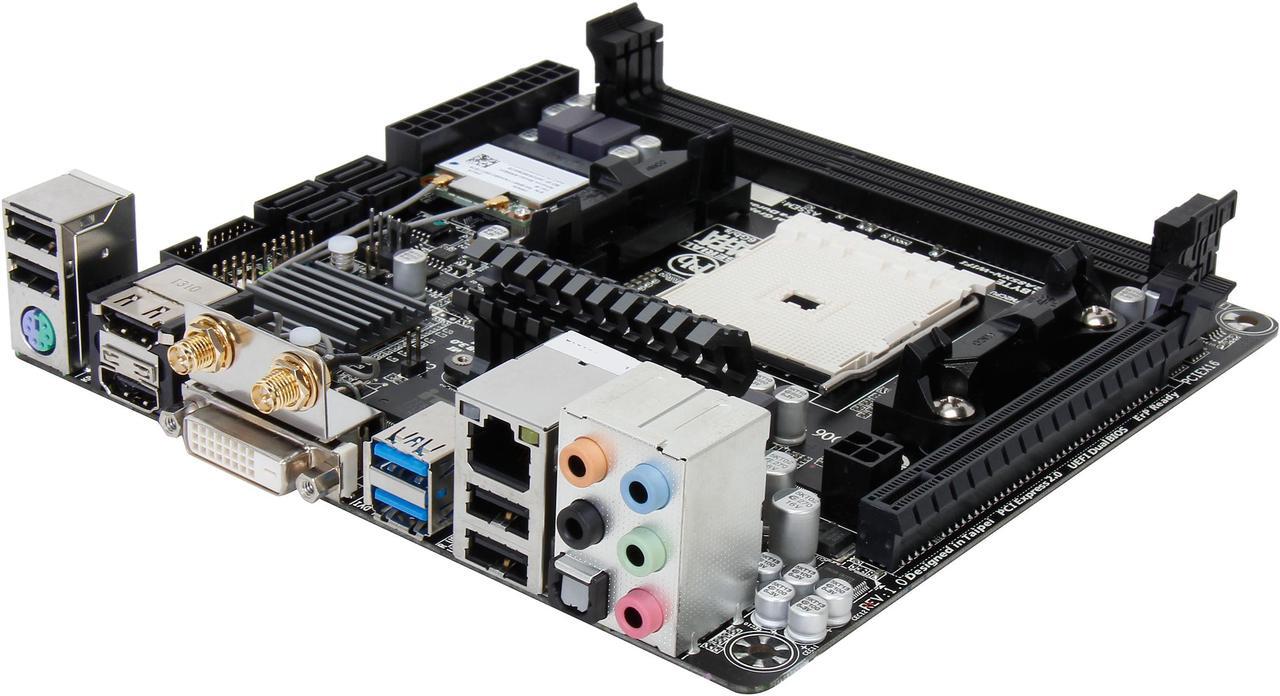

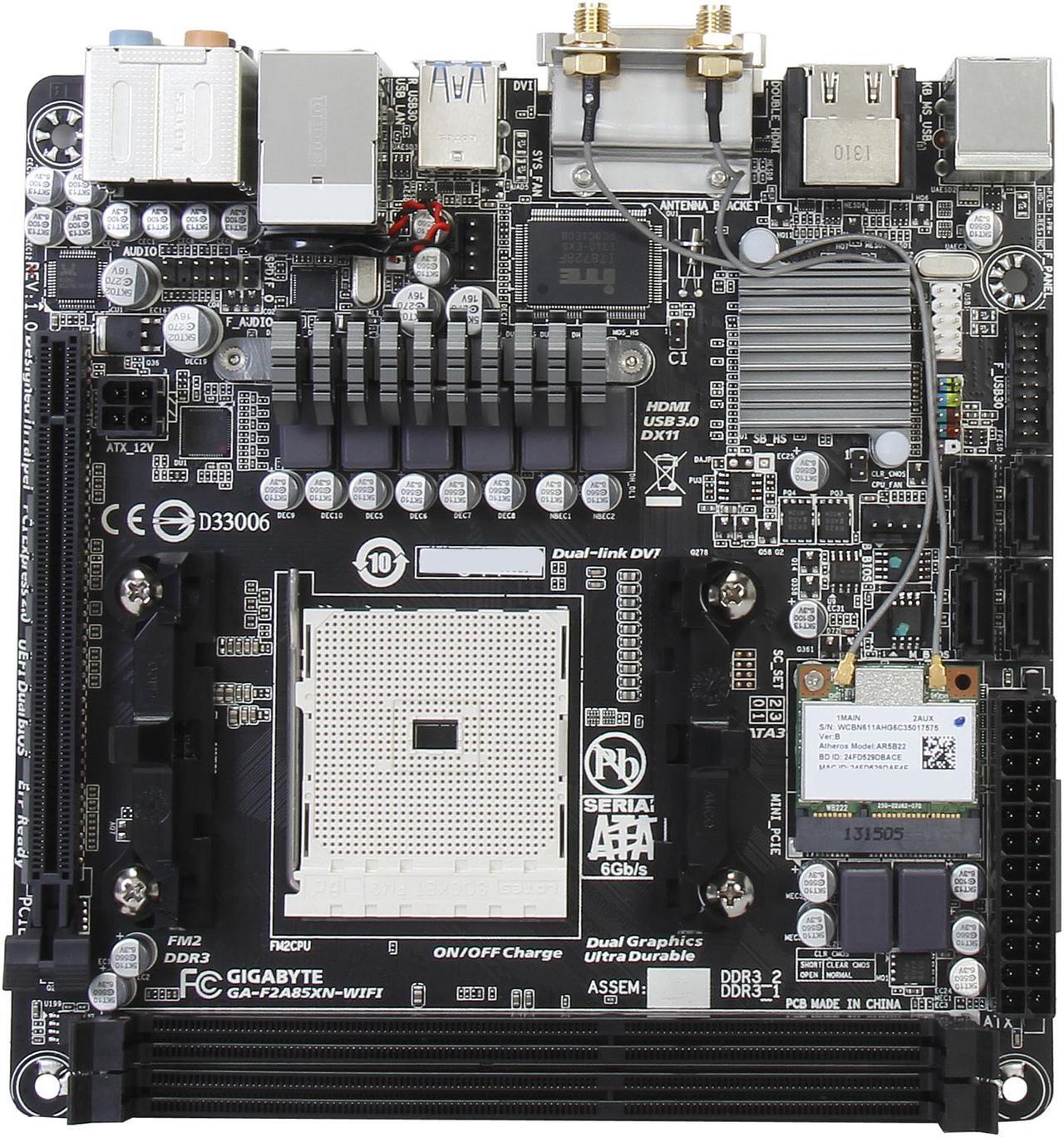

    GIGABYTE GA-F2A85XN-WIFI FM2 AMD A85X (Hudson D4) USB 3.0 HDMI Mini ITX AMD Motherboard

    Used - Good Product Type
    • AMD A85X (Hudson D4)
    • APU (FM2 Socket)
    • DDR3 2400(OC)/1866
    🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
    +
    +
    Specs

    Learn more about the GIGABYTE GA-F2A85XN-WIFI

    Model
    Brand GIGABYTE
    Model GA-F2A85XN-WIFI
    Supported CPU
    CPU Socket Type FM2
    CPU Type A-series/ Athlon-series
    Chipsets
    Chipset AMD A85X (Hudson D4)
    Memory
    Number of Memory Slots 2x240pin
    Memory Standard DDR3 2400(OC)/1866/1600/1333/1066
    Maximum Memory Supported 64GB
    Channel Supported Dual Channel
    Expansion Slots
    PCI Express 2.0 x16 1 x PCI Express 2.0 x16
    Mini Card Slots 1 x mini-PCI Express slot for the wireless communication module
    Storage Devices
    Serial ATA (SATA) 4 x SATA 6Gb/s
    SATA RAID 0/1/5/10/JBOD
    Onboard Audio
    Audio Chipset Realtek ALC892
    Audio Channels 7.1 Channels
    Onboard LAN
    LAN Chipset Realtek
    Max LAN Speed 1Gbps
    Wireless LAN Wi-Fi 802.11 a/b/g/n, supporting 2.4/5 GHz Dual-Band
    Bluetooth Bluetooth 4.0, 3.0+HS, 2.1+EDR
    Rear Panel Ports
    PS/2 1 x PS/2 keyboard/mouse port
    Video Ports 1 x DVI-D
    HDMI 2 x HDMI
    USB 3.0 2 x USB 3.0
    USB 1.1/2.0 4 x USB 2.0
    S/PDIF Out 1 x Optical
    Audio Ports 5 Ports
    Internal I/O Connectors
    Onboard USB 2 x USB 3.0 + 2 x USB 2.0
    Other Connectors 1 x 24-pin ATX main power connector
    1 x 4-pin ATX 12V power connector
    1 x APU fan header
    1 x system fan header
    1 x front panel header
    1 x front panel audio header
    1 x S/PDIF Out header
    1 x Clear CMOS jumper
    1 x chassis intrusion header
    Physical Spec
    Form Factor Mini ITX
    Dimensions (W x L) 6.7" x 6.7"
    Power Pin 24 Pin
    Features
    Features GIGABYTE Digital Power design with GIGABYTE Ultra Durable 4 Plus technology

    Supports socket FM2 AMD A-series/ Athlon-series processors

    Enhanced AMD Radeon HD 8000/7000-series graphics (DX11) integrated with the APU

    1 PCI-E 2.0 x16 interfaces with AMD Dual Graphics, Eyefinity support

    Features dual HDMI/ Dual-link DVI ports for Full HD 1080 and HDCP support

    Features Atheros Dual Band 802.11 a/b/g/n 300Mbps + BLUTETOOTH 4.0 wireless solution

    4 USB 3.0 ports with transfer rates of up to 5Gbps

    4 SATA3 ports with up to 6Gbps link speed and RAID 0,1,5,10 support

    GIGABYTE On/Off Charge technology with 3x USB power design

    Unique Features:
    -Support for @BIOS
    -Support for Q-Flash
    -Support for Xpress Install
    -Support for EasyTune
    -Support for Smart Recovery 2
    -Support for ON/OFF Charge
    -Support for Wi-Fi Share
    -Support for Cloud Station
    Additional Information
    Date First Available May 19, 2025
