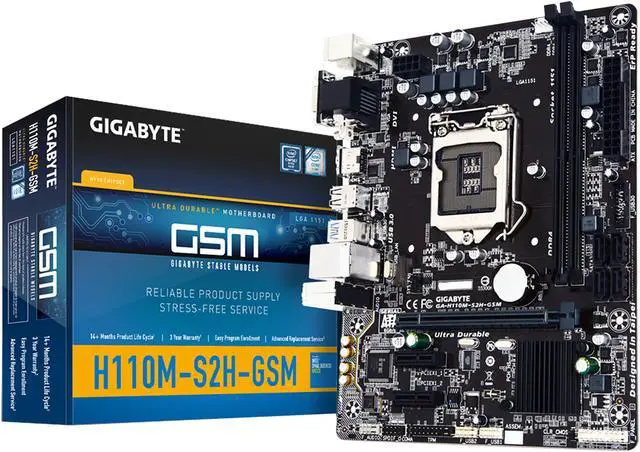

Main image of GIGABYTE GA-H110M-S2H-GSM (rev. 1.0) LGA 1151 Intel H110 HDMI USB 3.0 Micro ATX Intel Motherboard

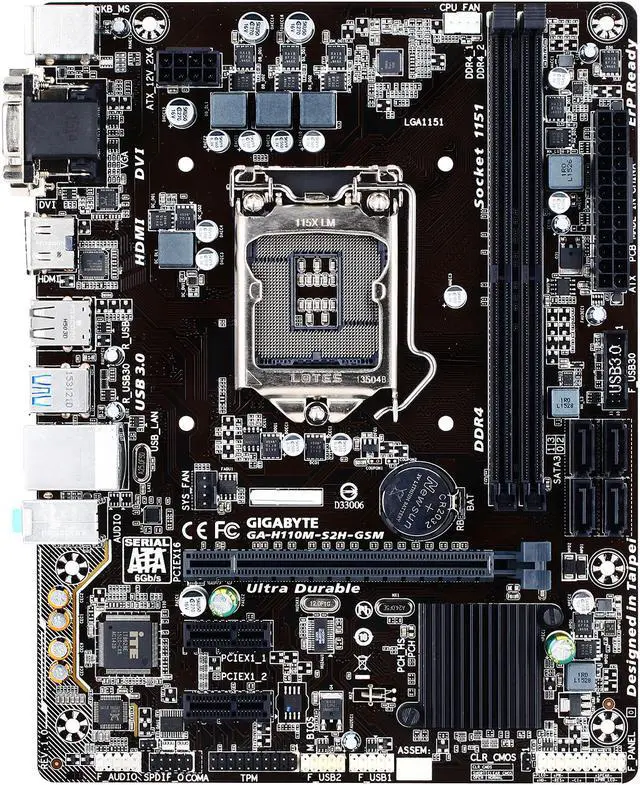

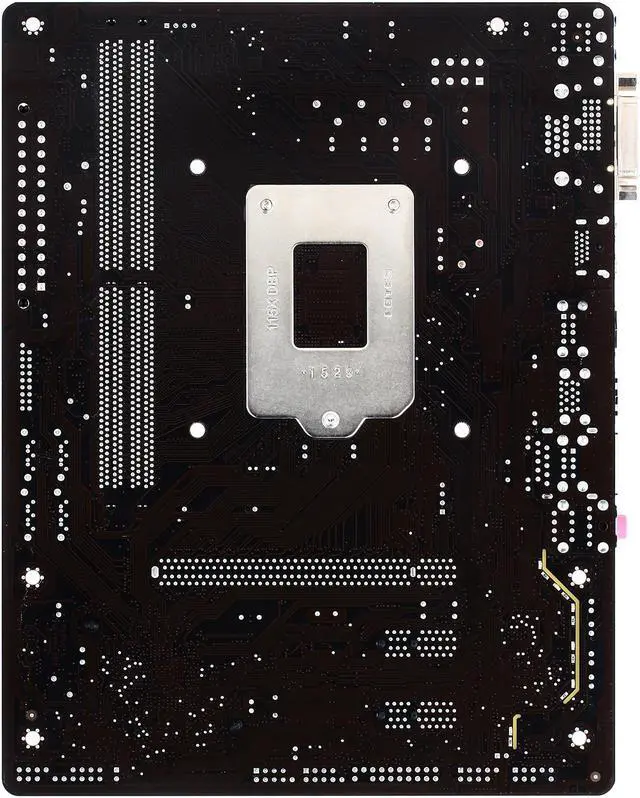

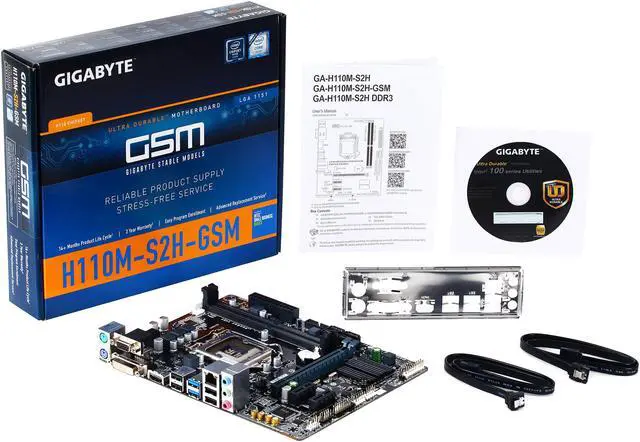

Alt view image 2 of 8 - GIGABYTE GA-H110M-S2H-GSM (rev. 1.0) LGA 1151 Intel H110 HDMI USB 3.0 Micro ATX Intel Motherboard

Alt view image 3 of 8 - GIGABYTE GA-H110M-S2H-GSM (rev. 1.0) LGA 1151 Intel H110 HDMI USB 3.0 Micro ATX Intel Motherboard

Alt view image 4 of 8 - GIGABYTE GA-H110M-S2H-GSM (rev. 1.0) LGA 1151 Intel H110 HDMI USB 3.0 Micro ATX Intel Motherboard

Alt view image 5 of 8 - GIGABYTE GA-H110M-S2H-GSM (rev. 1.0) LGA 1151 Intel H110 HDMI USB 3.0 Micro ATX Intel Motherboard

Alt view image 6 of 8 - GIGABYTE GA-H110M-S2H-GSM (rev. 1.0) LGA 1151 Intel H110 HDMI USB 3.0 Micro ATX Intel Motherboard

Alt view image 7 of 8 - GIGABYTE GA-H110M-S2H-GSM (rev. 1.0) LGA 1151 Intel H110 HDMI USB 3.0 Micro ATX Intel Motherboard

Alt view image 8 of 8 - GIGABYTE GA-H110M-S2H-GSM (rev. 1.0) LGA 1151 Intel H110 HDMI USB 3.0 Micro ATX Intel Motherboard

Shop All GIGABYTE Products | Visit ProTek Store

GIGABYTE GA-H110M-S2H-GSM (rev. 1.0) LGA 1151 Intel H110 HDMI USB 3.0 Micro ATX Intel Motherboard

Used - Very Good

Intel H110
Celeron / Core i3 / Core i5 / Core i7 / Intel Core 6th Gen (LGA 1151) / Intel Core 7th Gen (LGA 1151) / Pentium
DDR4 2133

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Any questions? Our AI beta will help you find out quickly.

Try me now

GIGABYTE GA-H110M-S2H GSM LGA1151/ Intel H110/ DDR4/ SATA3&USB3.0/ A&GbE/ MicroATX Motherboard

CPU: LGA1151; Chipset: Intel H110 Express

Memory: 2x DDR4-2133 DIMM Slots, Dual Channel, ECC, Non-ECC, Unbuffered, Max Capacity of 32GB

Slots: 1x PCI-Express 3.0 x16 Slot, 2x PCI-Express 2.0 x1 Slots

SATA: 4x SATA3 Ports

Ports: 4x USB 3.0/2.0 Ports (2 rear, 2 via header), 8x USB 2.0/1.1 Ports (4 rear, 4 via headers), 1 x PS/2 Mouse Port, 1x PS/2 Keyboard Port, 1x VGA Port, 1x DVI-D Port, 1x HDMI Port, 1x RJ45 LAN Port, Audio I/O Jacks

Form Factor: MicroATX

Model
Brand	GIGABYTE
Model	GA-H110M-S2H-GSM (rev. 1.0)

Supported CPU
CPU Socket Type	LGA 1151
CPU Type	Celeron / Core i3 / Core i5 / Core i7 / Intel Core 6th Gen (LGA 1151) / Intel Core 7th Gen (LGA 1151) / Pentium
Supported CPU Technologies	* Not Compatible with Intel 8th Gen CPUs

Chipsets
Chipset	Intel H110

Onboard Video
Onboard Video Chipset	Integrated Graphics Processor - Intel HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz * Support for HDMI 1.4 version. Support for up to 2 displays at the same time Maximum shared memory of 512MB

Memory
Number of Memory Slots	2x288pin (DDR4)
Memory Standard	DDR4 2133
Maximum Memory Supported	32GB
Channel Supported	Dual Channel

Expansion Slots
PCI Express 3.0 x16	1 x PCI Express x16 slot, running at x16 (PCIEX16) (The PCI Express x16 slot conforms to PCI Express 3.0 standard.)
PCI Express x1	2 x PCI Express x1 slots (All of the PCI Express x1 slots conform to PCI Express 2.0 standard.)

Storage Devices
Serial ATA (SATA)	4 x SATA 6Gb/s

Onboard Audio
Audio Chipset	Realtek ALC887
Audio Channels	7.1 Channels

Onboard LAN
LAN Chipset	Realtek GbE LAN chip
Max LAN Speed	1Gbps

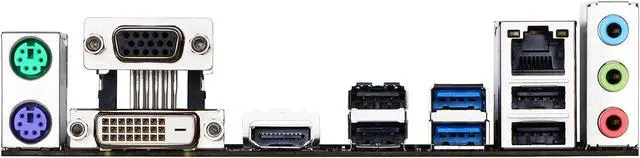

Rear Panel Ports
Back I/O Ports	1 x HDMI / 2 x PS/2 / 2 x USB 3.0 / 4 x USB 2.0/1.1
PS/2	1 x PS/2 mouse port 1 x PS/2 Keyboard port
Video Ports	1 x D-Sub port 1 x DVI-D port
HDMI	1 x HDMI
RJ45	1 x RJ45
USB 3.0	2 x USB 3.0
USB 1.1/2.0	4 x USB 2.0
Audio Ports	3 x audio jacks (Line In, Line Out, Mic In)

Internal I/O Connectors
Onboard USB	1 x USB 3.0/2.0 header 2 x USB 2.0/1.1 headers
Other Connectors	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x Trusted Platform Module (TPM) header 1 x serial port header 1 x Clear CMOS jumper

Physical Spec
Form Factor	Micro ATX
Dimensions (W x L)	8.90" x 6.85"
Power Pin	24 Pin

Features
Features	I/O Controller: - iTE I/O Controller Chip H/W Monitoring: - System voltage detection - CPU/System temperature detection - CPU/System fan speed detection - CPU/System overheating warning - CPU/System fan fail warning - CPU/System fan speed control * Whether the fan speed control function is supported will depend on the cooler you install. BIOS: - 1 x 64 Mbit flash - Use of licensed AMI UEFI BIOS - PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features: - Support for APP Center * Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications. 3D OSD @BIOS AutoGreen Cloud Station EasyTune Fast Boot Smart TimeLock Smart Keyboard Smart Backup System Information Viewer USB Blocker - Support for Q-Flash - Support for Smart Switch - Support for Xpress Install Bundle Software: - Norton Internet Security (OEM version) - cFosSpeed Operating System: - Support for Windows 10/8.1 64-bit - Support for Windows 7 32-bit/64-bit * Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.

Additional Information
Date First Available	July 03, 2025
