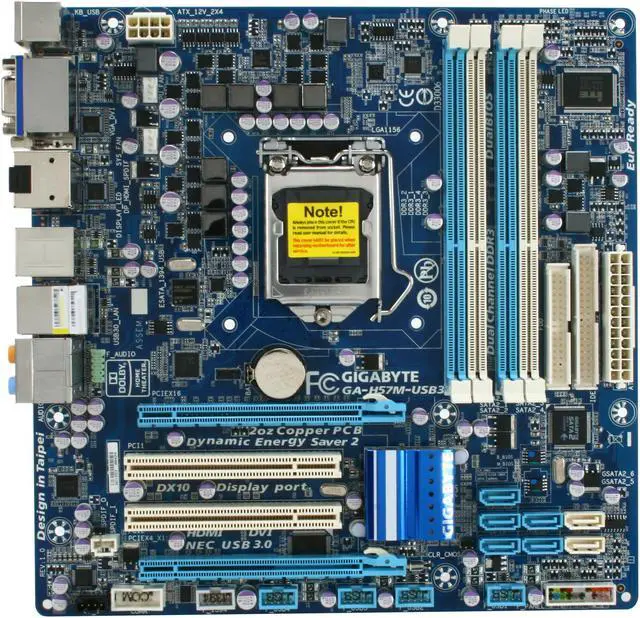

GIGABYTE GA-H57M-USB3 LGA 1156 Intel H57 HDMI USB 3.0 Micro ATX Intel Motherboard

(51) Write a Review
  • Intel H57
  • Core i3 / Core i5 / Core i7 / Intel Core 1st Gen (LGA 1156) / Pentium
  • DDR3 2200*/1800/1600/1333/1066/800 * To reach DDR3 2200 MHz and above, you are required to use with Intel Core i7/Core i5 CPU without HD Graphics and install a discrete graphics card. When using Intel Core i5/Core i3/ Pentium CPU with HD Graphics, the maximum memory speed supported is 1666 MHz
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Specs
Reviews (51)
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the GIGABYTE GA-H57M-USB3

Model
Brand GIGABYTE
Model GA-H57M-USB3
Supported CPU
CPU Socket Type LGA 1156
CPU Type Core i3 / Core i5 / Core i7 / Intel Core 1st Gen (LGA 1156) / Pentium
Chipsets
Chipset Intel H57
Onboard Video
Onboard Video Chipset None
Memory
Number of Memory Slots 4x240pin
Memory Standard DDR3 2200*/1800/1600/1333/1066/800

* To reach DDR3 2200 MHz and above, you are required to use with Intel Core i7/Core i5 CPU without HD Graphics and install a discrete graphics card.
When using Intel Core i5/Core i3/ Pentium CPU with HD Graphics, the maximum memory speed supported is 1666 MHz
Maximum Memory Supported 16GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 2.0 x16 1 x PCI Express 2.0 x16
PCI Express x16 1, running at x4
PCI Slots 2 x PCI Slots
Storage Devices
PATA 1 x ATA133 2 Dev. Max
SATA RAID 0/1/5/10
Onboard Audio
Audio Chipset Realtek ALC889
Audio Channels 8 Channels
Onboard LAN
LAN Chipset Realtek 8111D
Max LAN Speed 1Gbps

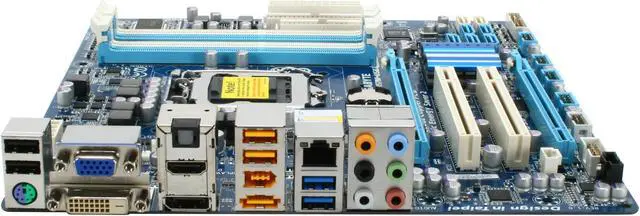

Rear Panel Ports
Back I/O Ports 1 x eSATA 3GB/S / 1 x HDMI / 1 x Optical S/PDIF Out / 1 x PS/2 / 2 x USB 3.0 / 4 x USB 2.0/1.1
PS/2 1
Video Ports D-Sub + DVI + Display Port
HDMI 1 x HDMI
USB 3.0 2 x USB 3.0
USB 1.1/2.0 4 x USB 2.0
IEEE 1394 1 x IEEE 1394a
eSATA 1 x eSATA 3Gb/s
S/PDIF Out 1 x Optical
Audio Ports 6 Ports
Internal I/O Connectors
Onboard USB 8 x USB 2.0
Onboard 1394 1 x 1394a
Physical Spec
Form Factor Micro ATX
Dimensions (W x L) 9.6" x 9.6"
Power Pin 24 Pin
Additional Information
First Listed on Newegg January 26, 2010
