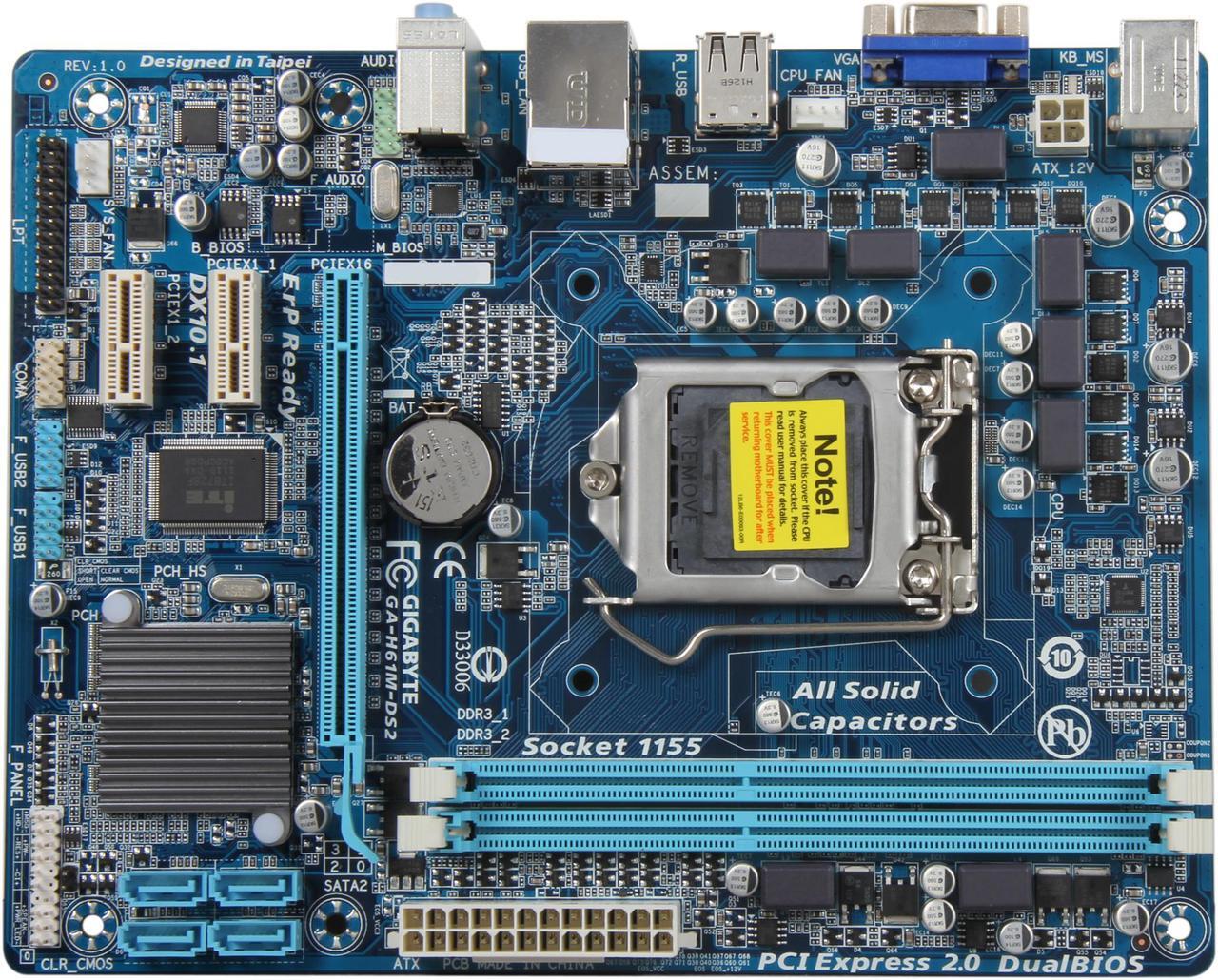

Learn more about the GIGABYTE GA-H61M-DS2
ModelBrand | GIGABYTE |
---|
Model | GA-H61M-DS2 |
---|
Supported CPUCPU Socket Type | LGA 1155 |
---|
CPU Type | Celeron / Core i3 / Core i5 / Core i7 / Intel Core 2nd gen (LGA 1155) / Intel Core 3rd Gen (LGA 1155) / Pentium / Xeon (LGA1155) |
---|
ChipsetsChipset | Intel H61 |
---|
South Bridge | Intel ICH6 |
---|
Onboard VideoOnboard Video Chipset | Supported only by CPU with integrated graphic |
---|
MemoryNumber of Memory Slots | 2x240pin |
---|
Memory Standard | DDR3 1333 / 1066 / 800 |
---|
Maximum Memory Supported | 16GB |
---|
Channel Supported | Dual Channel |
---|
Expansion SlotsPCI Express 2.0 x16 | 1 x PCI Express 2.0 x16 |
---|
PCI Express x1 | 2 x PCI Express x1 |
---|
Onboard AudioAudio Channels | 8 Channels |
---|
Onboard LANMax LAN Speed | 1Gbps |
---|

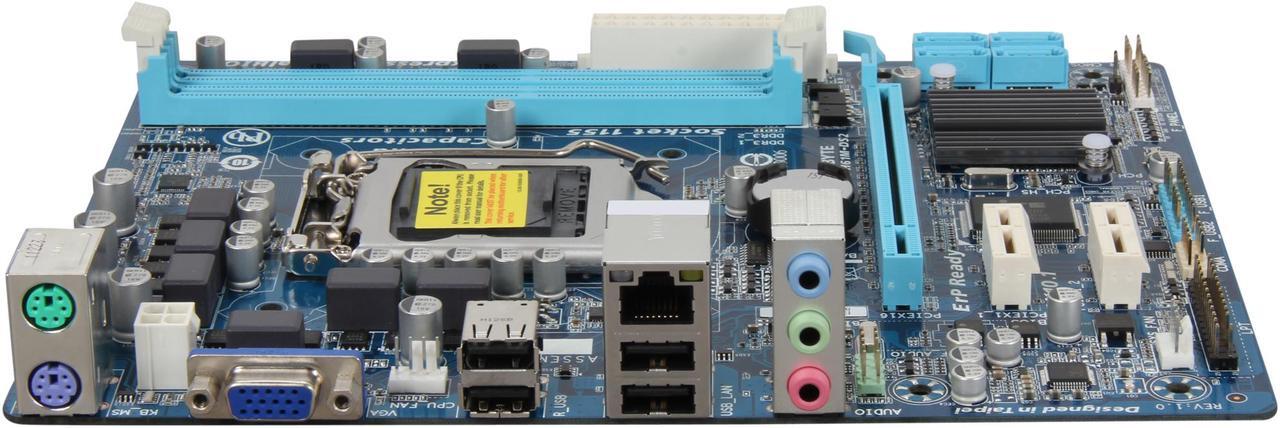

Rear Panel PortsBack I/O Ports | 2 x PS/2 / 4 x USB 2.0/1.1 |
---|
PS/2 | 2 |
---|
Video Ports | D-Sub |
---|
USB 1.1/2.0 | 4 x USB 2.0 |
---|
Audio Ports | 3 Ports |
---|
Internal I/O ConnectorsOnboard USB | 4 x USB 2.0 |
---|
Other Connectors | 1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 1 x parallel port header 1 x serial port header 1 x clearing CMOS jumper |
---|
Physical SpecForm Factor | Micro ATX |
---|
Dimensions (W x L) | 8.9" x 6.85" |
---|
Power Pin | 24 Pin |
---|
FeaturesFeatures | GIGABYTE Ultra Durable 4 Classic
Humidity Protection
Electrostatic Protection
Power Failure Protection
High Temperature Protection
GIGABYTE Touch BIOS |
---|
Additional InformationDate First Available | November 01, 2023 |
---|
