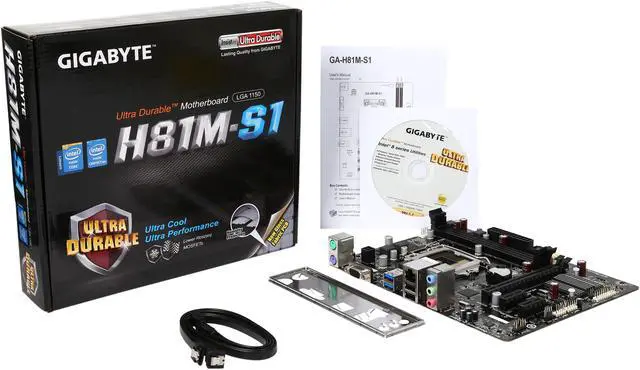

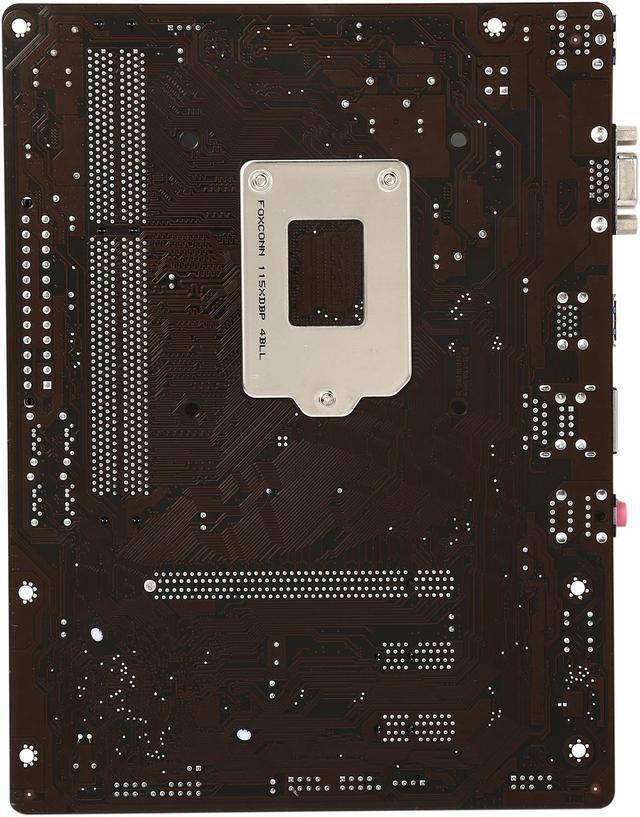

GIGABYTE GA-H81M-S1 (rev. 2.1) LGA 1150 Intel H81 USB 3.0 Micro ATX Intel Motherboard
- Intel H81
- Celeron / Core i3 / Core i5 / Core i7 / Intel Core 4th Gen (LGA 1150) / Pentium / Xeon (LGA1150)
- DDR3 1600/ 1333 non-ECC, 1.5V
+
+
Specs
Reviews (10)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the GIGABYTE GA-H81M-S1 (rev. 2.1)
| Brand | GIGABYTE |
|---|---|
| Model | GA-H81M-S1 (rev. 2.1) |
| CPU Socket Type | LGA 1150 |
|---|---|
| CPU Type | Celeron / Core i3 / Core i5 / Core i7 / Intel Core 4th Gen (LGA 1150) / Pentium / Xeon (LGA1150) |
| Chipset | Intel H81 |
|---|
| Onboard Video Chipset | Integrated Graphics Processor - Intel HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200 Maximum shared memory of 1 GB |
|---|
| Number of Memory Slots | 2x240pin |
|---|---|
| Memory Standard | DDR3 1600/ 1333 non-ECC, 1.5V |
| Maximum Memory Supported | 16GB |
| Channel Supported | Dual Channel |
| PCI Express x16 | 1 x PCI Express x16 slot, running at x16 |
|---|---|
| PCI Express x1 | 2 x PCI Express x1 slots (The PCI Express slots conform to PCI Express 2.0 standard.) |
| Serial ATA (SATA) | 2 x SATA 6Gb/s connectors (SATA3 0/1) |
|---|
| Audio Chipset | Realtek ALC887 |
|---|---|
| Audio Channels | 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. |
| LAN Chipset | Realtek GbE |
|---|---|
| Max LAN Speed | 1Gbps |
| Back I/O Ports | 2 x PS/2 / 2 x USB 2.0/1.1 / 2 x USB 3.0 |
|---|---|
| PS/2 | 1 x PS/2 mouse port 1 x PS/2 Keyboard port |
| Video Ports | 1 x D-Sub port |
| RJ45 | 1 x RJ45 |
| USB 3.0 | 2 x USB 3.0/2.0 ports |
| USB 1.1/2.0 | 2 x USB 2.0/1.1 ports |
| Audio Ports | 3 x audio jacks (Line In, Line Out, Mic In) |
| Onboard USB | 2 x USB 2.0/1.1 headers |
|---|---|
| Other Connectors | 1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 1 x Clear CMOS jumper |
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 8.9" x 6.69" |
| Power Pin | 24 Pin |
| Features | Supports 4th Generation Intel Core processors GIGABYTE Ultra Durable Technology GIGABYTE UEFI BIOS GIGABYTE On/Off Charge for USB devices LAN with high ESD Protection D-SUB port on rear panel Solid capacitors for CPU VRM design I/O Controller: iTE I/O Controller Chip H/W Monitoring: System voltage detection CPU/System temperature detection CPU/System fan speed detection CPU/System overheating warning CPU/System fan fail warning CPU/System fan speed control * Whether the fan speed control function is supported will depend on the cooler you install. BIOS: 1 x 32 Mbit flash Use of licensed AMI EFI BIOS 3.PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features: Support for Q-Flash Support for Xpress Install Support for APP Center * Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications. @BIOS EasyTune EZ Setup USB Blocker Smart TimeLock Smart Recovery 2 Support for ON/OFF Charge Bundle Software: Norton Internet Security (OEM version) Operating System: Support for Windows 8.1/8/7 |
|---|
| Date First Available | November 01, 2023 |
|---|
