Main image of GIGABYTE GA-H97-HD3 LGA 1150 Intel H97 HDMI USB 3.0 ATX Intel Motherboard

100%

Alt view image 2 of 5 - GIGABYTE GA-H97-HD3 LGA 1150 Intel H97 HDMI USB 3.0 ATX Intel Motherboard

Alt view image 3 of 5 - GIGABYTE GA-H97-HD3 LGA 1150 Intel H97 HDMI USB 3.0 ATX Intel Motherboard

Alt view image 4 of 5 - GIGABYTE GA-H97-HD3 LGA 1150 Intel H97 HDMI USB 3.0 ATX Intel Motherboard

Alt view image 5 of 5 - GIGABYTE GA-H97-HD3 LGA 1150 Intel H97 HDMI USB 3.0 ATX Intel Motherboard

360^°

Shop All GIGABYTE Products | Visit Speed Electronics Store

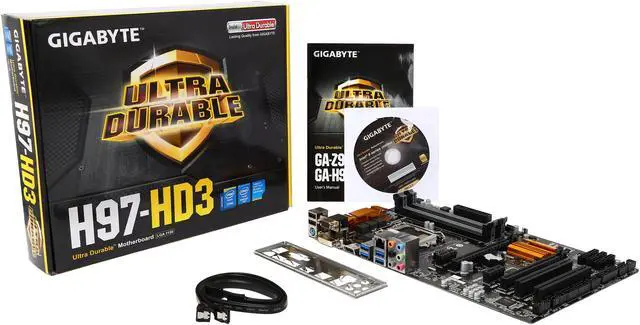

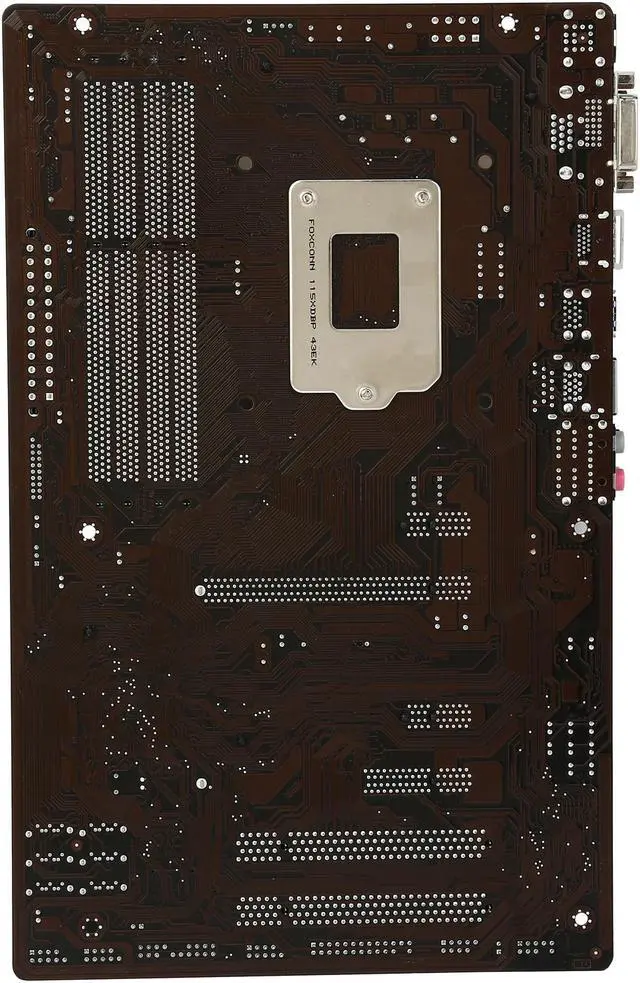

GIGABYTE GA-H97-HD3 LGA 1150 Intel H97 HDMI USB 3.0 ATX Intel Motherboard

Used - Like New

Intel H97
Celeron / Core i3 / Core i5 / Core i7 / Intel Core 4th Gen (LGA 1150) / Intel Core 5th Gen (LGA 1150) / Pentium
DDR3 1600/ 1333

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Any questions? Our AI beta will help you find out quickly.

Try me now

Model
Brand	GIGABYTE
Model	GA-H97-HD3

Supported CPU
CPU Socket Type	LGA 1150
CPU Type	Celeron / Core i3 / Core i5 / Core i7 / Intel Core 4th Gen (LGA 1150) / Intel Core 5th Gen (LGA 1150) / Pentium

Chipsets
Chipset	Intel H97

Onboard Video
Onboard Video Chipset	Integrated Graphics Processor - Intel HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60Hz 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x2160@24Hz or 2560x1600@60Hz * Support for HDMI 1.4a version. Support for up to three displays at the same time Maximum shared memory of 512MB

Memory
Number of Memory Slots	4x240pin
Memory Standard	DDR3 1600/ 1333
Maximum Memory Supported	32GB
Channel Supported	Dual Channel

Expansion Slots
PCI Express 3.0 x16	1 x PCI Express x16 slot, running at x16 (PCIEX16) (The PCIEX16 slot conforms to PCI Express 3.0 standard.) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
PCI Express x16	1 x PCI Express x16 slot, running at x4 (PCIEX4) * The PCIEX4 slot shares bandwidth with the PCI Express x1 slots. The PCI Express x1 slots will become unavailable when a PCIe x4 expansion card is installed. * When installing a x8 or above card in the PCIEX4 slot, make sure to set PCIE Slot Configuration (PCH) in BIOS Setup to x4.
PCI Express x1	2 x PCI Express x1 slots (The PCIEX4 and PCI Express x1 slots conform to PCI Express 2.0 standard.)
PCI Slots	2 x PCI Slots

Storage Devices
Serial ATA (SATA)	6 x SATA 6Gb/s
SATA RAID	0/1/5/10

Onboard Audio
Audio Chipset	Realtek ALC887
Audio Channels	7.1 Channels

Onboard LAN
LAN Chipset	Realtek 8111F-VL
Max LAN Speed	1Gbps

Rear Panel Ports
Back I/O Ports	1 x HDMI / 1 x PS/2 Keyboard/Mouse Combo / 2 x USB 2.0/1.1 / 4 x USB 3.0
PS/2	1 x PS/2 keyboard/mouse port
Video Ports	1 x DVI-D 1 x D-SUB
HDMI	1 x HDMI
RJ45	1 x RJ45
USB 3.0	4 x USB 3.0/2.0 ports
USB 1.1/2.0	2 x USB 2.0/1.1 ports
Audio Ports	6 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Side Speaker Out, Line In, Line Out, Mic In)

Internal I/O Connectors
Onboard USB	1 x USB 3.0/2.0 header 3 x USB 2.0/1.1 headers
Other Connectors	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x serial port header 1 x parallel port header 1 x Clear CMOS jumper

Physical Spec
Form Factor	ATX
Dimensions (W x L)	12.0" x 7.5"
Power Pin	24 Pin

Features
Features	Supports 4th and 5th Generation Intel Core processors Extreme multi graphics support HD Audio support LAN with high ESD Protection GIGABYTE LAN Optimizer Long lifespan Durable Solid caps APP Center including EasyTune and Cloud Station utilities GIGABYTE UEFI DualBIOS Intel Small Business Advantage Multi-Graphics Technology Support for 2-Way AMD CrossFire technology I/O Controller iTE I/O Controller Chip H/W Monitoring System voltage detection CPU/System temperature detection CPU/System fan speed detection CPU overheating warning CPU/System fan fail warning CPU/System fan speed control * Whether the fan speed control function is supported will depend on the cooler you install. BIOS 2 x 64 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features Support for APP Center * Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications. @BIOS EasyTune EZ Setup Fast Boot ON/OFF Charge Smart TimeLock Smart Recovery 2 System Information Viewer USB Blocker Support for Q-Flash Support for Smart Switch Support for Xpress Install Bundle Software Norton Internet Security (OEM version) Intel Rapid Start Technology Intel Smart Connect Technology Intel Smart Response Technology Intel Small Business Advantage Operating System Support for Windows 8.1/8/7
