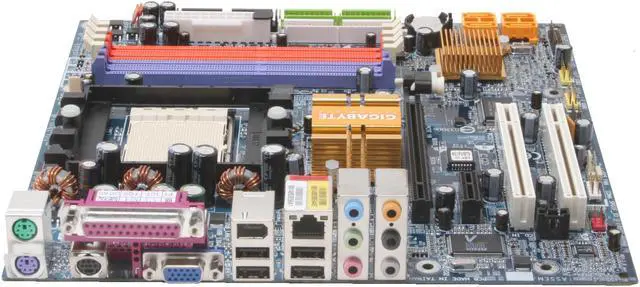

GIGABYTE GA-K8N51PVMT-9 939 NVIDIA GeForce 6150 Micro ATX AMD Motherboard
- NVIDIA GeForce 6150
- Athlon 64 X2 / Athlon 64 FX / Athlon 64
- DDR 400
Specs
Reviews (86)
Any questions? Our AI beta will help you find out quickly.
Try me now

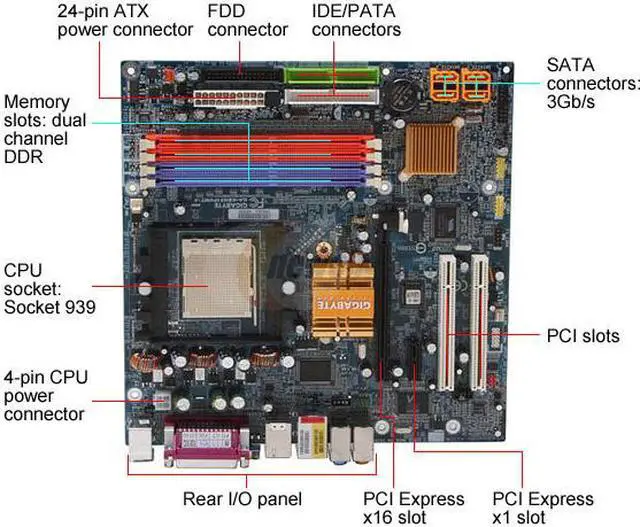

Learn more about the GIGABYTE GA-K8N51PVMT-9
| Brand | GIGABYTE |
|---|---|
| Model | GA-K8N51PVMT-9 |
| CPU Socket Type | 939 |
|---|---|
| CPU Type | Athlon 64 X2 / Athlon 64 FX / Athlon 64 |
| Chipset | NVIDIA GeForce 6150 |
|---|---|
| South Bridge | NVIDIA nForce 430 |
| Number of Memory Slots | 4x184pin |
|---|---|
| Memory Standard | DDR 400 |
| Maximum Memory Supported | 4GB |
| Channel Supported | Dual Channel |
| PCI Express x16 | 1 x PCI Express x16 |
|---|---|
| PCI Express x1 | 1 x PCI Express x1 |
| PCI Slots | 2 x PCI Slots |
| SATA RAID | 0/1/0+1/5 |
|---|
| Onboard Video Chipset | NVIDIA GeForce 6150 |
|---|
| Audio Chipset | Realtek ALC880 |
|---|---|
| Audio Channels | 8 Channels |
| LAN Chipset | Cicada CIS8201 |
|---|---|
| Max LAN Speed | 1Gbps |

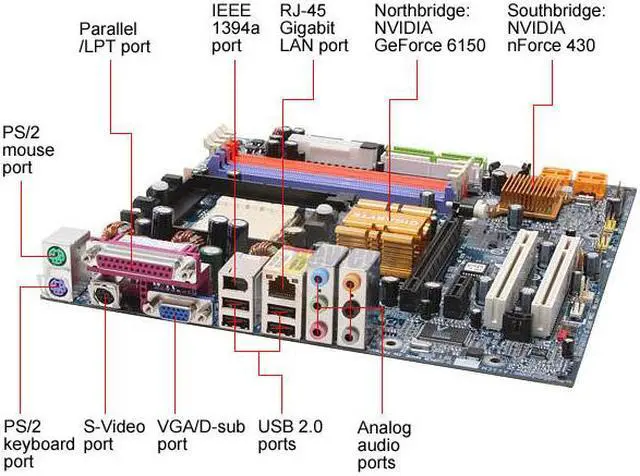

| Back I/O Ports | 1 x LPT (Parallel Port) / 2 x PS/2 / 4 x USB 2.0/1.1 / 6 x Audio Jacks |
|---|---|
| PS/2 | 2 |
| LPT | 1 |
| Video Ports | D-Sub + TV-Out |
| USB 1.1/2.0 | 4 x USB 2.0 |
| IEEE 1394 | 1 x IEEE 1394a |
| Audio Ports | 6 Ports |
| Onboard USB | 2 x USB 2.0 connectors (supports 4 ports) |
|---|---|
| Onboard 1394 | 1 x IEEE 1394 connector (supports 1 port) |
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 9.6" x 9.6" |
| Power Pin | 24 Pin |
| Features | Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website. This product does not support Win9X/ME, due to most hardware/software vendors no longer offer support for Win9X/ME. However we still offer available related drivers to serve our customers. |
|---|

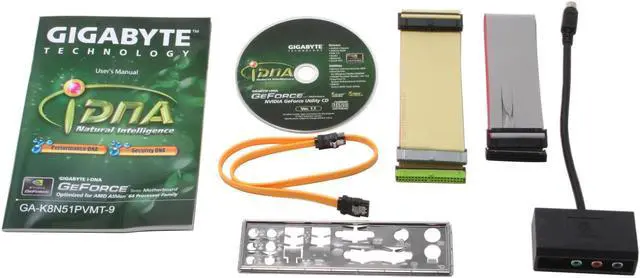

| Package Contents | GA-K8N51PVMT-9 User Manual Driver Disk Rear I/O Panel Shield IDE/PATA Cable FDD Cable SATA Cable HDTV Cable |
|---|
| First Listed on Newegg | November 25, 2005 |
|---|
