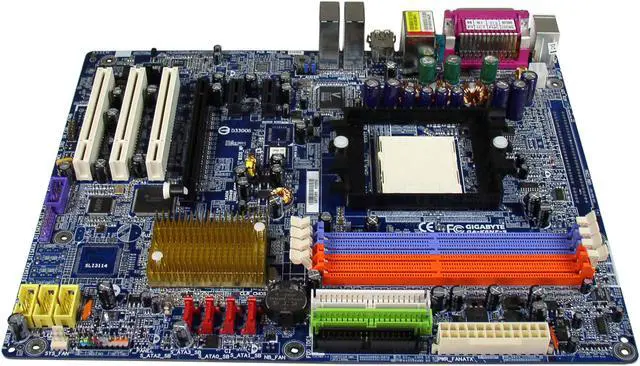

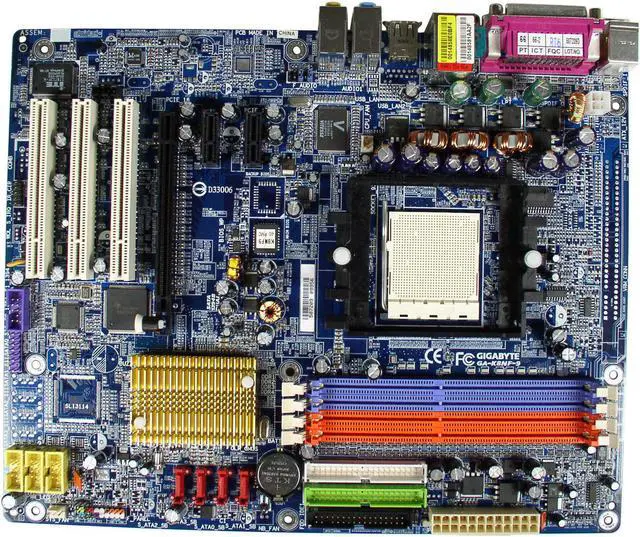

GIGABYTE GA-K8NF-9 939 NVIDIA nForce4 4X ATX AMD Motherboard

(146) Write a Review
  • NVIDIA nForce4 4X
  • Athlon 64 X2 / Athlon 64 FX / Athlon 64
  • DDR 400
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Specs
Reviews (146)
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the GIGABYTE GA-K8NF-9

Model
Brand GIGABYTE
Model GA-K8NF-9
Supported CPU
CPU Socket Type 939
CPU Type Athlon 64 X2 / Athlon 64 FX / Athlon 64
FSB 800 MHz
Chipsets
Chipset NVIDIA nForce4 4X
Memory
Number of Memory Slots 4x184pin
Memory Standard DDR 400
Maximum Memory Supported 4GB
Channel Supported Dual Channel
Expansion Slots
PCI Express x16 1 x PCI Express x16
PCI Express x1 2 x PCI Express x1
PCI Slots 3 x PCI Slots
Storage Devices
PATA 2 x ATA100 4 Dev. Max
PATA RAID NV RAID 0/1/0+1 JBOD
SATA RAID NV RAID 0/1/0+1 JBOD
Onboard Video
Onboard Video Chipset None
Onboard Audio
Audio Chipset Realtek ALC850
Audio Channels 8 Channels
Onboard LAN
LAN Chipset Cicada CIS8201
Max LAN Speed 1Gbps
Rear Panel Ports
Back I/O Ports 1 x COM (Serial Port) / 1 x LPT (Parallel Port) / 1 x S/PDIF Coaxial Out / 2 x PS/2 / 4 x USB 2.0/1.1 / 6 x Audio Jacks
PS/2 2
COM 1
LPT 1
USB 1.1/2.0 4 x USB 2.0
S/PDIF Out 1 x Coaxial
S/PDIF In 1 x Coaxial
Audio Ports 6 Ports
Internal I/O Connectors
Onboard USB 3 x USB 2.0 connectors support 6 ports
Onboard 1394 2 x 1394b connectors support 3 ports
Physical Spec
Form Factor ATX
Dimensions (W x L) 12.0" x 9.6"
Power Pin 24 Pin
Features
Features Support NVIDIA Firewall
Norton Internet Security
Xpress Installation
Xpress Recovery
Q-Flash
@BIOS
2M bit flash ROM
Packaging
Package Contents GA-K8NF-9
Additional Information
First Listed on Newegg December 17, 2004

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
