GIGABYTE GA-K8U 754 ULi M1689 ATX AMD Motherboard
- ULi M1689
- Athlon 64 / Sempron
- DDR 400
Specs
Reviews (148)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the GIGABYTE GA-K8U
| Brand | GIGABYTE |
|---|---|
| Model | GA-K8U |
| CPU Socket Type | 754 |
|---|---|
| CPU Type | Athlon 64 / Sempron |
| FSB | 800 MHz |
| Chipset | ULi M1689 |
|---|
| Number of Memory Slots | 3x184pin |
|---|---|
| Memory Standard | DDR 400 |
| Maximum Memory Supported | 3GB |
| AGP Slots | 1 x AGP 4X / 8X |
|---|---|
| PCI Slots | 5 x PCI Slots |
| PATA | 2 x ATA100 4 Dev. Max |
|---|
| Onboard Video Chipset | None |
|---|
| Audio Chipset | Realtek ALC850 |
|---|---|
| Audio Channels | 8 Channels |
| LAN Chipset | Realtek 8100C |
|---|---|
| Max LAN Speed | 100Mbps |

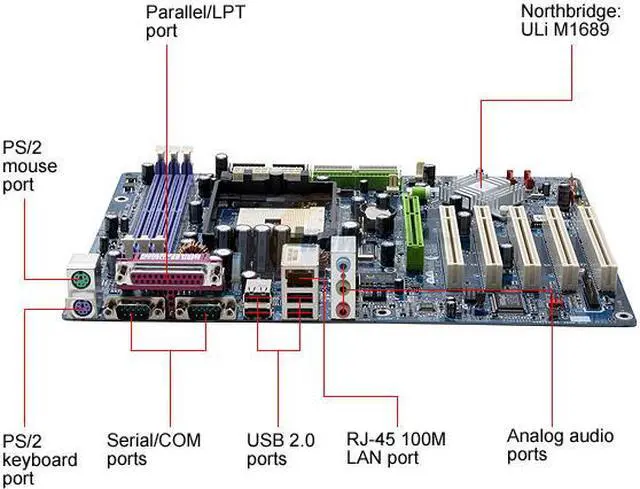

| Back I/O Ports | 1 x LPT (Parallel Port) / 2 x COM (Serial Port) / 2 x PS/2 / 3 x Audio Jacks / 4 x USB 2.0/1.1 |
|---|---|
| PS/2 | 2 |
| COM | 2 |
| LPT | 1 |
| USB 1.1/2.0 | 4 x USB 2.0 |
| Audio Ports | 3 Ports |
| Onboard USB | 2 x USB 2.0 connectors support 4 ports |
|---|
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 11.5" x 8.3" |
| Power Pin | 20 Pin |
| Package Contents | GA-K8U User Manual Driver Disk Rear I/O Panel Shield IDE/PATA Cable FDD Cable SATA Cable |
|---|
| Date First Available | May 27, 2005 |
|---|
