GIGABYTE GA-M59SLI-S5 AM2 NVIDIA nForce 590 SLI MCP ATX AMD Motherboard
OPEN BOX Product Type
- NVIDIA nForce 590 SLI MCP
- Athlon 64 / Athlon 64 FX / Athlon 64 X2
- DDR2 800
Specs
Any questions? Our AI beta will help you find out quickly.
Try me now

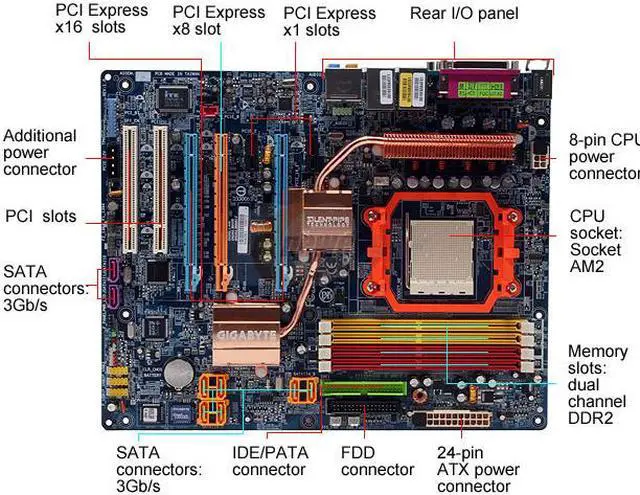

Learn more about the GIGABYTE GA-M59SLI-S5
| Brand | GIGABYTE |
|---|---|
| Model | GA-M59SLI-S5 |
| CPU Socket Type | AM2 |
|---|---|
| CPU Type | Athlon 64 / Athlon 64 FX / Athlon 64 X2 |
| FSB | 1000 MHz |
| Chipset | NVIDIA nForce 590 SLI MCP |
|---|
| Number of Memory Slots | 4x240pin |
|---|---|
| Memory Standard | DDR2 800 |
| Maximum Memory Supported | 16GB |
| Channel Supported | Dual Channel |
| PCI Express x16 | 2 x PCI Express x16 |
|---|---|
| PCI Express x1 | 2 x PCI Express x1 |
| PCI Slots | 2 x PCI Slots |
| Other Slots | 1 x PCI-E x8 slot |
| PATA | 1 x ATA100 2 Dev. Max |
|---|---|
| Additional RAID Controller | GIGABYTE SATA2 controller |
| Onboard Video Chipset | None |
|---|
| Audio Chipset | Realtek ALC888DD |
|---|---|
| Audio Channels | 8 Channels |
| Max LAN Speed | 2 x 1Gbps |
|---|

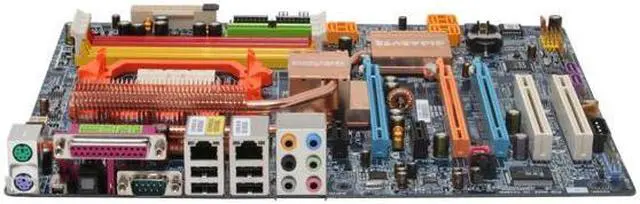

| Back I/O Ports | 1 x COM (Serial Port) / 1 x LPT (Parallel Port) / 1 x Optical S/PDIF Out / 2 x PS/2 / 4 x USB 2.0/1.1 / 6 x Audio Jacks |
|---|---|
| PS/2 | 2 |
| COM | 1 |
| LPT | 1 |
| USB 1.1/2.0 | 4 x USB 2.0 |
| IEEE 1394 | 1 x IEEE 1394a |
| S/PDIF Out | 1 x Optical |
| Audio Ports | 6 Ports |
| Onboard USB | 6 x USB 2.0 |
|---|---|
| Onboard 1394 | 2 x 1394a |
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12.0" x 9.6" |
| Power Pin | 24 Pin |
| Features | Due to the limitation of Windows 32-bit operating system, when more than 4GB of physical memory is installed, the actual memory available for the operating system will be less than 4GB; Windows 64-bit operating system doesn't have such limitation |
|---|
| Windows Vista | Certified for Windows Vista |
|---|
| First Listed on Newegg | September 03, 2008 |
|---|
