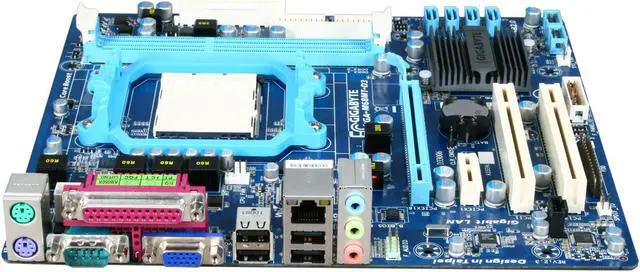

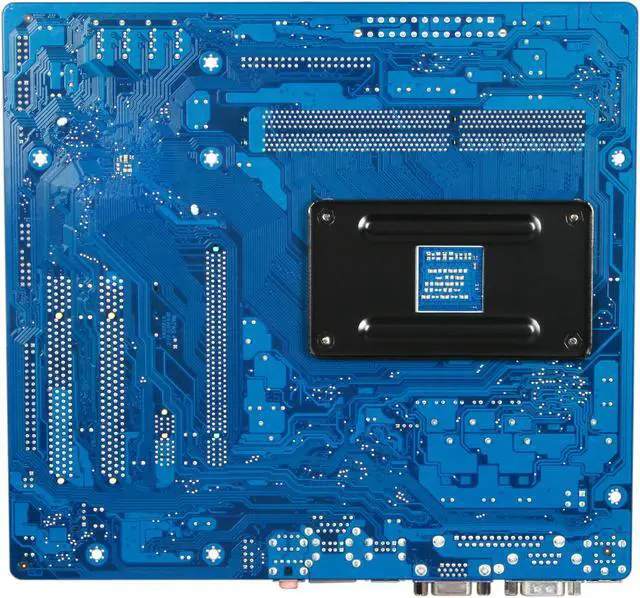

GIGABYTE GA-M68MT-D3 AM3 NVIDIA GeForce 7025/nForce 630a chipset Micro ATX AMD Motherboard
- NVIDIA GeForce 7025/nForce 630a chipset
- Phenom II / Athlon II / Sempron 100 Series Support up to 95W CPU
- DDR3 1666+/1333/1066/800
Specs
Reviews (41)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the GIGABYTE GA-M68MT-D3
| Brand | GIGABYTE |
|---|---|
| Model | GA-M68MT-D3 |
| CPU Socket Type | AM3 |
|---|---|
| CPU Type | Phenom II / Athlon II / Sempron 100 Series Support up to 95W CPU |
| FSB | 1000 MHz |
| Chipset | NVIDIA GeForce 7025/nForce 630a chipset |
|---|
| Number of Memory Slots | 2x240pin |
|---|---|
| Memory Standard | DDR3 1666+/1333/1066/800 |
| Maximum Memory Supported | 8GB |
| Channel Supported | Dual Channel |
| PCI Express x16 | 1 x PCI Express x16 |
|---|---|
| PCI Express x1 | 1 x PCI Express x1 |
| PCI Slots | 2 x PCI Slots |
| PATA | 1 x ATA133 2 Dev. Max |
|---|---|
| SATA RAID | 0/1/5/10/JBOD |
| Onboard Video Chipset | NVIDIA GeForce 7025 |
|---|
| Audio Chipset | Realtek ALC888B |
|---|---|
| Audio Channels | 8 Channels |
| LAN Chipset | Realtek 8211CL |
|---|---|
| Max LAN Speed | 1Gbps |
| Back I/O Ports | 1 x COM (Serial Port) / 1 x D-Sub / 1 x LPT (Parallel Port) / 2 x PS/2 / 3 x Audio Jacks / 4 x USB 2.0/1.1 |
|---|---|
| PS/2 | 2 |
| COM | 1 |
| LPT | 1 |
| Video Ports | D-Sub |
| USB 1.1/2.0 | 4 x USB 2.0 |
| Audio Ports | 3 Ports |
| Onboard USB | 4 x USB 2.0 |
|---|
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 9.6" x 8.86" |
| Power Pin | 24 Pin |
| Features | Get Ready to Unleash the Power of AMD 6-Core CPU 3x USB Power Boost On/Off Charge Support 50,000 Hours Japanese Solid Capacitors DualBIOS - Unique Dual Hardware BIOS Protection |
|---|
| First Listed on Newegg | September 10, 2010 |
|---|
