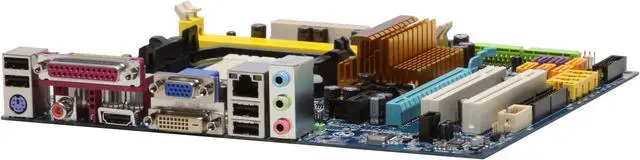

GIGABYTE GA-M78SM-S2H AM2+/AM2 NVIDIA GeForce 8200 HDMI Micro ATX AMD Motherboard
- NVIDIA GeForce 8200
- Phenom FX / Phenom / Athlon 64 FX / Athlon 64 X2
- DDR2 1066
Specs
Reviews (22)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the GIGABYTE GA-M78SM-S2H
| Brand | GIGABYTE |
|---|---|
| Model | GA-M78SM-S2H |
| CPU Socket Type | AM2+/AM2 |
|---|---|
| CPU Type | Phenom FX / Phenom / Athlon 64 FX / Athlon 64 X2 |
| FSB | 2600 MHz |
| Chipset | NVIDIA GeForce 8200 |
|---|
| Number of Memory Slots | 2x240pin |
|---|---|
| Memory Standard | DDR2 1066 |
| Maximum Memory Supported | 8GB |
| Channel Supported | Dual Channel |
| PCI Express 2.0 x16 | 1 x PCI Express 2.0 x16 |
|---|---|
| PCI Express x1 | 1 x PCI Express x1 |
| PCI Slots | 2 x PCI Slots |
| PATA | 1 x ATA100 2 Dev. Max |
|---|---|
| SATA RAID | 0/1/0+1/5/JBOD |
| Onboard Video Chipset | NVIDIA GeForce 8 series |
|---|
| Audio Chipset | Realtek ALC888 |
|---|---|
| Audio Channels | 8 Channels |
| LAN Chipset | Realtek 8211B |
|---|---|
| Max LAN Speed | 1Gbps |
| PS/2 | 1 |
|---|---|
| LPT | 1 |
| Video Ports | D-Sub + DVI |
| HDMI | 1 x HDMI |
| USB 1.1/2.0 | 4 x USB 2.0 |
| S/PDIF Out | 1 x Optical |
| Audio Ports | 3 Ports |
| Onboard USB | 8 x USB 2.0 |
|---|
| Form Factor | Micro ATX |
|---|---|
| Power Pin | 24 Pin |
| First Listed on Newegg | June 02, 2008 |
|---|
