GIGABYTE GA-MA69G-S3H AM2 AMD 690G HDMI ATX AMD Motherboard
- AMD 690G
- Athlon 64 X2 / Athlon 64 FX / Athlon 64
- DDR2 800
Specs
Reviews (161)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the GIGABYTE GA-MA69G-S3H
| Brand | GIGABYTE |
|---|---|
| Model | GA-MA69G-S3H |
| CPU Socket Type | AM2 |
|---|---|
| CPU Type | Athlon 64 X2 / Athlon 64 FX / Athlon 64 |
| Chipset | AMD 690G |
|---|---|
| South Bridge | ATI SB600 |
| Number of Memory Slots | 4x240pin |
|---|---|
| Memory Standard | DDR2 800 |
| Maximum Memory Supported | 16GB |
| Channel Supported | Dual Channel |
| PCI Express x16 | 1 x PCI Express x16 |
|---|---|
| PCI Express x4 | 1 x PCI Express x4 |
| PCI Express x1 | 3 x PCI Express x1 |
| PCI Slots | 2 x PCI Slots |
| Onboard Video Chipset | ATI Radeon Xpress 1250 |
|---|
| Audio Chipset | Realtek ALC889A |
|---|---|
| Audio Channels | 8 Channels |
| LAN Chipset | Realtek 8110 |
|---|---|
| Max LAN Speed | 1Gbps |
| PS/2 | 2 |
|---|---|
| LPT | 1 |
| Video Ports | D-Sub |
| HDMI | 1 x HDMI |
| USB 1.1/2.0 | 4 x USB 2.0 |
| IEEE 1394 | 1 x IEEE 1394a |
| S/PDIF Out | 1 x Optical |
| Audio Ports | 6 Ports |
| Onboard USB | 6 x USB 2.0 |
|---|---|
| Onboard 1394 | 2 x 1394a |
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12.0" x 9.6" |
| Power Pin | 24 Pin |
| Features | Due to the limitation of Windows 32-bit operating system, when more than 4GB of physical memory is installed, the actual memory available for the operating system will be less than 4GB; Windows 64-bit operating system doesn't have such limitation |
|---|

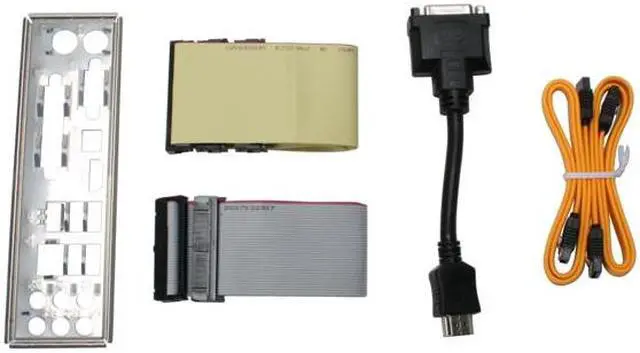

| Package Contents | GA-MA69G-S3H Rear I/O Panel Shield User Manual IDE/PATA Cable FDD Cable 2 x SATA Cable HDMI Cable |
|---|
| First Listed on Newegg | May 30, 2007 |
|---|
