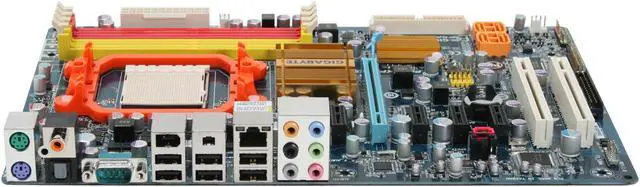

GIGABYTE GA-MA770-DS3 AM2+/AM2 AMD 770 ATX All Solid Capacitor AMD Motherboard

(274) Write a Review
  • AMD 770
  • Phenom FX / Phenom / Athlon 64 FX / Athlon 64 X2
  • DDR2 1066
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Specs
Reviews (274)
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the GIGABYTE GA-MA770-DS3

Model
Brand GIGABYTE
Model GA-MA770-DS3
Supported CPU
CPU Socket Type AM2+/AM2
CPU Type Phenom FX / Phenom / Athlon 64 FX / Athlon 64 X2
FSB 2600 MHz
Chipsets
Chipset AMD 770
South Bridge AMD SB600
Memory
Number of Memory Slots 4x240pin
Memory Standard DDR2 1066
Maximum Memory Supported 16GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 2.0 x16 1 x PCI Express 2.0 x16
PCI Express x1 4 x PCI Express x1
PCI Slots 2 x PCI Slots
Storage Devices
PATA 1 x ATA100 2 Dev. Max
SATA RAID 0/1/0+1
Onboard Audio
Audio Chipset Realtek ALC888
Audio Channels 8 Channels
Onboard LAN
LAN Chipset Realtek 8111B
Max LAN Speed 1Gbps
Rear Panel Ports
Back I/O Ports 1 x COM (Serial Port) / 1 x Optical S/PDIF Out / 1 x S/PDIF Coaxial Out / 2 x PS/2 / 6 x Audio Jacks / 6 x USB 2.0/1.1
PS/2 2
COM 1
USB 1.1/2.0 6 x USB 2.0
IEEE 1394 2 x IEEE 1394a
S/PDIF Out 1 x Optical, 1 x Coaxial
Audio Ports 6 Ports
Internal I/O Connectors
Onboard USB 4 x USB 2.0
Onboard 1394 1 x 1394a
Physical Spec
Form Factor ATX
Dimensions (W x L) 12.0" x 8.3"
Power Pin 24 Pin
Packaging
Package Contents GA-MA770-DS3
Driver Disk
User Manual

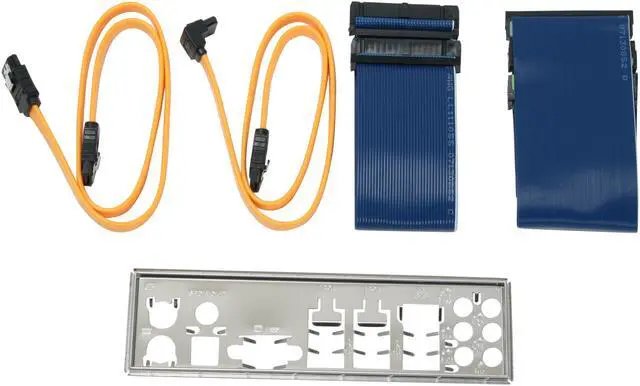

Rear I/O Panel Shield
IDE/PATA Cable
FDD Cable
2 x SATA Cable
Physical Spec
Windows Vista Certified for Windows Vista
Additional Information
Date First Available January 02, 2008
