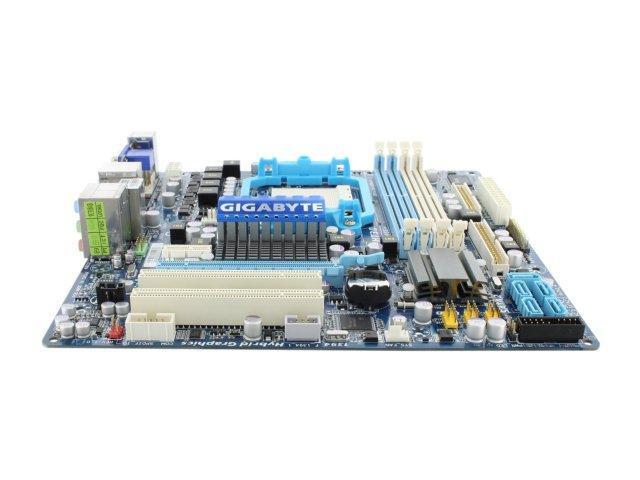

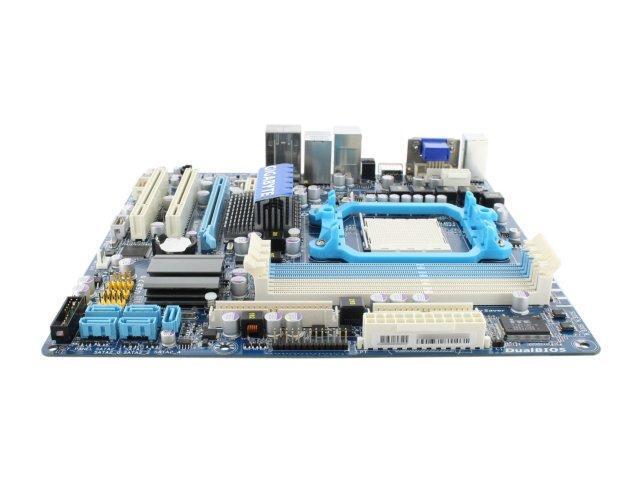

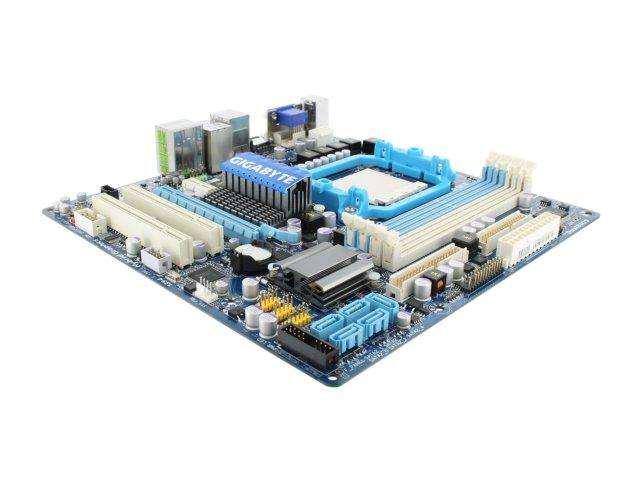

GIGABYTE GA-MA785GPMT-UD2H AM3 AMD 785G HDMI Micro ATX AMD Motherboard
- AMD 785G
- Athlon II / Phenom II / Sempron
- DDR3 1800 (OC)/1666/1333/1066
Specs
Reviews (42)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the GIGABYTE GA-MA785GPMT-UD2H
| Brand | GIGABYTE |
|---|---|
| Model | GA-MA785GPMT-UD2H |
| CPU Socket Type | AM3 |
|---|---|
| CPU Type | Athlon II / Phenom II / Sempron |
| Chipset | AMD 785G |
|---|---|
| South Bridge | AMD SB710 |
| Number of Memory Slots | 4x240pin |
|---|---|
| Memory Standard | DDR3 1800 (OC)/1666/1333/1066 |
| Maximum Memory Supported | 16GB |
| Channel Supported | Dual Channel |
| PCI Express 2.0 x16 | 1 x PCI Express 2.0 x16 |
|---|---|
| PCI Express x1 | 1 x PCI Express x1 |
| PCI Slots | 2 x PCI Slots |
| SATA RAID | 0/1/10/JBOD |
|---|
| Onboard Video Chipset | Integrated ATI Radeon HD 4200 graphics, built-in 128MB DDR3 1333MHz SidePort |
|---|
| Audio Chipset | Realtek ALC889A |
|---|---|
| Audio Channels | 8 Channels |
| LAN Chipset | Realtek 8111C |
|---|---|
| Max LAN Speed | 1Gbps |
| Back I/O Ports | 1 x D-Sub / 1 x DVI / 1 x HDMI / 1 x Optical S/PDIF Out / 1 x PS/2 / 6 x Audio Jacks / 6 x USB 2.0/1.1 |
|---|---|
| PS/2 | 1 |
| Video Ports | D-Sub + DVI |
| HDMI | 1 x HDMI |
| USB 1.1/2.0 | 6 x USB 2.0 |
| IEEE 1394 | 1 x IEEE 1394a |
| eSATA | 1 x eSATA 3Gb/s |
| S/PDIF Out | 1 x Optical |
| Audio Ports | 6 Ports |
| Onboard USB | 3 x USB 2.0 headers support up to 6 x USB 2.0 ports |
|---|---|
| Onboard 1394 | 1 x 1394a |
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 9.6" x 9.6" |
| Power Pin | 24 Pin |
| Features | Ultra Durable 3 Classic Technology with copper cooled quality for lower working temperature 100% 50,000 hours lifespan of Japanese solid capacitors design |
|---|
| First Listed on Newegg | August 11, 2009 |
|---|
