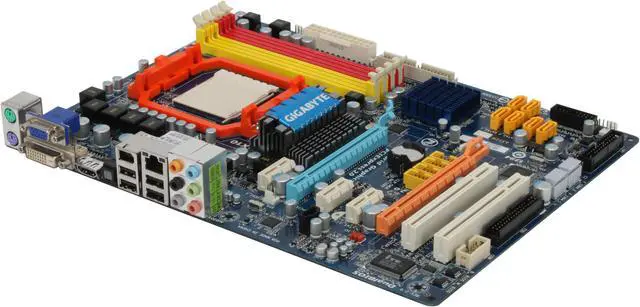

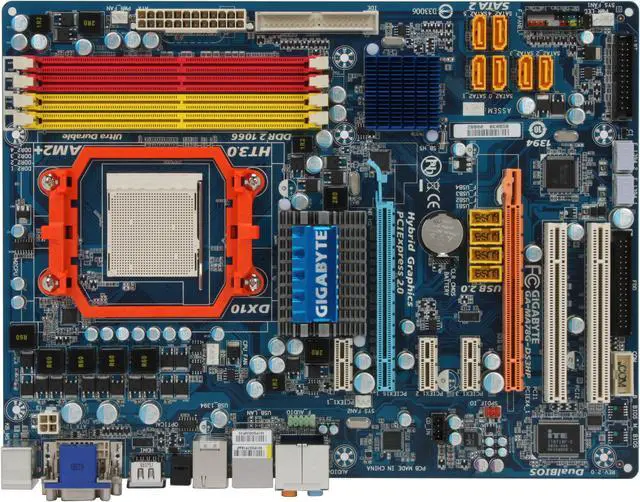

GIGABYTE GA-MA78G-DS3HP AM2+/AM2 AMD 780G HDMI ATX AMD Motherboard

(119) Write a Review
  • AMD 780G
  • Phenom FX / Phenom / Athlon 64 FX / Athlon 64 X2
  • DDR2 1066 Whether 1066 MHz memory speed is supported depends on the CPU being used.
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Specs
Reviews (119)
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the GIGABYTE GA-MA78G-DS3HP

Model
Brand GIGABYTE
Model GA-MA78G-DS3HP
Supported CPU
CPU Socket Type AM2+/AM2
CPU Type Phenom FX / Phenom / Athlon 64 FX / Athlon 64 X2
Chipsets
Chipset AMD 780G
South Bridge AMD SB700
Memory
Number of Memory Slots 4x240pin
Memory Standard DDR2 1066
Whether 1066 MHz memory speed is supported depends on the CPU being used.
Maximum Memory Supported 16GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 2.0 x16 1 x PCI Express x16 slot (Note 4), running at x16 (PCIEX16_1)
1 x PCI Express x16 slot, running at x4 (PCIEX4_1)
PCI Express x1 3 x PCI Express x1
PCI Slots 2 x PCI Slots
Storage Devices
SATA RAID 0/1/10
Onboard Video
Onboard Video Chipset ATI Radeon HD 3200
Onboard Audio
Audio Chipset Realtek ALC889A
Audio Channels 8 Channels
Onboard LAN
LAN Chipset Realtek 8111C
Max LAN Speed 1Gbps
Rear Panel Ports
Back I/O Ports 1 x D-Sub / 1 x DVI / 1 x HDMI / 1 x Optical S/PDIF Out / 2 x PS/2 / 4 x USB 2.0/1.1 / 6 x Audio Jacks
PS/2 2
Video Ports D-Sub + DVI
HDMI 1 x HDMI
USB 1.1/2.0 4 x USB 2.0
IEEE 1394 1 x IEEE 1394a
S/PDIF Out 1 x Optical
Audio Ports 6 Ports
Internal I/O Connectors
Onboard USB 4 x USB 2.0/1.1 headers
Onboard 1394 2 x 1394a
Physical Spec
Form Factor ATX
Dimensions (W x L) 12.0" x 9.0"
Power Pin 24 Pin
Additional Information
First Listed on Newegg December 09, 2008
