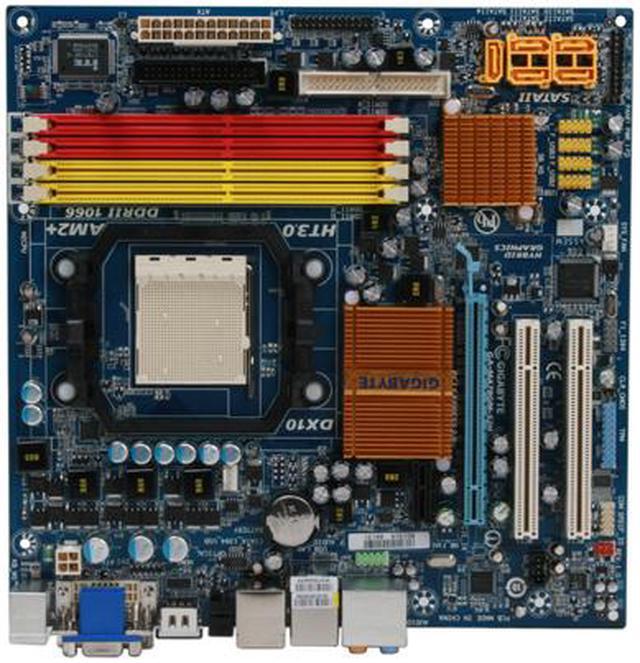

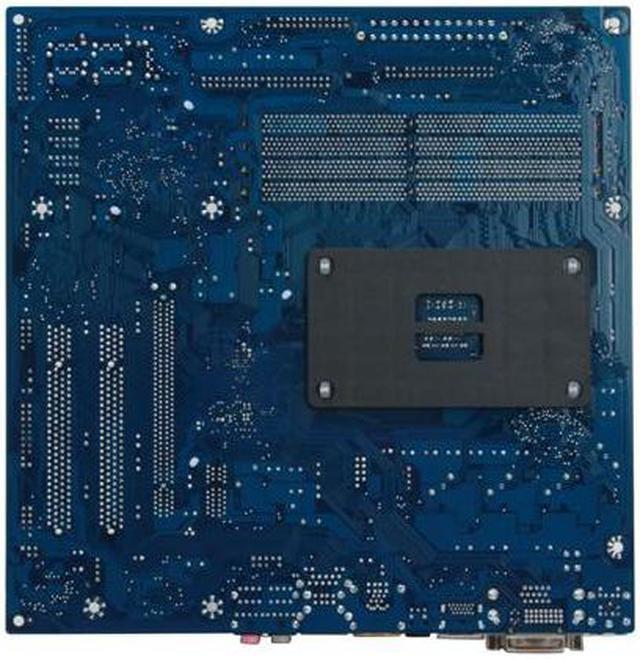

GIGABYTE GA-MA78GM-S2H AM2+/AM2 AMD 780G HDMI Micro ATX AMD Motherboard
- AMD 780G
- Phenom FX / Phenom / Athlon 64 FX / Athlon 64 X2
- DDR 2 1066/800 (Whether 1066 MHz memory speed is supported depends on the CPU being used)
Specs
Reviews (619)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the GIGABYTE GA-MA78GM-S2H
| Brand | GIGABYTE |
|---|---|
| Model | GA-MA78GM-S2H |
| CPU Socket Type | AM2+/AM2 |
|---|---|
| CPU Type | Phenom FX / Phenom / Athlon 64 FX / Athlon 64 X2 |
| FSB | 2600 MHz |
| Chipset | AMD 780G |
|---|---|
| South Bridge | AMD SB700 |
| Number of Memory Slots | 4x240pin |
|---|---|
| Memory Standard | DDR 2 1066/800 (Whether 1066 MHz memory speed is supported depends on the CPU being used) |
| Maximum Memory Supported | 16GB |
| Channel Supported | Dual Channel |
| PCI Express 2.0 x16 | 1 x PCI Express 2.0 x16 |
|---|---|
| PCI Express x1 | 1 x PCI Express x1 |
| PCI Slots | 2 x PCI Slots |
| PATA | 1 x ATA100 2 Dev. Max |
|---|---|
| SATA RAID | 0/1/10 |
| Onboard Video Chipset | ATI Radeon HD 3200 |
|---|
| Audio Chipset | Realtek ALC889A |
|---|---|
| Audio Channels | 8 Channels |
| LAN Chipset | Realtek 8111C |
|---|---|
| Max LAN Speed | 1Gbps |

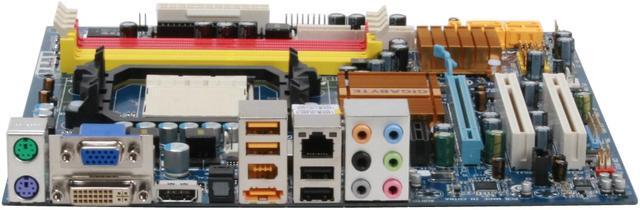

| Back I/O Ports | 1 x D-Sub / 1 x DVI / 1 x HDMI / 1 x Optical S/PDIF Out / 2 x PS/2 / 4 x USB 2.0/1.1 / 6 x Audio Jacks |
|---|---|
| PS/2 | 2 |
| Video Ports | D-Sub + DVI |
| HDMI | 1 x HDMI |
| USB 1.1/2.0 | 4 x USB 2.0 |
| IEEE 1394 | 1 x IEEE 1394a |
| eSATA | 1 x eSATA 3Gb/s |
| S/PDIF Out | 1 x Optical |
| Audio Ports | 6 Ports |
| Onboard USB | 8 x USB 2.0 |
|---|---|
| Onboard 1394 | 1 x 1394a |
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 9.6" x 9.6" |
| Power Pin | 24 Pin |
| Features | Integrated ATI Radeon HD3200-based graphics (DX10) Ultimate graphics performance with PCI-E 2.0 x16 interface Integrated SATA 3Gb/s with RAID function Features high speed Gigabit Ethernet and IEEE1394 High quality 106dB SNR ALC889A HD audio Integrated HDMI/ DVI interface with HDCP |
|---|

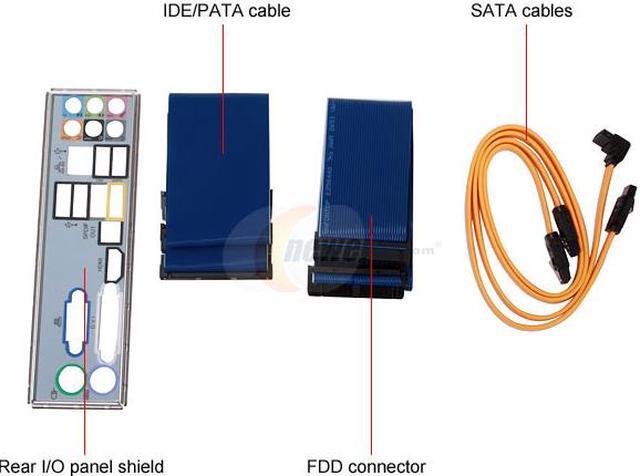

| Package Contents | GA-MA78GM-S2H Driver Disk User Manual Rear I/O Panel Shield IDE/PATA Cable FDD Cable SATA Cable |
|---|
| Windows Vista | Certified for Windows Vista |
|---|
| Date First Available | March 04, 2008 |
|---|
