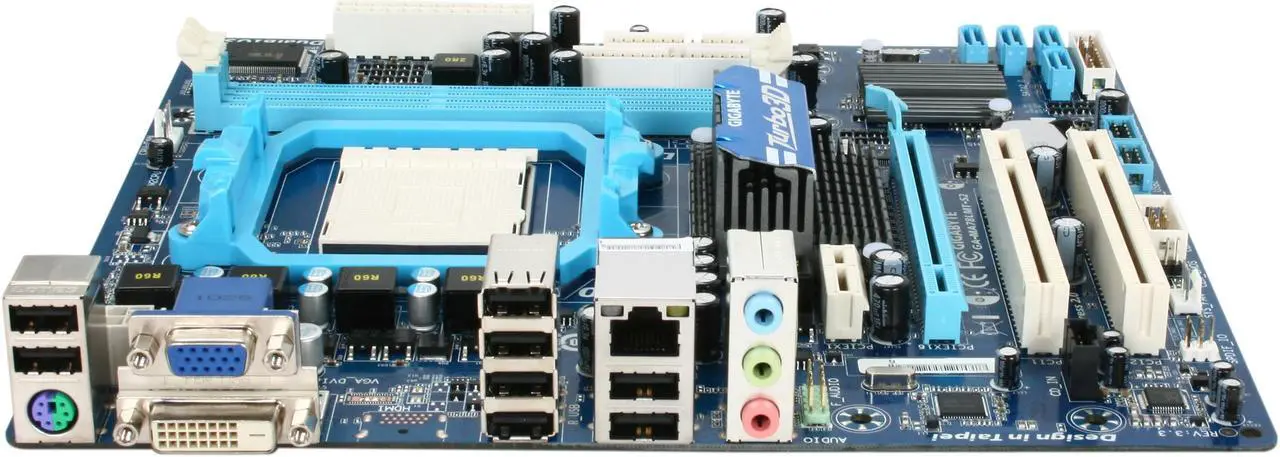

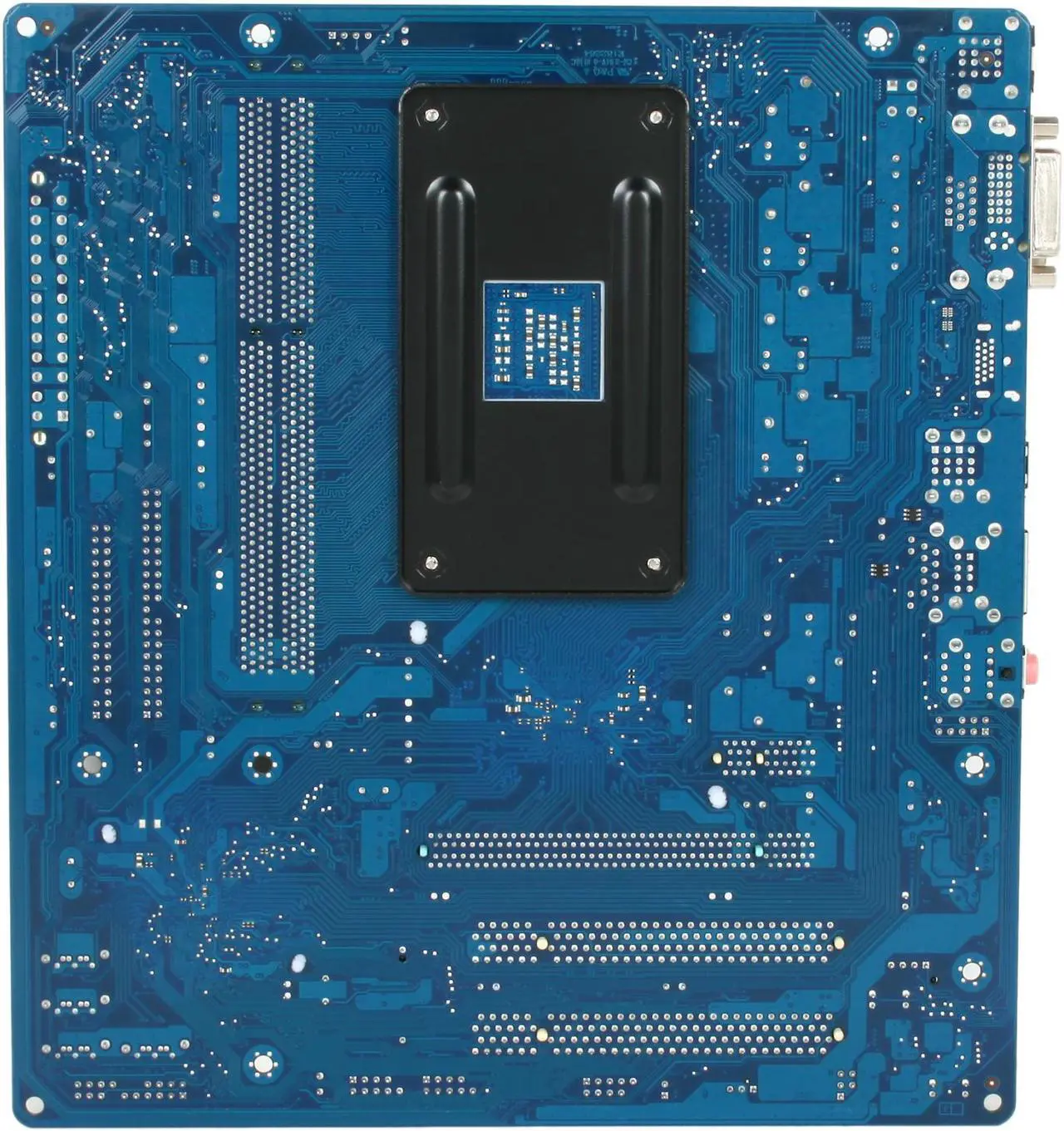

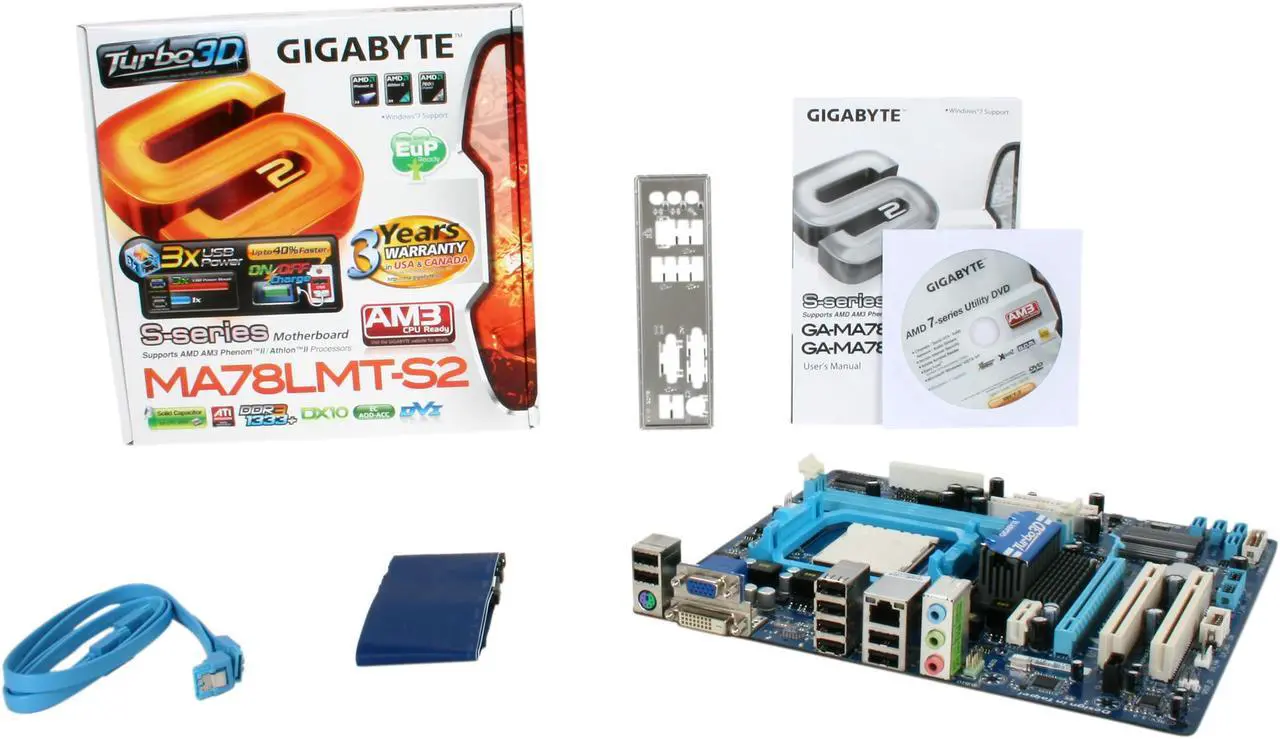

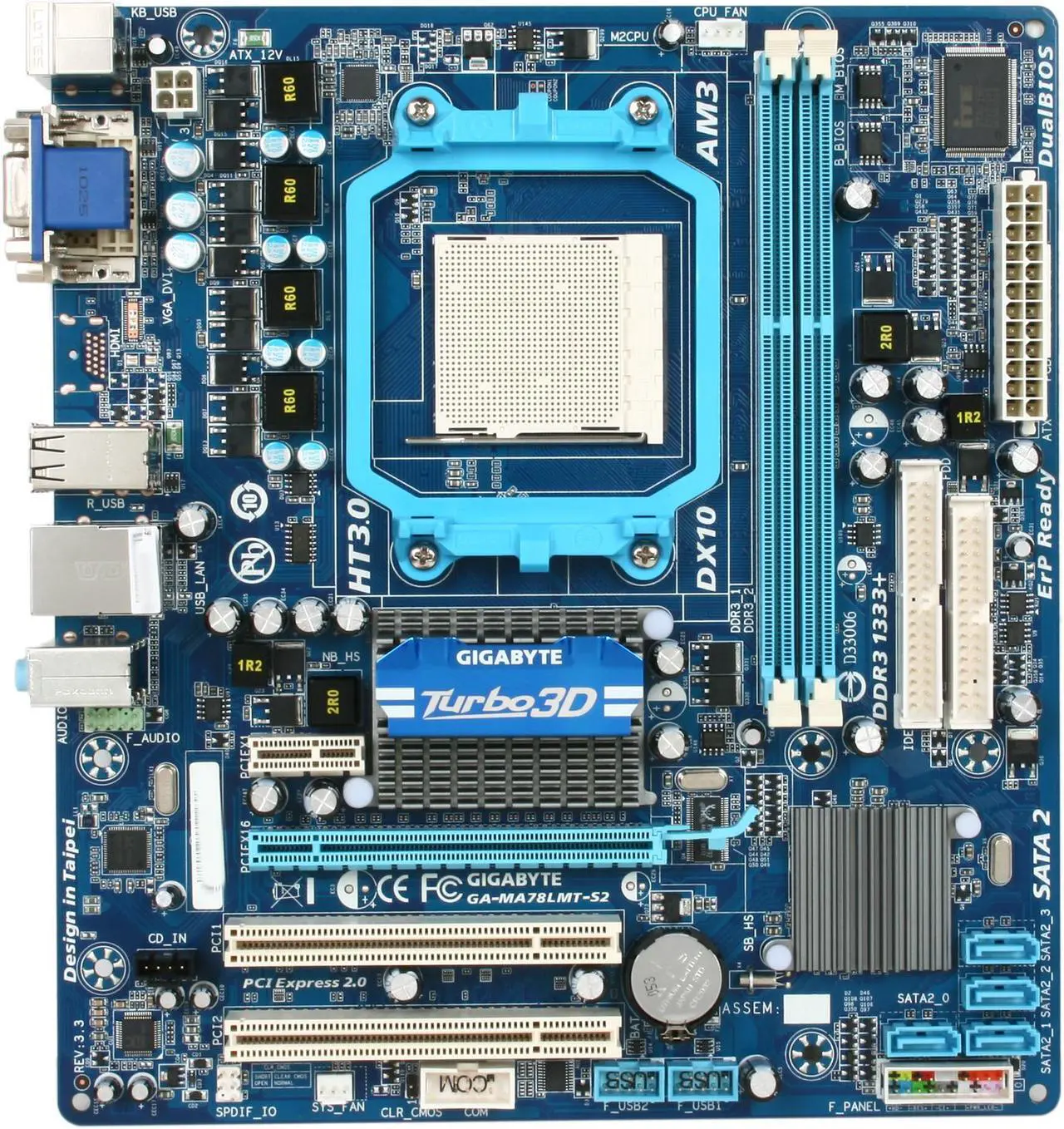

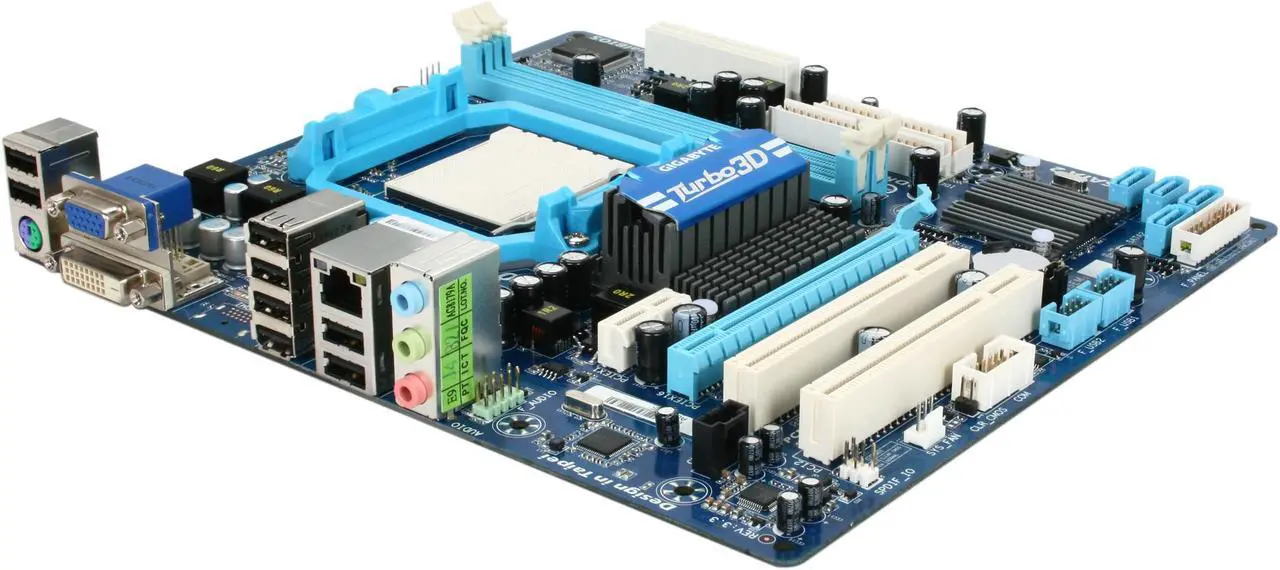

GIGABYTE GA-MA78LMT-S2 AM3 AMD 760G Micro ATX AMD Motherboard

  • AMD 760G
  • Athlon II / Phenom II / Sempron
  • DDR3 1333/1066/800
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Specs
Reviews (62)

Learn more about the GIGABYTE GA-MA78LMT-S2

Model
Brand GIGABYTE
Model GA-MA78LMT-S2
Supported CPU
CPU Socket Type AM3
CPU Type Athlon II / Phenom II / Sempron
FSB 2600 MHz
Chipsets
Chipset AMD 760G
South Bridge AMD SB710
Memory
Number of Memory Slots 2x240pin
Memory Standard DDR3 1333/1066/800
Maximum Memory Supported 8GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 2.0 x16 1 x PCI Express 2.0 x16
PCI Express x1 1 x PCI Express x1
PCI Slots 2 x PCI Slots
Storage Devices
PATA 1 x ATA133 2 Dev. Max
SATA RAID 0/1/10/JBOD
Onboard Video
Onboard Video Chipset ATI Radeon 3000
Onboard Audio
Audio Chipset Realtek ALC888B
Audio Channels 8 Channels
Onboard LAN
Max LAN Speed 1Gbps
Rear Panel Ports
Back I/O Ports 1 x D-Sub / 1 x DVI / 1 x PS/2 / 3 x Audio Jacks / 8 x USB 2.0/1.1
PS/2 1 x PS/2 keyboard or PS/2 mouse port
Video Ports D-Sub + DVI
USB 1.1/2.0 8 x USB 2.0
Audio Ports 3 Ports
Internal I/O Connectors
Onboard USB 4 x USB 2.0
Physical Spec
Form Factor Micro ATX
Dimensions (W x L) 9.6" x 8.6"
Power Pin 24 Pin
Features
Features Get Ready to Unleash the Power of AMD 6-Core CPU

3x USB Power Boost

On/Off Charge Support

Supports next generation of 45nm AMD AM3 CPU

Turbo Charge Your Graphics Performance

Solid Capacitor for CPU VRM

DualBIOS - Unique Dual Hardware BIOS Protection

ErP Lot 6 support
Additional Information
Date First Available September 21, 2010
