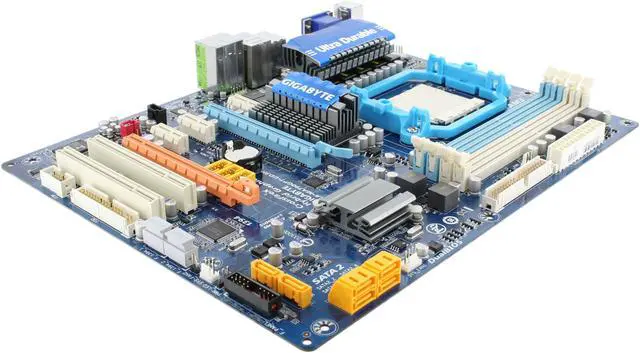

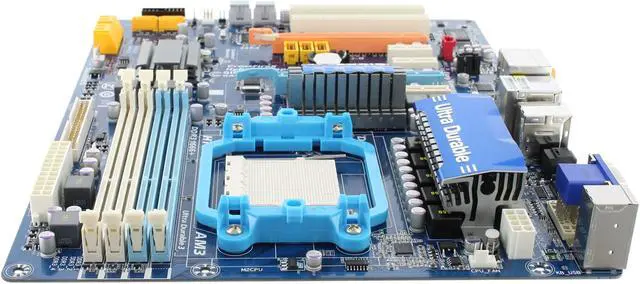

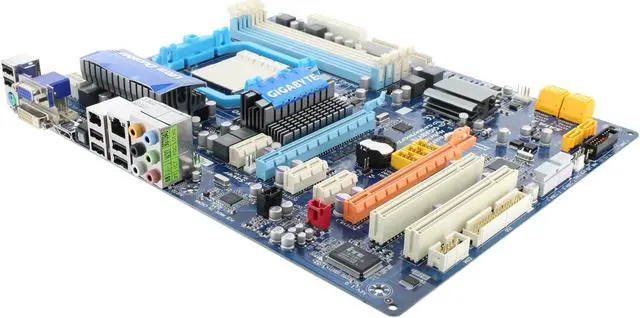

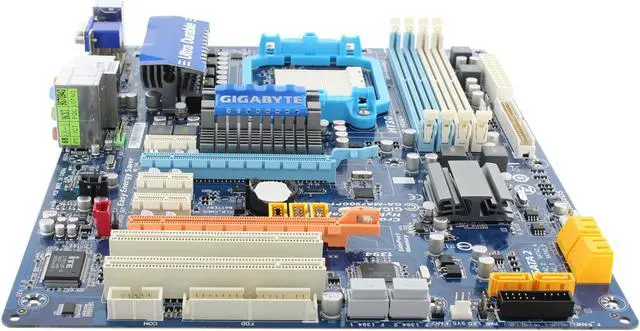

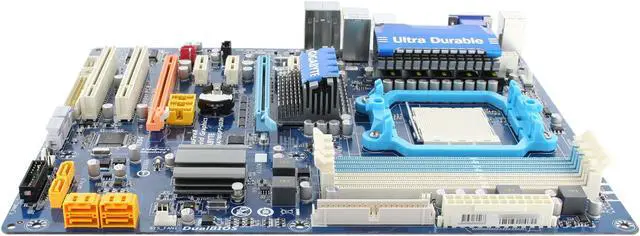

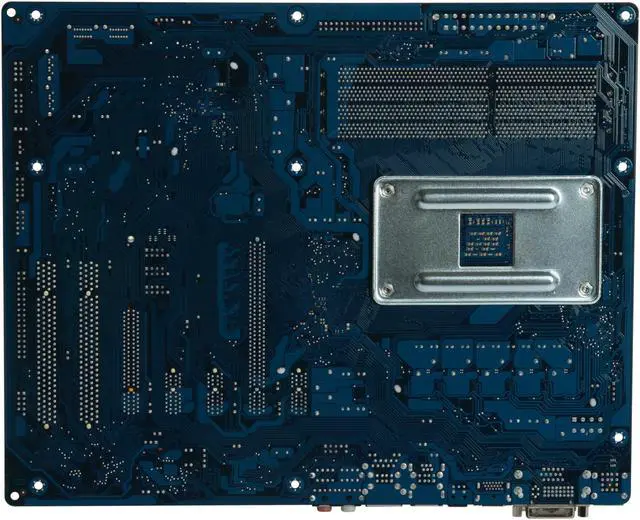

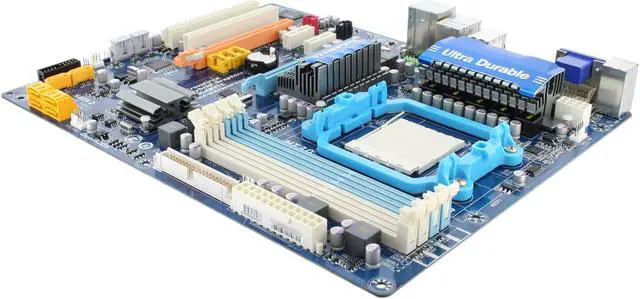

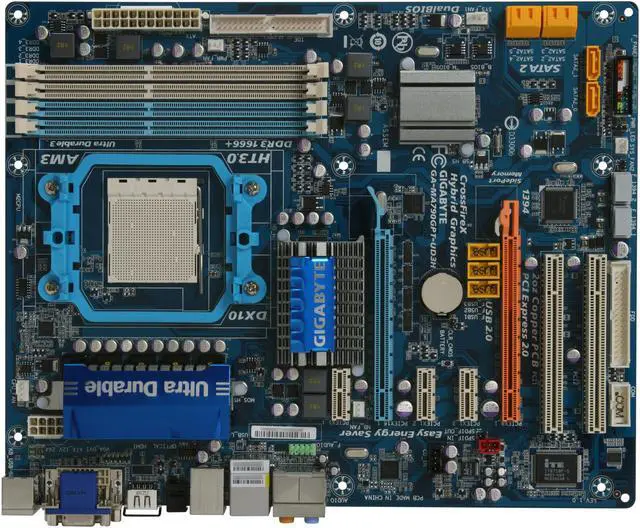

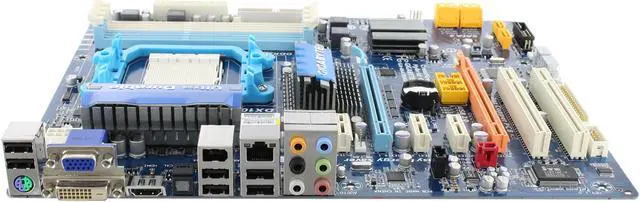

GIGABYTE GA-MA790GPT-UD3H AM3 AMD 790GX HDMI ATX AMD Motherboard

In stock.
Ships from China.
Most customers receive within 4-32 days.
  • AMD 790GX
  • Phenom II / Athlon II / Sempron
  • DDR3 1666(O.C.)/1333/1066
Specs
Reviews

Learn more about the GIGABYTE GA-MA790GPT-UD3H

Model
Brand GIGABYTE
Model GA-MA790GPT-UD3H
Supported CPU
CPU Socket Type AM3
CPU Type Phenom II / Athlon II / Sempron
FSB 2600 MHz
Chipsets
Chipset AMD 790GX
South Bridge AMD SB750
Memory
Number of Memory Slots 4×240pin
Memory Standard DDR3 1666(O.C.)/1333/1066
Maximum Memory Supported 16GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 2.0 x16 2, running at x16 or x8/x8
PCI Express x1 3 x PCI Express x1
PCI Slots 2 x PCI Slots
Storage Devices
PATA 1 x ATA133 2 Dev. Max
SATA 3Gb/s 6 x SATA 3Gb/s
SATA RAID 0/1/5/10/JBOD
Onboard Video
Onboard Video Chipset ATI Radeon HD 3300 Graphics
128MB DDR3 SidePort memory
Onboard Audio
Audio Chipset Realtek ALC889A
Audio Channels 8 Channels
Onboard LAN
LAN Chipset Realtek 8111C
Max LAN Speed 10/100/1000Mbps
Rear Panel Ports
PS/2 1
Video Ports D-Sub + DVI
HDMI 1 x HDMI
USB 1.1/2.0 6 x USB 2.0
IEEE 1394 1 x IEEE 1394a
S/PDIF Out 1 x Optical
Audio Ports 6 Ports
Internal I/O Connectors
Onboard USB 6 x USB 2.0
Onboard 1394 2 x 1394a
Physical Spec
Form Factor ATX
Power Pin 24 Pin
Features
Features Ultra Durable 3 Classic Technology with copper cooled quality for lower working temperature

2 PCI-E 2.0 x16 interface with ATI CrossFireX/ Hybrid CrossFireX support for ultimate graphics performance

100% 50,000 hours lifespan of Japanese solid capacitors design
