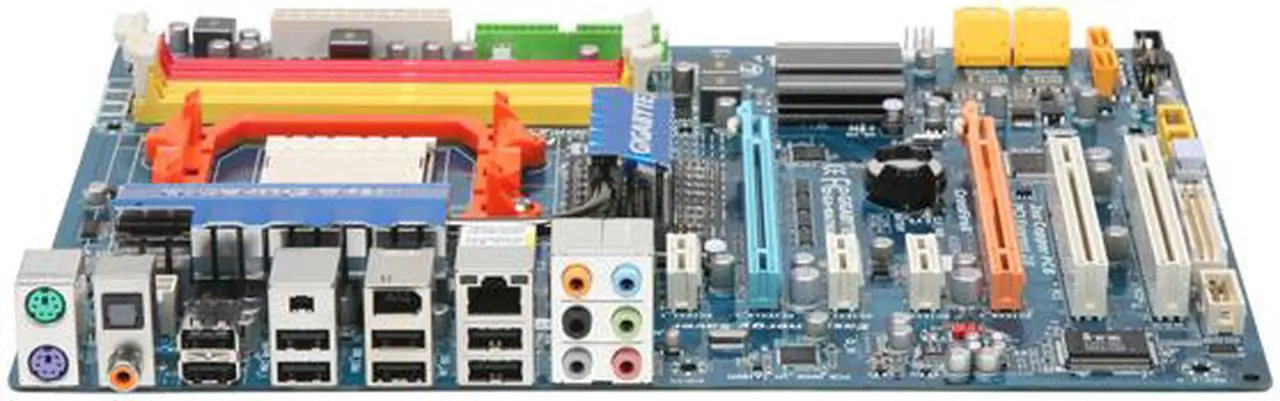

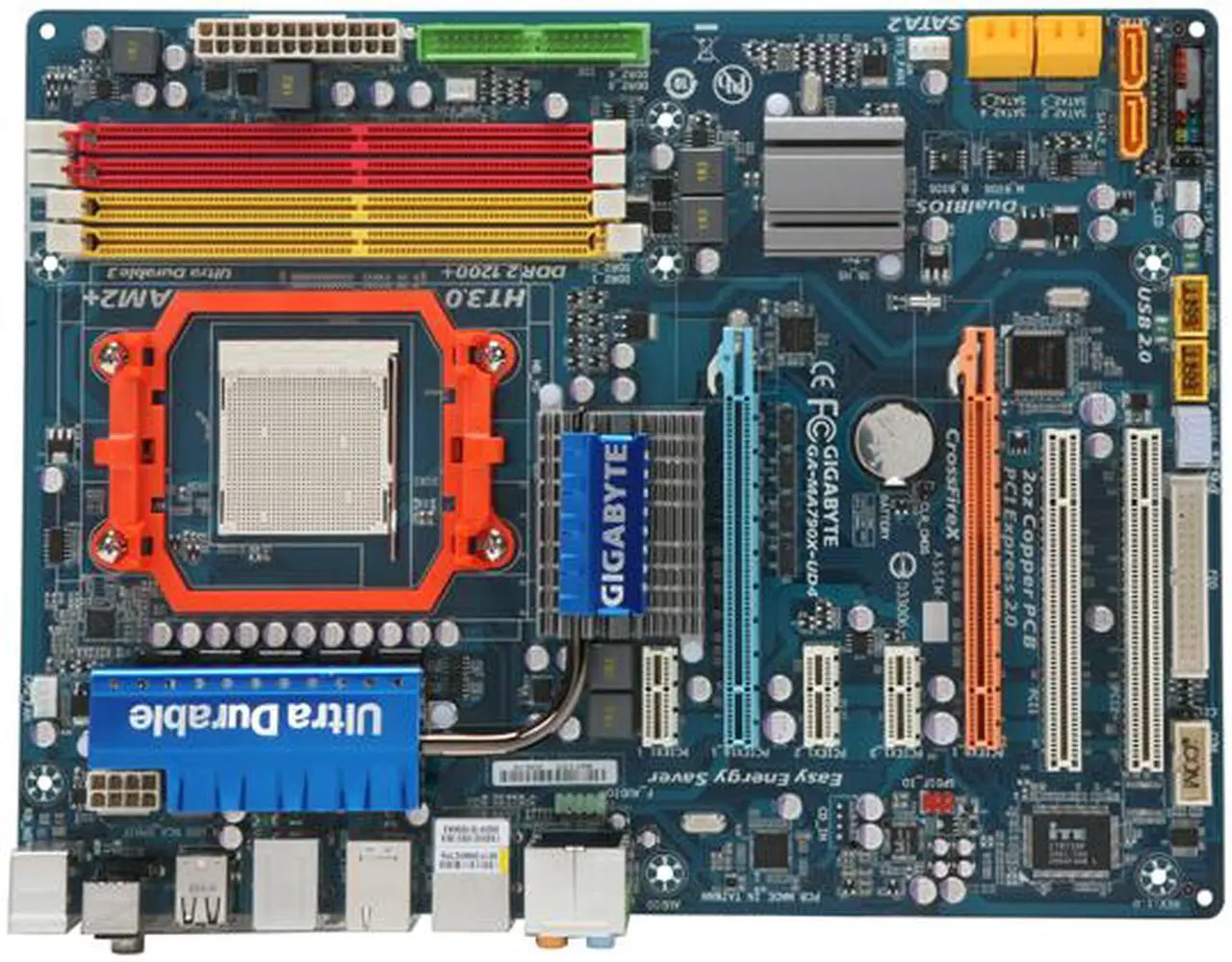

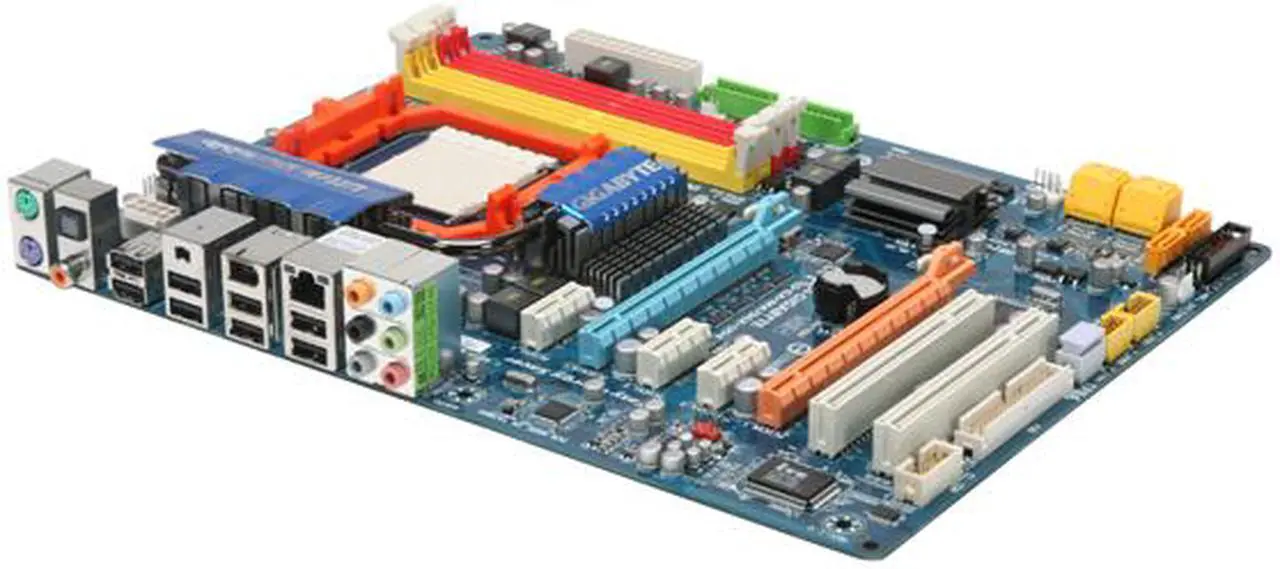

GIGABYTE GA-MA790X-UD4 AM2+/AM2 AMD 790X ATX AMD Motherboard

(66) Write a Review
  • AMD 790X
  • Athlon 64 FX / Athlon 64 X2 / Phenom / Phenom FX
  • DDR2 1200/1066 Whether 1200 MHz memory speed is supported depends on the CPU being used
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Specs
Reviews (66)
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the GIGABYTE GA-MA790X-UD4

Model
Brand GIGABYTE
Model GA-MA790X-UD4
Supported CPU
CPU Socket Type AM2+/AM2
CPU Type Athlon 64 FX / Athlon 64 X2 / Phenom / Phenom FX
FSB 2600 MHz
Chipsets
Chipset AMD 790X
South Bridge AMD SB750
Memory
Number of Memory Slots 4x240pin
Memory Standard DDR2 1200/1066
Whether 1200 MHz memory speed is supported depends on the CPU being used
Maximum Memory Supported 16GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 2.0 x16 1 x PCI Express x16 slot, running at x16 (PCIEX16_1)
1 x PCI Express x16 slot, running at x8 (PCIEX8_1)
PCI Express x1 3 x PCI Express x1
PCI Slots 2 x PCI Slots
Storage Devices
PATA 1 x ATA100 2 Dev. Max
SATA RAID 0/1/0+1/5/JBOD
Onboard Video
Onboard Video Chipset None
Onboard Audio
Audio Chipset Realtek ALC889A
Audio Channels 8 Channels
Onboard LAN
LAN Chipset Realtek 8111C
Max LAN Speed 1Gbps
Rear Panel Ports
Back I/O Ports 1 x Optical S/PDIF Out / 1 x S/PDIF Coaxial Out / 2 x PS/2 / 6 x Audio Jacks / 8 x USB 2.0/1.1
PS/2 2
USB 1.1/2.0 8 x USB 2.0
IEEE 1394 2 x IEEE 1394a
S/PDIF Out 1 x Optical, 1 x Coaxial
Audio Ports 6 Ports
Internal I/O Connectors
Onboard USB 2 x USB 2.0/1.1 headers
Onboard 1394 1 x 1394a
Physical Spec
Form Factor ATX
Dimensions (W x L) 12.0" x 9.1"
Power Pin 24 Pin
Additional Information
Date First Available February 04, 2009
