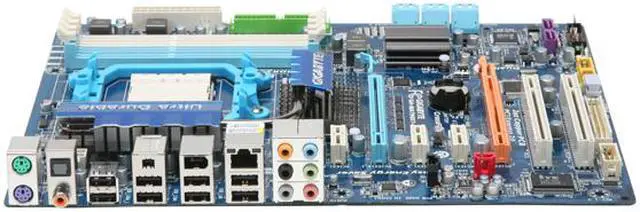

    GIGABYTE GA-MA790XT-UD4P AM3 DDR3 AMD 790X ATX AMD Motherboard

    Used - Very Good Product Type
    • AM3
    • AMD 790X
    • 4×240pin DDR3 1666(O.C.)/1333/1066 MHz
    🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
    +
    +
    Specs

    Learn more about the GIGABYTE GA-MA790XT-UD4P

    Model
    Brand GIGABYTE
    Model GA-MA790XT-UD4P
    Supported CPU
    CPU Socket Type AM3
    CPU Type Phenom II X4 / Phenom II X3
    FSB 2600 MHz
    Chipsets
    Chipset AMD 790X
    South Bridge AMD SB750
    Memory
    Number of Memory Slots 4x240pin
    Memory Standard DDR3 1666(O.C.)/1333/1066 MHz
    Maximum Memory Supported 16GB
    Channel Supported Dual Channel
    Expansion Slots
    PCI Express 2.0 x16 1 x PCI Express x16 slots, running at x16 (PCIEX16_1)
    1 x PCI Express x16 slots, running at x8 (PCIEX8_1)
    PCI Express x1 3 x PCI Express x1
    PCI Slots 2 x PCI Slots
    Storage Devices
    PATA 1 x ATA100 2 Dev. Max
    SATA RAID 0/1/5/10/JBOD
    Onboard Video
    Onboard Video Chipset None
    Onboard Audio
    Audio Chipset Realtek ALC889A
    Audio Channels 8 Channels
    Onboard LAN
    LAN Chipset Realtek 8111DL
    Max LAN Speed 1Gbps
    Rear Panel Ports
    Back I/O Ports 1 x Optical S/PDIF Out / 1 x S/PDIF Coaxial Out / 2 x PS/2 / 6 x Audio Jacks / 8 x USB 2.0/1.1
    PS/2 2
    USB 1.1/2.0 8 x USB 2.0
    IEEE 1394 2 x IEEE 1394a
    S/PDIF Out 1 x Optical, 1 x Coaxial
    Audio Ports 6 Ports
    Internal I/O Connectors
    Onboard USB 2 x USB 2.0/1.1 headers
    Onboard 1394 1 x 1394a
    Physical Spec
    Form Factor ATX
    Dimensions (W x L) 12.0" x 9.6"
    Power Pin 24 Pin
    Features
    Features Support for @BIOS
    Support for Q-Flash
    Support for Virtual Dual BIOS
    Support for Download Center
    Support for Xpress Install
    Support for Xpress Recovery2
    Support for EasyTune (Note 4)
    Support for Easy Energy Saver
    Support for Time Repair
    Support for Q-Share
    Additional Information
    Date First Available May 16, 2025
