$839.99
Ships from China.
Meet Your Seller

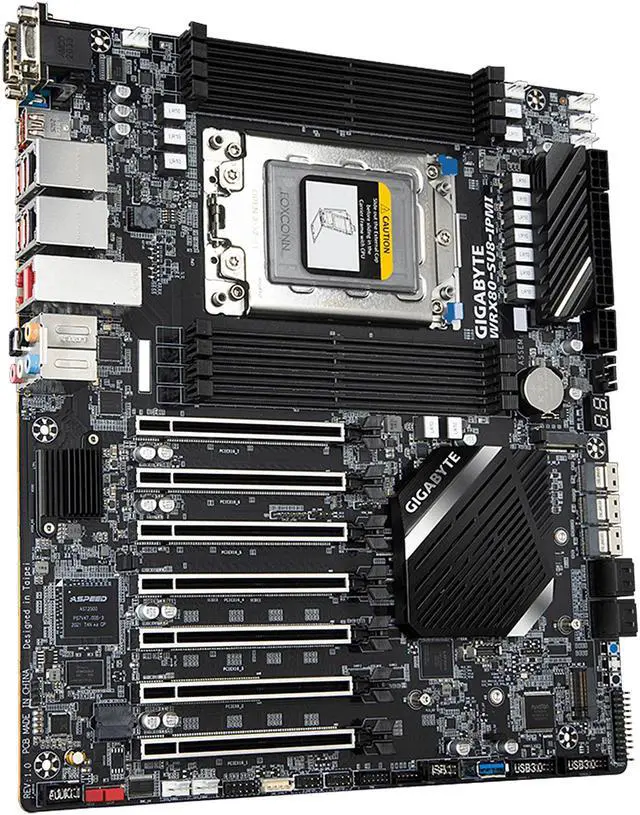

GIGABYTE AMD WRX80 Motherboard with sWRX8 4094 Socket, 8-Channel DDR4 RDIMM 8 x DIMMs, Aspeed AST2500 BMC, Dual M.2, Dual Intel Server 10G and 1G LAN, 7 x PCIe 4.0 x16 Slots for Multi Cards - WRX80-SU8-IPMI (rev. 1.0)
Used - Very Good Product Type

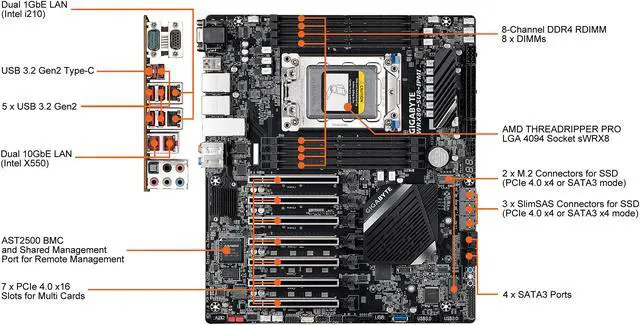

- AMD Ryzen Threadripper PRO 3000WX Series Processors, sWRX8 4094 Socket
- 8-Channel DDR4 RDIMM 8 x DIMMs
- Aspeed AST2500 BMC
- Dual Intel Server 10G LAN and GbE LAN
- 7 PCIe 4.0 x16 Slots for Multi-GPU, supports for DirectX 12
- Multiple storage interface: 4 SATA3 Ports, 3 SlimSAS ports (NVMe and SATA are available)
- Next-gen transfer speeds: Dual M.2 (NVMe and SATA mode)
- 6 x USB 3.2 Gen2 including 1 Type-C
- Q-Flash Plus Updates BIOS without Installing the CPU, Memory and Graphics Card
- 120dB SNR AMP-UP Audio with ALC1220
+
+
Specs
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the GIGABYTE GA-WRX80-SU8-IPMI (rev. 1.0)
| Brand | GIGABYTE |
|---|---|
| Model | GA-WRX80-SU8-IPMI (rev. 1.0) |
| CPU Socket Type | sWRX8 |
|---|---|
| CPU Type | Supports AMD Ryzen Threadripper PRO 3000WX Processors |
| Chipset | AMD WRX80 |
|---|
| Number of Memory Slots | 8x288pin (DDR4) |
|---|---|
| Memory Standard | DDR4 3200 / 2933 / 2600 |
| Channel Supported | Eight Channel |
| ECC Supported | Yes |
| Registered | Yes |
| PCI Express 4.0 x16 | 7 x PCI Express 4.0 x16 |
|---|
| Serial ATA (SATA) | 4 x SATA 6Gb/s |
|---|---|
| M.2 | 2 x M.2 Connectors (Socket 3; M key; Form Factor 2242/2280; Supports PCIe gen4 x4 or SATA mode) 2 x slimSAS (PCIe gen4 x4 or 4 x SATAIII) + 1 x slimSAS (PCIe gen4 x4) connectors |
| SATA RAID | 0/1/5/10 |
| Audio Chipset | Realtek ALC1220-VB |
|---|---|
| Audio Channels | 7.1 Channels |
| LAN Chipset | Dual Intel X550 |
|---|---|
| Second LAN Chipset | Dual Intel i210AT |
| Max LAN Speed | 2 x 10Gbps + 2 x 1Gbps |

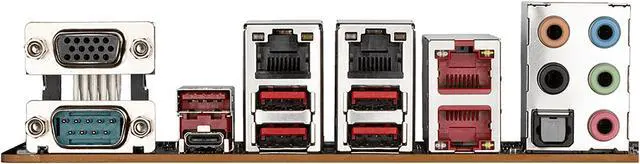

| Back I/O Ports | 1 x D-sub port 1 x serial port 1 x USB 3.2 Gen 2 Type-C port (red) 5 x USB 3.2 Gen 2 Type-A port (red) 2 x GbE RJ-45 ports 2 x 10GbE RJ-45 ports 1 x optical S/PDIF Out connector 5 x audio jacks |
|---|
| Onboard USB | 1 x USB Type-C header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 vertical connector 2 x USB 3.2 Gen 1 header 1 x USB 2.0 header |
|---|---|
| Other Connectors | 1 x CPU fan header 6 x system fan headers 1 x front panel header 1 x front panel audio header 1 x Thunderbolt add-in card connector 1 x Trusted Platform Module(TPM) header (2x6-pin, for the GC-TPM2.0_S module only) 1 x serial port header 1 x chassis intrusion header 1 x Clear CMOS jumper 2 x SATA SGPIO headers 1 x BMC_VGA jumper 1 x BMC_WATCHD jumper 1 x SMB_IPMB connector 1 x PMBUS header 1 x Speaker |
| Form Factor | CEB |
|---|---|
| LED Lighting | None RGB |

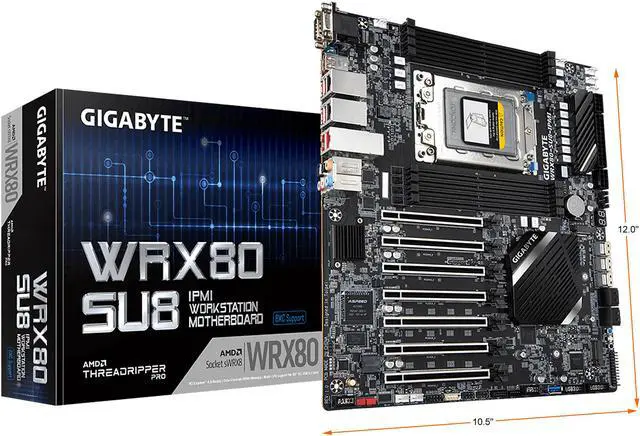

| Dimensions (W x L) | 12.0" x 10.5" |
| Power Pin | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V CPU power connector 1 x 8-pin ATX 12V GPU power connector |
| Features | I/O Controller: ASPEED AST2500 BMC chip H/W Monitoring: Voltage detection Temperature detection Fan speed detection Fan speed control * Whether the fan speed control function is supported will depend on the fan you install. Operating Properties: Operating temperature: 10°C to 40°C Operating humidity: 8 - 80% Non-operating temperature: -40°C to 70°C Non-operating humidity: 5% - 95% Support OS: Windows 10 Linux |
|---|
| First Listed on Newegg | April 16, 2025 |
|---|
