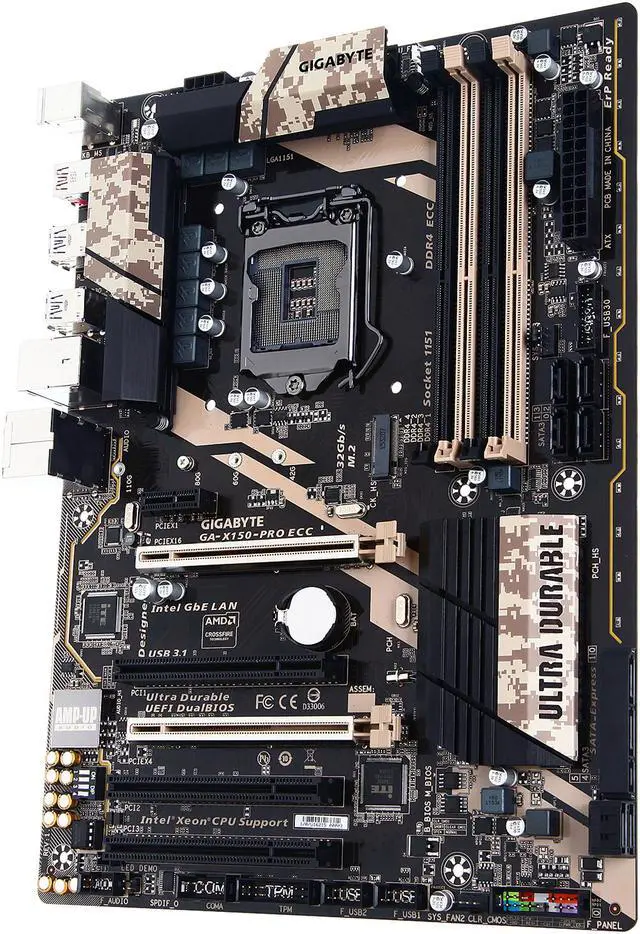

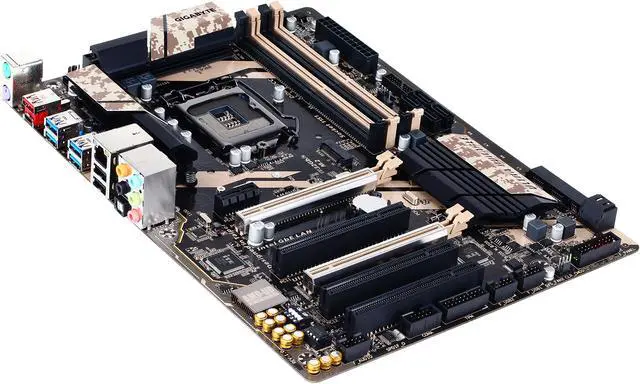

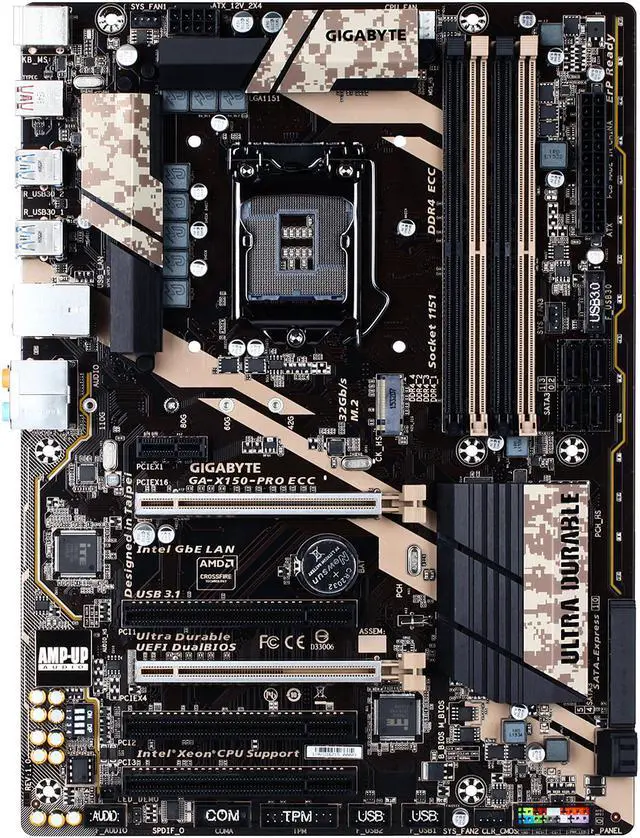

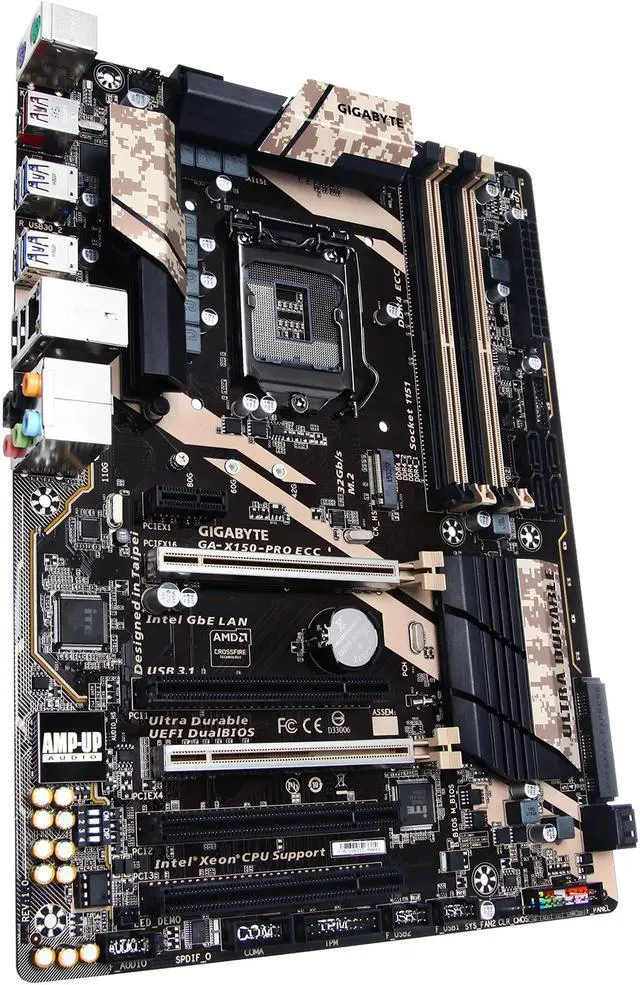

    GIGABYTE GA-X150-PRO ECC (rev. 1.0) LGA 1151 Intel C232 USB 3.1 USB 3.0 ATX Intel Motherboard

    Used - Very Good Product Type
    • Intel C232
    • Celeron / Core i3 / Core i5 / Core i7 / Intel Core 6th Gen (LGA 1151) / Intel Core 7th Gen (LGA 1151) / Pentium / Xeon (LGA1151)
    • DDR4 2133
    🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
    +
    +
    Specs
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now

    Learn more about the GIGABYTE GA-X150-PRO ECC (rev. 1.0)

    Model
    Brand GIGABYTE
    Model GA-X150-PRO ECC (rev. 1.0)
    Supported CPU
    CPU Socket Type LGA 1151
    CPU Type Celeron / Core i3 / Core i5 / Core i7 / Intel Core 6th Gen (LGA 1151) / Intel Core 7th Gen (LGA 1151) / Pentium / Xeon (LGA1151)
    Chipsets
    Chipset Intel C232
    Memory
    Number of Memory Slots 4x288pin (DDR4)
    Memory Standard DDR4 2133
    Maximum Memory Supported 64GB
    Channel Supported Dual Channel
    Expansion Slots
    PCI Express 3.0 x16 1 x PCI Express x16 slot, running at x16 (PCIEX16)
    * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

    1 x PCI Express x16 slot, running at x4 (PCIEX4)
    * The PCIEX4 slot shares bandwidth with the SATA Express slot and the M.2 connector. When the SATA Express slot or the M.2 connector is populated, the PCIEX4 slot will operate at up to x1 mode.
    PCI Express x1 1 x PCI Express x1 slot

    (All of the PCI Express slots conform to PCI Express 3.0 standard.)
    PCI Slots 3 x PCI Slots
    Storage Devices
    Serial ATA (SATA) 6 x SATA 6Gb/s
    SATA Express 1 x SATA Express connector
    * The SATA Express connector is not compatible with regular SATA devices.
    M.2 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2/x1 SSD support)
    SATA RAID 0/1/5/10
    Onboard Audio
    Audio Chipset Realtek ALC1150
    Audio Channels 7.1 Channels
    Onboard LAN
    LAN Chipset Intel GbE LAN chip
    Max LAN Speed 1Gbps

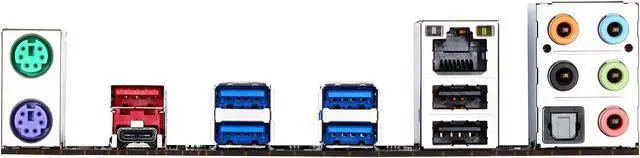

    Rear Panel Ports
    PS/2 1 x PS/2 keyboard port
    1 x PS/2 mouse port
    RJ45 1 x RJ45
    USB 3.1 1 x USB Type-C port, with USB 3.1 support
    1 x USB 3.1 Type-A port (red)
    USB 3.0 4 x USB 3.0
    USB 1.1/2.0 2 x USB 2.0
    S/PDIF Out 1 x Optical
    Audio Ports 5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In)
    Internal I/O Connectors
    Onboard USB 1 x USB 3.0/2.0 header
    2 x USB 2.0/1.1 headers
    Other Connectors 1 x 24-pin ATX main power connector
    1 x 8-pin ATX 12V power connector
    1 x CPU fan header
    3 x system fan headers
    1 x front panel header
    1 x front panel audio header
    1 x S/PDIF Out header
    1 x Trusted Platform Module (TPM) header
    1 x serial port header
    1 x Clear CMOS jumper
    1 x audio gain control switch
    Physical Spec
    Form Factor ATX
    Dimensions (W x L) 12.01" x 8.86"
    Power Pin 24 Pin
    Features
    Features Multi-Graphics Technology
    - Support for 2-Way AMD CrossFire technology

    I/O Controller
    - iTE I/O Controller Chip

    H/W Monitoring
    - System voltage detection
    - CPU/System temperature detection
    - CPU/System fan speed detection
    - CPU/System overheating warning
    - CPU/System fan fail warning
    - CPU/System fan speed control
    * Whether the fan speed control function is supported will depend on the cooler you install.

    BIOS
    - 2 x 64 Mbit flash
    - Use of licensed AMI UEFI BIOS
    - Support for DualBIOS
    - PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

    Unique Features
    Support for APP Center
    - @BIOS
    - ON/OFF Charge
    Support for Q-Flash
    Support for Smart Switch
    Support for Xpress Install

    Bundle Software
    - Norton Internet Security (OEM version)
    - cFosSpeed

    Operating System
    - Support for Windows 10/8.1 64-bit
    - Support for Windows 7 32-bit/64-bit
    * Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.
    Additional Information
    First Listed on Newegg April 13, 2025
