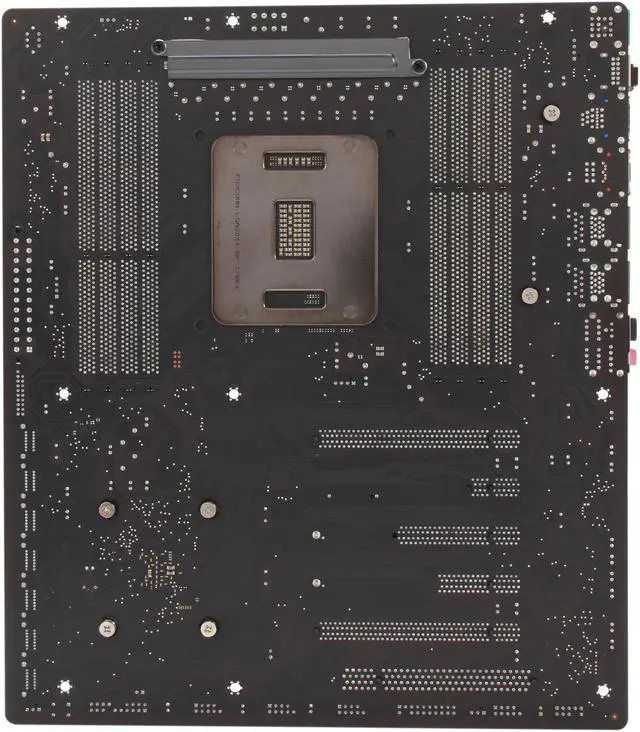

    GIGABYTE GA-X79S-UP5-WIFI LGA 2011 Intel C606 USB 3.0 Extended ATX Intel Motherboard

    Used - Good Product Type
    • Intel C606
    • Core i7 (LGA2011)
    • DDR3 2133/1866
    🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
    +
    +
    Specs
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now

    Learn more about the GIGABYTE GA-X79S-UP5-WIFI

    Model
    Brand GIGABYTE
    Model GA-X79S-UP5-WIFI
    Supported CPU
    CPU Socket Type LGA 2011
    CPU Type Core i7 (LGA2011)
    Chipsets
    Chipset Intel C606
    Onboard Video
    Onboard Video Chipset None
    Memory
    Number of Memory Slots 8x240pin
    Memory Standard DDR3 2133/1866/1600/1333/1066
    Maximum Memory Supported 64GB
    Channel Supported Quad Channel
    Expansion Slots
    PCI Express 3.0 x16 4 (x16, x16, x8, x4)
    PCI Express x1 1 x PCI Express x1
    PCI Slots 1 x PCI Slot
    Storage Devices
    Serial ATA (SATA) 2 x SATA 6Gb/s and 8 x SAS 3Gb/s
    SATA RAID 2 x SATA 6Gb/s (SATA3 0~1) and 4 x SATA 3Gb/s (SATA2 2~5) Support for RAID 0, RAID 1, RAID 5, and RAID 10

    8 x SAS 3Gb/s (SAS2 0~7) Support for RAID 0, RAID 1, and RAID 10
    * The SAS connectors do not support optical drives.
    Onboard Audio
    Audio Chipset Realtek ALC898
    Audio Channels 8 Channels
    Onboard LAN
    Max LAN Speed 2 x 1Gbps
    Wireless LAN Wi-Fi 802.11 a/b/g/n, Supports 2.4/5 GHz Dual-Band
    Bluetooth Yes
    Rear Panel Ports
    PS/2 1 x PS/2 keyboard/mouse port
    USB 3.0 4 x USB 3.0
    USB 1.1/2.0 5 x USB 2.0
    IEEE 1394 1 x IEEE 1394a
    eSATA 1 x eSATA/USB Combo
    1 x eSATA 6Gb/s
    S/PDIF Out 1 x Optical
    Audio Ports 5 Ports
    Internal I/O Connectors
    Onboard USB 2 x USB 3.0 + 6 x USB 2.0
    Onboard 1394 1 x 1394a
    Other Connectors 1 x 24-pin ATX main power connector
    1 x 8-pin ATX 12V power connector
    1 x CPU fan header
    4 x system fan headers
    1 x front panel header
    1 x front panel audio header
    1 x S/PDIF Out header
    1 x Clear CMOS jumper
    1 x Trusted Platform Module (TPM) header
    1 x power button
    1 x reset button
    Physical Spec
    Form Factor Extended ATX
    Dimensions (W x L) 12" x 10.39"
    Power Pin 24 Pin
    Features
    Features GIGABYTE 3D Power

    GIGABYTE 3D Power Utility

    GIGABYTE 3D BIOS

    GIGABYTE Ultra Durable 5

    Intel Xeon Support

    Serial Attached SCSI - SAS

    ECC DDR3 Support

    4 Channel Memory Architecture

    OC-DualBIOS

    3-way CrossFireX and 3-way SLI Support

    Exclusive Bluetooth 4.0/WiFi Expansion Card

    GIGABYTE 333 Onboard Acceleration

    GIGABYTE On/Off Charge
    Additional Information
