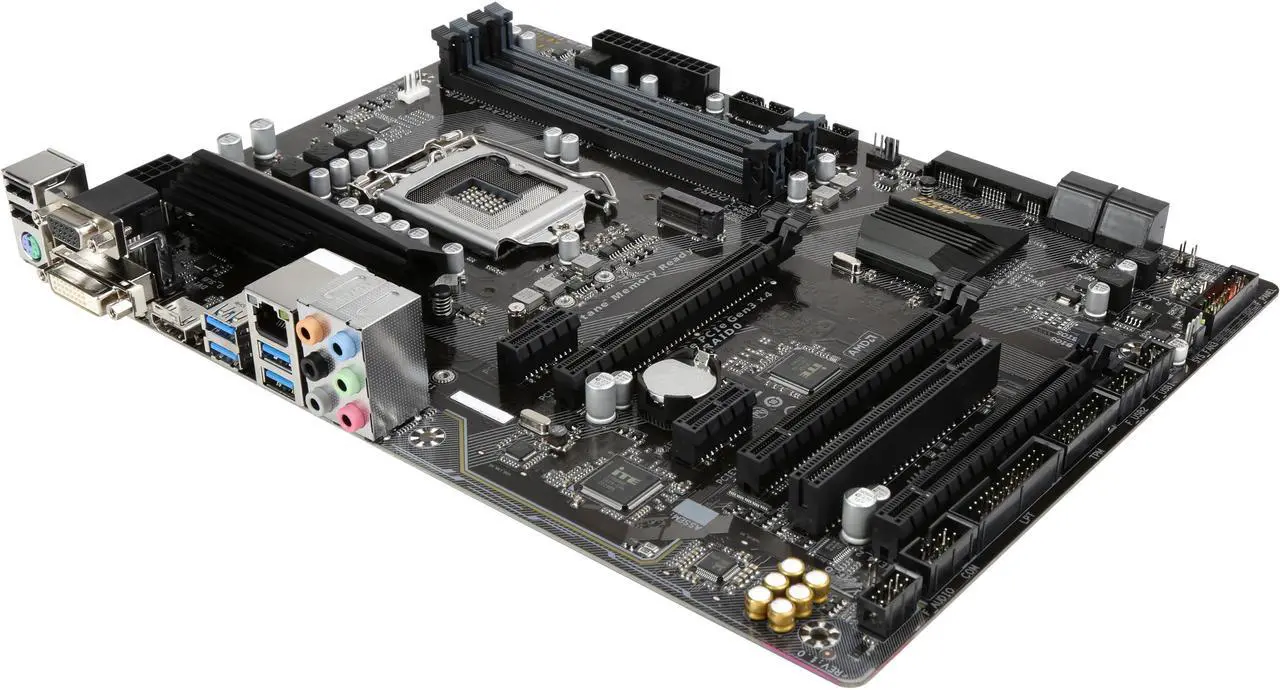

GIGABYTE GA-Z270-HD3 (rev. 1.0) LGA 1151 Intel Z270 HDMI USB 3.1 ATX Motherboards - Intel
- Intel Z270
- Celeron / Core i3 / Core i5 / Core i7 / Intel Core 6th Gen (LGA 1151) / Intel Core 7th Gen (LGA 1151) / Pentium
- DDR4 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666(O.C.)/ 2400(O.C.)/ 2133
+
+
Specs
Reviews (102)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the GIGABYTE GA-Z270-HD3 (rev. 1.0)

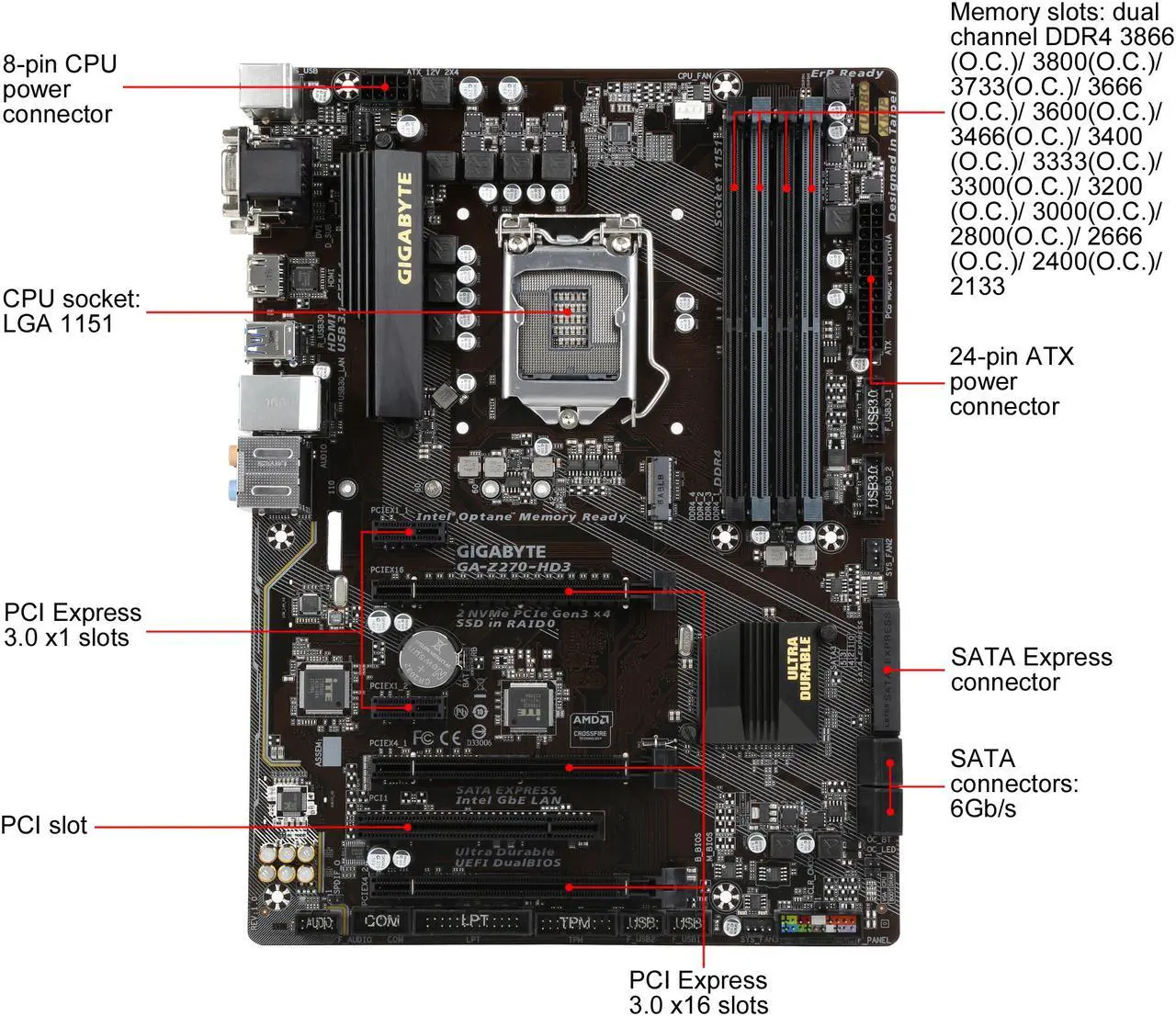

| Brand | GIGABYTE |
|---|---|
| Model | GA-Z270-HD3 (rev. 1.0) |
| CPU Socket Type | LGA 1151 |
|---|---|
| CPU Type | Celeron / Core i3 / Core i5 / Core i7 / Intel Core 6th Gen (LGA 1151) / Intel Core 7th Gen (LGA 1151) / Pentium |
| Supported CPU Technologies | * Not Compatible with Intel 8th Gen CPUs |
| Chipset | Intel Z270 |
|---|
| Onboard Video Chipset | Integrated Graphics Processor - Intel HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz * Support for HDMI 1.4 version. Support for up to 3 displays at the same time Maximum shared memory of 1GB |
|---|
| Number of Memory Slots | 4x288pin (DDR4) |
|---|---|
| Memory Standard | DDR4 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666(O.C.)/ 2400(O.C.)/ 2133 |
| Maximum Memory Supported | 64GB |
| Channel Supported | Dual Channel |
| PCI Express 3.0 x16 | 1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. 2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2) |
|---|---|
| PCI Express x1 | 2 x PCI Express x1 slots (All of the PCI Express slots conform to PCI Express 3.0 standard.) |
| PCI Slots | 1 x PCI Slot |
| Serial ATA (SATA) | 6 x SATA 6Gb/s |
|---|---|
| SATA Express | 1 x SATA Express connector |
| M.2 | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) |
| SATA RAID | 0/1/5/10 |
| Audio Chipset | Realtek ALC887 |
|---|---|
| Audio Channels | 2/4/5.1/7.1-channel |
| LAN Chipset | Realtek GbE LAN chip |
|---|---|
| Max LAN Speed | 1Gbps |

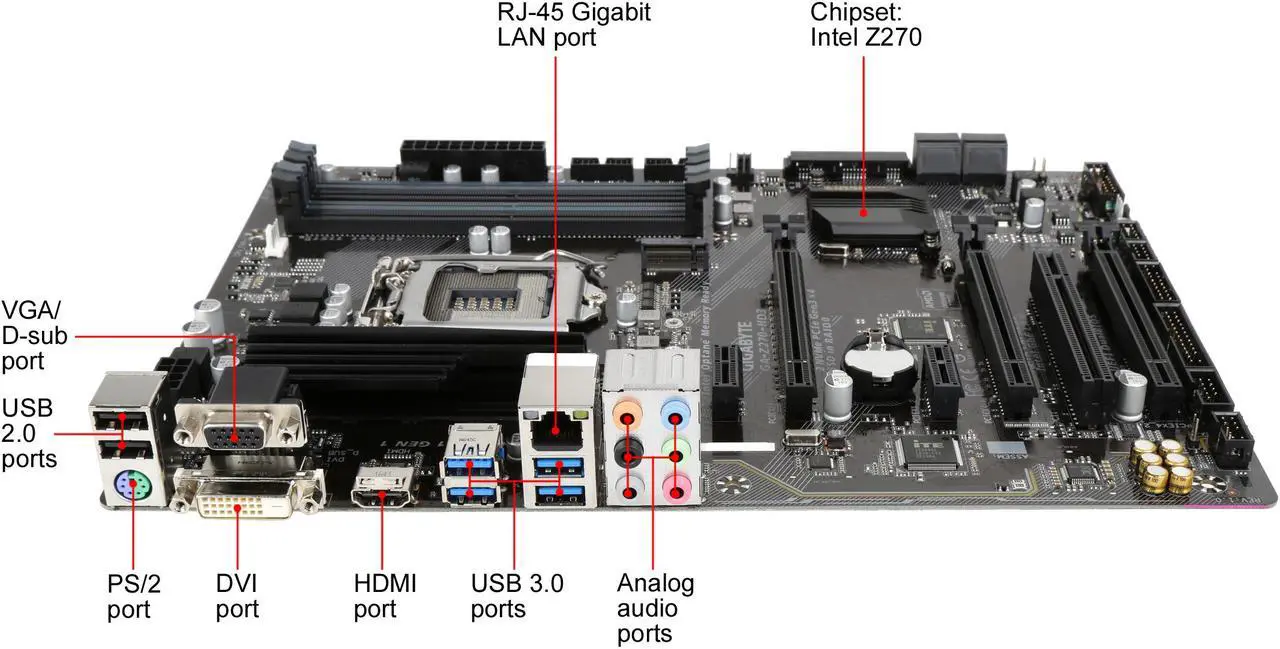

| Back I/O Ports | 1 x HDMI / 1 x PS/2 Keyboard/Mouse Combo / 2 x USB 2.0/1.1 / 4 x USB 3.1 Gen 2 Type-A |
|---|---|
| PS/2 | 1 x PS/2 keyboard/mouse port |
| Video Ports | 1 x D-Sub port 1 x DVI-D port |
| HDMI | 1 x HDMI |
| RJ45 | 1 x RJ45 |
| USB 3.1 | 4 x USB 3.1 Gen 1 ports |
| USB 1.1/2.0 | 2 x USB 2.0 |
| Audio Ports | 6 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Side Speaker Out, Line In, Line Out, Mic In) |
| Onboard USB | 2 x USB 3.1 Gen 1 headers 2 x USB 2.0/1.1 headers |
|---|---|
| Other Connectors | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x Trusted Platform Module (TPM) header 1 x serial port header 1 x parallel port header 1 x Clear CMOS jumper |
| Form Factor | ATX |
|---|---|

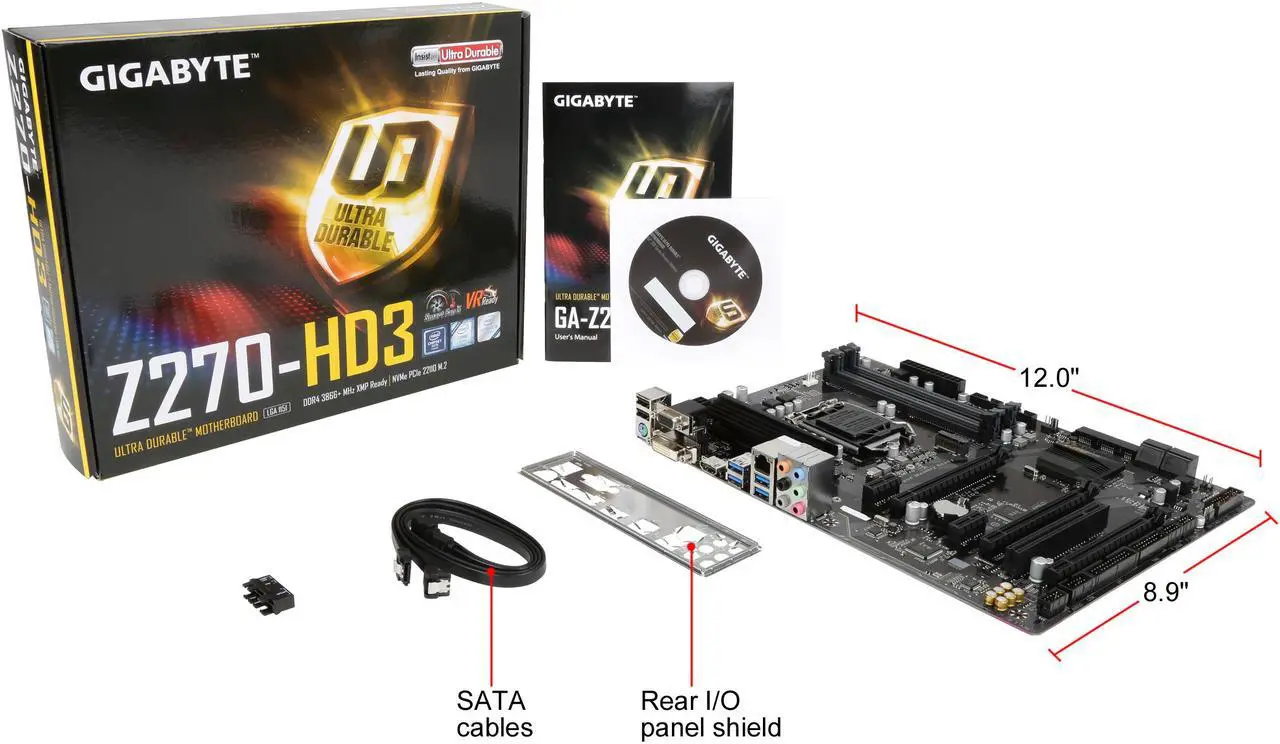

| Dimensions (W x L) | 12.0" x 8.9" |
| Power Pin | 24 Pin |
| Features | Multi-Graphics Technology - Support for AMD Quad-GPU CrossFireX and 2-Way AMD CrossFire technologies (PCIEX16, PCIEX4_1) I/O Controller: - iTE I/O Controller Chip H/W Monitoring: - Voltage detection - Temperature detection - Fan speed detection - Overheating warning - Fan fail warning - Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. BIOS: - 2 x 64 Mbit flash - Use of licensed AMI UEFI BIOS - Support for DualBIOS - PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features: - Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. 3D OSD @BIOS Ambient LED AutoGreen BIOS Setup Color Temperature Cloud Station EasyTune Easy RAID Fast Boot Game Boost ON/OFF Charge Platform Power Management Smart Backup Smart Keyboard Smart TimeLock System Information Viewer USB Blocker V-Tuner - Support for 3TB+ Unlock - Support for Q-Flash - Support for Xpress Install Bundle Software: - Norton Internet Security (OEM version) - Intel Optane Memory Ready - cFosSpeed Operating System: - Support for Windows 10/8.1 64-bit - Support for Windows 7 32-bit/64-bit * Operating systems supported may vary depending on your processor model. * Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7. |
|---|
| Date First Available | August 01, 2024 |
|---|
