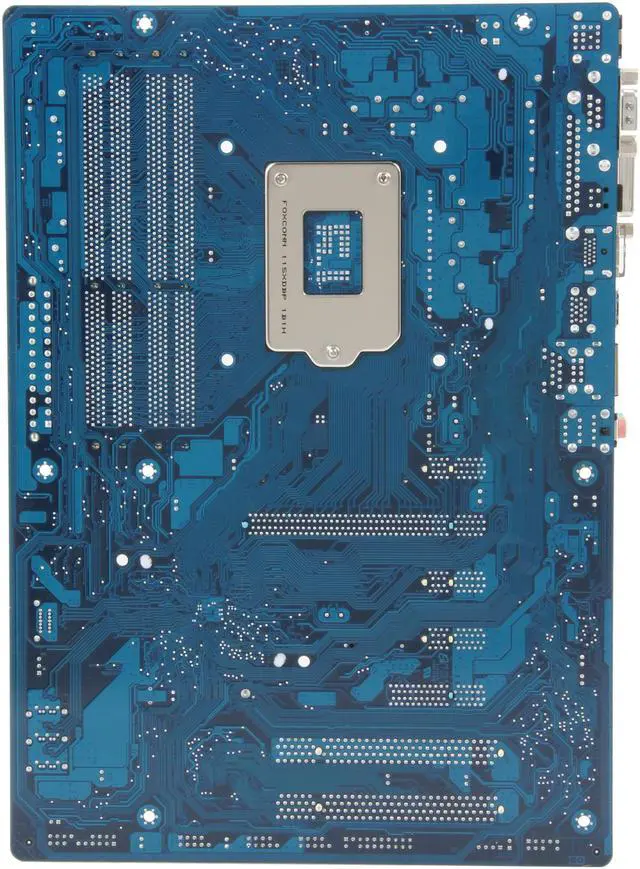

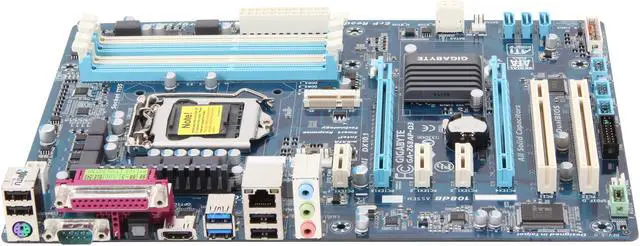

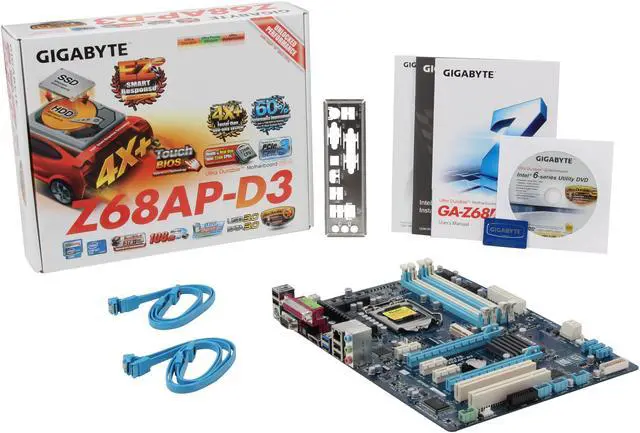

    GIGABYTE GA-Z68AP-D3(R2.0) LGA 1155 Intel Z68 HDMI USB 3.0 ATX Intel Motherboard

    Used - Very Good Product Type
    • Intel Z68
    • Celeron / Core i3 / Core i5 / Core i7 / Intel Core 2nd gen (LGA 1155) / Intel Core 3rd Gen (LGA 1155) / Xeon (LGA1155)
    • DDR3 2133/1866/1600/1333/1066
    🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
    +
    +
    Specs
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now

    Learn more about the GIGABYTE GA-Z68AP-D3(R2.0)

    Model
    Brand GIGABYTE
    Model GA-Z68AP-D3(R2.0)
    Supported CPU
    CPU Socket Type LGA 1155
    CPU Type Celeron / Core i3 / Core i5 / Core i7 / Intel Core 2nd gen (LGA 1155) / Intel Core 3rd Gen (LGA 1155) / Xeon (LGA1155)
    Chipsets
    Chipset Intel Z68
    Onboard Video
    Onboard Video Chipset Supported only by CPU with integrated graphic
    Memory
    Number of Memory Slots 4x240pin
    Memory Standard DDR3 2133/1866/1600/1333/1066
    Maximum Memory Supported 32GB
    Channel Supported Dual Channel
    Expansion Slots
    PCI Express 3.0 x16 2 (x16, x4) (All PCI Express x16 slots conform to PCI Express 3.0 standard. To support PCI Express 3.0, you must install an Intel 22nm CPU. )
    PCI Express x1 3 x PCI Express x1
    PCI Slots 2 x PCI Slots
    Storage Devices
    Serial ATA (SATA) 2 x SATA 6Gb/s
    SATA RAID 0/1/5/10
    Onboard Audio
    Audio Channels 8 Channels
    Onboard LAN
    LAN Chipset Realtek 8111E
    Max LAN Speed 1Gbps
    Rear Panel Ports
    Back I/O Ports 1 x HDMI / 1 x Optical S/PDIF Out / 1 x PS/2 Keyboard/Mouse Combo / 2 x USB 3.0 / 4 x USB 2.0/1.1
    PS/2 1 x PS/2 keyboard/mouse port
    COM 1
    LPT 1
    HDMI 1 x HDMI
    USB 3.0 2 x USB 3.0
    USB 1.1/2.0 4 x USB 2.0
    S/PDIF Out 1 x Optical
    Audio Ports 3 Ports
    Internal I/O Connectors
    Onboard USB 6 x USB 2.0
    Other Connectors 1 x 24-pin ATX main power connector
    1 x 4-pin ATX 12V power connector
    1 x mSATA connector
    1 x CPU fan header
    2 x system fan headers
    1 x power fan header
    1 x front panel header
    1 x front panel audio header
    1 x S/PDIF Out header
    1 x clearing CMOS jumper
    1 x Trusted Platform Module (TPM) header
    Physical Spec
    Form Factor ATX
    Dimensions (W x L) 12" x 8.46"
    Power Pin 24 Pin
    Features
    Features Onboard mSATA connector and Smart Response Technology

    GIGABYTE EZ Smart Response

    Built-in Visuals

    GIGABYTE Touch BIOS

    PCI Express Gen.3 Support

    50,000 Hours Japanese Solid Capacitors

    New 100% Hardware VRD 12 Compliant CPU Power Design
