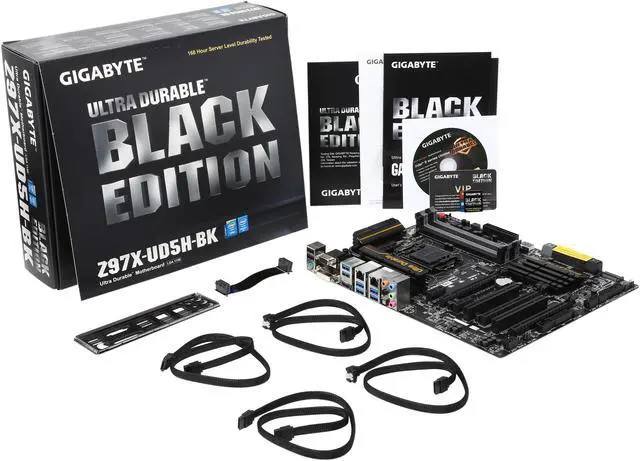

Images from RETAIL item, box contents may vary.

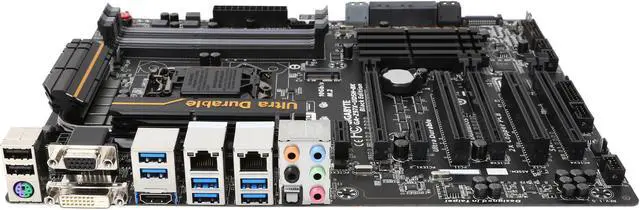

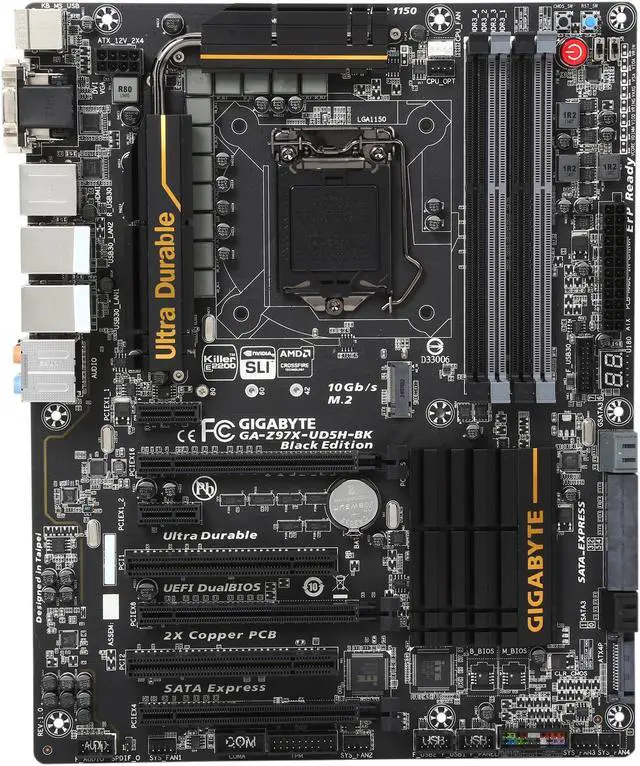

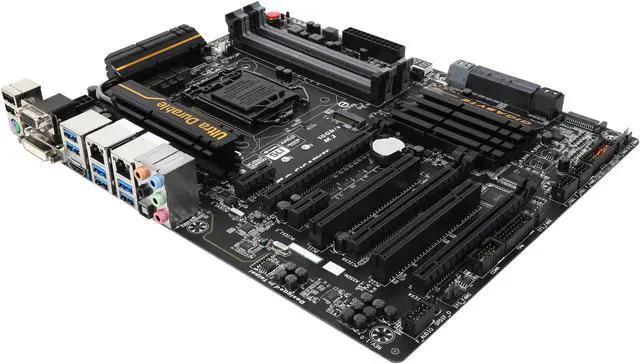

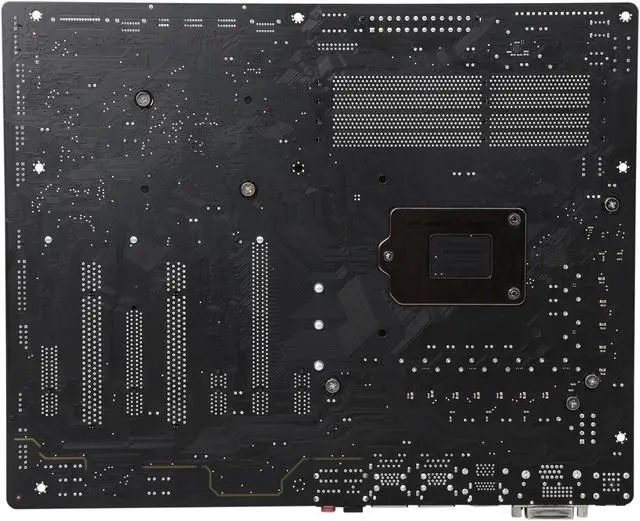

GIGABYTE GA-Z97X-UD5H-BK LGA 1150 Intel Z97 HDMI USB 3.0 ATX Intel Motherboard
OPEN BOX Product Type
- Intel Z97
- Core i7 / i5 / i3 / Pentium / Celeron (LGA1150)
- DDR3 3000(OC)/2933(OC)
Specs
Learn more about the GIGABYTE GA-Z97X-UD5H-BK
| Brand | GIGABYTE |
|---|---|
| Model | GA-Z97X-UD5H-BK |
| CPU Socket Type | LGA 1150 |
|---|---|
| CPU Type | Celeron / Core i3 / Core i5 / Core i7 / Intel Core 4th Gen (LGA 1150) / Intel Core 5th Gen (LGA 1150) / Pentium / Xeon (LGA1150) |
| Chipset | Intel Z97 |
|---|
| Onboard Video Chipset | Supported only by CPU with integrated graphic |
|---|
| Number of Memory Slots | 4x240pin |
|---|---|
| Memory Standard | DDR3 3000(OC)/2933(OC)/2800(OC)/2666(OC)/2600(OC)/2500(OC)/2400(OC)/2200(OC)/2133(OC)/2000(OC)/1866(OC)/1800(OC)/1600/1333 |
| Maximum Memory Supported | 32GB |
| Channel Supported | Dual Channel |
| PCI Express 3.0 x16 | 1 (x16) 1 (x8) 1 (x4) |
|---|---|
| PCI Express x1 | 2 x PCI Express x1 |
| PCI Slots | 2 x PCI Slots |
| Serial ATA (SATA) | 8 x SATA 6Gb/s |
|---|---|
| SATA Express | 1 x SATA Express |
| M.2 | 1 x M.2 |
| SATA RAID | 0/1/5/10 |
| Audio Chipset | Realtek ALC1150 |
|---|---|
| Audio Channels | 7.1 Channels |
| LAN Chipset | Intel i217V |
|---|---|
| Second LAN Chipset | Qualcomm Atheros Killer E2201 |
| Max LAN Speed | 2 x 1Gbps |
| Back I/O Ports | 1 x HDMI / 1 x Optical S/PDIF Out / 1 x PS/2 Keyboard/Mouse Combo / 2 x USB 2.0/1.1 / 6 x USB 3.0 |
|---|---|
| PS/2 | 1 x PS/2 keyboard/mouse port |
| Video Ports | 1 x DVI-D 1 x VGA |
| HDMI | 1 x HDMI |
| RJ45 | 2 x RJ45 |
| USB 3.0 | 6 x USB 3.0 |
| USB 1.1/2.0 | 2 x USB 2.0 |
| S/PDIF Out | 1 x Optical |
| Audio Ports | 5 Ports |
| Onboard USB | 2 x USB 3.0 + 4 x USB 2.0 |
|---|---|
| Other Connectors | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x PCIe power connector 1 x CPU fan header 1 x water cooling fan header (CPU_OPT) 4 x system fan headers 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x serial port header 1 x Clear CMOS jumper 1 x Trusted Platform Module (TPM) header 1 x power button 1 x reset button 1 x Clear CMOS button 2 x BIOS switches Voltage Measurement Points |
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12.0" x 9.6" |
| Power Pin | 24 Pin |
| Features | Extended server level 168 hour durability Test Supports 4th and 5th Generation Intel Core processors Extreme multi graphics support Precise digital CPU power design SATA Express support for 10 Gb/s data transfer M.2 for SSDs drives with up to 10 Gb/s data transfer Killer E2200 and Intel gaming networking Realtek ALC1150 115dB SNR HD Audio with built-in rear audio amplifier 2x copper PCB design Long lifespan Durable Black Solid caps APP Center including EasyTune and Cloud Station utilities GIGABYTE UEFI DualBIOS |
|---|
| First Listed on Newegg | October 11, 2014 |
|---|
