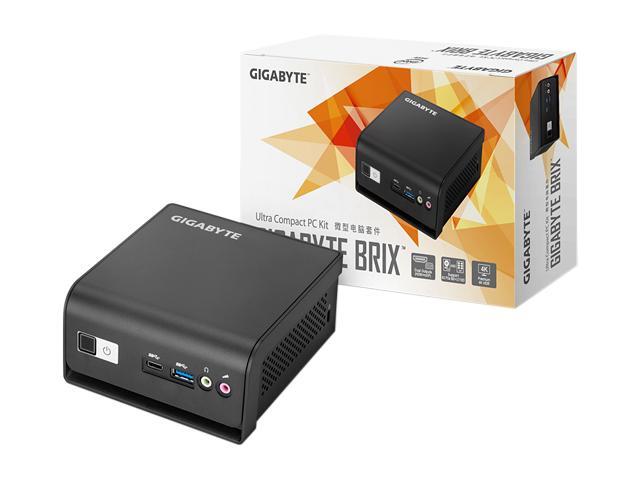

GIGABYTE GB-BMCE-5105-BWUS Mini / Booksize Barebone System

OUT OF STOCK.
  • Intel Celeron Processor N5105
  • 2.8GHz, 4 core (TDP 10W)
  • Intel UHD Graphics 605
  • 1 x 260Pin SO-DIMM DDR4 2933
Specs
Reviews

Learn more about the GIGABYTE GB-BMCE-5105-BWUS

General
Brand GIGABYTE
Model GB-BMCE-5105-BWUS
CPU Supported
CPU Type Intel Celeron Processor N5105
2.8GHz, 4 core (TDP 10W)
Memory Supported
Memory installed No Memory
Memory slot 1 x 260Pin SO-DIMM
Memory Type Supported DDR4 2933
Max Memory Supported 16GB
Expansion Slots
Other 1 x PCIe M.2 NGFF 2230 A-E key slot occupied by the WiFi+BT card
Storage
Hard Drive Installed No Hard Drive
Serial ATA 1 x SATA 6.0Gb/s
M.2 1 x M.2 slot (2280_storage) PCIe X2/SATA
Graphics
Onboard Video Intel UHD Graphics 605
Audio
Onboard Audio Realtek ALC255
Communications
LAN Realtek 8111HS
Max LAN Speed 10/100/1000Mbps
Wireless LAN Dual Band Wireless-802.11 AC
Bluetooth Bluetooth 4.2
Extension Bays
2.5" Internal Bays Supports 2.5" HDD/SSD, 7.0/9.5 mm thick (1 x 6 Gbps SATA 3)

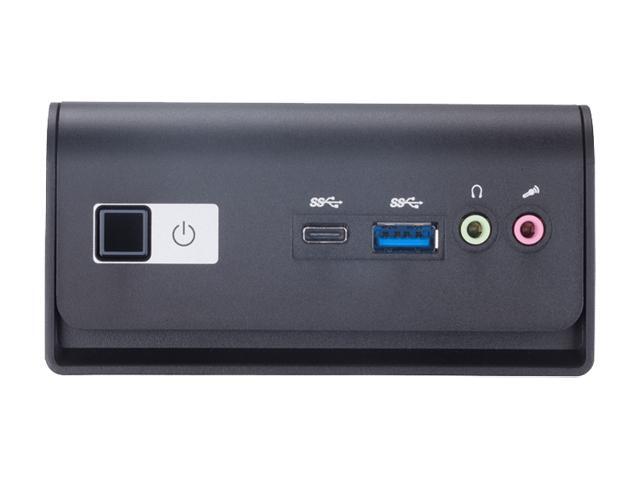

Front Panel Ports
Front USB 1 x USB3.0
1 x USB3.0 type C
Front Audio Ports 2 jacks
Back Panel Ports
HDMI 1 x HDMI (2.0a)
4096 x 2160 @ 60 Hz
DisplayPort 1 x mini DisplayPort (1.2a)
4096 x 2160 @ 60Hz
Rear USB 2 x USB 3.0
RJ45 1
Other Rear Ports 1 x DC-In
1 x Kensington lock slot
Power Supply
Input Input: AC 100-240V
Output: DC 19V
2.1A
Physical SPEC
Dimensions 1.84" x 4.43" x 4.70"
Features
Features Ultra compact PC design at only 0.67L (56.22x103x116.52mm)

1st 10 nm small core CPU

Support M.2 2280 slot for SSD (support PCI-e x2+SATA)

Supports 2.5" HDD/SSD, 7.0/9.5 mm thick (1 x 6 Gbps SATA 3)

1 x SO-DIMM DDR4 slots support 2933MHz, Max 16GB

802.11ac, Dual Band Wi-Fi & Bluetooth 4.2

Realtek 8111HS Gigabit LAN

Realtek ALC255 Codec

4 x USB 3.1 (1 x USB Type-C)

Headphone Jack

Mic-phone Jack

VESA Mounting Bracket (75 x 75mm + 100 x 100mm)

AC-DC adapter : 100-240V input, 19V 65W

OS Support : Microsoft Windows 10 64Bit

1 x Kensington Lock slot

System Environment Operating Temperature: 0°C to +35°C

System Storage Temperature: -20°C to +60°C
Additional Information
Date First Available August 31, 2021

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
