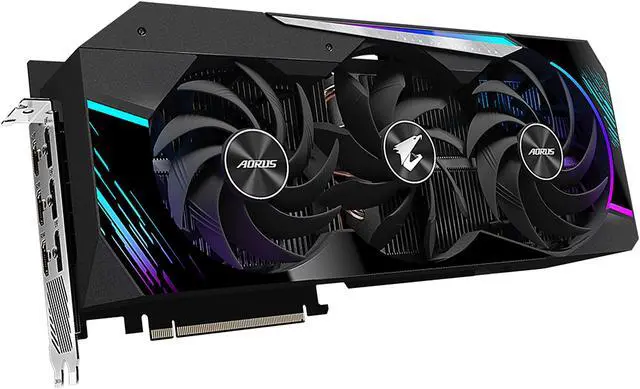

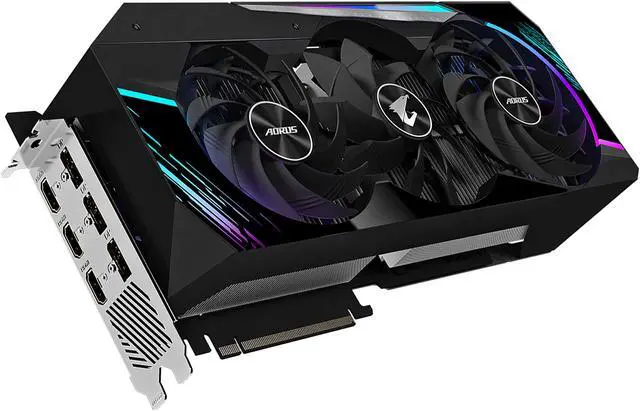

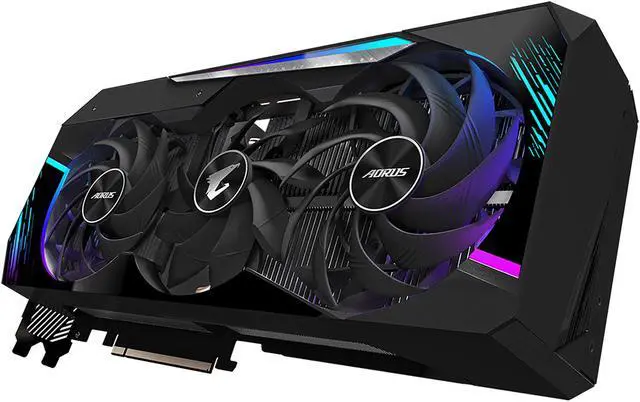

Learn more about the GIGABYTE GV-N3090AORUS M-24GD (rev. 2.0)
Model| Brand | GIGABYTE |
|---|
| Series | AORUS |
|---|
| Model | GV-N3090AORUS M-24GD (rev. 2.0) |
|---|
Interface| Interface | PCI Express 4.0 |
|---|
Chipset| Chipset Manufacturer | NVIDIA |
|---|
| GPU Series | NVIDIA GeForce RTX 30 Series |
|---|
| GPU | GeForce RTX 3090 |
|---|
| Architecture | Ampere |
|---|
| Core Clock | 1785 MHz |
|---|
| CUDA Cores | 10496 Cores |
|---|
Memory| Effective Memory Clock | 19500 MHz |
|---|
| Memory Size | 24GB |
|---|
| Memory Interface | 384-Bit |
|---|
| Memory Type | GDDR6X |
|---|
3D API| DirectX | DirectX 12 Ultimate |
|---|
| OpenGL | OpenGL 4.6 |
|---|
Ports| Multi-Monitor Support | 4 |
|---|

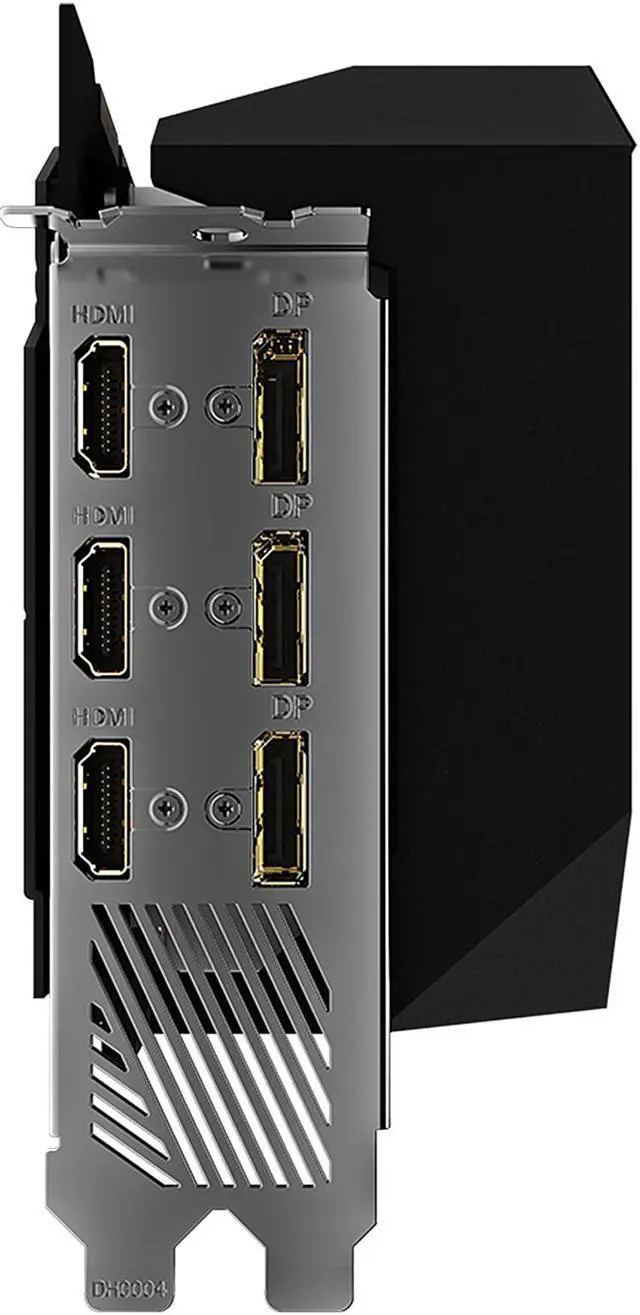

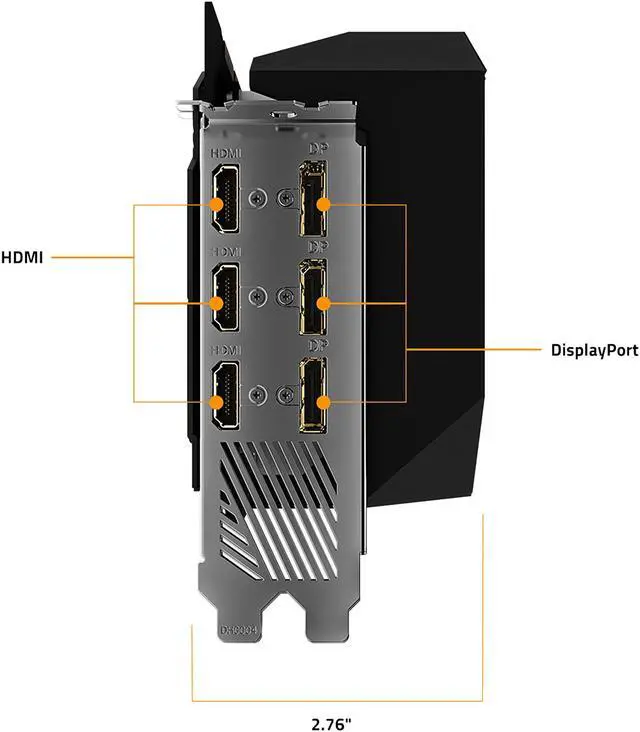

| HDMI | 2 x HDMI 2.1 1 x HDMI 2.0 (The middle HDMI output supports up to HDMI 2.0) |
|---|
| DisplayPort | 3 x DisplayPort 1.4a |
|---|
Details| Max Resolution | 7680 x 4320 |
|---|
| SLI Support | 2-Way NVIDIDA NVLINK |
|---|
| Virtual Reality Ready | Yes |
|---|
| Cooler | Triple Fans |
|---|
| Recommended PSU Wattage | 850W |
|---|
| Power Connector | 3 x 8-Pin |
|---|
Features| Features | NVIDIA Ampere Streaming Multiprocessors
2nd Generation RT Cores
3rd Generation Tensor Cores
Powered by GeForce RTX 3090
Integrated with 24GB GDDR6X 384-bit memory interface
MAX-COVERED cooling

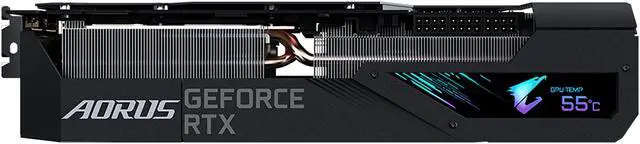

LCD Edge View
RGB Fusion 2.0
6 video outputs

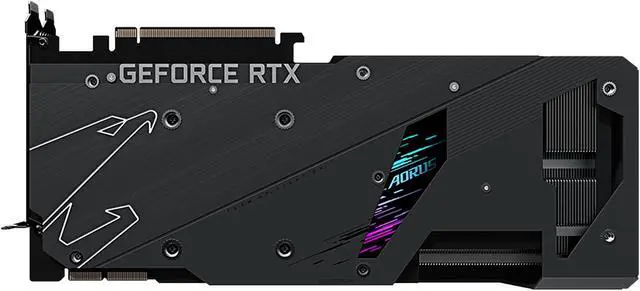

Protection metal back plate |
|---|
Form Factor & Dimensions| Form Factor | ATX |
|---|
| Max GPU Length | 319 mm |
|---|

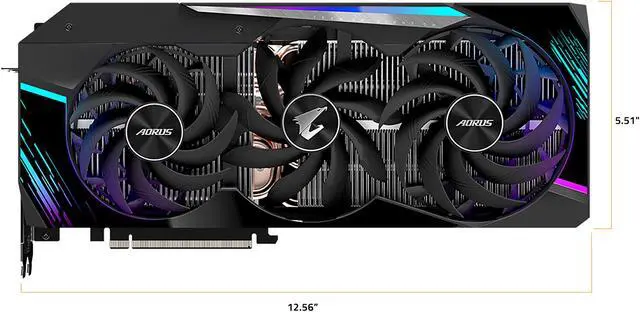

| Card Dimensions (L x H) | 12.56" x 5.51" |
|---|

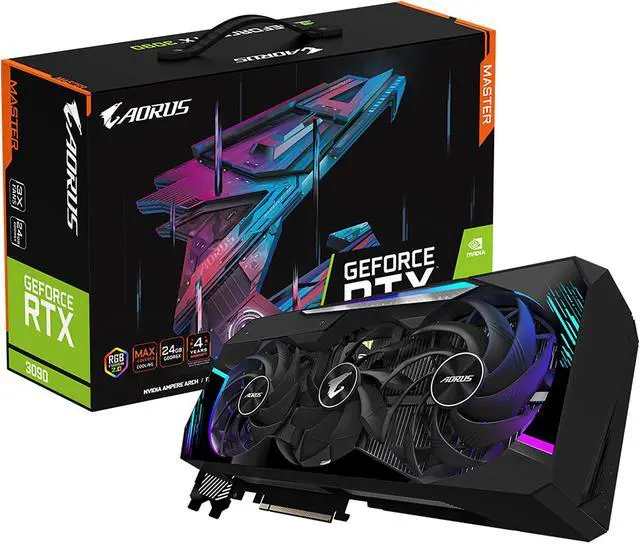

Packaging| Package Contents | Accessories: Quick guide Metal sticker |
|---|
Additional Information| First Listed on Newegg | October 09, 2024 |
|---|
