Question 1

1) Does this package include an adapter plate for the back to mount into a slimline cabinet? I would need to be able to move the VGA connector to a different plate or remove it entirely.

2) The description indicates PCIe V2.0 X 8. It looks like a PCIE X 16. Will it fit a slot made for PCIe V1.1 X16.

3) Is this working well with Windows 10 Pro?

Thank you!

Accepted Answer

In response to Mark G.'s questions:

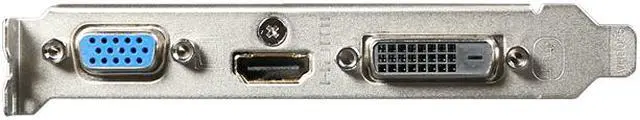

1) The GT 700 come with two (2) additional adapter plates for your slimline installation. One plate has only VGA the other has HDMI and DVI. So, yes, you should be able to remove the VGA D-sub and use the plate that has holes for HDMI and DVI.

2) The PCIe v2.0 x8 card will fit into your v1.1 x16 slot. Because of the design of PCIe it is both scalable and backwardly compatible. Any PCIe card can fit into a larger PCIe slot (an 8 fits a 16, a 4 fits 8 or 16, and a 1 fits in a 1, 4, 8, or 16) regardless of version (1.1, 2.0, 3.0) The card data throughput will be throttled back to v1.1 which is half of v2.0 but it will fit.

3) Regarding Windows 10. I am actively avoiding a Windows 10 upgrade, however, the GT 700 does come with Windows 10 drivers, so I am assuming that it will work with Win 10. (I would advise downloading the latest drivers from the Internet. Driver discs that come with the hardware are always out of date.)

Hope this helps.

Bruce

Question 2

Is the VGA card advertised correctly in terms of its PCIe slot requirement?

Accepted Answer

Yes, the VGA card is advertised to require a PCI Express 2.0 x8 slot.

Question 3

I have a Gigabyte MB (GA-78LMT-USB3) with integrated ATI Radeon 3000 Graphics. Will this card work with my computer?  I'm not a gamer but want to do some HD video editing, TIA.

Accepted Answer

Yes, the GIGABYTE GeForce GT 710 Video Card GV-N710D3-2GL 1.0 should work with your Gigabyte motherboard (GA-78LMT-USB3). This video card uses a PCI Express 2.0 x8 interface, which is compatible with the PCI Express slots on your motherboard. It will provide better performance for HD video editing compared to your integrated ATI Radeon 3000 Graphics.

Chipset Manufacturer	NVIDIA
GPU	GeForce GT 710
Core Clock	954 MHz

Effective Memory Clock	1800 MHz
Memory Size	2GB
Memory Interface	64-Bit
Memory Type	DDR3

DirectX	DirectX 12
OpenGL	OpenGL 4.5

HDMI	1 x HDMI
D-SUB	1 x D-SUB
DVI	1 x Dual-Link DVI-D

Cooler	Single Fan
Thermal Design Power	25W
System Requirements	System PSU Limitation: 300W
Dual-Link DVI Supported	Yes

Best Sellers

Meet Your Seller

GIGABYTE GeForce GT 710 2GB DDR3 PCI Express 2.0 x8 Low Profile Graphics Card GV-N710D3-2GL 1.0
