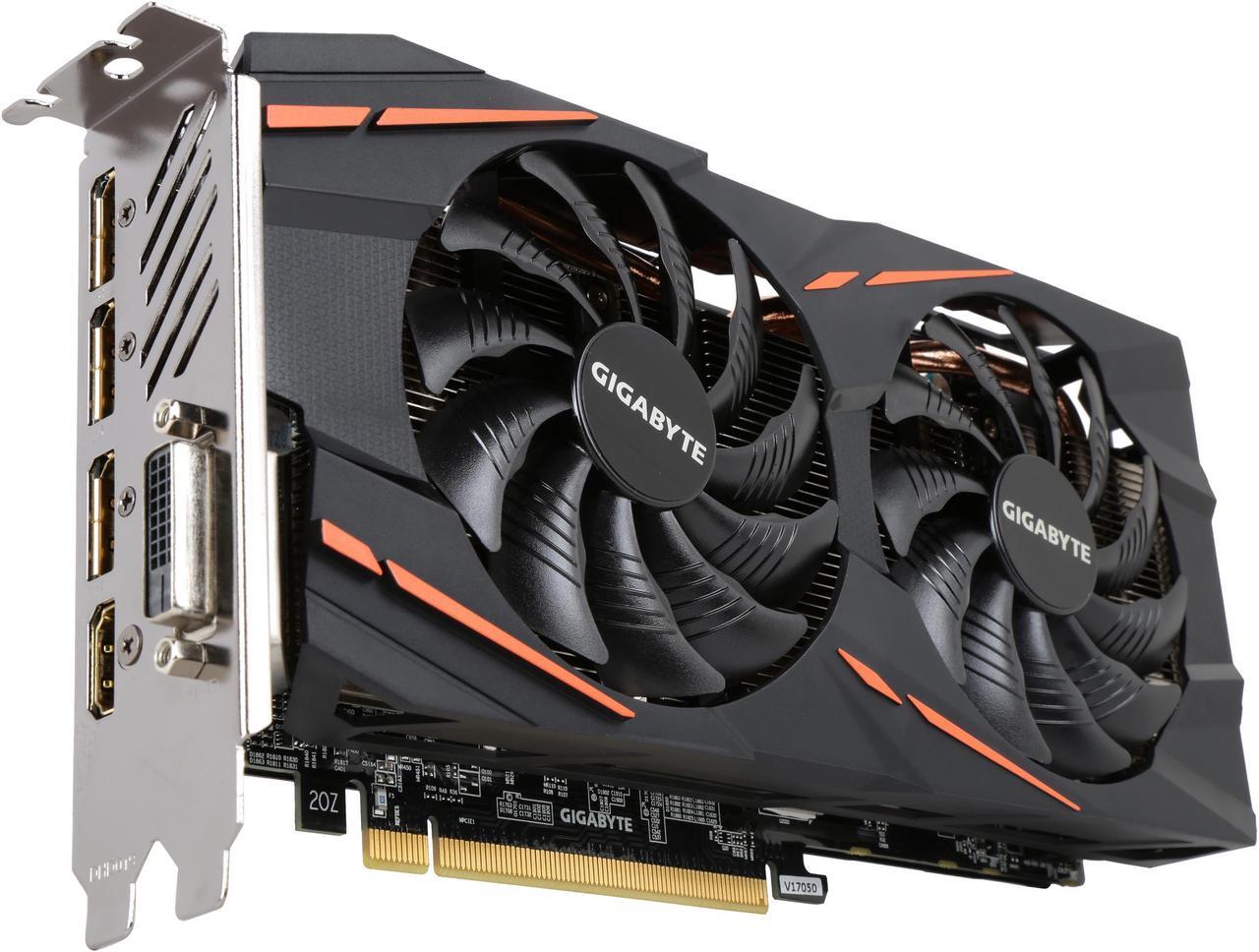

Name: GIGABYTE Radeon RX 580 Graphics Card GV-RX580GAMING-8GD
Brand: GIGABYTE
SKU: N82E16814125962
Price: 495.00 USD
Availability: InStock
Rating: 4 (92 reviews)

GIGABYTE Radeon RX 580 8GB GDDR5 PCI Express 3.0 x16 ATX Graphics Card GV-RX580GAMING-8GD

Option: Gaming

AORUS
Gaming

8GB 256-Bit GDDR5
Core Clock 1355 MHz (OC Mode) / 1340 MHz (Gaming Mode)

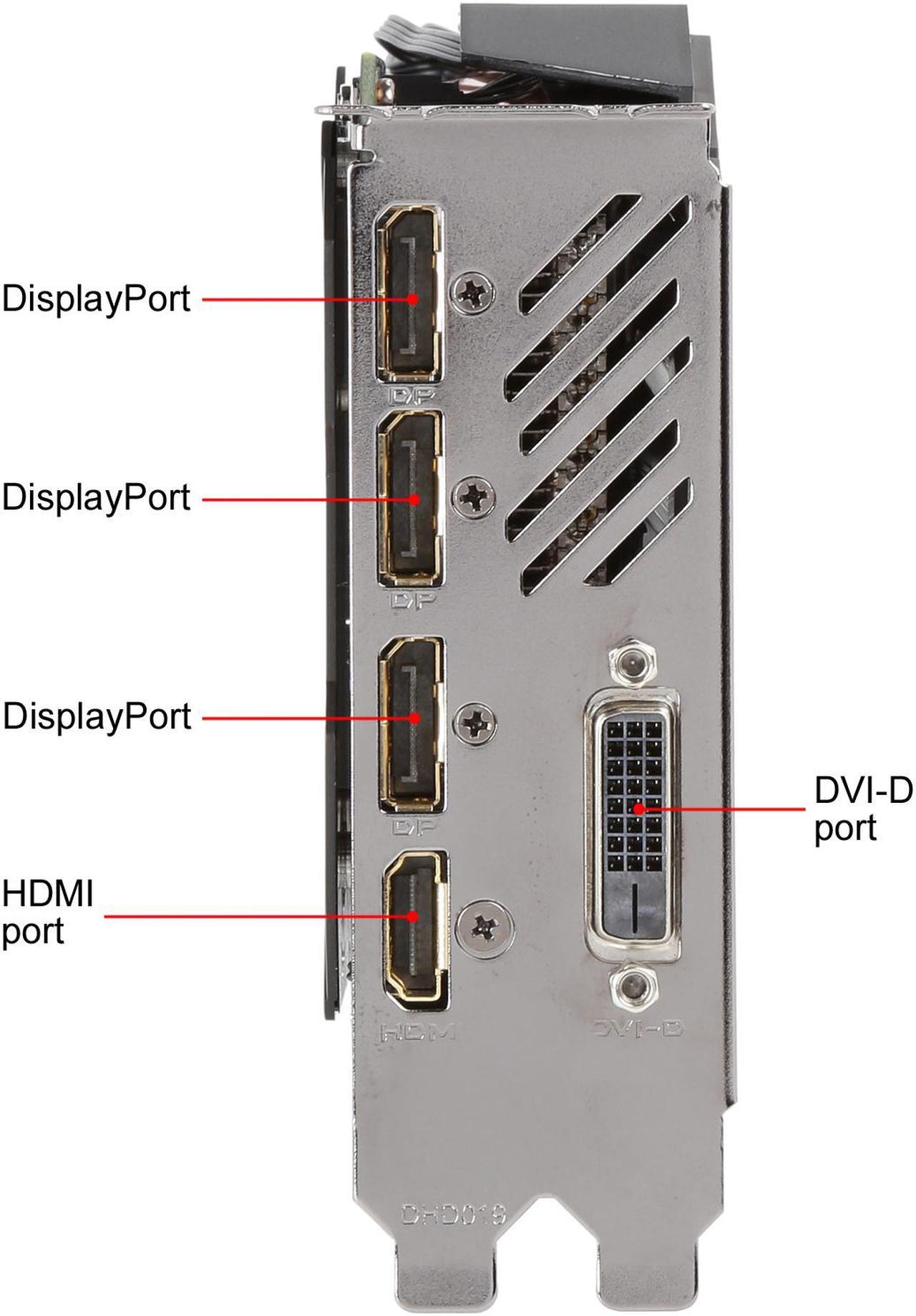

1 x Dual-Link DVI-D 1 x HDMI (Gold Plated) 3 x DP (Gold Plated)
2304 Stream Processors
PCI Express 3.0 x16

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Radeon™ RX 580 Gaming 8G

Features

Powered by Radeon ™ RX 580
WINDFORCE 2X with 90mm Blade Fan Design
RGB fusion – 16.8M customizable color lighting
Stylish Metal Back Plate
Intuitive AORUS Graphics Engine

Core Clock

OC mode: 1355MHz
Gaming mode: 1340MHz

WINDFORCE 2X Cooling System

The WINDFORCE 2X cooling system features 3 pure copper composite heat-pipes, heat-pipe direct touch GPU, 90mm unique blade fan design, 3D active fan with LED indicators, stylish metal back plate, together delivering an effective heat dissipation capacity for higher performance at lower temperatures.

90mm Unique Blade Fan Design

The airflow is spilt by the triangle fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the air flow by 23% over traditional fans.

3D Active Fan with LED Indicators

The semi-passive fans will remain off when the GPU is under a set loading or temperature for low power gaming. The LED fan indicator on the top of the graphics card provides an instant display of the fan status.

Composite heat-pipes

The composite heat-pipes combines both thermal conductivity and phase transition for efficiently managing the transfer of heat between two solid interfaces which increases 29% of cooling capacity.

3 Heat-Pipes Direct Touch

The pure copper heat pipes are shaped to maximize the direct contact area to the GPU.

Game in Style

RGB Fusion 16.8M Customizable Color Lighting

With 16.8M customizable color options and numerous lighting effects, you could now choose the right scheme for your gaming rig through AORUS graphics Engine.

Built Strong

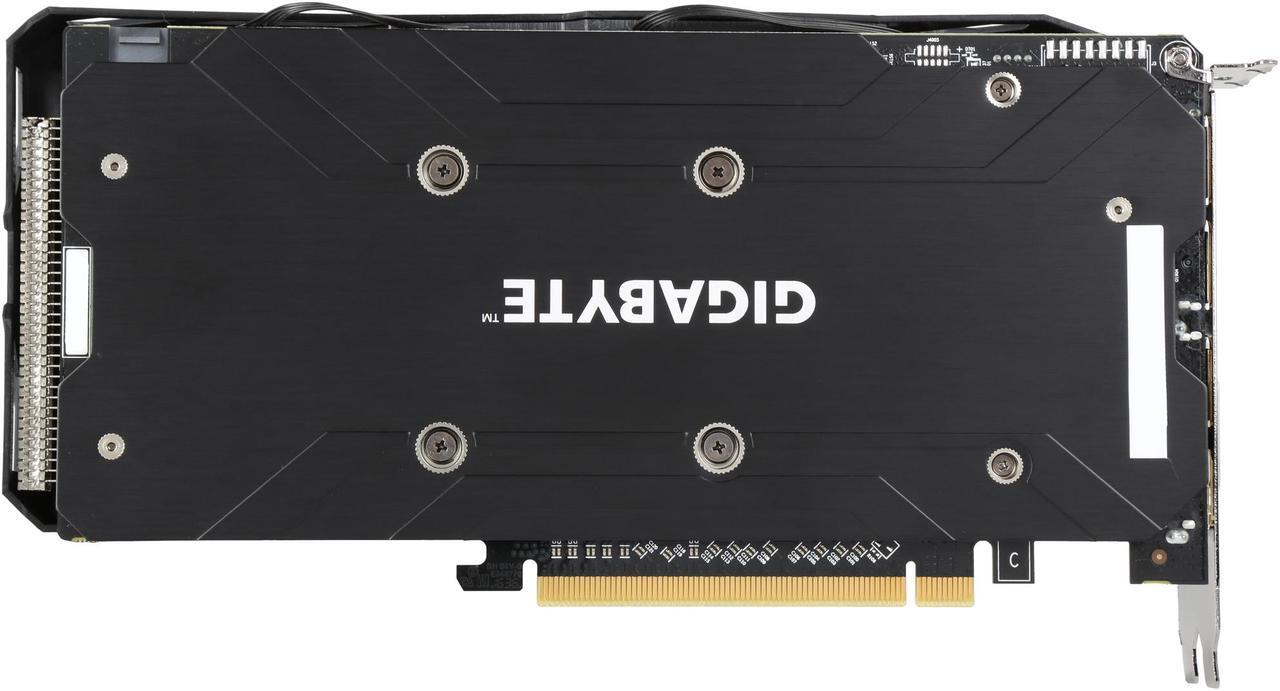

STYLISH METAL BACK PLATE

The metal back plate offers rigidity and protection to the structure, while adding a sleek, clean look to the product.

Built for OverClocking with 6+2 power phases

Compared to reference design(6+1), the 6+2 power phases on the card make the MOSFET working at a lower temperature and provide more stable voltage output.

Ultra Durable Materials

Engineered with the highest-grade chokes and capacitors, this graphic card delivers outstanding performance and durable system lifespan.

Smart Power LED indicators

Be alert when PCI-E voltage is unstable with the smart power LED indicator.
- LED ON: power cable disconnected
- LED OFF : stable power supply
- Blinking LED: abnormal power supple

Effective Memory Clock	8000 MHz
Memory Size	8GB
Memory Interface	256-Bit
Memory Type	GDDR5

DirectX	DirectX 12
OpenGL	OpenGL 4.5

Virtual Reality Ready	Yes
Cooler	WINDFORCE 2X
Thermal Design Power	185W
System Requirements	System PSU Limitation: 500W
Dual-Link DVI Supported	Yes

Form Factor	ATX
Max GPU Length	232 mm
Card Dimensions (L x H)	9.13" x 4.57"
Slot Width	2 Slots
