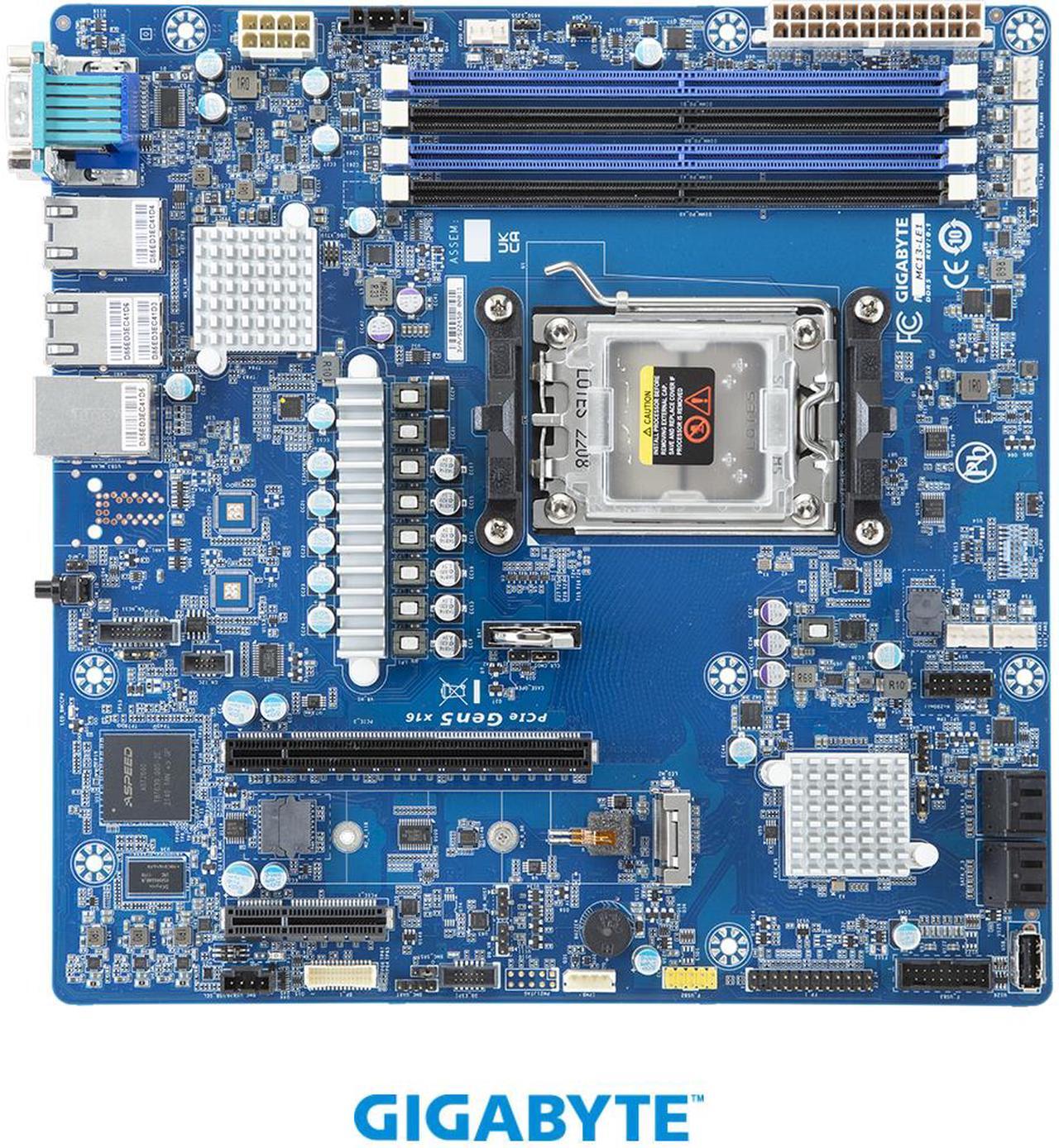

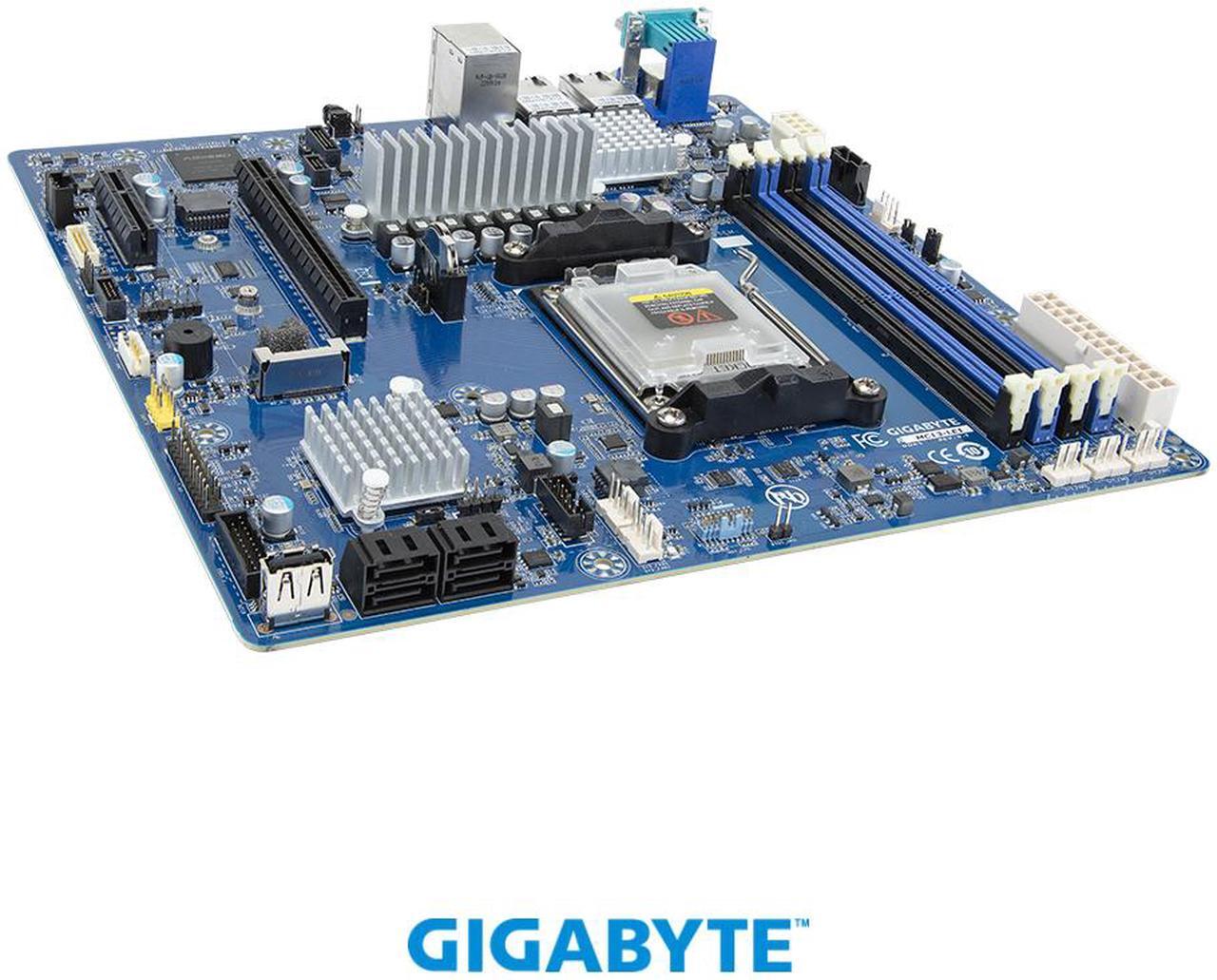

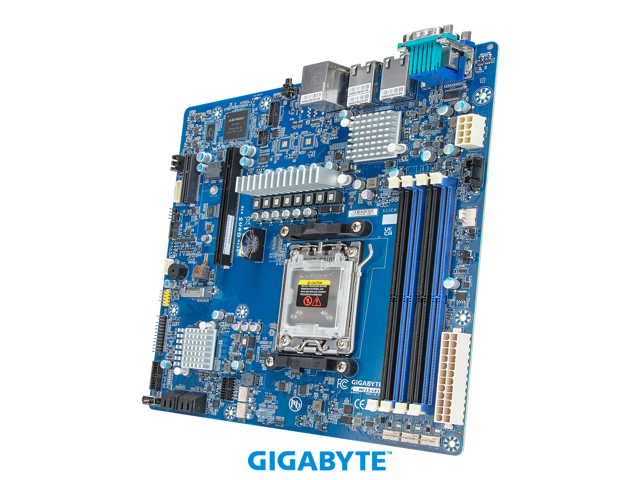

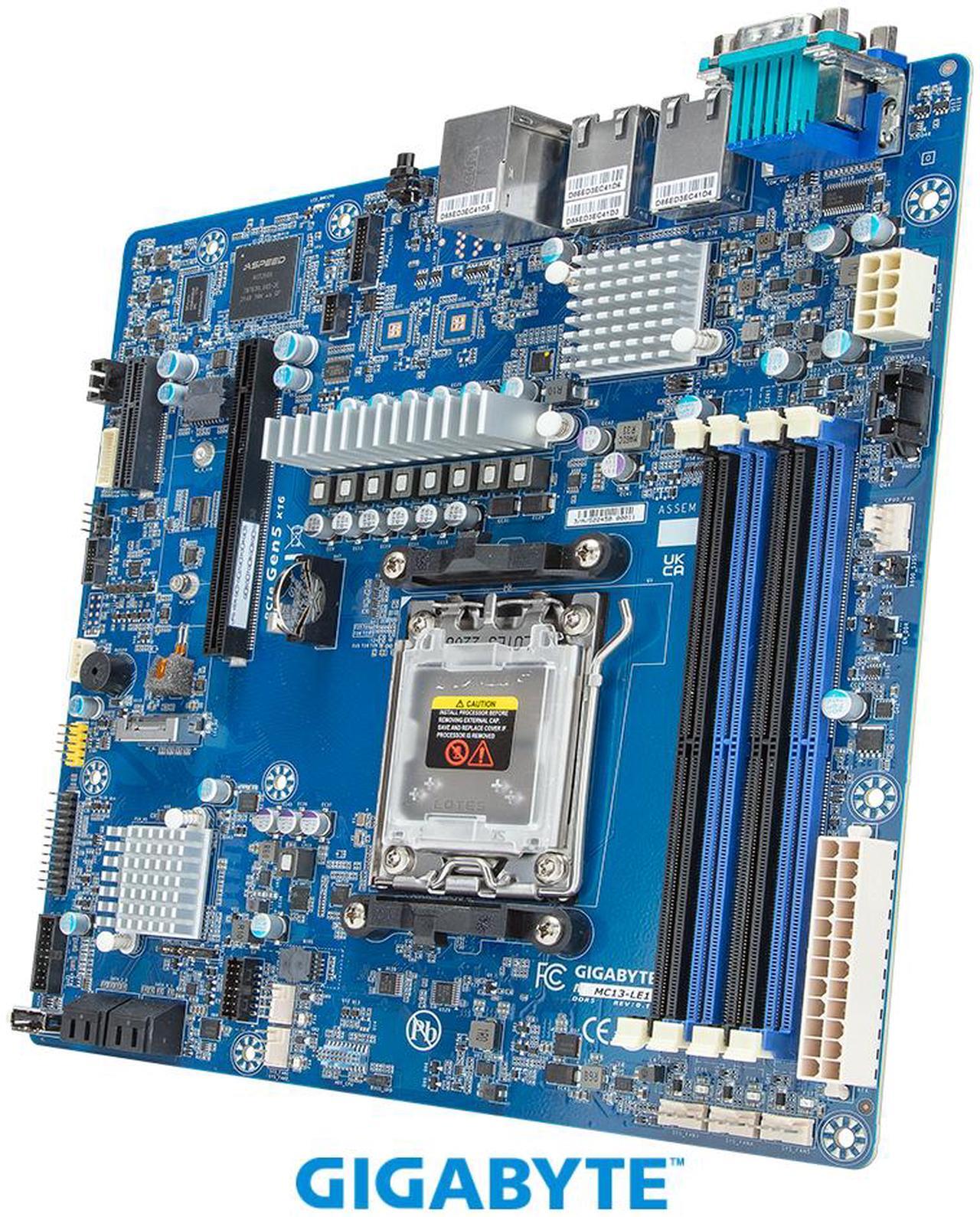

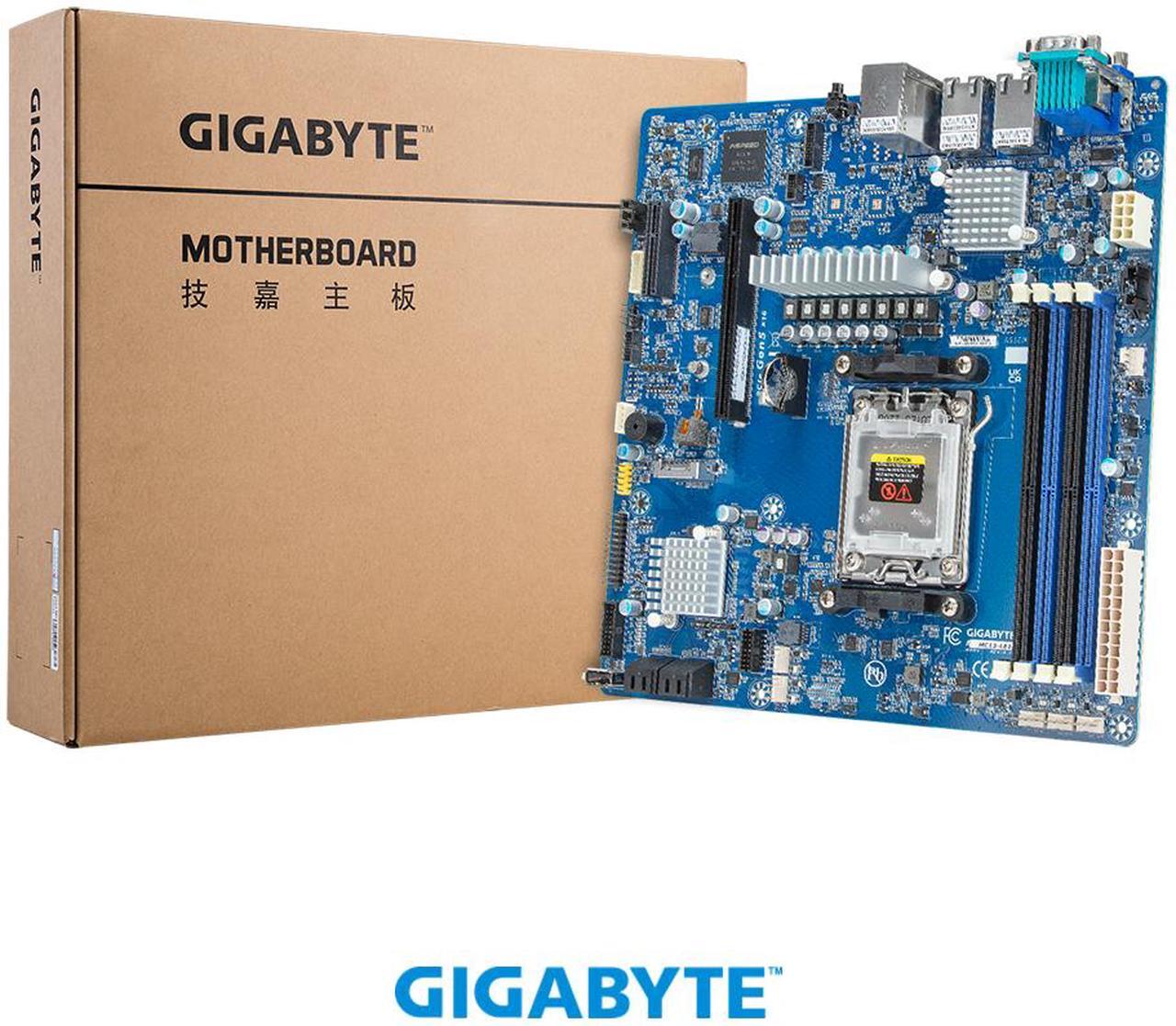

GIGABYTE MC13-LE1 Micro ATX Server Motherboard, AMD Ryzen™ 7000 Series Processors, AM5, AMD B650E..
OPEN BOX Product Type
- AMD Ryzen™ 7000 Series Processors
- Dual Channel ECC / Non-ECC Unbuffered DDR5, 4 DIMMs
- 2 x 10 GbE LAN ports (Intel® X710)
- 1 x Dedicated management port
- BMC ASPEED AST2600
- PCIe Gen5 Ready x16 slot and M.2 slot
- 4 x SATA 6Gb/s ports
+
+
Specs
Learn more about the GIGABYTE MC13-LE0
| Brand | GIGABYTE |
|---|---|
| Model | MC13-LE0 |
| CPU Socket Type | Socket AM5 |
|---|---|
| CPU Type | AMD EPYC 4004 Series / AMD Ryzen 7000 Series / AMD Ryzen 9000 Series |
| Number of Processor Support | 1 |
| CPU Features | Single processor, TDP up to 170W [Note] Recommend to install 170W CPU with a liquid cooling kit. |
| North Bridge | AMD B650E |
|---|
| Memory Slots | 4 x DDR5 288-pin |
|---|---|
| Memory Standard | DDR5 5600 |
| Channel Supported | Dual Channel |
| PCI Express 5.0 x16 | Slot_3: PCIe x16 (Gen5 x16), from CPU |
|---|---|
| PCI Express x4 | Slot_1: PCIe x4 (Gen4 x4), from FCH |
| SATA | 4 x SATA, from FCH |
|---|---|
| M.2 | 1 x M.2 (2242/2280), PCIe Gen5 x4, from CPU |
| Onboard Video Chipset | Aspeed AST2600 |
|---|
| LAN Chipset | Intel X710-AT2 |
|---|---|
| LAN Speed | 10Gbps |
| Max LAN Speed | 2 x 10Gbps |

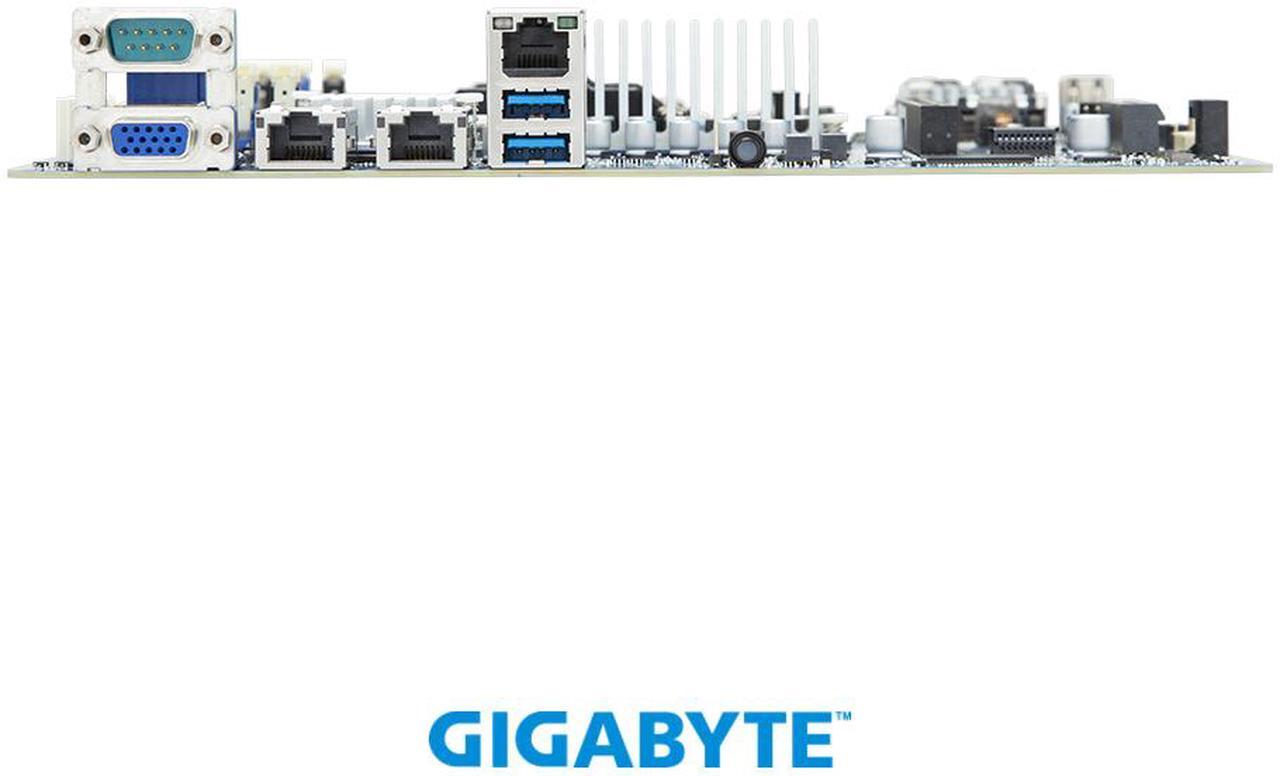

| Back I/O Ports | 1 x COM (Serial Port) / 1 x D-Sub / 1 x MLAN / 2 x LAN (RJ45) / 2 x USB 3.2 Gen 1 Type-A |
|---|---|
| USB 3.2 | 2 x USB 3.2 Gen1 type A |
| Onboard USB | 1 x USB 2.0 port (Type-A) 1 x USB 3.2 Gen1 x2 header 1 x USB 2.0 x2 header |
|---|---|
| Other Connectors | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 5 x System fan headers 1 x M.2 slot 4 x SATA connectors 1 x Front panel header 1 x Backplane board header 1 x PMBUS connector 1 x IPMB connector 1 x TPM header |
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 9.6" x 9.6" |
| Date First Available | February 21, 2025 |
|---|
