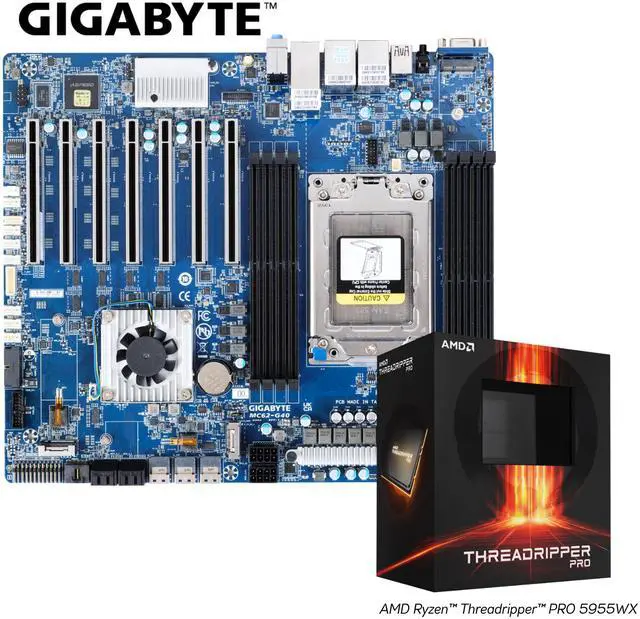

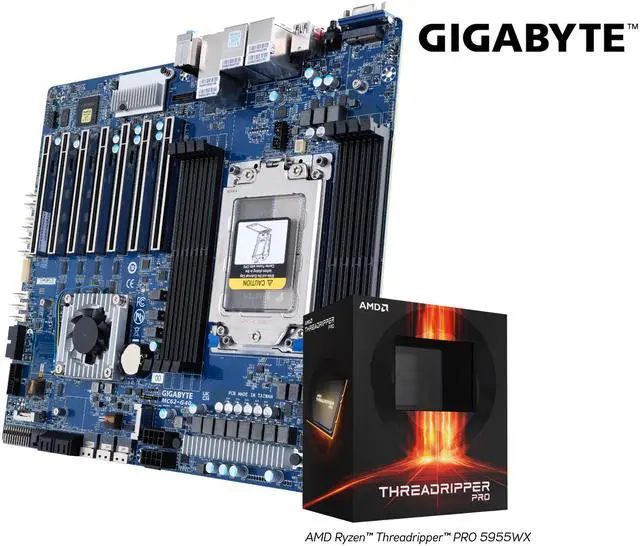

GIGABYTE MC62-G40 AMD Ryzen Threadripper PRO Workstation Board with AMD Threadropper Pro 5955WX Bundle Deal,16-core, 32-Thread, Processor Integrated by GIGABYTE
- CPU: Ryzen Threadripper PRO 5955WX, 16-Core/32-Threads, Base Clock 4GHz, Max. Boost Clock Up to 4.5 GHz.
- Motherboard:
- AMD Ryzen Threadripper PRO 5000WX and 3000WX Processors Socket sWRX8
- 8-Channel DDR4 UDIMM/RDIMM/3DS RDIMM/LRDIMM 8 x DIMMs
- Dual Intel 10GbE and 1GbE LAN Ports
- 1 x Dedicated Management Port
- 7 x PCIe 4.0 Slots for Multi-GPU
- 4x SATA Ports, 3x SlimSAS Ports (PCIe Gen4 or SATA)
- Dual M.2 (PCIe Gen4 or SATA) and USB 3.2 Gen2
+
+
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the GIGABYTE MC62-G40
| Brand | GIGABYTE |
|---|---|
| Model | MC62-G40 |
| CPU Socket Type | Socket sWRX8 |
|---|---|
| CPU Type | Supports AMD Ryzen Threadripper PRO 5000WX Series Processors Supports AMD Ryzen Threadripper PRO 3000WX Series Processors |
| Number of Processor Support | 1 |
| CPU Features | Up to 64 cores, 128 threads TDP up to 280W |
| North Bridge | AMD WRX80 |
|---|
| Number of DDR4 Slots | 8 x 288-pin |
|---|---|
| DDR4 Standard | DDR4 3200 |
| Maximum Memory Supported | 2TB |
| Channel Supported | Eight Channel |
| ECC Supported | Yes |
| Registered | Yes |
| PCI Express 4.0 x16 | Slot_7: PCIe x16 (Gen4 x16) slot Slot_6: PCIe x16 (Gen4 x16) slot Slot_5: PCIe x16 (Gen4 x16) slot Slot_4: PCIe x16 (Gen4 x16) slot Slot_3: PCIe x16 (Gen4 x16) slot Slot_2: PCIe x16 (Gen4 x8) slot Slot_1: PCIe x16 (Gen4 x16) slot |
|---|
| SATA | 4 x SATA 6.0Gb/s |
|---|---|
| Additional SATA RAID | 0/1/5/10 |
| SAS | 3 x SlimSAS connector (PCIe Gen4 x4 or SATA) |
| M.2 | 2 x M.2 slots for storage: - M-key - PCIe Gen4 x4 or SATA, from CPU - Support 2242/2280 cards 1 x M.2 slot for Wi-Fi: - E-key - Supports 2230 cards |
| Audio Chipset | Realtek ALC4080 |
|---|---|
| Audio Channels | 7.1 Channels |
| Number of LAN | 2 |
|---|---|
| LAN Chipset | Intel X550-AT2 |
| LAN Speed | 10/100/1000Mbps |
| Second LAN Chipset | Intel I210-AT |
| Second LAN Speed | 10/100/1000Mbps |
| Max LAN Speed | 2 x 10Gbps + 1Gbps |
| Back I/O Ports | 1 x USB 3.2 Gen 2x1 (Type-C)(FCH) 4 x USB 3.2 Gen 2x1 (Type-A)(CPU) 1 x USB 3.2 Gen 2x1 (Type-A)(FCH) 1 x VGA 2 x RJ45 (10Gb/s) 1 x RJ45 (1Gb/s) 1 x MLAN 3 x Audio jacks 1 x ID button with LED |
|---|
| Onboard USB | 2 x USB 3.2 Gen1 x2 headers |
|---|---|
| Other Connectors | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x FCH fan header 8 x System fan headers 2 x M.2 slots for storage 1 x M.2 slot for Wi-Fi 3 x SlimSAS connectors 4 x SATA connectors 1 x Front panel header 1 x Backplane board header 1 x COM header 1 x PMBus header 1 x IPMB header 1 x TPM header |
| Form Factor | CEB |
|---|---|
| Dimensions (W x L) | 12.0" x 10.5" |
| Package Contents | 1 x MC62-G40 1 x I/O shield 1 x Quick start guide 1 x SlimSAS to 4 x SATA 6Gb/s cable (600mm) 4 x SATA 6Gb/s cables (500mm) |
|---|
| Date First Available | August 05, 2025 |
|---|
