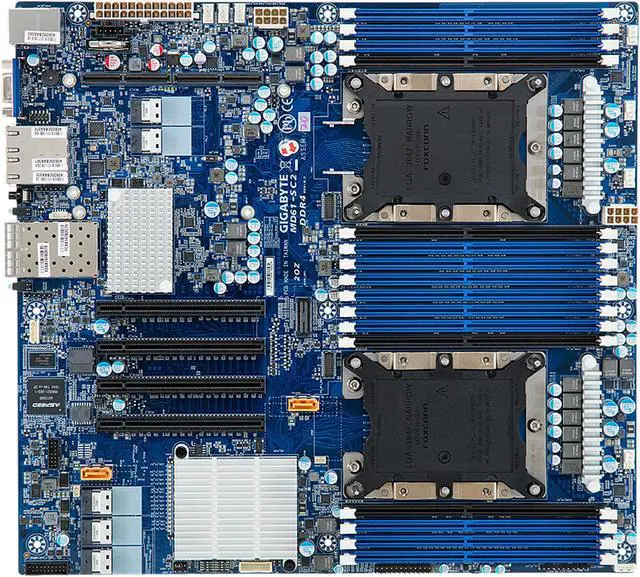

Main image of GIGABYTE MD61-SC2 Extended ATX Server Motherboard 2 x LGA 3647 Intel C621

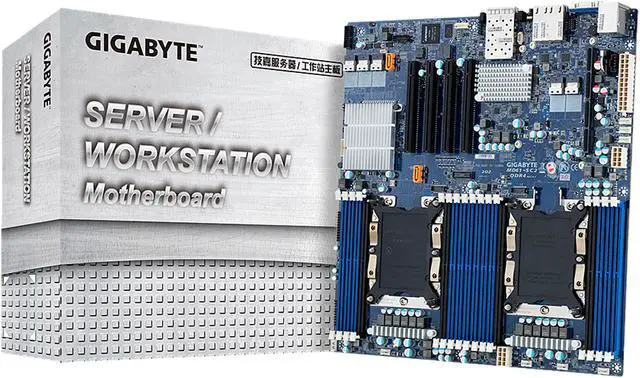

Alt view image 2 of 4 - GIGABYTE MD61-SC2 Extended ATX Server Motherboard 2 x LGA 3647 Intel C621

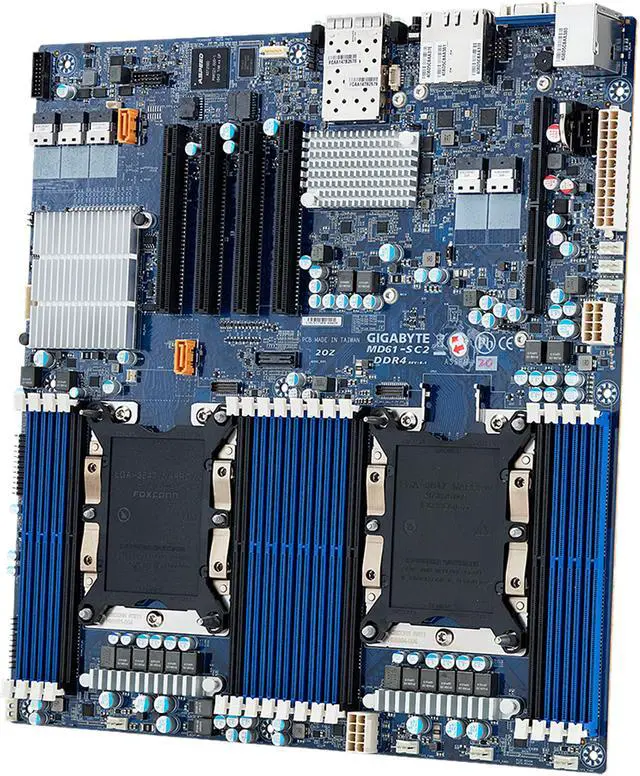

Alt view image 3 of 4 - GIGABYTE MD61-SC2 Extended ATX Server Motherboard 2 x LGA 3647 Intel C621

Alt view image 4 of 4 - GIGABYTE MD61-SC2 Extended ATX Server Motherboard 2 x LGA 3647 Intel C621

Shop All GIGABYTE Products

GIGABYTE MD61-SC2 Extended ATX Server Motherboard 2 x LGA 3647 Intel C621

Be the first to review this product...

2 x LGA 3647
Intel C621

Overview

Specs

Reviews

See all Q & A

Any questions? Our AI beta will help you find out quickly.

Try me now

Model
Brand	GIGABYTE
Model	MD61-SC2

Supported CPU
CPU Socket Type	2 x LGA 3647
CPU Type	Intel Xeon Processor Scalable Family Intel Xeon Platinum Processor, Intel Xeon Gold Processor, Intel Xeon Silver Processor and Intel Xeon Bronze Processor

Chipsets
North Bridge	Intel C621

Memory
Number of DDR4 Slots	16 x DIMM slots
DDR4 Standard	DDR4 2666 / 2400 / 2133 MHz
Maximum Memory Supported	RDIMM modules up to 32GB supported LRDIMM modules up to 64GB supported
Channel Supported	6-Channel

Expansion Slots
PCI Express x16	Slot_7: 1 x PCIe x16 (Gen3 x16 bus) slot from CPU_1 Slot_6: 1 x PCIe x16 (Gen3 x16 bus) slot from CPU_1 Slot_5: 1 x PCIe x16 (Gen3 x16 bus) slot from CPU_1 Slot_4: 1 x PCIe x16 (Gen3 x16 bus) slot from CPU_0
Other Slots	1 x Mezzanine card slot: PCIe Gen3 x16 (x8+x8) From CPU_0 Optional for OCP mezzanine card with low profile type 2 x U.2 ports: SlimSAS type PCIe Gen3 x4 per port From CPU_0 Shared with Mezzanine card x8 signal For GIGABYTE server system backplane board use only

Storage Devices
SATA	3 x SlimSAS for 12 x SATA III 6Gb/s ports 2 x 7-pin SATA III 6Gb/s with SATA DOM supported
SATA RAID	0/1/10/5
SAS	8 x SAS 6Gb/s ports (disabled, can be enabled with the CRA220-8 add-on card)

Onboard Video
Onboard Video Chipset	Aspeed AST2500

Onboard LAN
Number of LAN	2 x 10Gb/s SFP+ LAN ports (QLogic QL41102) 2 x 1Gb/s LAN ports (Intel X722) 1 x 10/100/1000 management LAN

Rear Panel Ports
S-Video	1 x VGA
RJ45	2 x SFP+ 2 x RJ45
USB 3.0	2 x USB 3.0

Features
Features	Intel Xeon Processor Scalable Family 6-Channel RDIMM / LRDIMM DDR4, 16 x DIMMs 2 x 10Gb/s SFP+ and 2 x 1Gb/s LAN ports 1 x Dedicated management port 3 x SlimSAS (for 12 x SATA 6Gb/s) ports 2 x SATA DOM supported 2 x U.2 with PCIe Gen3 x4 interface Up to 4 PCIe Gen3 expansion slots 1 x mezzanine type slot with PCIe Gen3 x16 interface Aspeed AST2500 remote management controller

Dimensions
Form Factor	Extended ATX
Dimensions (W x L)	12.0" x 13.0"

Additional Information
First Listed on Newegg	November 28, 2017
