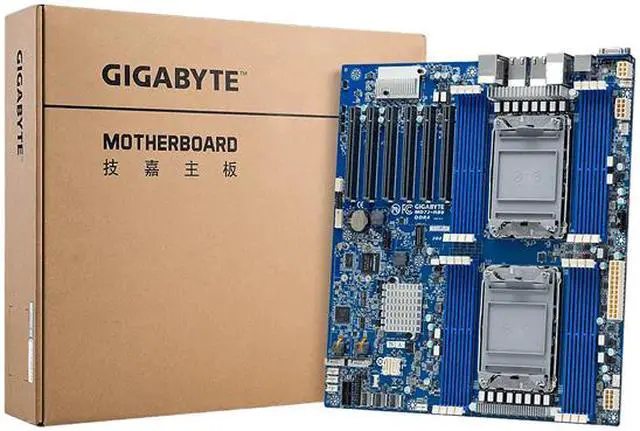

GIGABYTE MD72-HB0 Extended ATX Server Motherboard LGA 4189 Intel C621A

  • 3rd Gen. Intel Xeon Scalable Processors
  • 8-Channel RDIMM/LRDIMM DDR4 per processor, 16 x DIMMs
  • Supports Intel Optane Persistent Memory 200 series
  • Intel C621A Express Chipset
  • 2 x 10Gb/s BASE-T LAN ports (Intel X710-AT2)
  • 2 x 1Gb/s LAN ports (Intel I210-AT)
  • 1 x Dedicated management port
  • 2 x 7-pin SATA 6Gb/s ports
  • 3 x SlimSAS with 12 x SATA 6Gb/s ports
  • 2 x Ultra-Fast M.2 with PCIe Gen4 x4 interface
  • 6 x PCIe Gen4 x16 expansion slots
+
+
Overview
Specs
Reviews
See all Q & A

Any questions? Ask CelesteSM will help you find out quickly.

Where Compute Reigns

3rd Gen Intel Xeon Scalable Processors (Ice Lake)

GIGABYTE servers and Intel Xeon Scalable Processors deliver incredible 1P/2P performance from edge to data center with incredible gains in I/O throughput and workload demands that need high performing CPUs with large, yet optimized, memory configurations.

3rd Gen Intel Xeon Scalable Processors
  • Enhanced IO: Support for PCIe 4.0 allows for double the throughput of PCIe 3.0 for fast and large data transfers.
  • CPU Performance Boost: Now up to 40 cores per socket with greatly improved IPC on Intel 10nm architecture while operating CPUs at 105 to 270W.
  • Next Gen Memory: Each processor provides eight memory channels to support 8 or 16 DIMM slots with up to DDR4-3200. There are two sub-clustering modes, Sub NUMA (SNC) and Hemisphere (HEMI), available using balanced memory that results in performance improvements.
  • Next Level Security: New instructions and architecture deliver a high level of cryptographic operations for data privacy and protection. Cryptographic accelerators speed up encryption protocols as well as improvements in software guard extensions and memory encryption are added.
  • AI Acceleration: AI inference and training are enhanced with DL Boost Technology for greater business, operational, and security insights. Applications include HPC, AI, and Media and Graphics.
Why GIGABYTE MD72-HB2
Accelerator Computing
Accelerator Computing

3 dual-slot GPU supported in compact MB

Parallel processing with multiple GPUs are driving discoveries and powering AI and data analytics. Offering support for dual slot GPUs allows for the highest, dense GPU compute possible. Delivering the fastest throughput for data, PCIe Gen 4 lanes are all in x16 mode for a total bandwidth of 64GB/s per GPU.



Flexibility
Flexibility

Special one socket usage for early stage testing

For those that need to be able to adjust to new needs, GIGABYTE servers have incorporated a high level of flexibility. Scalable CPU usage allowing populating only one socket while maintaining function of 2 dual slot GPUs and all storage.

High-performance
High-performance

All slots support full-length cards

GIGABYTE servers have been designed to support the cutting edge, high-end CPUs and 6 expansion slots in EATX MB while utilizing the latest in PCIe 4.0 for fast throughput. And the platforms are supported by 3 UPI links and 8 channel for up to 16 DIMMs to offer optimal configurations.

MD72-HB0 Product Overview
MD72-HB0 Product Overview

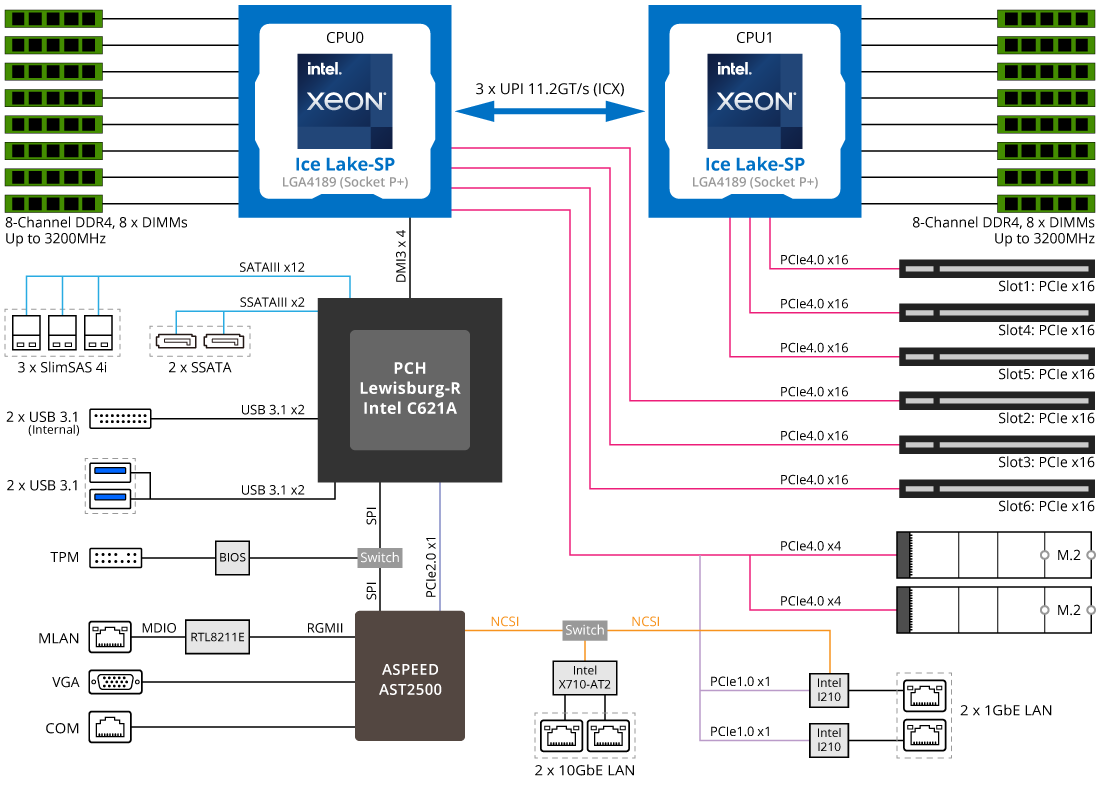

MD72-HB0 Motherboard Block Diagram
MD72-HB0 Motherboard Block Diagram
User Friendly
User Friendly
Certified Ready with Software Partners

Being a member of key software alliance partner programs enables GIGABYTE to rapidly develop and validate joint solutions, enabling our customers to modernize their data centers and implement IT infrastructure and application services with speed, agility, and cost optimization.

GIGABYTE Management Console
Value-added Management
GIGABYTE offers free-of-charge management applications via a specialized small processor built on the server.

For management and maintenance of a server or a small cluster, users can use the GIGABYTE Management Console, which is pre-installed on each server. Once the servers are running, IT staff can perform real-time health monitoring and management on each server through the browser-based graphical user interface. In addition, the GIGABYTE Management Console also provides:

GIGABYTE Management Console
  • Support for standard IPMI specifications that allows users to integrate services

  • Automatic event recording, which can record system behavior 30 seconds before an event occurs

  • ntegrate SAS/SATA/NVMe devices and RAID controller firmware into GIGABYTE Management Console

GIGABYTE Server Management (GSM)
GSM is a software suite that can manage clusters of servers simultaneously over the internet. GSM can be run on all GIGABYTE servers and has support for Windows and Linux.
  • GSM Server: A software program that provides real-time, remote control using a graphical user interface through an administrators computer or through a server in the cluster. The software allows ease of maintenance for large clusters of servers.
  • GSM CLI: A command-line interface for monitoring and managing remotely.
  • GSM Agent: A software program installed on each GIGABYTE server node that retrieves information from each system and devices through the OS, and this software integrates with GSM Server or GSM CLI.
  • GSM Mobile: A mobile app for both Android and iOS that provides admins with real-time system information.
  • GSM Plugin: An application program interface that allows users to use VMware vCenter for real-time monitoring and management of server clusters.
GIGABYTE Server Management

* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
  • Read full details

Return Policies

    We want to ensure your holiday shopping this year is hassle-free. That’s why we’re automatically extending our return policies on almost every product! For purchases placed between November 1st, 2026 and December 31, 2026 you will have until January 31, 2027 to return your product.

  • Return for refund until: January 31, 2027
  • Return for replacement until: January 31, 2027
  • This item is covered by Newegg.com's Extended Holiday Return Policy.
  • Read full return policy for details.
LOADING...
LOADING...

The GIGABYTE MD72-HB0 is an Extended ATX dual-socket server motherboard for 3rd Gen Intel Xeon Scalable processors, with support for up to 4TB of DDR4-3200 memory, six PCIe 4.0 x16 slots, and dual 10GbE. It suits data-center and enterprise server builds that need high memory capacity and expansion.

Recommended For

  • Server operators consolidating virtual machines or other parallel workloads on a dual-Xeon platform, with registered DDR4 memory and remote management through the onboard BMC.
  • Workstation or server builders who need multiple add-in cards—for example, network, storage, or compute cards—and can accommodate an E-ATX board in a suitable chassis.
  • Storage-server builders connecting multiple SATA drives through SlimSAS, with two additional M.2 slots available for PCIe Gen4 storage.
  • Administrators who need out-of-band server access for remote monitoring, KVM, power control, and hardware management.
  • Businesses or labs that can use supported 3rd Gen Intel Xeon Scalable processors, ECC registered memory, and multiple 10GbE connections in a server-focused system.

Spec Summary

AttributeValue
Best ForDual-processor server builds using supported 3rd Gen Intel Xeon Scalable processors, registered DDR4 memory, and PCIe Gen4 expansion
Processor And PlatformDual LGA 4189 sockets for supported 3rd Gen Intel Xeon Scalable, Platinum, Gold, or Silver processors; Intel C621A chipset, 10nm technology, and CPU TDP up to 270W
Memory Configuration16 288-pin DDR4 slots supporting DDR4 3200, up to 4TB, in eight-channel configuration with registered memory
Expansion And StorageSix PCIe Gen4 x16 slots, sourced across both processors; two M-key M.2 slots supporting PCIe Gen4 x4 and 2280/22110 cards; two SATA 6Gb/s ports and three SlimSAS connectors providing 12 additional SATA 6Gb/s ports; SATA RAID 0/1/10/5
Wired NetworkingIntel X710-AT2 dual 10Gbps LAN and Intel I210-AT dual 10/100/1000Mbps LAN, for up to two 10Gbps and two 1Gbps connections
Rear I/O And Onboard VideoAspeed AST2500 onboard video; rear connections include two USB 3.0 ports, VGA, COM (RJ45 type), four RJ45 ports, MLAN, and an ID button with LED
Onboard Headers And PowerPower connections include a 24-pin ATX main connector, two 8-pin ATX 12V connectors, and one 6-pin PCIe connector; also includes SlimSAS, SATA, M.2, HDD backplane, fan, TPM, VROC, front-panel, PMBus, IPMB, CMOS-clear, BIOS-recovery, and case-open connectors or headers

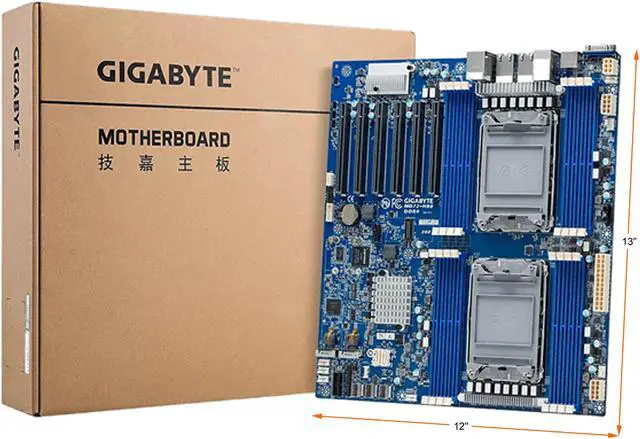

Form Factor And DimensionsExtended ATX, 12 × 13 inches
Model IdentifiersGIGABYTE MD72-HB0
