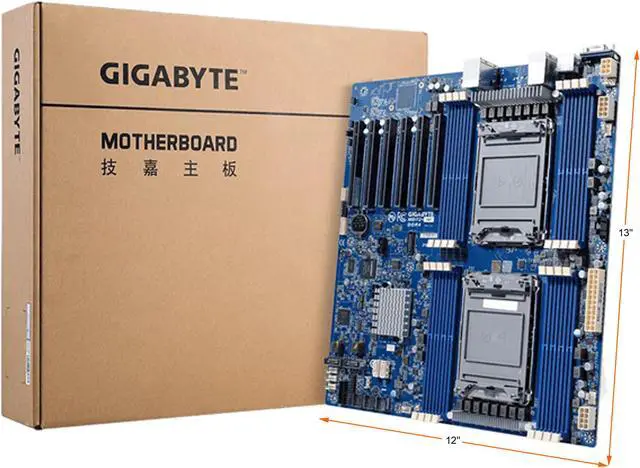

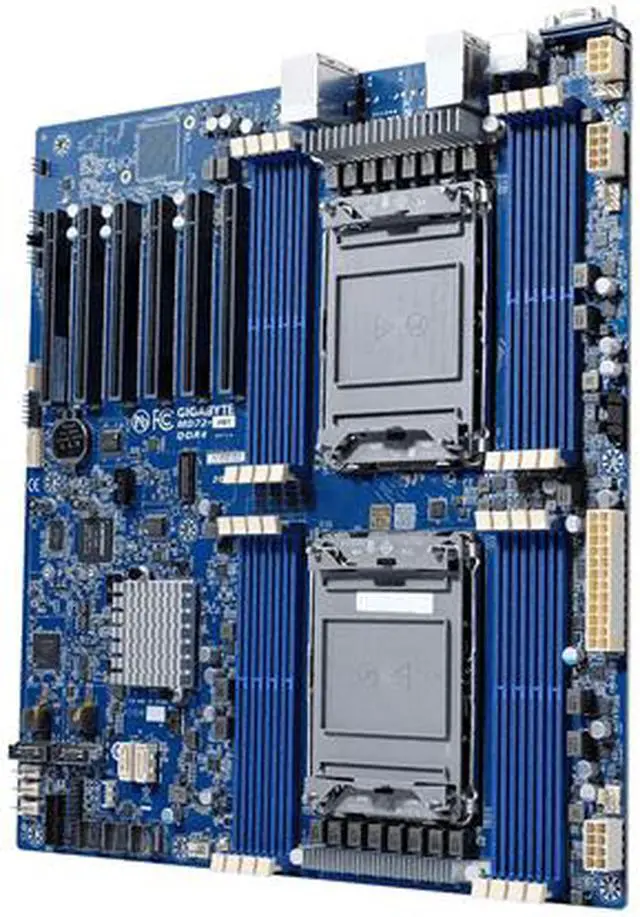

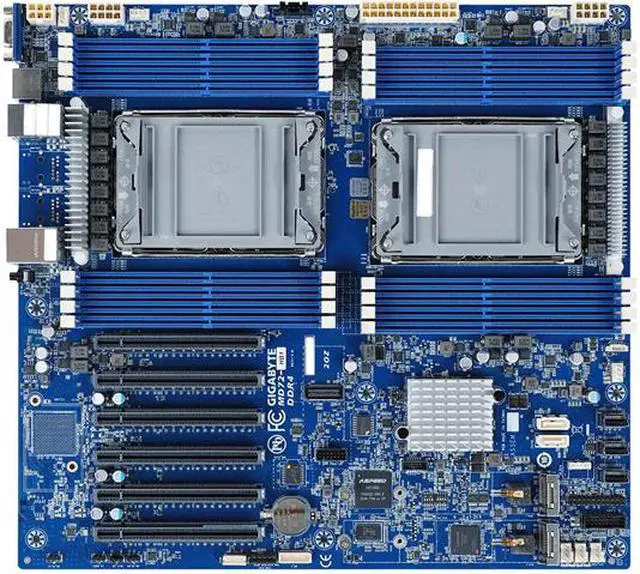

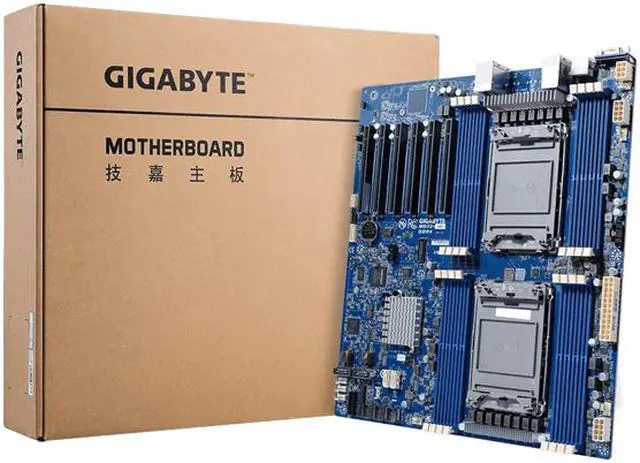

GIGABYTE MD72-HB1 Extended ATX Server Motherboard Dual Socket P+ Intel C621A
- 3rd Gen. Intel Xeon Scalable Processors
- 8-Channel RDIMM/LRDIMM DDR4 per processor, 16 x DIMMs
- Supports Intel Optane Persistent Memory 200 series
- Intel C621A Express Chipset
- 2 x 1Gb/s LAN ports (Intel I210-AT)
- 1 x Dedicated management port
- 2 x 7-pin SATA 6Gb/s ports
- 3 x SlimSAS with 12 x SATA 6Gb/s ports
- 2 x Ultra-Fast M.2 with PCIe Gen4 x4 interface
- 6 x PCIe Gen4 x16 expansion slots
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the GIGABYTE MD72-HB1
| Brand | GIGABYTE |
|---|---|
| Model | MD72-HB1 |
| CPU Socket Type | Dual Socket P+ |
|---|---|
| CPU Type | Supports 3rd Gen Intel Xeon Scalable Processors Supports Intel Xeon Platinum / Xeon Gold / Xeon Silver Processor |
| North Bridge | Intel C621A |
|---|
| Number of DDR4 Slots | 16 x 288-pin |
|---|---|
| DDR4 Standard | DDR4 3200 |
| Maximum Memory Supported | 256GB |
| PCI Express 4.0 x16 | Slot_6: 1 x PCIe x16 (Gen4 x16 bus) slot, from CPU_0 Slot_5: 1 x PCIe x16 (Gen4 x16 bus) slot, from CPU_1 Slot_4: 1 x PCIe x16 (Gen4 x16 bus) slot, from CPU_1 Slot_3: 1 x PCIe x16 (Gen4 x16 bus) slot, from CPU_0 Slot_2: 1 x PCIe x16 (Gen4 x16 bus) slot, from CPU_0 Slot_1: 1 x PCIe x16 (Gen4 x16 bus) slot, from CPU_1 |
|---|
| SATA | 2 x 7-pin SATA 6Gb/s ports |
|---|---|
| SATA RAID | 0/1/10/5 |
| SAS | 3 x SlimSAS with 12 x SATA 6Gb/s ports |
| M.2 | 2 x M.2 slots: - M-key - PCIe Gen4 x4 per slot - Supports NGFF-22110/2280 cards - From CPU |
| Onboard Video Chipset | Aspeed AST2500 |
|---|
| LAN Chipset | Intel I210-AT |
|---|---|
| LAN Speed | 10/100/1000Mbps |
| Max LAN Speed | 1Gbps |
| Back I/O Ports | 2 x USB 3.0 1 x VGA 1 x COM (RJ45 type) 2 x RJ45 1 x MLAN 1 x ID button with LED |
|---|
| Other Connectors | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x 6-pin PCIe power connectors 3 x SlimSAS connectors 2 x 7-pin SATA connectors 2 x M.2 slots 1 x HDD back plane board header 2 x CPU fan headers 5 x System fan headers 1 x USB 3.0 header 1 x TPM header 1 x VROC connector 1 x Front panel header 1 x PMBus connector 1 x IPMB connector 1 x Clear CMOS jumper 1 x BIOS recovery jumper 1 x Case open header |
|---|
| Form Factor | Extended ATX |
|---|---|
| Dimensions (W x L) | 12" x 13" |
| Package Contents | 1 x MD72-HB1 1 x I/O shield 1 x Quick start guide 1 x SlimSAS for 4 x SATAIII 6Gb/s cables |
|---|
| First Listed on Newegg | October 08, 2021 |
|---|
