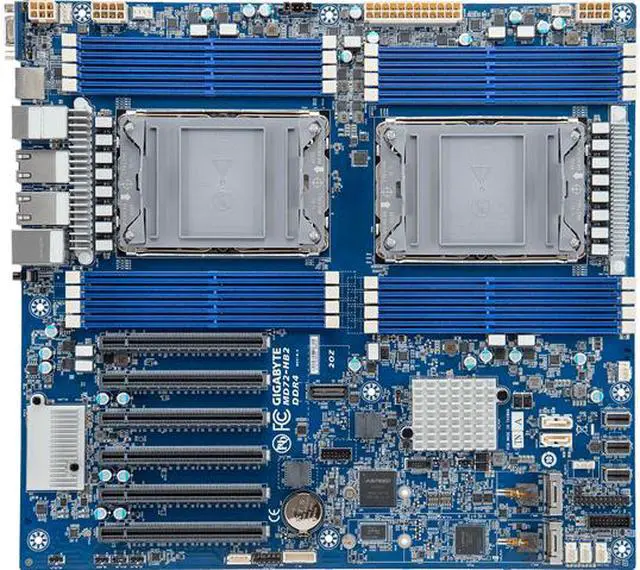

Main image of GIGABYTE MD72-HB2 Extended ATX Server Motherboard Dual Socket P+ Intel C621A

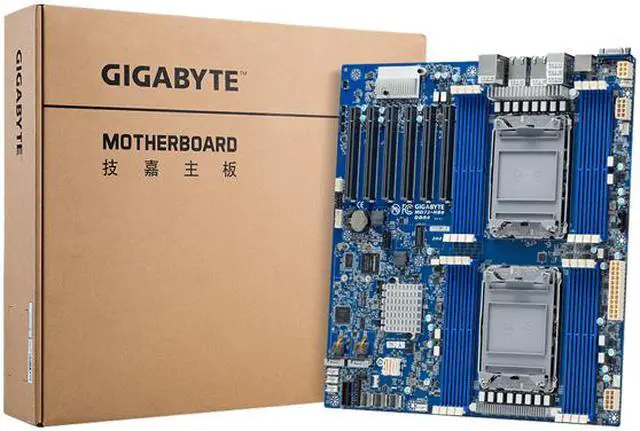

Alt view image 2 of 5 - GIGABYTE MD72-HB2 Extended ATX Server Motherboard Dual Socket P+ Intel C621A

Alt view image 3 of 5 - GIGABYTE MD72-HB2 Extended ATX Server Motherboard Dual Socket P+ Intel C621A

Alt view image 4 of 5 - GIGABYTE MD72-HB2 Extended ATX Server Motherboard Dual Socket P+ Intel C621A

Alt view image 5 of 5 - GIGABYTE MD72-HB2 Extended ATX Server Motherboard Dual Socket P+ Intel C621A

Shop All GIGABYTE Products

GIGABYTE MD72-HB2 Extended ATX Server Motherboard Dual Socket P+ Intel C621A

(1) Write a Review

3rd Gen. Intel Xeon Scalable Processors
8-Channel RDIMM/LRDIMM DDR4 per processor, 16 x DIMMs
Supports Intel Optane Persistent Memory 200 series
Intel C621A Express Chipset
2 x 10Gb/s BASE-T LAN ports (Intel X710-AT2)
2 x 1Gb/s LAN ports (Intel I210-AT)
1 x Dedicated management port
2 x 7-pin SATA 6Gb/s ports
3 x SlimSAS with 12 x SATA 6Gb/s ports
2 x Ultra-Fast M.2 with PCIe Gen4 x4 interface
6 x PCIe Gen4 x16 expansion slots

Overview

Specs

Reviews (1)

Any questions? Our AI mode will help you find out quickly.

Try me now

Model
Brand	GIGABYTE
Model	MD72-HB2

Supported CPU
CPU Socket Type	Dual Socket P+
CPU Type	Supports 3rd Gen Intel Xeon Scalable Processors Supports Intel Xeon Platinum / Intel Xeon Gold / Xeon Silver Processor

Chipsets
North Bridge	Intel C621A

Memory
Number of DDR4 Slots	16 x 288-pin
DDR4 Standard	DDR4 3200
Maximum Memory Supported	256GB

Expansion Slots
PCI Express 4.0 x16	Slot_6: 1 x PCIe x16 (Gen4 x16 bus) slot, from CPU_0 Slot_5: 1 x PCIe x16 (Gen4 x16 bus) slot, from CPU_1 Slot_4: 1 x PCIe x16 (Gen4 x16 bus) slot, from CPU_1 Slot_3: 1 x PCIe x16 (Gen4 x16 bus) slot, from CPU_0 Slot_2: 1 x PCIe x16 (Gen4 x16 bus) slot, from CPU_0 Slot_1: 1 x PCIe x16 (Gen4 x16 bus) slot, from CPU_1

Storage Devices
SATA	2 x 7-pin SATA 6Gb/s ports
SATA RAID	0/1/10/5
SAS	3 x SlimSAS with 12 x SATA 6Gb/s ports
M.2	2 x M.2 slots: - M-key - PCIe Gen4 x4 per slot - Supports NGFF-22110/2280 cards - From CPU

Onboard Video
Onboard Video Chipset	Aspeed AST2600

Onboard LAN
LAN Chipset	Intel X710-AT2
LAN Speed	10Gbps
Second LAN Chipset	Intel I210-AT
Second LAN Speed	10/100/1000Mbps
Max LAN Speed	10Gbps

Rear Panel Ports
Back I/O Ports	2 x USB 3.0 1 x VGA 1 x COM (RJ45 type) 4 x RJ45 1 x MLAN 1 x ID button with LED

Onboard Ports
Other Connectors	1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x 6-pin PCIe power connectors 3 x SlimSAS connectors 2 x 7-pin SATA connectors 2 x M.2 slots 1 x HDD back plane board header 2 x CPU fan headers 5 x System fan headers 1 x USB 3.0 header 1 x TPM header 1 x VROC connector 1 x Front panel header 1 x PMBus connector 1 x IPMB connector 1 x Clear CMOS jumper 1 x BIOS recovery jumper 1 x Case open header

Dimensions
Form Factor	Extended ATX

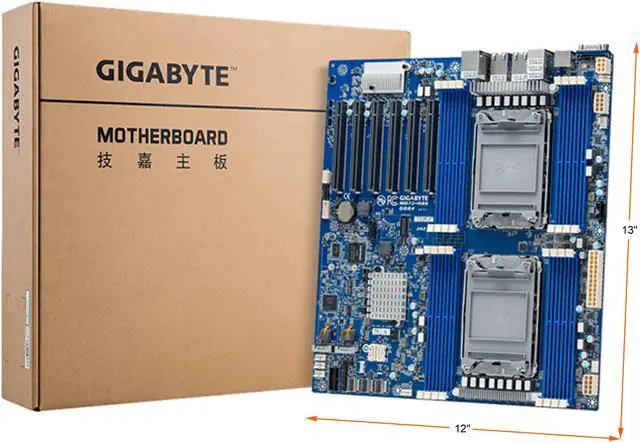

Dimensions (W x L)	12" x 13"

Packaging
Package Contents	1 x MD72-HB0 1 x I/O shield 1 x Quick start guide 1 x SlimSAS for 4 x SATAIII 6Gb/s cable

Additional Information
First Listed on Newegg	March 07, 2022
