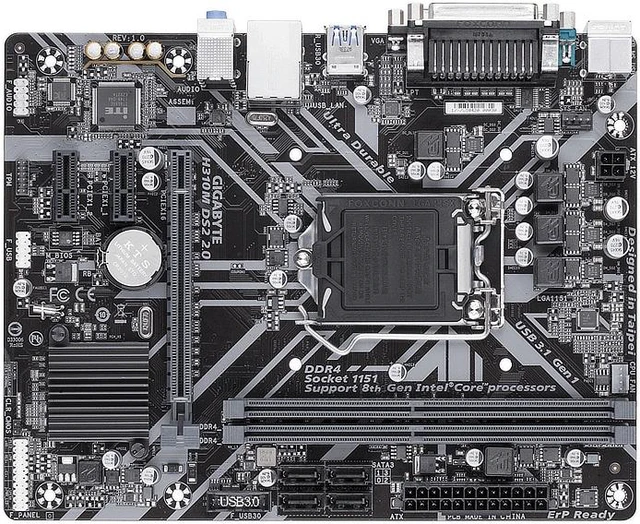

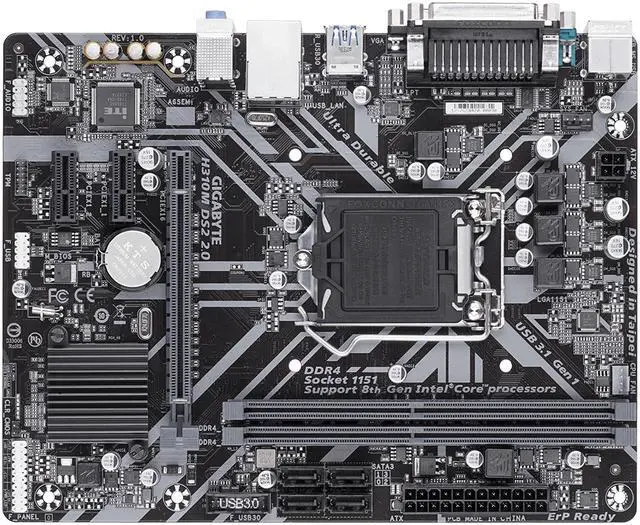

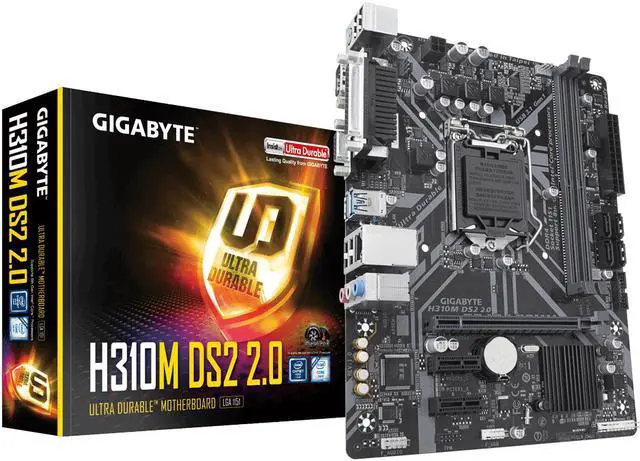

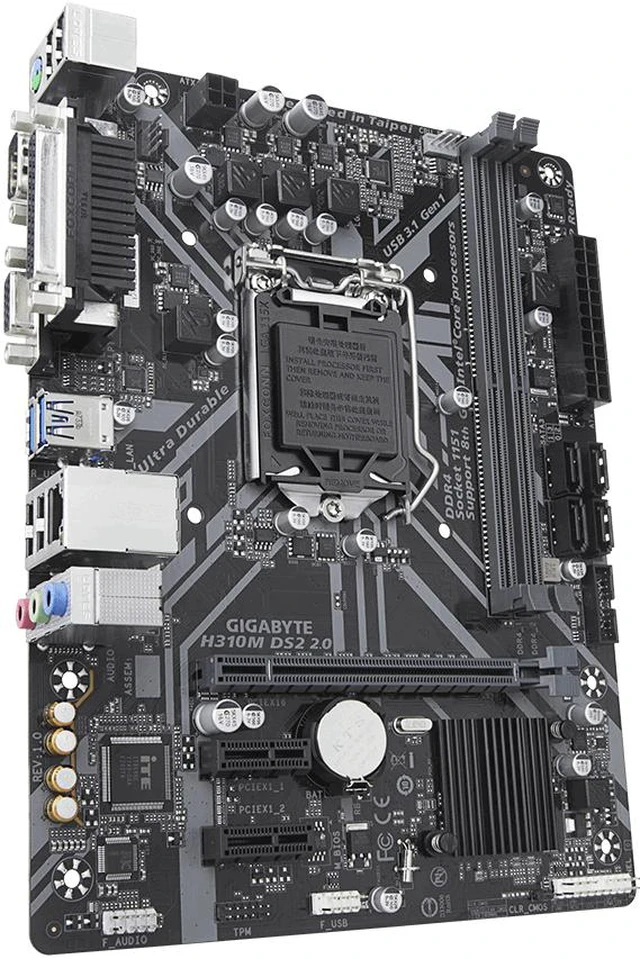

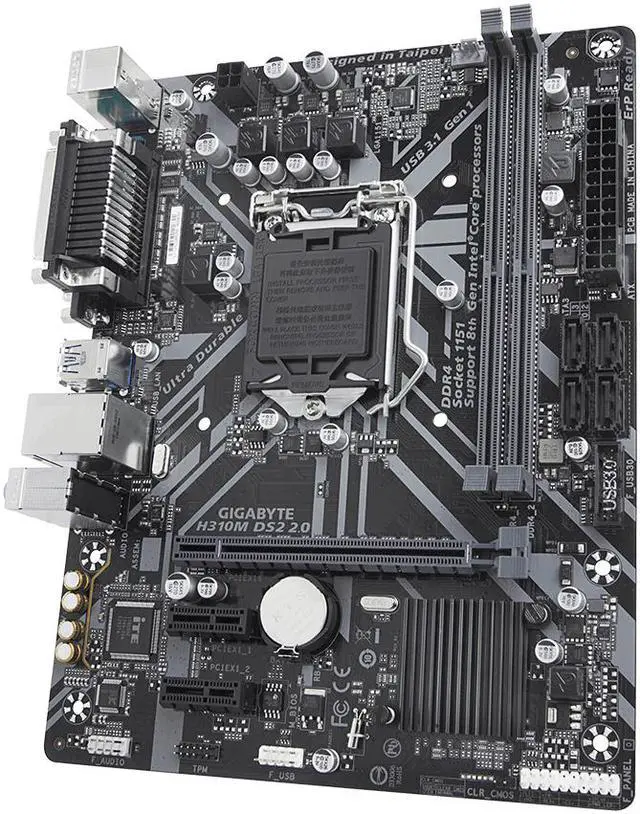

H310M DS2 2.0 LGA 1151 Intel H310 DDR4 Micro ATX Motherboard (H310M DS2 2.0)
Used - Very Good Product Type
- Micro ATX,
- DDR4
- 32 GB
- LGA 1151,
- Intel H310
+
+
Overview
Specs
Any questions? Our AI mode will help you find out quickly.
Try me now
Technical details
Motherboard chipset family: Intel
Motherboard chipset: Intel H310
Motherboard form factor: Micro ATX
Component for: PC
Audio output channels: 7.1 channels
Supported storage drive types: HDD, SSD
Windows operating systems supported: Windows 10
Motherboard chipset family: Intel
Motherboard chipset: Intel H310
Audio output channels: 7.1 channels
Motherboard form factor: Micro ATX
Component for: PC
Number of memory slots: 2
Memory slots type: DIMM
Supported memory types: DDR4-SDRAM
Memory channels: Dual
- ECC: No
Non-ECC: Yes
Supported memory clock speeds: 2133, 2400, 2666 MHz
Maximum internal memory: 32 GB
Processor manufacturer: Intel
Compatible processor series: Intel Celeron, Intel Core i3, Intel Core i5, Intel Core i7, Intel Pentium
Processor socket: LGA 1151 (Socket H4)
Supported storage drive types: HDD, SSD
Front panel connector: Yes
- 12V power connector: Yes
- USB 2.0 connectors: 1
- USB 3.0 ( 3.1
Gen 1) connectors: 1
- TPM connector: Yes
Number of SATA III connectors: 4
Number of chassis fan connectors: 1
Front panel audio connector: Yes
- CPU fan connector: Yes
- ATX
Power connector (24-pin): Yes

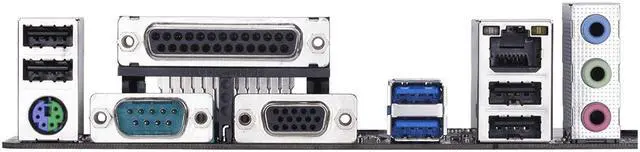

- USB 3.0 ( 3.1 Gen 1)
Type-A ports quantity: 2
- USB 2.0 ports quantity: 4
- VGA (D-Sub) ports quantity: 1
Serial ports quantity: 1
- PS2 ports quantity: 1
Parallel ports quantity: 1
Microphone in: Yes
Headphone outputs: 1
Ethernet LAN (RJ-45) ports: 1
Ethernet LAN: Yes
Ethernet interface type: Gigabit Ethernet
Windows operating systems supported: Windows 10
Motherboard chipset family: Intel
Motherboard chipset: Intel H310
Audio output channels: 7.1 channels
Motherboard form factor: Micro ATX
Component for: PC
Audio chip: Realtek ALC887
- PCI Express x16 (Gen 3. x) slots: 1
- BIOS type: UEFI AMI
Clear CMOS jumper: Yes
- BIOS memory size: 128
Mbit
- ACPI version: 5.0
System management BIOS (SMBIOS) version: 2.7
Desktop Management Interface (DMI) version: 2.7
Windows operating systems supported: Windows 10
Width: 226 mm
Depth: 174 mm
