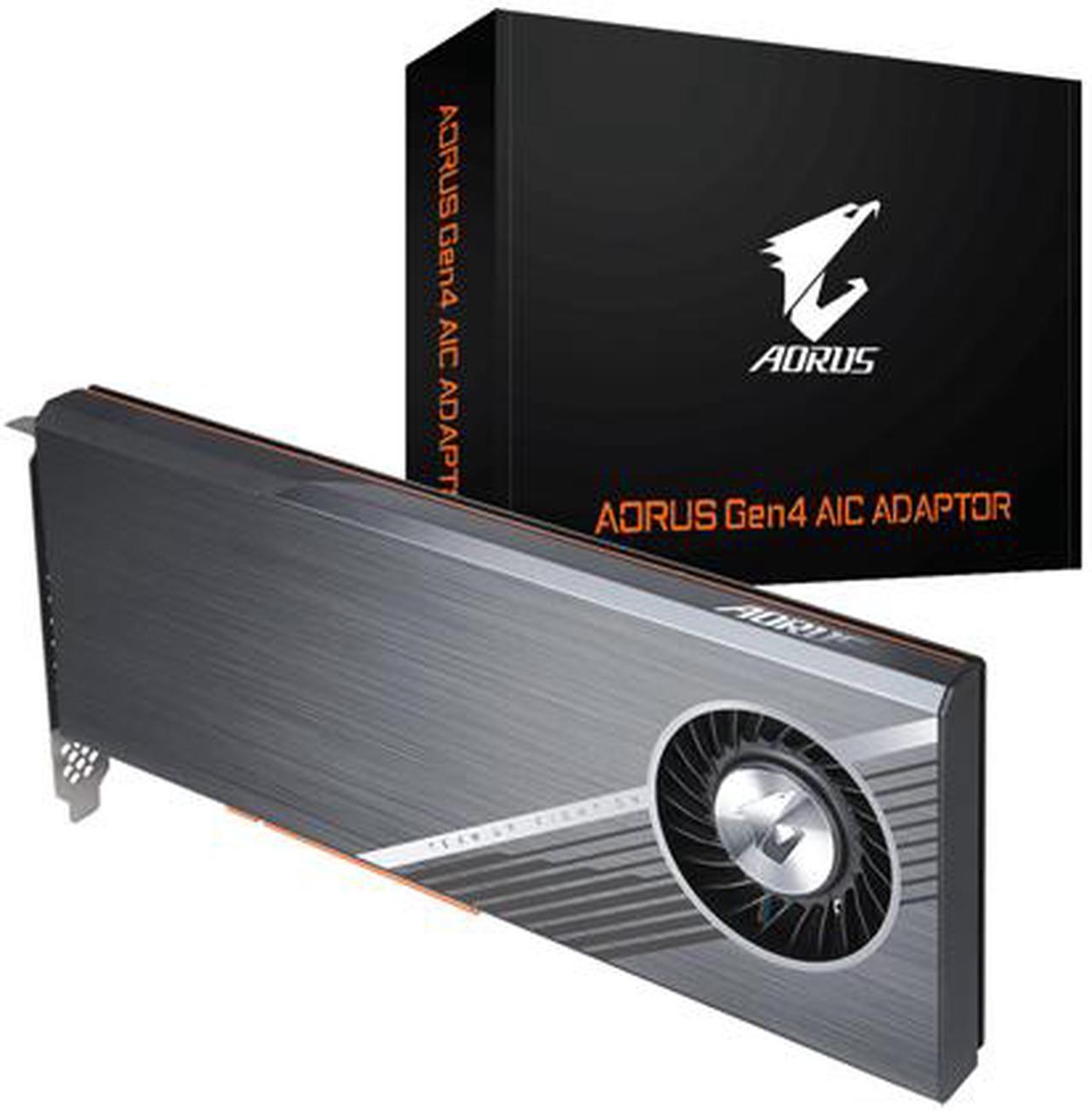

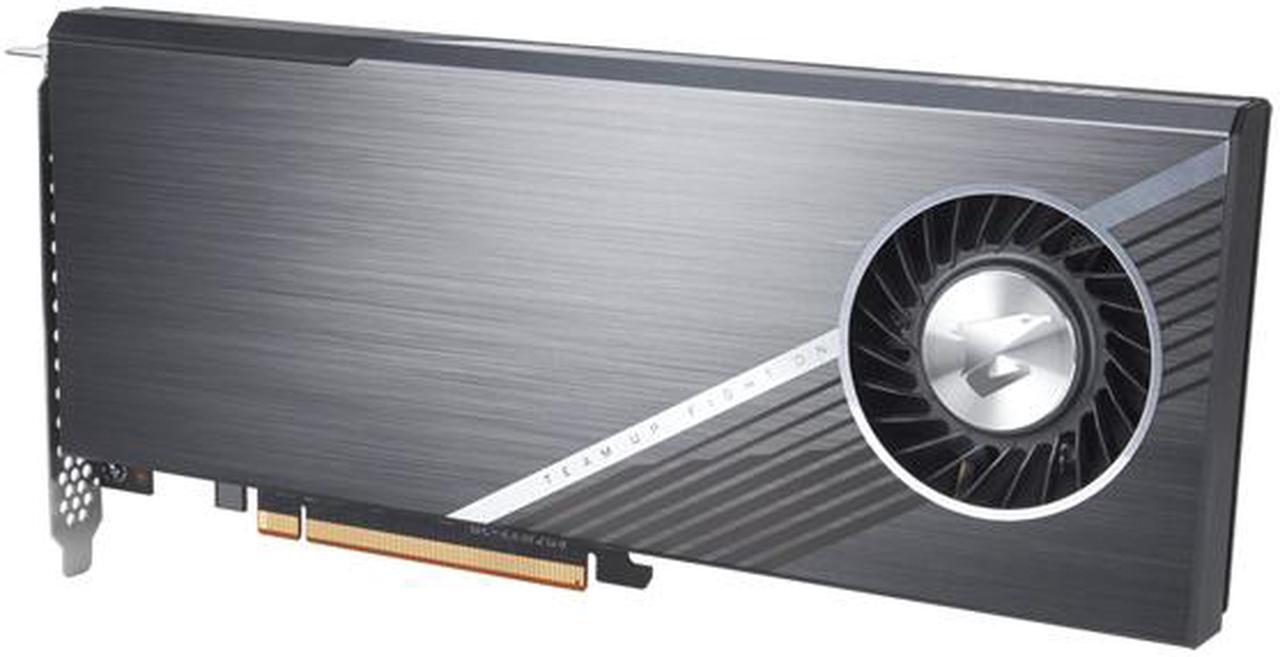

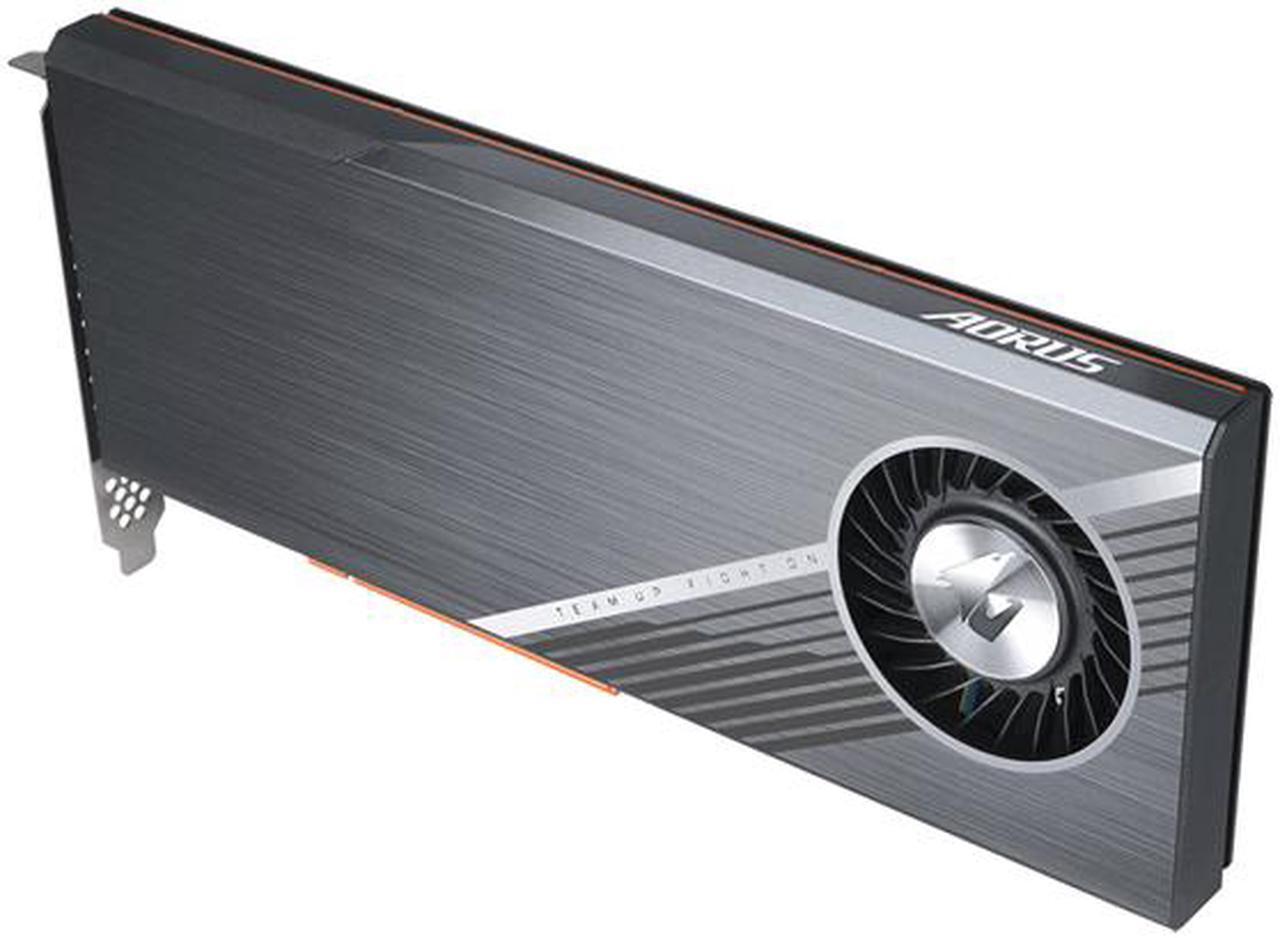

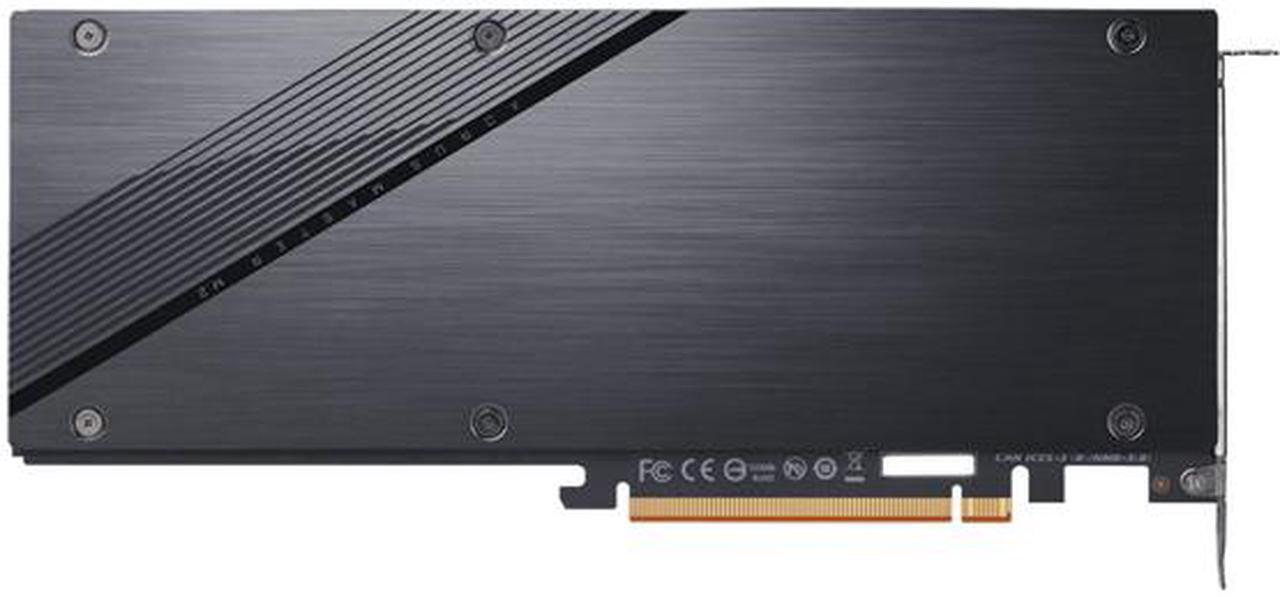

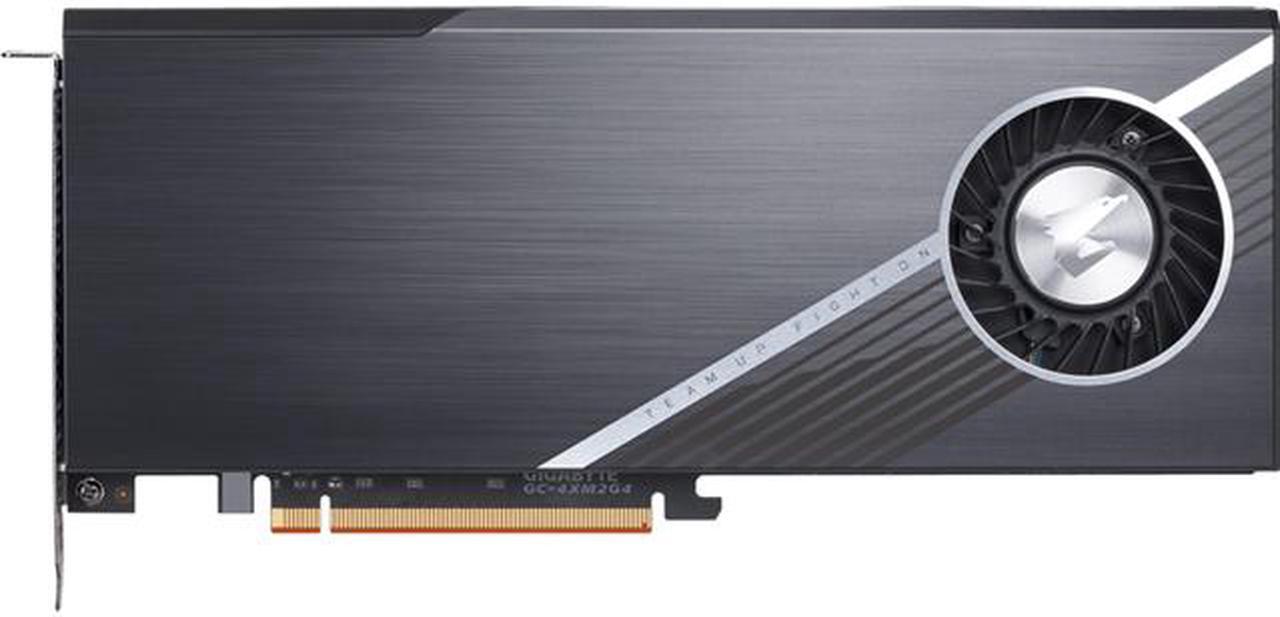

AORUS Gen4 AIC Adaptor offers four M key M.2 slots inside, ready to accept four PCIe 4.0/3.0 SSDs in 2242/2260/2280/22110 form factor. By integrating high-conductivity thermal pads, copper heatsink and a dual-ball bearing fan, it effectively cools both sides of the SSDs so they can stably deliver peak performance. With AORUS Storage Manager, you can enable RAID 0 in a simple click and change fan profile based on your configuration.
Unprecedented Performance
With AORUS Gen4 AIC Adaptor and four PCIe 4.0 2TB SSDs, Read/Write performance reaches amazing 15,000 MB/s*.
* Performance is based on internal testing results. It may vary with different configurations. In addition, test conditions are under PCIe 4.0 x16 slots, Windows 10 OS, AHCI mode, running instant RAID through the AORUS Storage Manager.
Full PCIe 4.0 Design
Advanced Thermal Solution
AORUS Gen4 AIC Adaptor is equipped with advanced thermal solution, including 5.5mm pure copper heatsink, 5cm double-ball bearing fan, M.2 SSD baseplate and multiple thermal pads to cool down both sides of four M.2 high-performance SSDs with active cooling.
Users can choose from 3 different fan profiles based on hardware configuration to reach perfect balance of high storage performance and low noise.

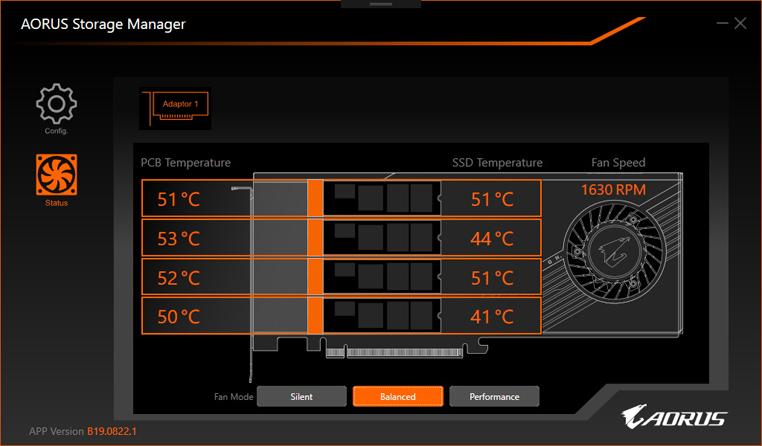

AORUS Storage Manager
AORUS Storage Manager, dedicated software for AORUS Gen4 AIC Adaptor, allows users to enable RAID 0 on multiple M.2 SSDs in a single click, and also monitor overall temperature on SSD and PCB to change fan profile based on users' hardware configuration.

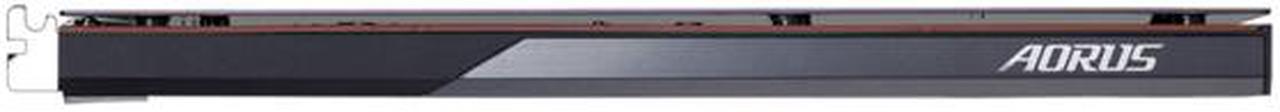

Dimension
