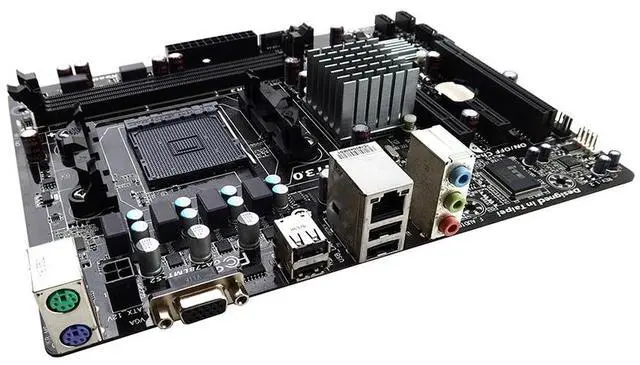

GA-78LMT-S2 Rev.1.2 Gigabyte AMD 760G AM3/AM3+ DDR3 MICRO-ATX Motherboard NO I/O AMD Socket AM3+ FX X8 / Phenom II X6

Gigabyte GA-78LMT-S2 Rev. 1.2 AMD Chipset 760G Socket AM3/AM3+ DDR3 VGA USB SATA 3Gb/s Micro ATX Desktop Motherboard. The 78LMT-S2 motherboard is designed to offer a stable, high-speed platform for delivering amazingly fast data transfer via revolutionary GIGABYTE Ultra Durable technology. Based on AMD 760G chipset, the 78LMT-S2 supports the latest 45nm AMD AM3 Phenom II/ Athlon II processors, integrated DDR3 memory controller, HyperTransport 3.0 technology links and PCI Express 2.0 graphics interfaces for ATI Hybrid CrossFireX support. The 78LMT-S2 is able to provide user friendly computing, reach the maximum system performance easily while still able to save the power and environment in real life at the same time.

Model: GA-78LMT-S2 Rev. 1.2

Chipset: AMD 760G/SB710

Socket: AMD AM3+

Compatible/Supported CPU: AMD AM3+ processor; AMD AM3 Phenom II processor / AMD Athlon II processor

Max Supported Memory: Up to 16GB
Number of
Memory Slots: 2

Memory Type: DDR3 SDRAM

Storage Interface: SATA 3Gb/s
RAID
Support: RAID 0, RAID 1, RAID 10, and JBOD

Wireless Lan Support: Realtek GbE LAN chip (10/100/1000 Mbit)

Audio: Realtek ALC887 audio codec

Connectors: 1x 24-pin ATX main power connector, 1x 4-pin ATX 12V power connector, 6x SATA 3Gb/s connectors, 1x CPU fan header, 1x system fan header, 1x front panel header, 1x front panel audio header, 2x USB 2.0 / 1.1 headers, 1x serial port header, 1x Clear CMOS jumper

Input/Output Ports: 1x PS/2 keyboard port, 1x PS/2 mouse port, 1x D-Sub port, 4x USB 2.0 / 1.1 ports, 1x RJ-45 port, 3x audio jacks (Line In/Line Out/Microphone)

Expansion Slots: 1x PCI Express x16 slot, running at x16, 1x PCI Express x1 slot, 1x PCI slot

Form Factor: Micro ATX

Type: Desktop Motherboard

Supported Operating System: Microsoft Windows 7/ Vista/ XP

Features: Supports AMD AM3+ FX / AM3 Phenom II, Athlon II series Processors; GIGABYTE Ultra Durable 4 Classic Technology; Integrated ATI Radeon HD 3000 graphics (DirectX10); PCI-E 2.0 x16 interface for ultimate graphics support; Hybrid EFI technology with 3TB HDD support; GIGABYTE On/Off Charge for USB devices.

Please note, this motherboard does not include an I/O Shield, cables, or any other accessories!

• Grade A, Like New Condition
• 100% Fully Guaranteed Functional
• No accessories (cables/manuals) included unless otherwise stated in the ad
• Item comes as shown in the listing photos
• 30 Days for refund or replacement
• Hassle free return policy
• Most orders ship either same day or within 24 hours
• All items are carefully inspected and packaged prior to shipping
• Please check your original part# and match with the part number being ordered. Most parts are not interchangeable.
