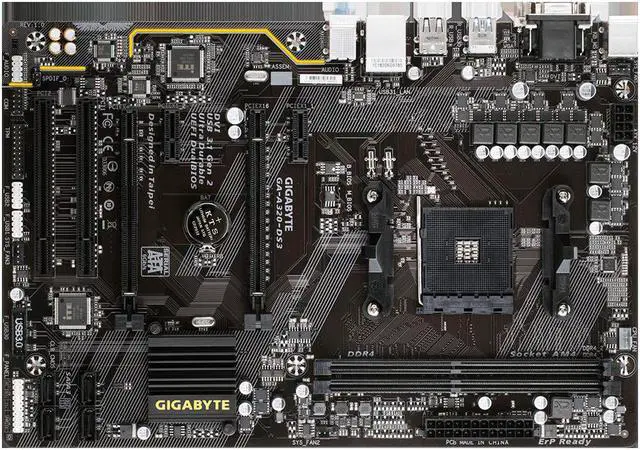

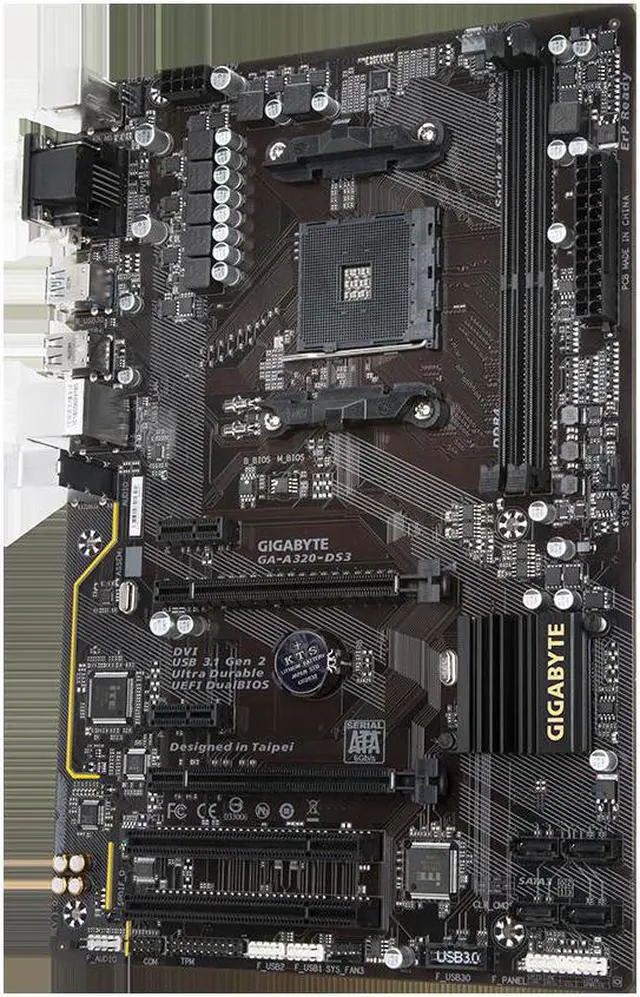

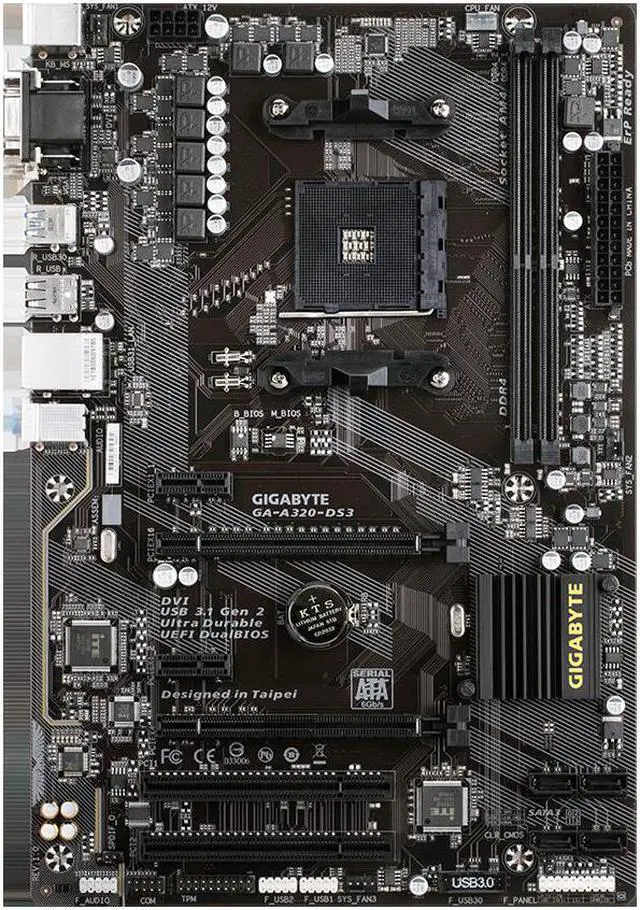

GIGABYTE GA-A320-DS3 Supports AMD 3rd Gen Ryzen/ 2nd Gen Ryzen/ 1st Gen Ryzen/Athlon with Radeon Vega Graphics/ 7th Gen A-series/ Athlon X4 Processors

AM4 Socket: Supports AMD 3rd Gen Ryzen/ 2nd Gen Ryzen/ 1st Gen Ryzen/ 2nd Gen Ryzen with Radeon Vega Graphics/ 1st Gen Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics/ 7th Gen A-series/ Athlon X4 Processors (Please refer "CPU Support List" for more information. ) Chipset AMD A320 Memory 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory Dual channel memory architecture Support for DDR4 3200(O. C. )/2933(O. C. )/2667*/2400/2133 MHz memory modules * Support for higher than DDR4 2667 MHz may vary by CPU. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information. ) Onboard
Graphics Integrated Graphics Processor: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. Maximum shared memory of 2 GB * Actual support may vary by CPU. Audio Realtek® ALC887 codec High Definition Audio 2/4/ 5.1 / 7.1 -channel * To configure 7.1 -channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. Support for S/PDIF Out LAN Realtek® GbE LAN chip (10/100/1000 Mbit) Expansion Slots 1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. * Actual support may vary by CPU. 1 x PCI Express x16 slot, running at x4 (PCIEX4) * Actual support may vary by CPU. (The PCIEX16 and PCIEX4 slots conform to PCI Express 3.0 standard. ) 2 x PCI Express x1 slots (The PCI Express x1 slots conform to PCI Express 2.0 standard. ) 2 x PCI slots Multi-Graphics Technology Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies * Actual support may vary by CPU.

Storage Interface 4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10
USB Chipset: 1 x USB 3.1 Gen 2 Type-A port (red) on the back panel 2 x USB 3.1 Gen 1 ports (available through the internal USB header) 6 x USB 2.0 / 1.1 ports (2 ports on the back panel, 4 ports available through the internal

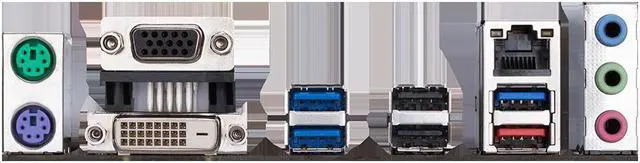

USB headers) CPU: 3 x USB 3.1 Gen 1 ports on the back panel Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 4 x SATA 6Gb/s connectors 1 x CPU fan header 3 x system fan headers 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.1 Gen 1 header 2 x USB 2.0 / 1.1 headers 1 x serial port header 1 x Trusted Platform Module (TPM) header 1 x Clear CMOS jumper Back Panel Connectors 1 x PS/2 mouse port 1 x PS/2 Keyboard port 1 x D-Sub port 1 x DVI-D port 1 x USB 3.1 Gen 2 Type-A port (red) 3 x USB 3.1 Gen 1 ports 2 x USB 2.0 / 1.1 ports 1 x RJ-45 port 3 x audio jacks (Line In, Line Out, Mic In)
