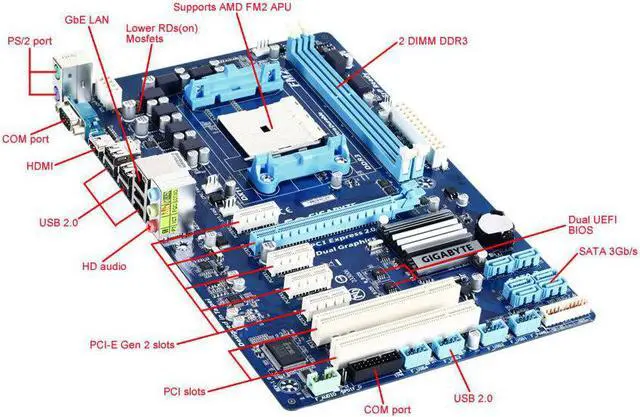

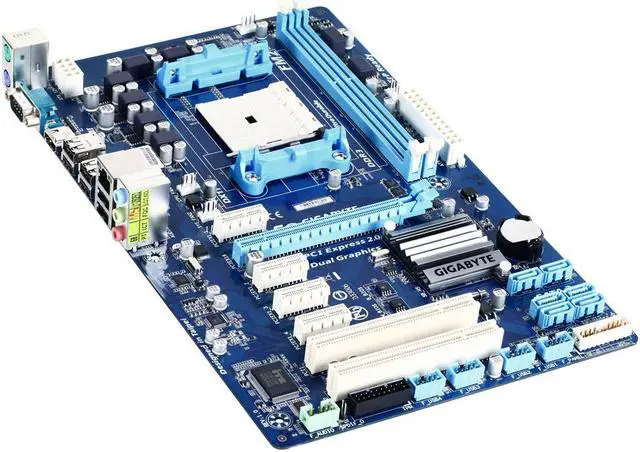

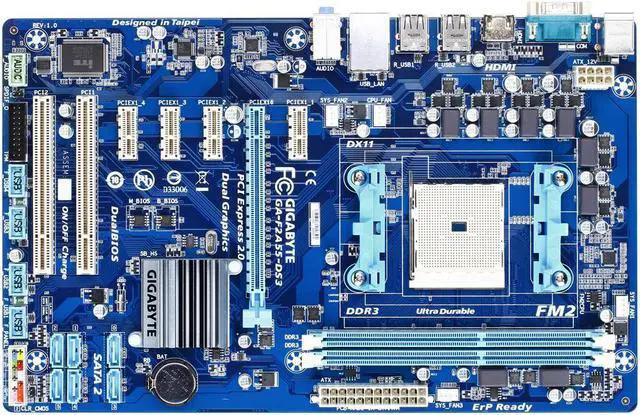

GIGABYTE GA-F2A55-DS3 DDR3 FM2 Support AMD A series processors/AMD Athlon Series Processors

APU FM2 Socket: AMD A series processors AMD Athlon series processors (Please refer "CPU Support List" for more information. ) Chipset AMD A55 Memory 2 x 1.5V DDR3 DIMM sockets supporting up to 64 GB of system memory * The maximum 64 GB of system memory can be supported using 16 GB (or above) memory modules. GIGABYTE will update the memory support list on the official website when the memory modules are available on the market. * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed. Dual channel memory architecture Support for DDR3 2400 (OC) /1866/1600/1333/1066 MHz memory modules Support for AMD Memory Profile (AMP) / Extreme Memory Profile (XMP) memory modules Memory support is dependent on memory module compatibility and system OS. (Please refer "Memory Support List" for more information. ) Onboard Graphics APU with integrated AMD Radeon HD 8000/7000 series graphics: * To use the onboard graphics ports, you must install an AMD APU with integrated graphics. 1 x HDMI port, supporting a maximum resolution of 1920x1200 Audio Realtek ALC887 codec High Definition Audio 2/4/ 5.1 / 7.1 -channel * To configure 7.1 -channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. Support for S/PDIF Out LAN Realtek GbE LAN chip (10/100/1000 Mbit) Expansion Slots 1 x PCI Express x16 slot, running at x16 4 x PCI Express x1 slots (All PCI Express slots conform to PCI Express 2.0 standard. ) 2 x PCI slots Multi-Graphics Technology Support for AMD Dual Graphics technology * Only A series APUs support AMD Dual Graphics.
Storage Interface Chipset: 6 x SATA 3Gb/s connectors supporting up to 6 SATA 3Gb/s devices Support for RAID 0, RAID 1, RAID 10, and JBOD

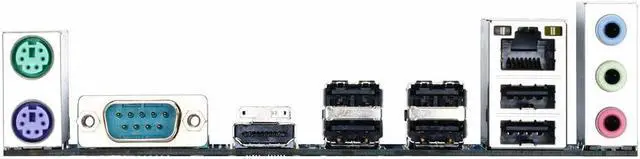

USB Chipset: Up to 14 USB 2.0 / 1.1 ports (6 ports on the back panel, 8 ports available through the internal USB headers) Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 6 x SATA 3Gb/s connectors 1 x APU fan header 3 x system fan headers 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 4 x USB 2.0 / 1.1 headers 1 x Clear CMOS jumper 1 x Trusted Platform Module (TPM) header Back Panel Connectors 1 x PS/2 keyboard port 1 x PS/2 mouse port 1 x serial port 1 x HDMI port 6 x USB 2.0 / 1.1 ports 1 x RJ-45 port 3 x audio jacks (Line In/Line Out/Microphone) I/O Controller iTE I/O Controller Chip H/W Monitoring System voltage detection APU/System temperature detection APU/System/Power fan speed detection APU overheating warning APU/System/Power fan fail warning APU/System fan speed control * Whether the APU/system fan speed control function is supported will depend on the APU/system cooler you install. BIOS 2 x 32 Mbit flash Use of licensed AMI EFI BIOS Support for DualBIOS PnP 1.0 a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features Support for @BIOS Support for Q-Flash Support for Xpress Install Support for EasyTune * Available functions in EasyTune may differ by motherboard model.
