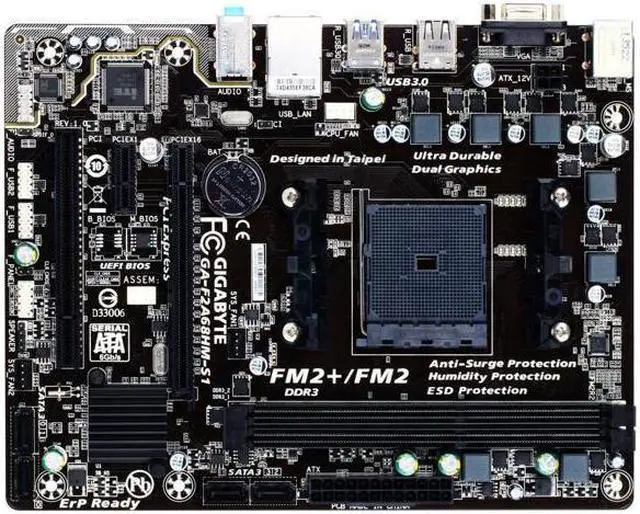

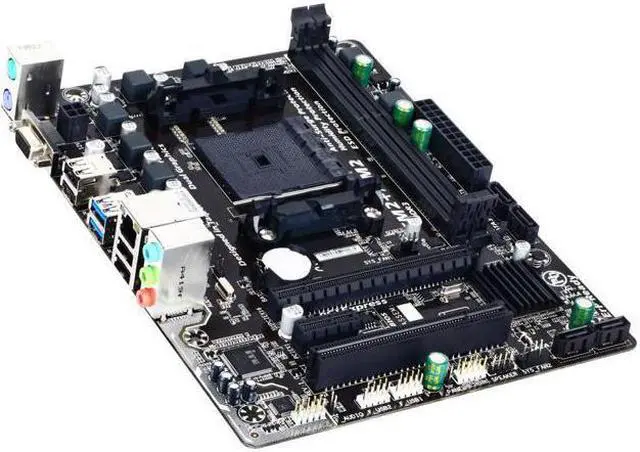

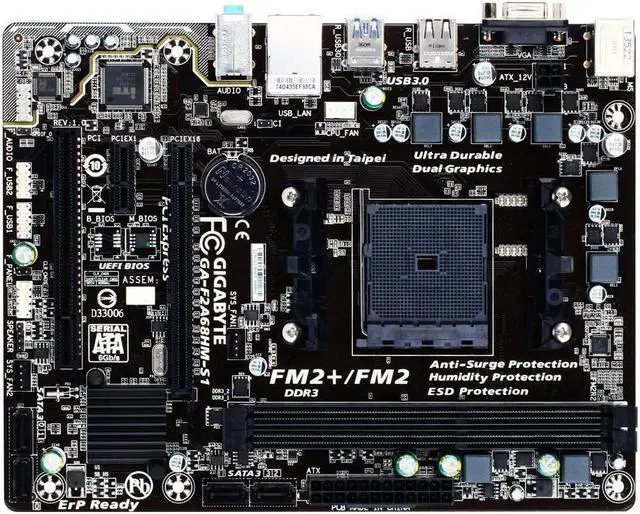

GIGABYTE GA-F2A68HM-S1 DDR3 Supports AMD FM2+/FM2 A-series APU

APUFM2+Socket: AMD A series processors AMD Athlon series processors (Please refer "CPU Support List" for more information.) Chipset AMD A68H Memory 2 x DDR3 DIMM sockets supporting up to 64 GB of system memory * The maximum 64 GB of system memory can be supported using 16 GB (or above) memory modules. GIGABYTE will update the memory support list on the official website when the memory modules are available on the market. * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed. Dual channel memory architecture Support for DDR3 2400 (OC) /2133/1866/1600/1333 MHz memory modules Support for AMD Memory Profile (AMP) / Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information.) Onboard
GraphicsIntegratedGraphicsProcessor: 1 x D-Sub port, supporting a maximum resolution of 1920x1200 Maximum shared memory of 2 GB Audio Realtek® ALC887 codec High Definition Audio 2/4/ 5.1 / 7.1 -channel * To configure 7.1 -channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. Support for S/PDIF Out LAN Realtek® GbE LAN chip (10/100/1000 Mbit) Expansion Slots 1 x PCI Express x16 slot, running at x16 (The PCI Express x16 slot conforms to PCI Express 3.0 standard.) * To support PCI Express 3.0, you must install an FM2+ APU. 1 x PCI Express x1 slot (The PCI Express x1 slot conforms to PCI Express 2.0 standard.) 1 x PCI slot Multi-Graphics Technology Support for AMD Dual Graphics technology * Only A series APUs support AMD Dual Graphics.
StorageInterfaceChipset: 4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 10, and JBOD

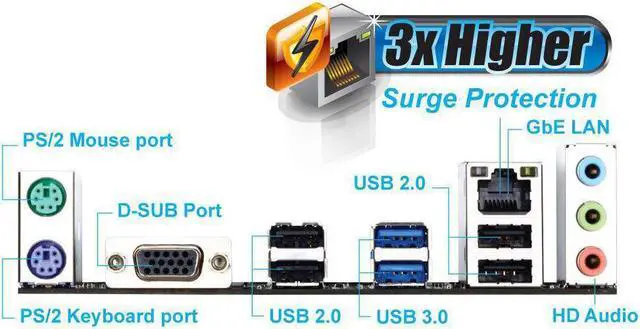

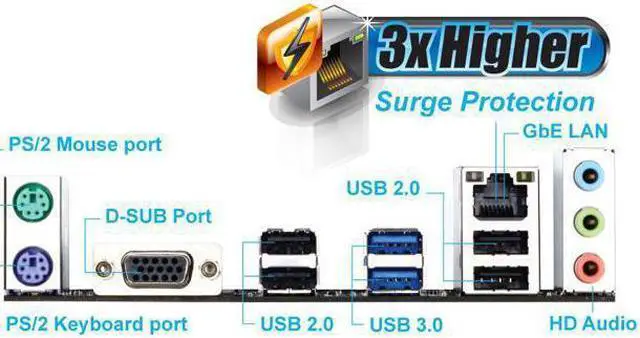

USBChipset: 2 x USB 3.0 / 2.0 ports on the back panel 8 x USB 2.0 / 1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 4 x SATA 6Gb/s connectors 1 x APU fan header 2 x system fan headers 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 2 x USB 2.0 / 1.1 headers 1 x speaker header 1 x chassis intrusion header 1 x Clear CMOS jumper Back Panel Connectors 1 x PS/2 keyboard port 1 x PS/2 mouse port 1 x D-Sub port 2 x USB 3.0 / 2.0 ports 4 x USB 2.0 / 1.1 ports 1 x RJ-45 port 3 x audio jacks (Line In, Line Out, Mic In) I/O Controller iTE® I/O Controller Chip H/W Monitoring System voltage detection APU/System temperature detection APU/System fan speed detection APU overheating warning APU/System fan fail warning APU/System fan speed control * Whether the fan speed control function is supported will depend on the cooler you install. BIOS 1 x 64 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0 a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features Support for @BIOS Support for Q-Flash Support for Xpress Install Support for EasyTune * Available functions in EasyTune may differ by motherboard model.

Support for Smart Recovery 2 Support for ON/OFF Charge Bundled Software Norton® Internet Secur
